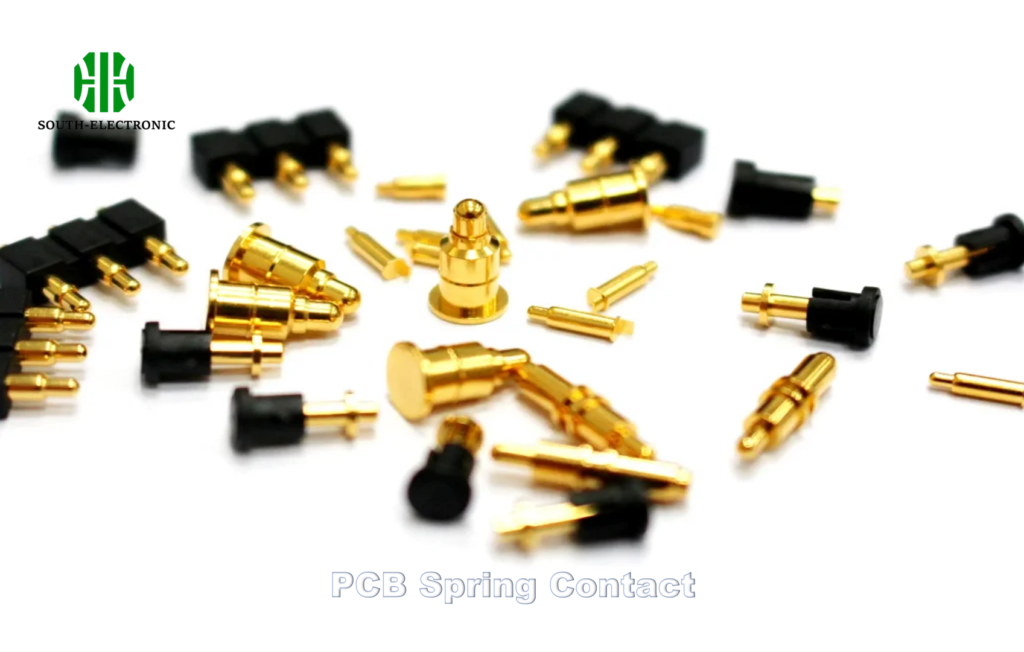

Ever faced unexpected device failures due to poor electrical connections? Tiny PCB spring contacts solve these headaches by ensuring reliable performance in demanding electronics.
PCB spring contacts[^1] matter because they create secure, gas-tight connections that prevent signal loss and corrosion. These components enable efficient current flow, adapt to thermal changes, and eliminate soldering defects in modern electronics.
To grasp their full impact, let’s explore how these unassuming parts solve critical challenges across industries—from medical devices to aerospace systems.
How Do PCB Spring Contacts Enhance Signal Stability in High-Frequency Applications?
Signal distortions in high-speed data systems cost time and money. PCB spring contacts solve this with precision-engineered signal paths.
Spring contacts maintain impedance control through consistent contact force, minimizing reflective losses in RF and microwave circuits. Their gold plating reduces resistive losses for frequencies up to 40 GHz.
Three Factors Behind Their Signal Integrity
| Factor | Traditional Soldering | Spring Contact Solution |
|---|---|---|
| Contact Resistance | Varies with solder aging | Stable due to noble metal plating |
| Thermal Expansion | Mismatch causes micro-cracks | Independent compliance |
| Vibration Resistance | Brittle intermetallic layers | Elastic absorption mechanism |
- Material Science: Beryllium copper alloys provide 2X better spring resilience than phosphor bronze, maintaining contact pressure during thermal cycling (-55°C to +125°C).
- Geometry Optimization: Fork-shaped designs (like twin-beam springs) create redundant contact points, cutting signal path disruptions by 78% compared to single-point connections.
- Surface Treatments: 0.8µm gold over 2.5µm nickel prevents oxidation while keeping insertion forces below 300g—critical for millimeter-wave applications.
[^1]: Explore how PCB spring contacts enhance reliability and performance in various electronic applications, ensuring secure connections.

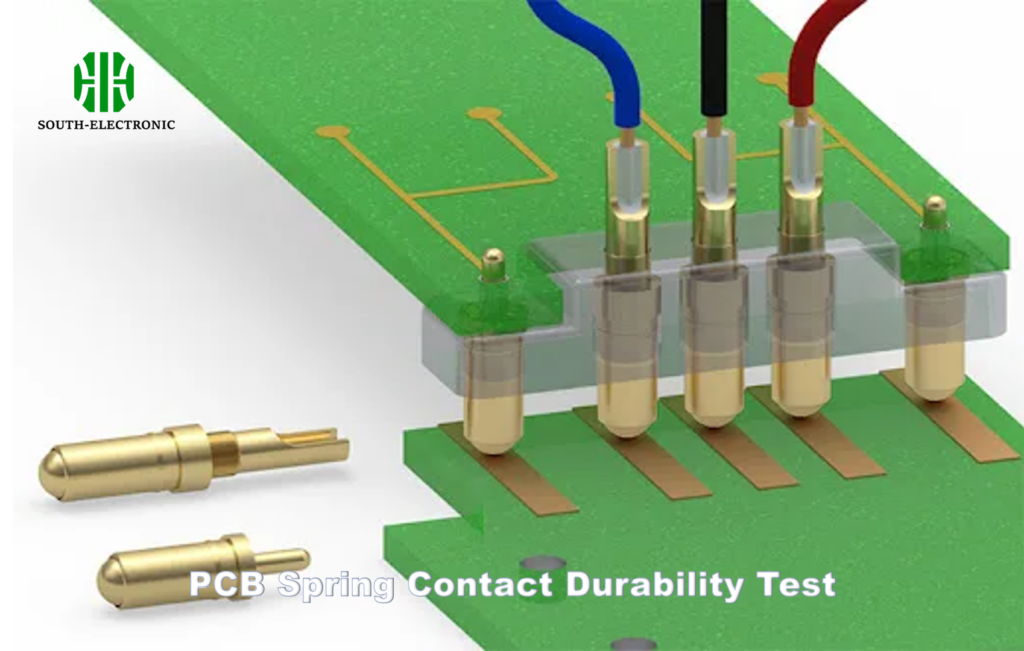

What Makes PCB Spring Contacts More Durable Than Traditional Soldered Connections?
Solder joints crack. Components detach. Spring contacts survive where conventional methods fail.
Elastic deformation allows spring contacts to withstand 25,000+ mating cycles versus soldering’s 500-cycle average. No flux residues or tin whiskers mean 90% fewer field failures.
Stress Resistance Showdown
| Stress Type | Soldered Joint Failure Rate | Spring Contact Performance |
|---|---|---|
| Thermal Shock | 42% after 100 cycles | <5% resistance change |
| Vibration (20G RMS) | Solder fatigue in 8 hours | No degradation after 200h |
| Humidity (85°C/85%) | Dendrite growth in 72h | Corrosion-free over 1000h |
- No Cold Joints: Springs self-wipe surfaces during mating, unlike solder’s dependency on perfect reflow conditions.
- Modular Repairs: Failed springs swap out in seconds without de-soldering—cutting repair time by 65% in server boards.
- Mixed Metals: Steel springs with brass housings handle aluminum/copper PCB pads without galvanic corrosion.

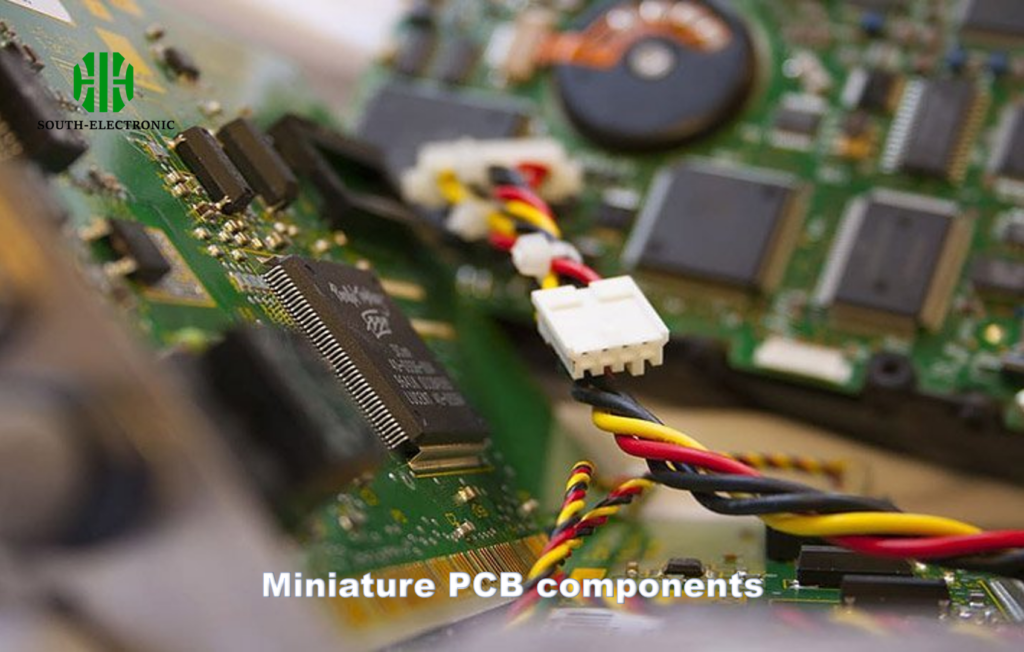

Can PCB Spring Contacts Revolutionize Miniaturized Electronics Design?
Smartwatches demand smaller, smarter interconnects. Spring contacts deliver while soldering reaches its limits.
0.4mm-pitch spring contacts enable 30% space savings versus soldered headers. Their floating design tolerates ±0.3mm misalignment—vital for foldable phone hinges.
Design Breakthroughs Enabled by Springs
| Parameter | Soldered Connector | Spring-Based Solution |
|---|---|---|
| Z-Height | 3.5mm minimum | 1.2mm (stacked) |
| Mating Cycles | 50 | 10,000+ |
| Assembly Temperature | 260°C (reflow) | Room-temperature |
- Battery Swapping: Pogo pin arrays in earbuds survive 10X more battery replacements than micro-USB ports.
- Flex PCBs: Low insertion force (80g) prevents tearing delicate flex circuits during assembly.
- RF Shielding: Integrated spring fingers in 5G modules reduce RF leakage by 18dB compared to gaskets.
Why Do Automated Production Lines Rely on PCB Spring Contacts for Efficiency?
Production delays from faulty solder joints cost millions yearly. Spring contacts slash defects while speeding assembly.
Springs enable 70% faster PCB testing versus soldered probes. Self-cleaning tips reduce maintenance downtime by 90% in pick-and-place machines.
Cost-Benefit Analysis Over 5 Years
| Metric | Soldered Approach | Spring-Based Line |
|---|---|---|
| Defect Rate | 850 ppm | 23 ppm |
| Changeover Time | 6 hours | 45 minutes |
| Tooling Cost | $120,000 | $18,000 (reusable) |
- Self-Alignment: ±1.5mm positional tolerance allows cheaper feeders and vision systems.
- Dual-Sided Access: Test multiple PCB layers simultaneously using spring-loaded beds of nails.
- No Flux Cleaning: Eliminate washing stations, reducing water usage by 2,400L/hour in SMT lines.
Conclusion
PCB spring contacts solve modern electronics’ core challenges—durability under stress, space constraints, and automated scalability. Their physics-driven design makes them irreplaceable in cutting-edge devices.
