Opt for South-Electronic for unmatched quality, reliability, and exceptional value. Experience the distinction with our all-encompassing cable assembly services—from detailed design to streamlined production, we ensure accuracy, efficiency, and adherence to your specific requirements.
Your Trusted Source for Cable Assembly Solutions
Welcome to South-Electronic, your hub for premium cable assembly services known for precise construction and swift execution.
When it comes to cable assembly solutions, South-Electronic is your trusted partner for quality and efficiency. Our team ensures every cable assembly meets the highest standards—from design to production, tailored precisely to fit your project’s needs. With our expertise, you get assemblies crafted for durability, tested rigorously, and delivered promptly. Let’s elevate your manufacturing process together—request a quote today!
Why Choose South-Electronic?
- Unique Customization
Tailored to your specifications, built to your unique needs.
With South-Electronic, you’ll get custom cable assembly solutions that are perfectly tailored to your specific requirements — no compromise, only precision. - High-Quality Component
Your projects deserve the best.
You can count on durable, reliable components that perform even under the most demanding conditions. - Flexible Ordering
Enjoy the freedom of flexible minimum order quantities, starting with one piece.
Whether you need a single prototype or a full production run, we make ordering as easy as possible for you. - Fast Turnaround
We know time is of the essence for your business.
Our streamlined process ensures that you receive your cable assemblies in a timely manner, allowing you to complete your project on time and ahead of schedule. - Quality Assurance
Quality is our commitment to you.
Every component is thoroughly tested to ensure it meets your standards, giving you confidence in the performance of every product from day one.

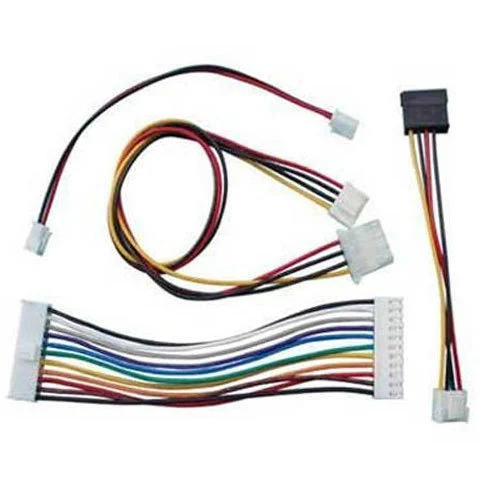

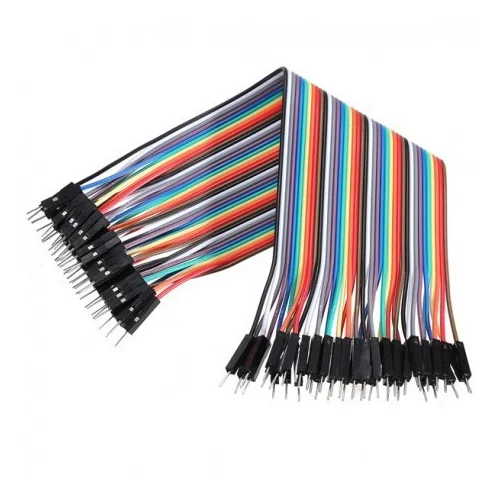

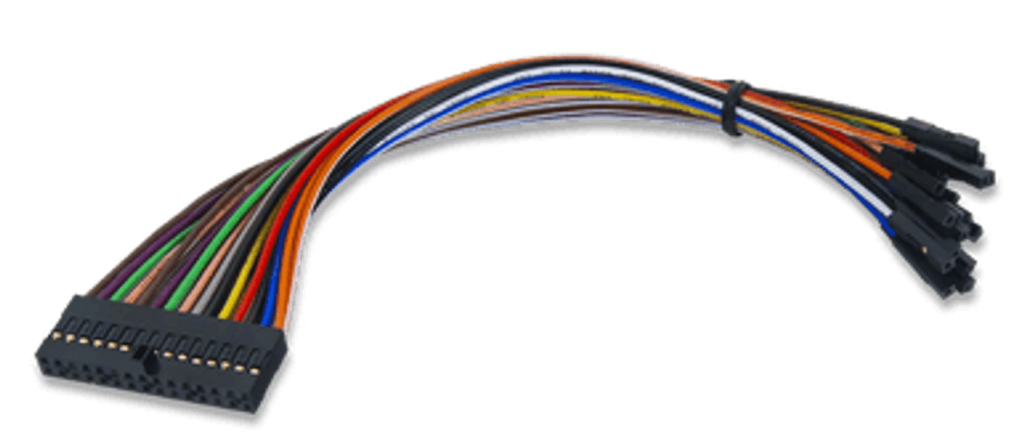

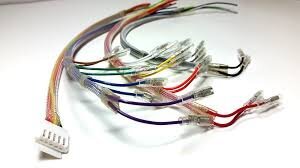

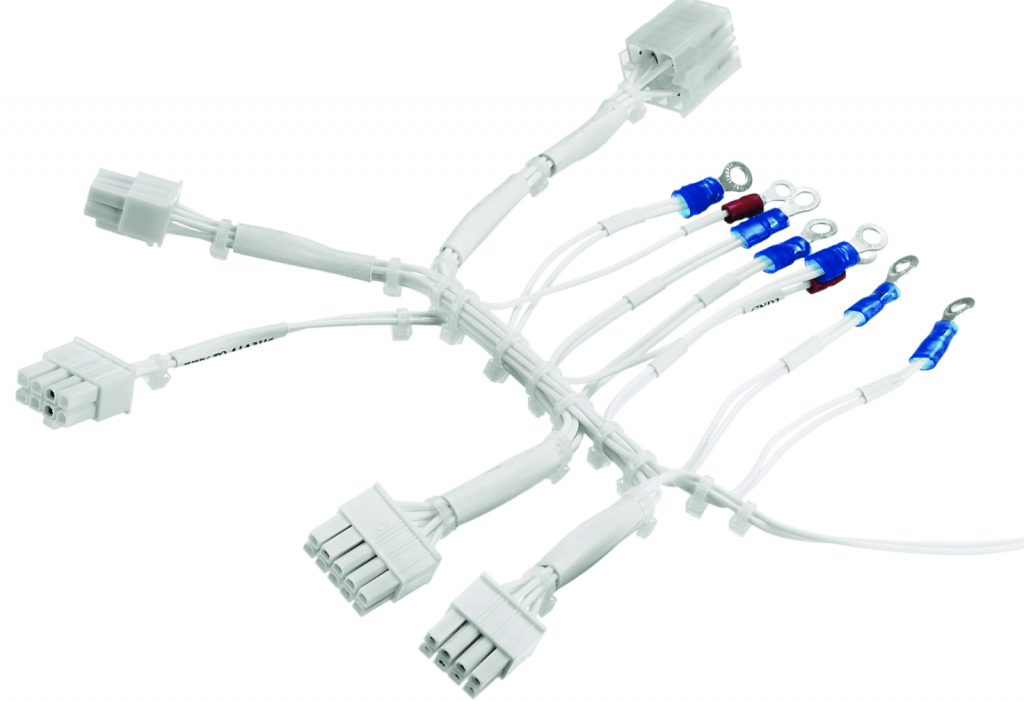

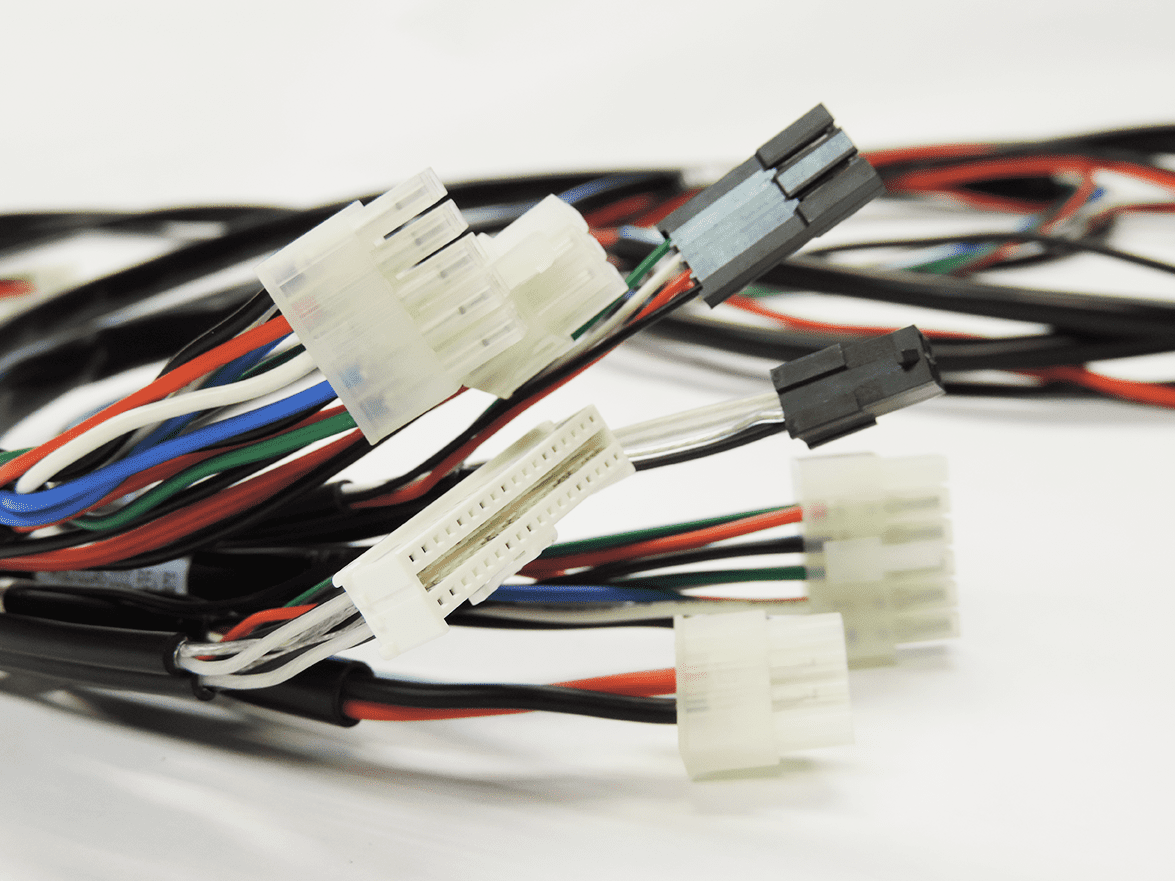

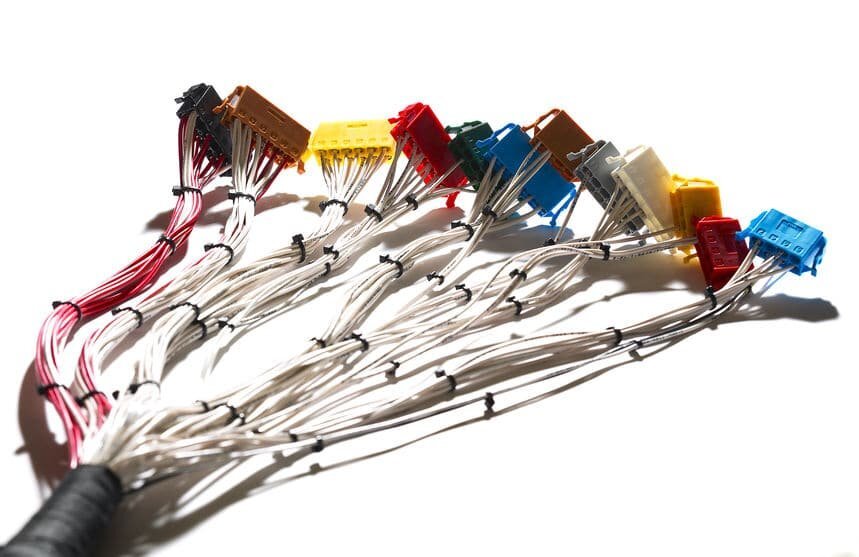

Related Project We had Done
Customer Reviews
engineer
thank you, guys, the boards are really good, i am really happy to receive my boards, the components are perfect!
Operation Manager
South-Electronic is my first PCBA supplier in China. The service and quality are excellent, and the after-sales support is also very impressive. Good Job!
Common Questions
Most Popular Questions
South-Electronic specializes in producing a wide range of cable assemblies tailored for various industries, including automotive, consumer electronics, and industrial applications. They offer both standard and custom configurations to meet specific requirements.
Yes, South-Electronic can handle urgent or rush orders. They have efficient processes in place to accommodate expedited production timelines, ensuring timely delivery for critical projects.
South-Electronic conducts comprehensive testing on their cable assemblies to ensure quality and reliability. This includes electrical performance tests, mechanical durability assessments, and environmental stress evaluations to meet industry standards and customer specifications.
Absolutely, South-Electronic offers customization options for cable assemblies. They work closely with clients to design and manufacture assemblies that align with specific technical requirements and project needs.
Lead times and delivery options vary based on order complexity and volume. South-Electronic provides flexible delivery schedules and shipping methods to accommodate customer timelines, with detailed information available upon request.
South-Electronic offers flexible minimum order quantities, starting from as low as one piece. This allows customers to order prototypes or small batches without significant constraints, facilitating various project scales.
Send us a message
The more detailed you fill out, the faster we can move to the next step.
The Complete Guide For Cable Assembly
Contents
Chapter 1
Introduction to Cable Assembly
Cable assemblies are the unsung heroes of the modern electronic and electrical systems that power our lives. They are the organized and reliable connections that transmit power, data, and signals across a wide range of applications. They are the bundles of cables or wires that are designed to be a single, cohesive unit, making installation easier, reducing clutter, and improving durability in demanding environments.
Cable assemblies are used in everything from cars and airplanes to medical devices, consumer electronics, and industrial equipment. They provide customized solutions that ensure precise and efficient performance. With the right materials and configuration, they can withstand environmental stresses such as temperature extremes, vibrations, and moisture, making them ideal for specialized applications.
As the demand for streamlined, high-quality connections continues to grow, cable assembly services like those offered by South-Electronic are becoming more and more valuable. From custom configurations to rigorous testing, these assemblies are engineered to enhance functionality and reliability, providing a critical foundation for countless advanced technologies.
Chapter 2
Types of Cable Assemblies
There are different types of cable assemblies, each designed to meet the specific needs of different applications. Knowing the different types will help you choose the right assembly for your specific requirements, whether it’s for automotive, industrial, consumer electronics, or specialized fields like aerospace and medical devices. Here’s a closer look at the main types of cable assemblies and their applications:
1. Power Cable Assemblies
Power cable assemblies are designed to handle high electrical currents, making them ideal for applications that require reliable power transmission. They are used extensively in industrial machinery, construction equipment, and heavy-duty vehicles. These assemblies are built with durable insulation and high-quality conductors to ensure safety and efficiency in high-load environments. They are often reinforced to withstand harsh conditions like extreme temperatures and mechanical stress.

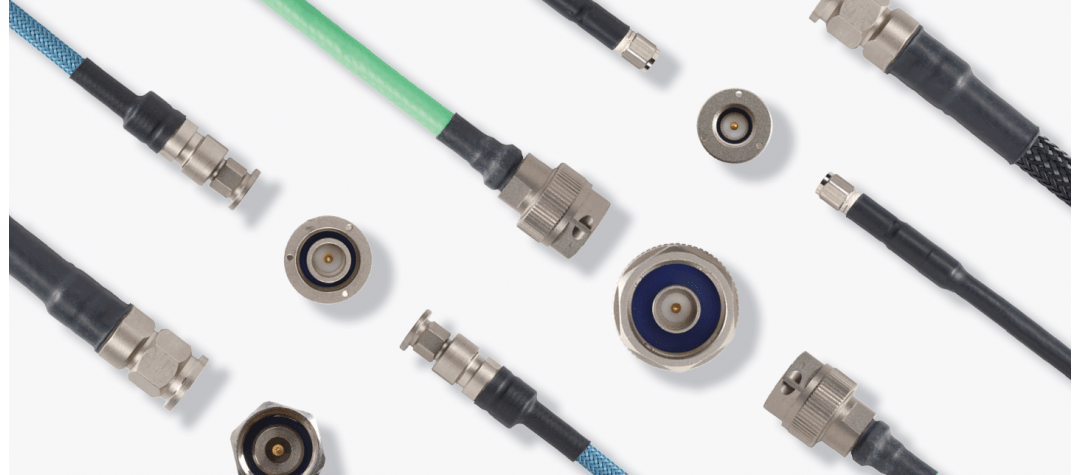

2. Coaxial Cable Assemblies
Coaxial cable assemblies are widely used for transmitting high-frequency signals, especially in telecommunications, radio, and broadcasting equipment. With an inner conductor surrounded by a layer of insulation and a braided shield, these cables are effective in reducing interference and ensuring clear signal transmission. Coaxial assemblies are also popular in data and audio-visual applications, providing reliable performance in systems that require minimal signal loss.

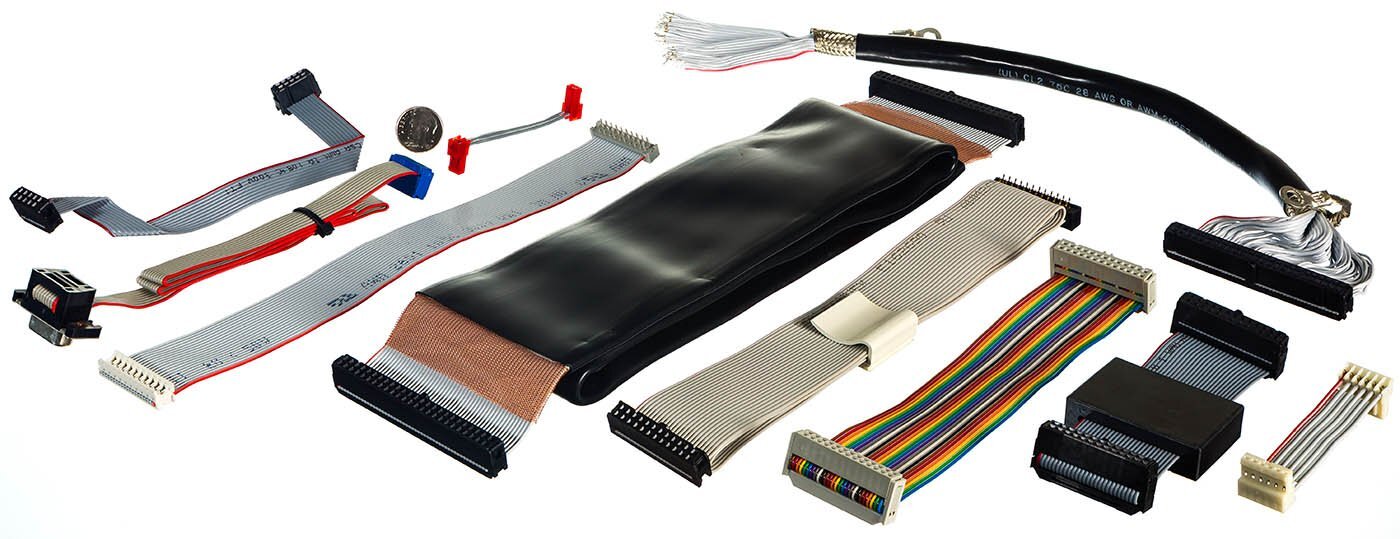

3. Ribbon Cable Assemblies
Ribbon cables consist of multiple conductors laid flat, resembling a ribbon. They are commonly used in computer and electronic devices where space-saving and organized connections are necessary, such as in internal wiring for printers, hard drives, and other electronic peripherals. Ribbon cable assemblies are typically flexible and easy to install, making them ideal for tight spaces where conventional cables would be cumbersome.
4. Fiber Optic Cable Assemblies
Fiber optic cable assemblies are essential for high-speed data transmission over long distances. They use light to transmit data, offering unmatched speed and bandwidth, making them ideal for telecommunications, medical imaging, and internet infrastructure. Fiber optic assemblies are immune to electromagnetic interference (EMI), allowing for clearer signals, especially in high-density data environments like data centers and advanced computing systems.
5. USB Cable Assemblies
USB (Universal Serial Bus) cable assemblies are among the most widely used cable types, providing a simple and standardized way to connect peripherals to computers and other devices. They are versatile, supporting data transfer, power supply, and connectivity for a wide range of devices, including smartphones, external hard drives, printers, and more. USB assemblies come in various types (e.g., USB-A, USB-C) to cater to evolving connectivity needs across different devices.
6. RF Cable Assemblies
RF (Radio Frequency) cable assemblies are designed to carry radio signals and are used in applications that require high-frequency performance, such as in antennas, broadcast systems, and wireless communication devices. They are made to prevent signal loss and ensure stable connections, even in complex and interference-heavy environments. With robust shielding and precise connectors, RF cable assemblies are a cornerstone in the telecommunications and wireless industry.
7. Automotive Cable Assemblies
Automotive cable assemblies are specifically engineered to meet the rigorous demands of vehicles, where durability and reliability are critical. They are designed to withstand exposure to vibrations, temperature fluctuations, and moisture, ensuring performance in various automotive subsystems such as lighting, ignition, and infotainment. With high-quality insulation and connectors, automotive assemblies help enhance vehicle safety and functionality.
8. Medical Cable Assemblies
Medical cable assemblies are highly specialized, designed to meet the stringent standards of the healthcare industry. They are often used in life-supporting and diagnostic equipment, requiring biocompatibility, reliability, and high precision. Materials used in medical assemblies must be sterilizable and resistant to bodily fluids, ensuring safe and effective connections in critical applications like ECG machines, MRI equipment, and surgical instruments.
9. Heavy-Duty Cable Assemblies
Heavy-duty cable assemblies are designed for applications requiring robust and resilient cables capable of withstanding extreme environmental conditions. They are commonly found in industrial settings, mining, and construction equipment. These assemblies are reinforced with rugged insulation and shielding to protect against wear, tear, and potential hazards. Heavy-duty cable assemblies are essential for environments where durability and safety are top priorities.
10. Custom Cable Assemblies
For projects with unique requirements, custom cable assemblies offer a tailored solution. Whether for specialized machinery, complex electronic systems, or unique environmental conditions, custom assemblies are designed to meet specific technical needs. These assemblies allow for custom connector types, cable lengths, shielding options, and insulation materials, giving clients the flexibility to achieve optimal performance in their applications.
Each of these cable assembly types serves distinct functions, catering to diverse industry demands. Choosing the right type involves understanding the application’s specific requirements, environmental conditions, and performance standards. South-Electronic provides expertise in creating these various cable assemblies, ensuring each product meets high-quality standards and performs optimally for its intended use.
Chapter 3
Key Components of a Cable Assembly
A cable assembly is a complex system that transmits signals, power, or data within a single structure. While each assembly may vary depending on the application, several core components are essential to ensure the assembly’s reliability, durability, and functionality. Here’s a breakdown of the key components found in most cable assemblies:
1. Conductors：Conductors are the heart of any cable assembly, carrying electrical currents or signals from one end to the other. They are typically made of materials like copper or aluminum due to their excellent conductivity and durability. The conductor’s gauge (thickness) and material are chosen based on the assembly’s required current-carrying capacity and the type of signal or power being transmitted.
2. Insulation：Insulation surrounds each conductor to prevent unintended contact with other conductors or external surfaces, ensuring safe and reliable operation. Insulating materials, such as PVC, Teflon, or polyethylene, are chosen based on the application’s specific needs, such as resistance to heat, moisture, chemicals, or mechanical stress. Insulation protects the conductor and maintains signal integrity.
3. Shielding：Shielding protects the signal from external electromagnetic interference (EMI), which can distort or weaken the transmitted signal. Common shielding materials include braided copper, aluminum foil, or a combination of both. Shielding is especially important in sensitive applications, such as data transmission or telecommunications, where signal clarity and stability are crucial.
4. Jackets：The jacket is the outermost protective layer of a cable assembly, shielding the inner components from physical damage, environmental conditions, and wear and tear. Made from materials like PVC, rubber, or polyurethane, jackets provide resistance to abrasions, moisture, chemicals, and UV exposure. The type of jacket used depends on the assembly’s specific environment, such as industrial, outdoor, or medical applications.
5. Connectors：Connectors are the interface between the cable assembly and the equipment it connects to, allowing for secure and reliable connections. Connectors come in a wide range of types (e.g., USB, RF, SMA, D-sub) and are selected based on the application’s requirements, such as frequency, voltage, and environmental conditions. Proper connector selection and assembly are crucial to avoid signal loss, wear, and connection failure.
6. Overmold：Overmolding is an added layer of material, typically a plastic or rubber compound, molded around the connection points of the cable assembly. It reinforces the connector’s attachment to the cable, providing strain relief and protecting against environmental factors. Overmolds are commonly found in assemblies subjected to frequent movement or harsh conditions, such as automotive or outdoor applications.
7. Strain Relief：Strain relief prevents excessive stress on the connectors and the cable, reducing the risk of damage from bending, pulling, or twisting. By distributing mechanical stresses, strain relief ensures the assembly’s longevity and reliability, especially in environments where cables undergo frequent movement or strain.
8. Heat Shrink Tubing：Heat shrink tubing secures connections and protects conductors or connections within the cable assembly. It is applied over the connection points and heated to shrink tightly around them, creating a sealed and insulated layer. Heat shrink is often used to provide additional protection against moisture, dust, and wear, improving the assembly’s durability.
9. Labeling and Marking：Labels and markings identify the assembly’s specifications, such as wiring diagrams, voltage ratings, or installation instructions. Accurate labeling aids in correct installation, troubleshooting, and maintenance, especially in complex systems where multiple assemblies are used. Labels can be printed directly on the jacket or attached via adhesive tags.
10. Bundling and Ties：In assemblies with multiple cables, bundling components like cable ties, wraps, or sleeving keep the conductors organized and compact. Proper bundling ensures the cables stay neat, reduces tangling, and facilitates easier installation and maintenance. Cable ties and wraps also prevent excessive bending or twisting that could compromise performance.
Each of these components plays a vital role in ensuring the cable assembly functions safely and effectively. Choosing high-quality materials and designing each component to meet specific application requirements are key to creating a durable, high-performance cable assembly. South-Electronic’s expertise in these components ensures their cable assemblies are tailored for durability, reliability, and optimal performance across diverse applications.
Chapter 4
Design Considerations
Designing a cable assembly involves a range of considerations to ensure optimal performance, durability, and safety for its intended application. From material selection to environmental factors, each aspect must be carefully evaluated to create a reliable and efficient assembly. Here are the key design considerations when creating a cable assembly:
1. Application Requirements
The intended use of the cable assembly is the primary driver of its design. Understanding the specific requirements, such as data transmission speed, power load, or signal clarity, is crucial. For example, an assembly used in high-speed data applications will prioritize shielding and low signal interference, while an automotive assembly may need to withstand extreme temperatures and vibrations.
2. Environmental Conditions
Environmental factors, such as temperature, humidity, and exposure to chemicals or UV light, significantly impact material choices. Cables in industrial or outdoor settings often require rugged jackets and insulation that resist heat, moisture, and abrasion. For underwater or outdoor applications, waterproof or corrosion-resistant materials are essential.
3. Electrical and Signal Requirements
The assembly’s electrical specifications, including voltage, current, and frequency, determine the conductor type, gauge, and insulation needed. High-voltage or high-frequency applications may require specific conductor materials, enhanced insulation, and extensive shielding to prevent signal loss or interference.
4. Flexibility and Bend Radius
If the cable assembly will be frequently moved, bent, or flexed, its design must accommodate this. Selecting flexible materials and incorporating strain relief at connector points ensures the assembly can handle repetitive motion without wear or damage. The bend radius, which is the minimum bend the cable can withstand without compromising performance, is an important factor for long-term durability.
5. Connector Selection
Connectors are chosen based on the type of signal or power transmitted, as well as compatibility with the connected devices. For instance, data cables may use USB or RJ45 connectors, while power cables may require more robust connectors like Anderson or Molex. Ensuring connectors are securely attached and protected with overmolds can enhance durability and maintain stable connections.
6. Shielding Requirements
In environments with potential electromagnetic interference (EMI), shielding is essential to protect signal integrity. Shielding types, such as braided, foil, or a combination, are chosen based on the assembly’s signal sensitivity and operating environment. Proper shielding ensures clear signal transmission, especially in high-frequency applications, such as telecommunications and data centers.
7. Safety and Compliance Standards
Meeting safety standards, such as ISO, RoHS, or UL certifications, is critical in cable assembly design. Compliance with industry standards ensures the assembly is safe for its intended application and adheres to regulatory requirements. Medical, automotive, and military applications, in particular, have strict compliance requirements to ensure safety and reliability.
8. Space and Weight Constraints
In applications like aerospace, automotive, or consumer electronics, space and weight limitations play a significant role. Compact, lightweight cable assemblies are often preferred to reduce overall system weight and fit within tight spaces. Designing for minimal bulk without sacrificing durability or performance is key in these applications.
9. Custom Configuration Needs
Many projects require custom configurations, including unique connector types, specific lengths, or multi-conductor assemblies. Customization options allow for precise alignment with application requirements, such as specific signal pairings or wire colors, which facilitate installation and maintenance.
10. Testing and Quality Assurance
Comprehensive testing is essential to confirm that the cable assembly meets all design specifications and application demands. Tests may include electrical performance, thermal resistance, flex life, and environmental durability, ensuring each assembly is reliable and ready for its operating environment. Including rigorous quality assurance in the design phase prevents failures and improves longevity.
11. Ease of Installation and Maintenance
Considering installation requirements, such as connector orientation or bundling, ensures the assembly can be easily installed and maintained. Including labeling and color-coded wires helps reduce installation time and improves troubleshooting efficiency, especially in complex systems.
12. Cost Efficiency
Balancing performance with budget constraints is an important consideration. Selecting materials and designs that meet functional needs without over-engineering helps keep costs manageable. For example, choosing standard connectors over custom ones or using simplified insulation for non-critical applications can reduce costs while still meeting performance requirements.
Designing a cable assembly that meets all functional and environmental needs requires a thoughtful approach to each of these factors. By focusing on the specific application and operating environment, South-Electronic ensures their cable assemblies are tailored for long-lasting performance, safety, and cost-effectiveness across various industries.
Chapter 5
Manufacturing Processes
Cable assemblies are manufactured through a series of steps designed to ensure quality, precision, and reliability. Each step is carefully executed to meet specifications and adhere to industry standards, ensuring the assembly performs effectively in its intended application. Here’s an overview of the primary manufacturing processes involved in creating high-quality cable assemblies:
1. Design and Prototyping
The process starts with a detailed design and prototyping phase where the assembly’s specifications, materials, and configurations are outlined. Engineers work closely with clients to create a design that meets all functional requirements and industry standards. Prototyping allows for testing and validation, ensuring the design performs as expected before moving to full-scale production.
2. Wire Cutting and Stripping
In this stage, wires are cut to precise lengths based on the design specifications. Advanced cutting machines are used for accuracy and consistency, especially in large production runs. Once cut, each wire is stripped of its insulation to expose the conductor, preparing it for connections. Precision in cutting and stripping is critical to ensure secure and efficient assembly.
3. Crimping and Soldering
Crimping and soldering are essential steps in securing connectors to the wires. Crimping involves mechanically pressing a connector onto the wire end, creating a reliable connection without the need for solder. In some assemblies, however, soldering is used to join wires and connectors, especially for connections that require high reliability or are exposed to vibrations. Both processes are executed with precision to ensure strong, durable connections.
4. Connector Assembly and Termination
In connector assembly, connectors are attached to the cable ends according to the design requirements. Different types of connectors, such as USB, coaxial, or custom connectors, are selected based on the application. Proper connector assembly ensures that the cable assembly can interface seamlessly with its intended devices. This stage also includes termination, where the conductors are securely attached to the connector, enabling a stable electrical or signal connection.
5. Overmolding
Overmolding involves applying a protective layer of material, usually a rubber or plastic compound, around the connection points. This adds durability, provides strain relief, and protects the connection from environmental factors like moisture or dust. Overmolding is particularly useful in assemblies exposed to physical stress or harsh conditions, ensuring long-term reliability.
6. Shielding Application
For assemblies requiring protection from electromagnetic interference (EMI), shielding is applied to prevent signal degradation. Depending on the design, shielding may involve wrapping conductors with foil, braided copper, or a combination of both. Proper shielding application is crucial in high-frequency applications like telecommunications or data transmission, where signal clarity is essential.
7. Jacket Extrusion
The jacket is the outermost layer that protects the entire cable assembly. Jacket extrusion involves coating the cable assembly with a durable, protective material such as PVC, rubber, or polyurethane. The jacket provides resistance to abrasion, moisture, and other environmental factors. In this process, the jacket material is heated and extruded around the assembly, forming a secure and protective outer layer.
8. Testing and Quality Control
Rigorous testing is conducted to ensure each cable assembly meets performance and quality standards. Tests may include continuity testing, insulation resistance testing, and high-potential (hi-pot) testing to verify electrical properties. Mechanical tests for durability, such as flex and bend tests, are also performed based on application requirements. This quality control stage is vital for detecting defects early, ensuring each assembly is ready for its operational environment.
9. Labeling and Marking
After testing, labeling is applied to identify specific cables and their applications, facilitating easy installation and maintenance. Labels can include part numbers, voltage ratings, color codes, or installation instructions. Proper labeling helps technicians install and troubleshoot assemblies more efficiently, especially in complex systems with multiple assemblies.
10. Bundling and Final Assembly
In this stage, individual cables within the assembly are bundled and organized according to the design specifications. Bundling is particularly important for multi-conductor assemblies, ensuring cables remain neat and manageable. Cable ties, wraps, or sleeves may be used to keep the bundle secure. Final assembly also involves attaching any necessary mounting hardware or additional components specified by the design.
11. Packaging and Shipping
Once the assembly is complete, it is packaged carefully to prevent damage during transit. Packaging is customized based on the assembly’s size, sensitivity, and destination, ensuring it arrives in optimal condition. South-Electronic prioritizes secure and efficient packaging, ensuring the assemblies are ready for immediate use upon delivery.
Each of these manufacturing processes is essential in creating a high-quality, reliable cable assembly. South-Electronic’s attention to detail and commitment to rigorous testing and quality control ensure that every assembly meets exacting standards for performance, durability, and safety. By following these precise processes, South-Electronic provides cable assemblies that are engineered to excel in a wide range of applications and environments.
Chapter 6
Testing and Quality Assurance
Testing and quality assurance are key steps in the manufacturing of cable assemblies. By conducting thorough testing and adhering to strict quality control procedures, South-Electronic ensures that every cable assembly performs reliably in its intended application. Here’s a closer look at the types of testing and quality assurance practices used to ensure the highest standards of quality:
1. Continuity Testing
Continuity testing verifies that the electrical connections within the cable assembly are complete, ensuring there are no open circuits. This test confirms that each conductor is connected correctly from one end to the other, allowing signals or power to pass without interruption. Continuity testing is a basic step to detect faulty connections and ensure reliable performance.
2. Insulation Resistance Testing
Insulation resistance testing measures the effectiveness of the insulation material around each conductor, ensuring it can prevent electrical leakage between wires. By applying a specified voltage to the insulation, this test checks for any unintended current flow. High insulation resistance indicates that the insulation is intact and capable of withstanding the assembly’s voltage requirements, reducing the risk of short circuits.
3. High-Potential (Hi-Pot) Testing
Hi-Pot testing applies a high voltage to the cable assembly to verify the integrity of the insulation and the ability to withstand high voltages without breakdown. This test simulates real-world conditions to ensure that the insulation can handle surges and electrical stress without failure, making it essential for assemblies used in high-voltage or critical applications.
4. Signal Integrity Testing
Signal integrity testing is crucial for cable assemblies that transmit data, such as coaxial or fiber optic cables. This test checks for any distortion, loss, or delay in the signal as it passes through the assembly. Ensuring high signal integrity is especially important for applications where data accuracy is critical, such as telecommunications, networking, and high-speed data systems.
5. Electromagnetic Interference (EMI) and Electromagnetic Compatibility (EMC) Testing
EMI and EMC testing assess the assembly’s ability to resist external electromagnetic interference and its compatibility with surrounding electronic devices. This test is critical in applications where clear, uninterrupted signals are required, such as in medical devices, telecommunications, and aerospace. Proper shielding and design help reduce interference, ensuring reliable performance in EMI-sensitive environments.
6. Mechanical Stress Testing
Mechanical stress testing evaluates the assembly’s durability under physical conditions, including bending, twisting, and stretching. This testing is particularly important for assemblies that will undergo frequent movement or are used in high-vibration environments, such as automotive or industrial applications. By simulating real-world stress, this test ensures the assembly can withstand the rigors of its intended use without compromising performance.
7. Environmental Testing
Environmental testing subjects the cable assembly to extreme conditions to verify its resilience in specific environments. Tests may include exposure to high and low temperatures, humidity, UV radiation, and even salt spray for corrosion resistance. Environmental testing is essential for assemblies used outdoors or in challenging conditions, such as in automotive or marine applications, ensuring long-term durability and reliability.
8. Pull and Flex Testing
Pull testing measures the strength of the connections within the assembly by applying a controlled force to the connectors and cable terminations. This test ensures that connectors and joints can withstand tensile stress without detachment or damage. Flex testing evaluates the assembly’s ability to endure repeated bending without losing integrity, especially for applications requiring high flexibility, such as robotics or handheld devices.
9. Overmold and Strain Relief Testing
Overmolds and strain reliefs are tested for their durability and effectiveness in protecting the connectors from wear and strain. By simulating repeated bending and pulling, this test ensures that the overmold and strain relief components provide adequate protection and reduce the risk of damage to the internal connections, which is critical for assemblies subjected to regular movement.
10. Visual Inspection
Visual inspection is a quality control step where trained technicians examine the assembly for any visible defects, such as improperly crimped connectors, missing insulation, or flaws in the overmold. A thorough visual inspection helps detect any potential issues that might affect performance, ensuring each assembly meets aesthetic and structural standards.
11. Labeling and Compliance Verification
Labeling verification ensures that each assembly is accurately marked with specifications, part numbers, and safety certifications, as required by industry standards. Compliance verification confirms that the assembly meets all relevant standards, such as ISO, RoHS, or UL, ensuring the product is safe, reliable, and ready for use in regulated industries like medical, automotive, and telecommunications.
Each of these testing and quality assurance steps is critical for delivering cable assemblies that meet the high standards expected by clients. South-Electronic’s commitment to rigorous testing ensures that every cable assembly is ready to perform under the specific demands of its application, providing reliable connections, durability, and safety. By focusing on comprehensive quality assurance, South-Electronic guarantees products that customers can trust in any environment.
Chapter 7
Common Applications of Cable Assemblies
Cable assemblies are a big deal in a lot of industries. They transmit power, signals, and data between devices and systems. Every application has different needs, from being able to handle harsh environments to fitting into tight spaces. Here are some of the most common applications for cable assemblies and what they need to do:
1. Automotive and Transportation
In the automotive industry, cable assemblies are used to power everything from lights and ignitions to infotainment and safety features. They have to be able to handle vibrations, temperature changes, moisture, and chemicals. They’re also super important in electric vehicles, where they connect the battery system to the motor controllers and other electronic systems to make sure everything works right.
2. Aerospace and Defense
Aerospace and defense applications need cable assemblies that can handle extreme conditions and still work great. They’re used in planes, satellites, and military equipment. They have to be lightweight, able to handle temperature extremes, and able to handle a lot of vibration and electromagnetic interference (EMI). These applications need special assemblies that are super precise and can handle a lot to make sure they work right.
3. Telecommunications and Networking
Telecommunications and networking use cable assemblies to send high-frequency signals without losing anything or getting messed up. Coaxial and fiber optic cable assemblies are super common in these fields and are used in data centers, radio towers, and broadcasting equipment. They’re designed to send data fast, last a long time, and keep EMI out of the way so signals stay clear and connections stay strong in places where there’s a lot of data.
4. Medical Equipment
Medical devices need cable assemblies that are tough and safe for sensitive places. They’re used in diagnostic equipment, imaging machines, and patient monitoring devices. Medical cable assemblies are made with materials that are safe for people and can handle being sterilized over and over again. They make sure patients are safe and everything works right, especially in devices where the data has to be perfect.
5. Industrial and Manufacturing
In industrial and manufacturing, cable assemblies connect machines, automation systems, and control panels. They have to be tough and able to handle being rubbed against, getting wet or dirty, and being moved around a lot. Industrial cable assemblies make sure power and data can get through so automated processes, robots, and big machines can work right.
6. Consumer Electronics
Consumer electronics like phones, laptops, and home entertainment systems use cable assemblies to connect and get power. USB, HDMI, and audio/video cable assemblies are some of the most common. They’re made to be small, flexible, and easy to use. Consumer electronics need good connections to work right and often need to look good and be easy to use.
7. Renewable Energy Systems
In renewable energy systems like solar and wind, cable assemblies connect important parts like solar panels, inverters, batteries, and control systems. They have to be tough, able to handle being outside in the sun and wind, and able to handle getting wet. Renewable energy cable assemblies make sure power can get through and everything stays working right outside.
8. Robotics and Automation
Robots and automation use cable assemblies to connect motors, sensors, and control systems. They have to be able to move around a lot, bend, and twist without breaking. Robotic cable assemblies are made to handle stress and are made with strong materials so they can handle a lot and keep automated systems working right for a long time.
9. Marine and Offshore Applications
Marine cable assemblies are used in boats, submarines, and offshore drilling equipment. They have to be able to handle being in the water, getting wet, and being in really hot or cold places. They’re made to not rust, keep water out, and make sure connections stay strong even when there’s a lot of vibration. They make sure boats and other things in the water can navigate, communicate, and get power.
10. Data Centers and IT Infrastructure
Cable assemblies are super important in data centers and IT infrastructure. They make sure servers, storage units, and networking equipment can connect and get power. Data centers need assemblies that can send data fast, keep EMI out of the way, and keep everything cool. Fiber optic and copper cable assemblies are used a lot to make sure connections are fast and strong and networks can grow.
Cable assemblies are used in all these different places to make sure everything connects and works right. South-Electronic knows how to make cable assemblies that work great in all these different industries. They make sure each assembly is made to do what it needs to do, so everything works better and people can do more in all these different fields.
Chapter 8
Challenges and Solutions in Cable Assembly
Designing and manufacturing cable assemblies is challenging because different industries and applications have different requirements. You need solutions that ensure durability, reliability, and safety, even in the most demanding environments. Here are some of the key challenges in cable assembly and the solutions that address them:
1. Environmental Resistance
Cable assemblies are exposed to harsh environments, including extreme temperatures, moisture, UV radiation, and chemicals. These conditions can degrade materials, leading to performance issues or failure.
Choose materials with high resistance to environmental factors. For example, Teflon and silicone are excellent choices for high-temperature resistance, while polyurethane is effective in resisting abrasions and chemicals. Apply additional protective layers, such as waterproof jackets or UV-resistant coatings, to enhance durability in challenging conditions.
2. Signal Integrity and Electromagnetic Interference (EMI)
Maintaining signal integrity is essential, especially in high-frequency applications. Electromagnetic interference from nearby electronic devices or cables can disrupt signal transmission, causing data loss or errors.
Use shielding techniques, such as braided or foil shielding, to protect sensitive signals from interference. Twist pairs of wires or add grounding layers to reduce EMI. Choose high-quality connectors and properly ground the assembly to ensure stable signal transmission in EMI-prone environments.
3. Space and Weight Constraints
Many applications, such as aerospace, medical devices, and consumer electronics, require compact and lightweight cable assemblies due to space and weight restrictions.
Use thinner and more flexible cables, compact connectors, and lightweight materials to minimize the assembly’s footprint. Flat or ribbon cables are also useful for saving space in tight configurations, allowing for an efficient and organized design without compromising performance.
4. Mechanical Stress and Flexibility
Cable assemblies in robotics, industrial automation, and automotive systems are often subjected to constant bending, twisting, or vibrations. Mechanical stress can weaken the assembly over time, leading to potential breakage or signal disruption.
Reinforce cables with strain reliefs, overmolds, and flexible materials that allow movement without damaging the connectors or conductors. Choose conductors with higher tensile strength, and incorporate strain relief components into the design to prevent stress concentration at connection points.
5. Complexity in Multi-Conductor Assemblies
Multi-conductor assemblies are often required in complex systems where multiple signals or power lines are transmitted simultaneously. Managing a large number of conductors can lead to tangling, interference, or miswiring, especially in high-density setups.
Properly bundle conductors using cable ties, sleeving, or wrapping to prevent tangling. Label and color-code conductors to simplify installation and maintenance, reducing the risk of miswiring. For high-density connections, use multi-layered shielding and precise insulation between conductors to avoid interference.
6. Quality Assurance and Compliance Standards
Meeting industry-specific quality and regulatory standards, such as ISO, RoHS, or UL, is essential for safety and reliability. Failing to meet these standards can lead to performance issues, legal repercussions, and safety hazards.
Implement rigorous quality control procedures, including high-potential (hi-pot) testing, continuity testing, and environmental testing, to ensure the assembly meets all necessary standards. South-Electronic adheres to strict manufacturing protocols, ensuring every assembly is compliant with regulatory requirements for safety, performance, and environmental standards.
7. Customization for Specialized Applications
Some industries require highly customized assemblies with unique configurations, connector types, or materials. Custom designs can lead to longer lead times and increased costs if not managed properly.
Invest in modular design strategies and maintain a flexible production process to enable quicker customization without excessive costs. Use 3D modeling for design and prototyping to accelerate the development of custom solutions, allowing for efficient adjustments based on customer feedback.
8. Cost Constraints
Balancing cost-effectiveness with quality is a common challenge, especially for large-scale production or when using premium materials. High-quality assemblies often require expensive materials or complex manufacturing processes.
Use cost-effective materials in less critical parts of the assembly, focusing on high-quality components only where needed. Streamline manufacturing processes, leverage automation, and optimize material usage to control costs while maintaining high-quality standards.
9. Delivery and Lead Time Requirements
Many industries, particularly those with production deadlines or supply chain constraints, require cable assemblies with short lead times. Delays can impact overall project timelines, especially in fields like automotive or consumer electronics.
Employ efficient, scalable production processes and maintain inventory of commonly used materials to ensure quick turnaround. Work closely with suppliers and streamline internal logistics to reduce lead times, ensuring timely delivery without compromising quality.
10. Installation and Maintenance Accessibility
Complex cable assemblies can be challenging to install and maintain, particularly in tight spaces or systems with multiple connections. Improper installation may lead to performance issues or damage.
Simplify the design with pre-labeled conductors, color-coded wires, and user-friendly connectors to ensure smooth installation. Use modular components to enable easier maintenance and replacement, reducing downtime and minimizing errors during installation.
By addressing these challenges with tailored solutions, South-Electronic ensures its cable assemblies are well-equipped to handle diverse applications and environments. Through careful material selection, rigorous quality control, and a commitment to customization, South-Electronic provides cable assemblies that meet the demands of even the most complex and challenging projects.
Chapter 9
Future Trends in Cable Assembly Technology
The field of cable assembly technology is changing rapidly to meet the growing demands of modern applications, from the Internet of Things (IoT) and renewable energy to advanced automation and 5G connectivity. As industries evolve, so does the need for innovative cable assembly solutions that are more efficient, durable, and versatile. Here are some of the key trends shaping the future of cable assembly technology:
1. Miniaturization and High-Density Cable Assemblies
As electronic devices get smaller and more powerful, there is a growing demand for compact, high-density cable assemblies that can fit into tight spaces without sacrificing performance. Miniaturized connectors and thinner cables allow cable assemblies to accommodate more connections in smaller spaces, supporting applications in smartphones, wearable devices, medical equipment, and aerospace.
2. Enhanced Flexibility and Durability for Dynamic Applications
Robotics, automation, and wearable technologies require cable assemblies that can withstand continuous movement, bending, and torsion without failing. Future cable assemblies are expected to use advanced materials, such as flexible polymers and lightweight alloys, to enhance durability while maintaining flexibility. Innovations like flexible printed circuit (FPC) assemblies and coiled or retractable cables are likely to become more popular as dynamic applications expand.
3. Increased Use of Fiber Optics for High-Speed Data Transmission
With the demand for higher data speeds and bandwidth continuing to rise, especially in 5G and data center applications, fiber optic cable assemblies are becoming more prevalent. Fiber optics offer high-speed, long-distance data transmission with minimal signal loss, making them ideal for telecommunications, IoT networks, and other data-intensive applications. Innovations in fiber optic materials and manufacturing are expected to improve flexibility and reduce costs, making fiber optics more accessible across industries.
4. Integration of Smart Features for Monitoring and Diagnostics
Cable assemblies are increasingly incorporating smart features to support predictive maintenance and diagnostics, especially in industrial and critical applications. Smart cables with embedded sensors can monitor parameters like temperature, strain, and signal integrity in real time. This capability allows for early detection of issues, preventing failures and reducing maintenance costs, making these smart assemblies valuable in manufacturing, automotive, and infrastructure applications.
5. Sustainability and Eco-Friendly Materials
Environmental considerations are driving the shift towards sustainable cable assembly materials and processes. Future assemblies are likely to feature eco-friendly materials, such as biodegradable insulation and recyclable metals, reducing environmental impact. Additionally, manufacturers are adopting more energy-efficient production methods and prioritizing materials that comply with environmental regulations like RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals).
6. High-Temperature and High-Voltage Assemblies for Electric Vehicles (EVs)
The rapid growth of electric vehicles has created a demand for cable assemblies that can handle high voltages and resist extreme temperatures. EVs require specialized assemblies that provide safe and reliable power transfer between batteries and motors. Advanced insulation materials and connectors designed to withstand high currents are being developed to meet the requirements of EV applications, supporting vehicle efficiency and safety.
7. Advances in EMI Shielding for 5G and Wireless Applications
As 5G networks and wireless technologies proliferate, EMI shielding is becoming increasingly important to maintain signal integrity in crowded electronic environments. Future cable assemblies are expected to use advanced EMI shielding materials and designs that can effectively block interference without adding bulk or weight. Innovations in nanomaterial-based shielding and flexible EMI barriers are likely to improve performance for high-frequency applications, including 5G, IoT devices, and medical equipment.
8. Hybrid Cable Assemblies for Multifunctional Applications
Hybrid cable assemblies, which combine power, data, and signal transmission within a single cable, are gaining traction in industries looking to reduce complexity and space requirements. These assemblies streamline connections by integrating multiple functionalities, making them ideal for compact and multifunctional devices. Hybrid assemblies are particularly useful in industries like aerospace, automotive, and industrial automation, where simplifying wiring and reducing weight are essential.
9. Automation in Cable Assembly Manufacturing
To meet the growing demand for customized and high-quality assemblies, manufacturers are embracing automation in cable assembly production. Automated processes, such as robotic soldering, crimping, and testing, improve production speed, consistency, and quality while reducing human error. The integration of AI-powered quality control systems is also expected to streamline manufacturing, ensuring that each assembly meets precise specifications and industry standards.
10. Customization and On-Demand Production
With industries increasingly requiring specialized solutions, customization and on-demand production are becoming central to cable assembly technology. Future advancements in modular design and flexible manufacturing will allow for quick adjustments to meet specific client requirements, reducing lead times and costs. 3D printing and other rapid prototyping technologies are also being explored for cable assemblies, allowing manufacturers to produce customized components efficiently and accurately.
The future of cable assembly technology will be defined by innovation in miniaturization, flexibility, data capabilities, and sustainability. As industries continue to evolve, South-Electronic remains at the forefront of these trends, offering solutions that meet the complex and growing demands of modern applications. Through a commitment to advanced materials, smart technologies, and environmentally responsible practices, South-Electronic delivers cable assemblies that support the next generation of high-performance, high-reliability devices and systems.
Chapter 10
How to Choose the Right Cable Assembly Provider？
Selecting the right cable assembly provider is crucial for ensuring your project’s success, as the quality and reliability of the assemblies directly impact system performance and longevity. Here are key factors to consider when choosing a provider:
1. Expertise and Industry Experience
Look for providers with a proven track record and experience in your specific industry. Providers with expertise in your field, whether it’s automotive, aerospace, medical, or telecommunications, are more likely to understand your unique requirements and deliver solutions tailored to your applications.
2. Customization Capabilities
Every project has its specific needs. A strong provider should offer a wide range of customization options, from materials and connectors to cable lengths and shielding requirements. Providers that offer flexible design services and work closely with clients to develop custom configurations can better meet your exact requirements.
3. Quality Assurance and Testing Protocols
Quality is non-negotiable when it comes to cable assemblies. Ensure the provider follows rigorous quality control processes, such as continuity testing, insulation resistance testing, and mechanical durability tests. Providers that adhere to industry certifications like ISO, UL, and RoHS demonstrate a commitment to meeting quality and safety standards.
4. Materials and Component Quality
The choice of materials directly impacts the durability and performance of the cable assemblies. Select providers that use high-grade materials and components suited to your application’s environmental and mechanical demands. Providers with reliable sourcing and an emphasis on quality materials will help ensure that the assemblies perform reliably over time.
5. Technical Support and Communication
A reliable provider offers accessible technical support and clear, responsive communication throughout the project. Look for providers with dedicated engineering teams who can offer advice on material selection, design optimization, and troubleshooting. Open communication is essential for efficient project management and quick resolution of any potential issues.
6. Lead Time and Production Capacity
Timely delivery is essential, especially in industries with tight schedules. Evaluate the provider’s production capabilities and flexibility to meet your deadlines, even for large or urgent orders. A provider with scalable manufacturing processes and quick lead times can help you maintain project timelines and reduce downtime.
7. Environmental and Regulatory Compliance
Many industries have strict environmental and regulatory requirements, such as RoHS, REACH, or UL standards. Choose a provider that adheres to these standards to ensure your assemblies comply with environmental and safety regulations, particularly if they will be used in global markets.
8. Cost Efficiency and Value
While cost is an important factor, it’s essential to weigh the quality and services provided. A reliable provider will offer cost-effective solutions without compromising on quality. Be cautious of low-cost providers that may cut corners, as this can lead to substandard assemblies and higher costs in the long run due to potential failures or replacements.
Choosing a cable assembly provider that aligns with your project’s technical needs, budget, and timeline can significantly enhance product performance and reliability. By carefully assessing providers based on these criteria, you can secure a partner who delivers high-quality cable assemblies tailored to your unique requirements, ultimately supporting your success in competitive markets.
Get in touch
Where Are We?
Industrial Park, No. 438 Donghuan Road, No. 438, Shajing Donghuan Road, Bao'an District, Shenzhen, Guangdong, China
Floor 4, Zhihui Creative Building, No.2005 Xihuan Road, Shajing, Baoan District, Shenzhen, China
ROOM A1-13,FLOOR 3,YEE LIM INDUSTRIAL CENTRE 2-28 KWAI LOK STREET, KWAI CHUNG HK
service@southelectronicpcb.com
Phone : +86 400 878 3488
Send us a message
The more detailed you fill out, the faster we can move to the next step.
