PCB Boards

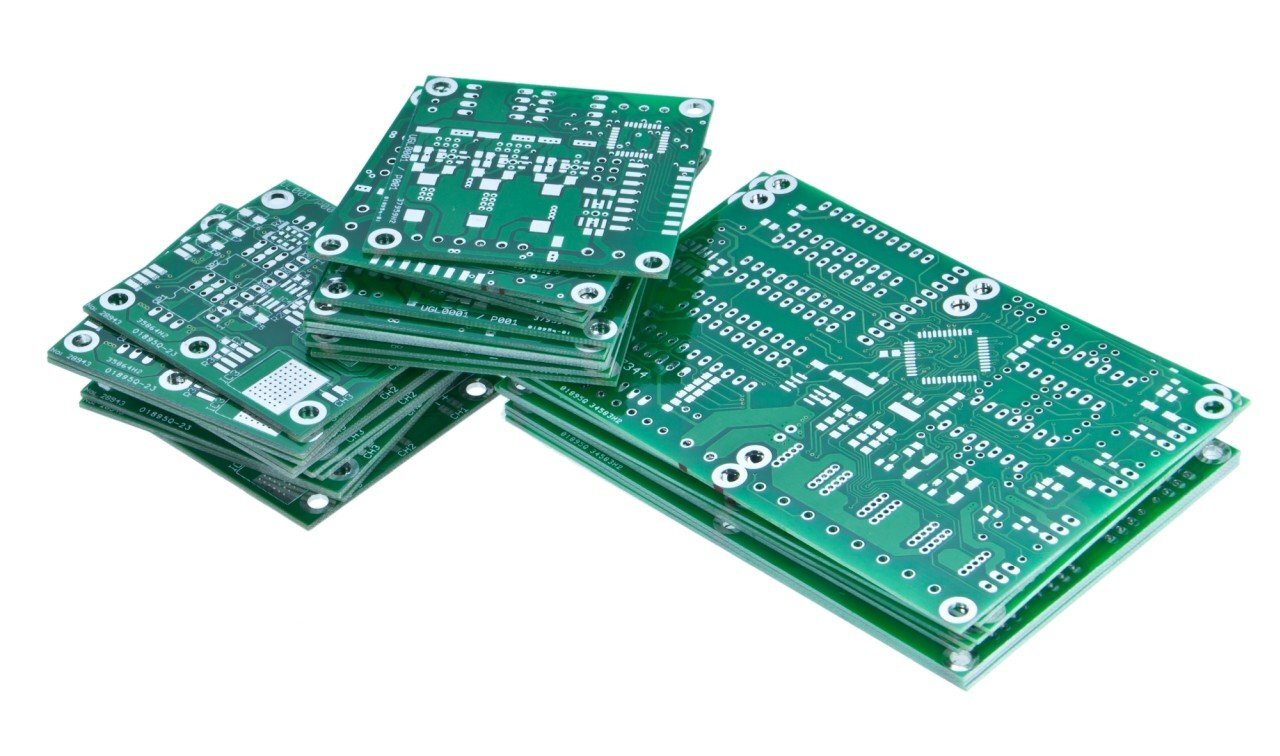

Rigid PCB Process Capability
-
Layer Count
1-68 layers
-
PCB Dimensions
≤24*48inch(610*1220mm)
-
Materials Types
FR-4 ｜ High Tg ｜ Halogen-free ｜ PTFE ｜ Ceramic PCB ｜ Metal substrate material
-
Material Brand
Lianmao｜Shengyi｜ Taiyao｜ Nanya, Panasonic｜Isola｜Nelco｜Rogers｜Taconic｜Arlon...
-
Board Thickness
0.2mm-8.0mm
-
Finish Treatment
Immersion Gold｜Lead-free HASL｜OSP｜Immersion Tin｜Immersion Silver｜Thick Gold Plating｜Silver Plating｜Immersion Gold+OSP
-
Copper thickness
0.33 OZ-8 OZ
-
SolderMask Color
Green｜ Blue｜ Black｜Yellow｜ Red｜Purple｜ White...
-
Finish Treatment
Immersion Gold｜Lead-free HASL｜OSP｜Immersion Tin｜Immersion Silver｜Thick Gold Plating｜Silver Plating｜Immersion Gold+OSP

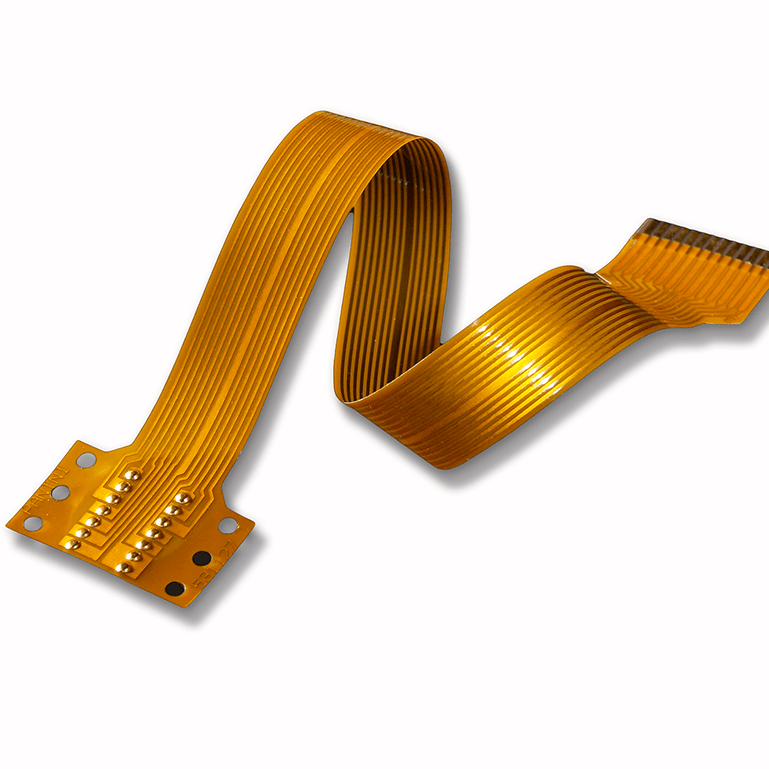

Flex PCB Process Capability
-
Layer Count
1-8 layers
-
PCB Dimensions
≤9*14inch（230*355mm）
-
Board Thickness
0.05mm-0.8mm
-
Finish Treatment
Lead HASL｜Immersion gold｜ Chemical nickel palladium gold｜Soft gold plating｜ Hard gold plating｜Immersion silver｜OSP,｜Immersion tin｜ENIG+OSP｜ ENIG+G/F
-
Copper Thickness
≤3 OZ
-
SolderMask Color
Green｜ Blue｜ Black｜Yellow｜ Red｜Purple｜ White...
-
Finish Treatment
Immersion Gold｜Lead-free HASL｜OSP｜Immersion Tin｜Immersion Silver｜Thick Gold Plating｜Silver Plating｜Immersion Gold+OSP

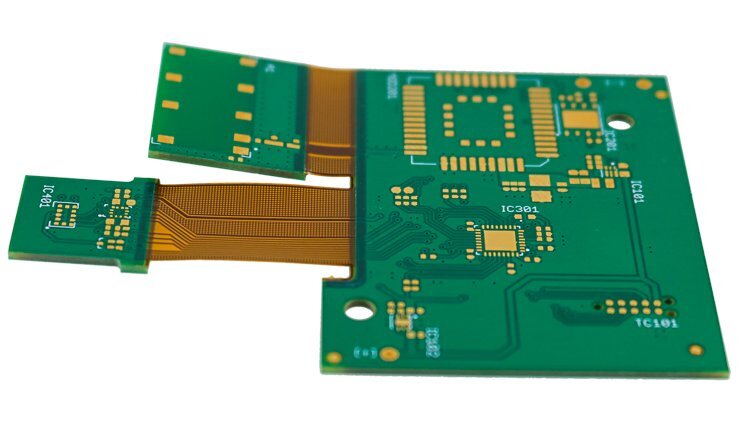

Rigid-Flex PCB Process Capability
-
Layer Count
Rigid:2-20 layers + Flex: 1-8 layers
-
Board Thickness
10*15mm≤X≤ 16inch*29inch（406*736mm）
-
Finish Treatment
Lead HASL｜Immersion gold｜ Chemical nickel palladium gold｜Soft gold plating｜ Hard gold plating｜Immersion silver｜OSP,｜Immersion tin｜ENIG+OSP｜ ENIG+G/F
-
Copper Thickness
≤3 OZ
-
SolderMask Color
Green｜ Blue｜ Black｜Yellow｜ Red｜Purple｜ White...
-
Finish Treatment
Immersion Gold｜Lead-free HASL｜OSP｜Immersion Tin｜Immersion Silver｜Thick Gold Plating｜Silver Plating｜Immersion Gold+OSP
-
Rigid PCB Material Brand
ITEQ IT-180A｜Isola FR408HR｜Shengyi S1000-2｜Nanya N4000-13｜Panasonic Megtron 6｜Ventec VT-47｜TUC TU-872 SLK｜Rogers RO4350B｜Arlon 85N｜Kingboard KB-6160...
-
Flex PCB Material Brand
DuPont Pyralux AP｜Panasonic FELIOS｜Nippon Steel Chemical PYRALUX FR｜Taiflex TA-72｜Shengyi SF305...
