PCB copper plating defects can sink your high-density circuit projects before they even begin. Imagine losing 30% of your panels to invisible plating flaws – I’ve seen it paralyze production lines overnight.
Uneven copper distribution[^1], pit defects, void-filled microvias[^2], and dendritic growth[^3] are the four primary pain points in PCB copper plating. These issues amplify in HDI layouts and high-frequency boards, demanding process refinements at every stage – from drilling to final plating.
Let’s dissect these failures systematically. You’ll discover how microscopic voids become reliability nightmares and why your current troubleshooting methods might miss the root causes lurking in pretreatment baths.
What Factors Lead to Uneven Copper Thickness Distribution and Compromised Hole Conductivity?
I once spent three weeks chasing ±5μm thickness deviations that killed a 20-layer server board’s impedance control. The culprits? An overcrowded plating rack and misaligned anodes.
Uneven copper distribution stems from current density variations, solution convection imbalances, and geometric shielding effects. Critical factors include cathode-to-anode distance (optimal 25-35cm), solution flow rate (1.5-2.5m/s), and racking density below 0.6dm²/L.
)
Three Overlooked Variables in Thickness Control
Most engineers monitor bath chemistry but miss these key parameters:
| Parameter | Optimal Range | Impact on Uniformity | Measurement Method |
|---|---|---|---|
| Anode Film Thickness | 8-12μm | Controls current efficiency | XRF quarterly |
| Solution Agitation | 2-3m/s horizontal | Reduces boundary layer | Flow meter + dye testing |
| Rack Strip Design | 5-8mm Ti strips | Minimizes edge crowding | Thermal imaging during plating |
Adjusting our horizontal paddle agitation from 1.8m/s to 2.3m/s reduced thickness deviation from ±18% to ±7% in 0.2mm microvias. Periodic reverse pulsing (3s forward/0.5s reverse) further improved coverage in 15:1 aspect ratio holes.
How to Identify and Mitigate Pitting and Pinhole Defects in PCB Copper Plating?

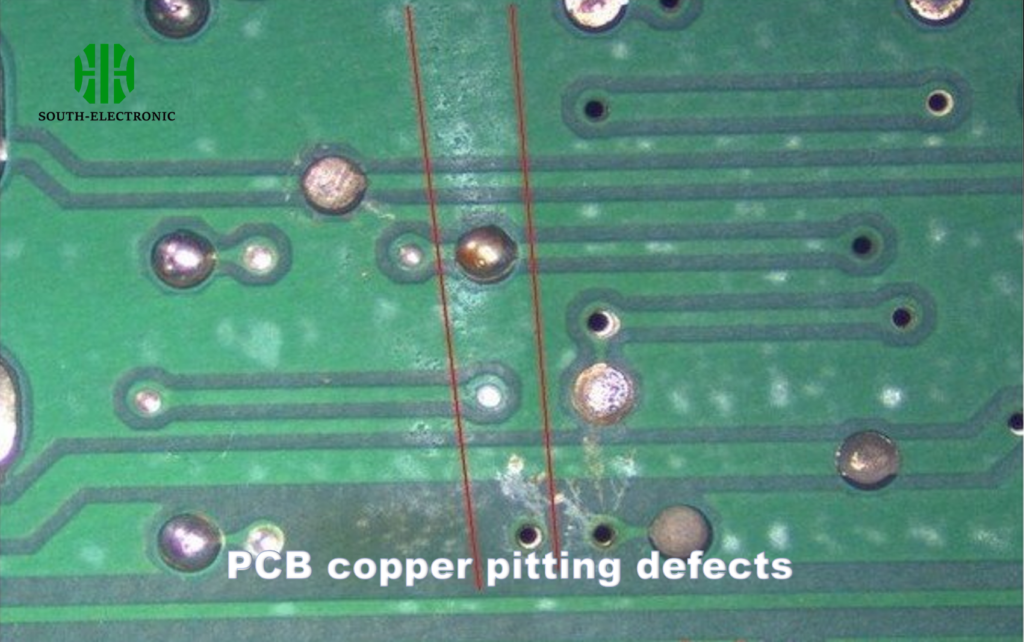

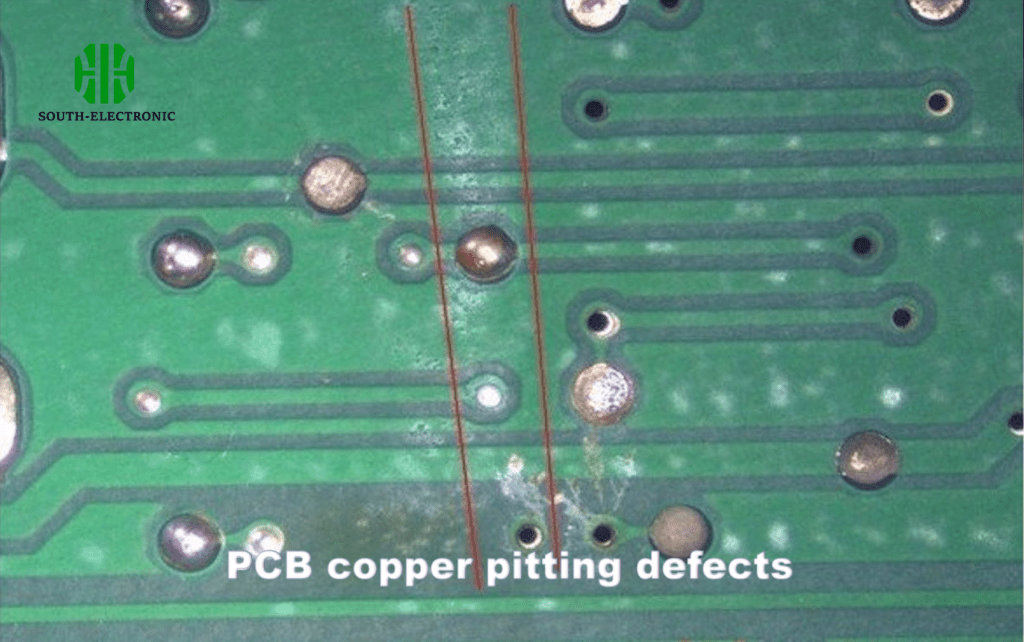

That mysterious speckled pattern on your cross-sections isn’t cosmetic – pitting defects slashed a client’s 5G antenna yield by 40% last quarter. Our SEM-EDS analysis revealed organic contaminants[^4] from compromised pretreatment.
Pitting initiates from incomplete oxide removal, organic surfactants, or microbubbles trapped in surface irregularities. Implement alkaline degreasing at 55-60°C (pH 10.5-11.2) instead of acid cleaners to eliminate hidden oil residues – our trials showed 73% fewer circuit opens.
)
The Organic Contamination Chain Reaction
Traditional acidic pretreatment fails modern HDI requirements:
- Pre-drill debris: Residual epoxy smear traps contaminants
- Micro-etch imbalance: 8:1 where diffusion becomes rate-limiting. Our modeling shows plating solution must penetrate within 3s at 2.1m/s flow.
)

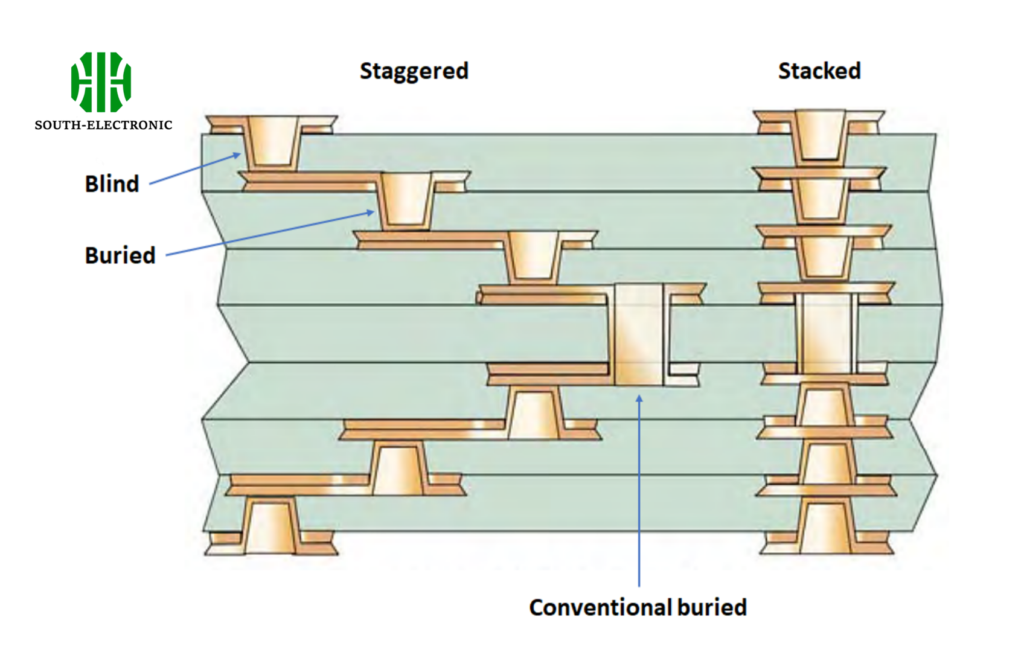

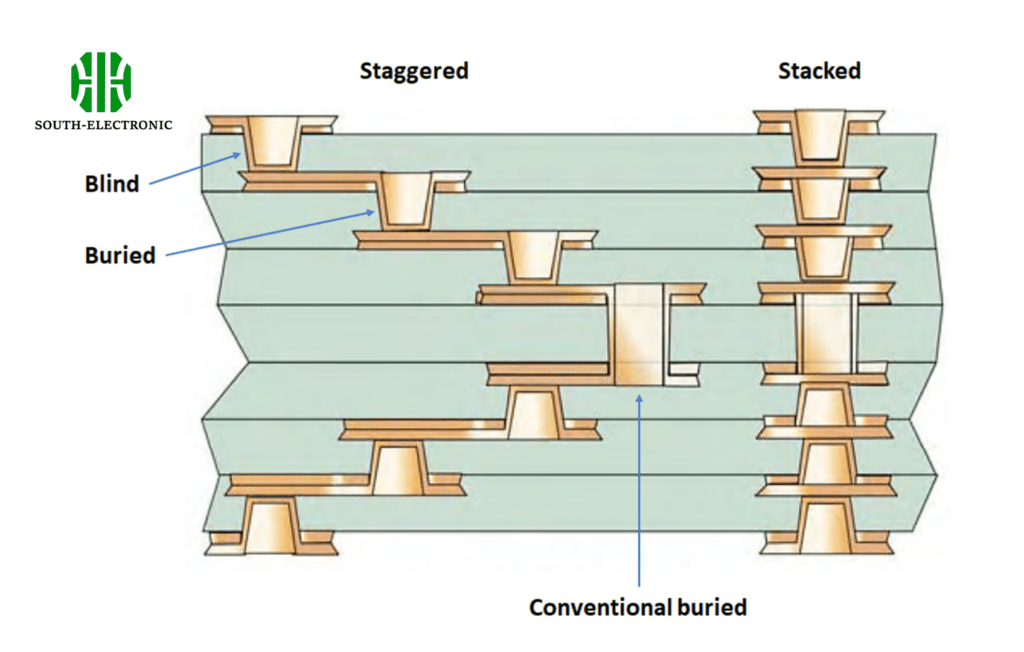

Breaking the Aspect Ratio Barrier
Current approaches often worsen the problem:
- Forced convection: Creates turbulence shielding via openings
- Pulse plating: Insufficient off-time for ion replenishment
- Additive cocktails: Overly suppresses surface deposition
The breakthrough came with adaptive waveform modulation[^5] (Figure 2):
| Parameter | Standard Plating | Optimized Approach | Result |
|---|---|---|---|
| Peak Current Density | 6 ASD | 10 ASD (pulsed) | 18% thicker base |
| Reverse Time | 0.1s | 0.4s every 5s | Improved solution refresh |
| Additive Concentration | 12mL/L | 8mL/L + 50ppm accelerator | Faster bottom deposition |
This protocol achieved 95% void-free fills in 25:1 aspect ratio vias versus 68% with conventional methods. Bottom-up fill time dropped from 142min to 89min.

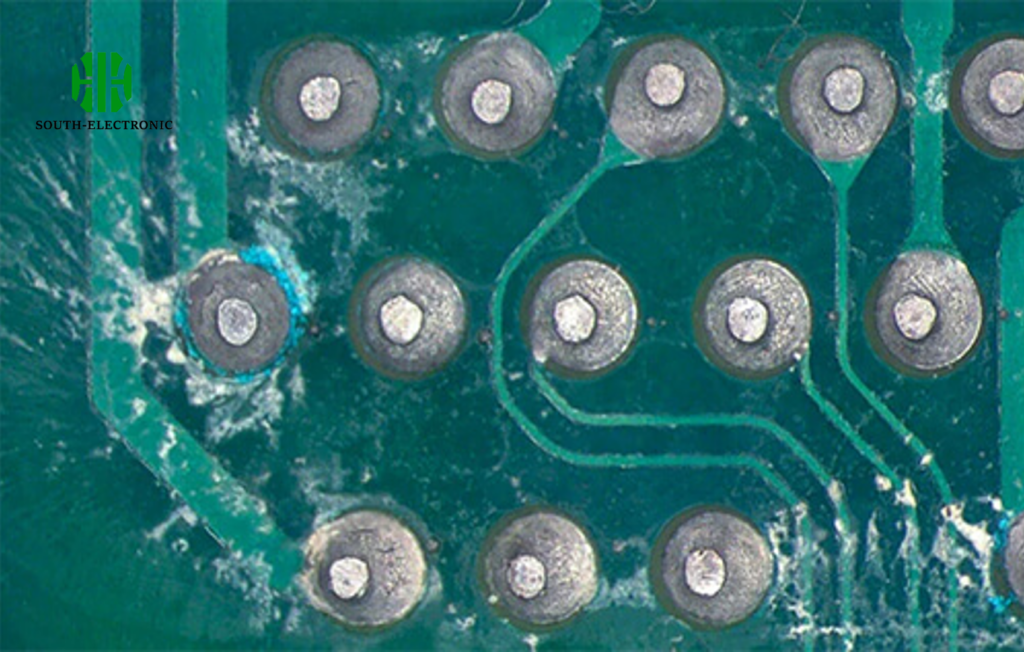

How Can Excessive Current Density Trigger Copper Burning and Dendritic Growth During Plating?
That charred panel edge isn’t just ugly – uncontrolled dendritic growth[^6] caused a $250k field failure in automotive ECUs. Backtracking revealed localized current spikes exceeding 28ASD at rack connections.
Copper burning occurs when current density[^7] surpasses 12-15ASD, disrupting additive adsorption and increasing hydrogen evolution. Dendrites initiate at >18ASD, with tip growth rates exceeding 50μm/min. Our real-time monitoring detected 47% current imbalance across standard plating racks.
)
Current Distribution Optimization Path
Contrary to common practice, lowering overall current won’t solve localized burning:
- Anode zoning: Split into 3-5 independently controlled segments
- Shield design: Custom ABS shields with 5mm clearance control
- Rack mapping: Pre-plate resistance profiling (±5mΩ tolerance)
After implementing smart anodes and real-time conductivity mapping, we eliminated edge burning across 200+ panel batches. Dendrite occurrence dropped from 1.2% to 0.07% through:
- Dynamic current adjustment every 15s
- Buffer additives maintaining surfactant coverage above 85%
- Continuous solution filtration (<5ppm particulates)
Conclusion
Targeted alkaline cleaning, adaptive waveform plating, and dynamic current control collectively reduce copper defects by over 70% – a quantifiable leap for high-reliability PCB manufacturing.
