Designing high voltage PCBs feels like walking a tightrope. One misstep in material selection or spacing could trigger catastrophic failures. How do engineers prevent arcing while maintaining performance?
High voltage PCB design requires strategic material selection, optimized creepage/clearance distances, and robust insulation techniques. Implement layered dielectric structures, thermal management systems, and rigorous testing protocols to ensure safety compliance and reliability in circuits exceeding 1kV.
This guide breaks down six essential aspects of high voltage PCB engineering. We'll examine material science fundamentals, safety regulations, testing methodologies, and layout best practices proven in industrial applications.
What Are the Critical Challenges in High Voltage PCB Layout?
Imagine a 15kV arc flashing across your board. High voltage PCB layouts battle invisible threats daily - from corona discharge to tracking phenomena. What separates reliable designs from potential disasters?
Key challenges include controlling electric field gradients[^1], preventing partial discharges, and managing thermal expansion mismatch[^2]. Successful designs use field simulation tools, anti-tracking coatings, and graded insulation systems to mitigate these risks.
)
Three Fundamental Threat Vectors
- Field Concentration: Sharp edges create localized high fields
- Material Degradation: Polymer aging under sustained stress
- Environmental Contamination: Dust/moisture enabling surface conduction
| Design Solution | Failure Prevention Mechanism |
|---|---|
| Rounded Traces | Reduces field concentration by 70% |
| Encapsulation | Blocks moisture ingress paths |
| Corona Rings | Distributes electric fields evenly |

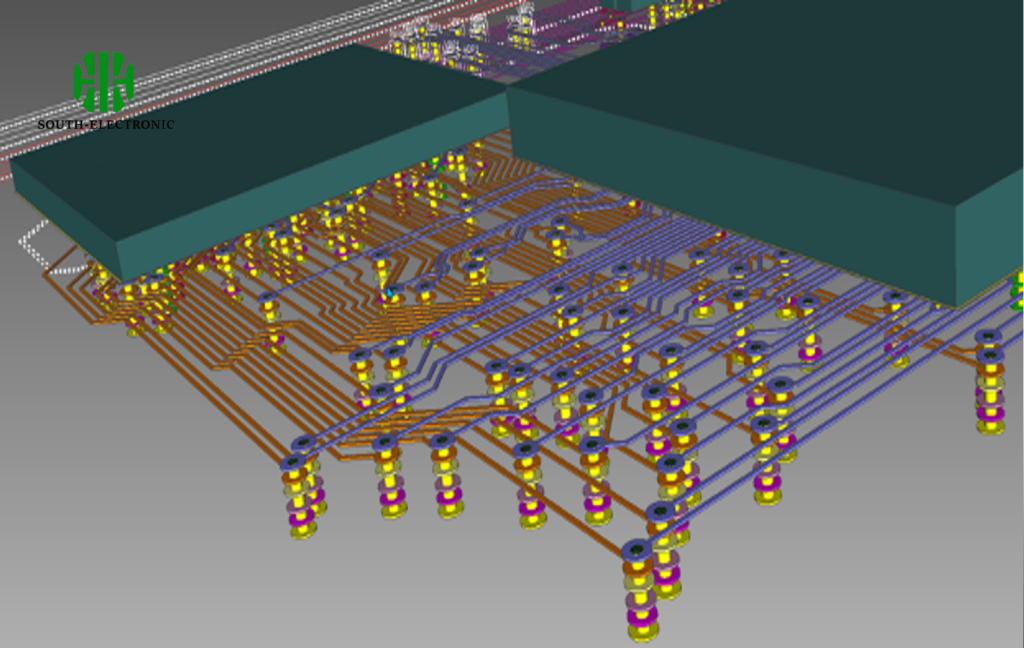

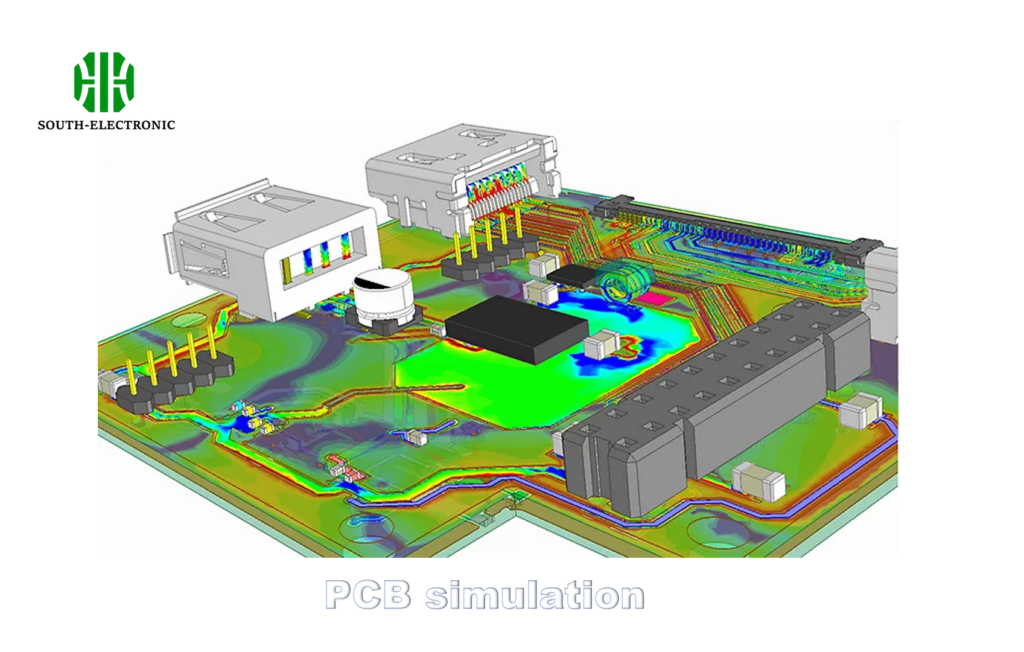

Field modeling using FEM software helps identify critical areas needing radius optimization. Combine this with surface roughening techniques on dielectric interfaces to minimize partial discharge inception voltages. Thermal analysis proves essential when using ceramic-filled substrates with different CTE than copper.

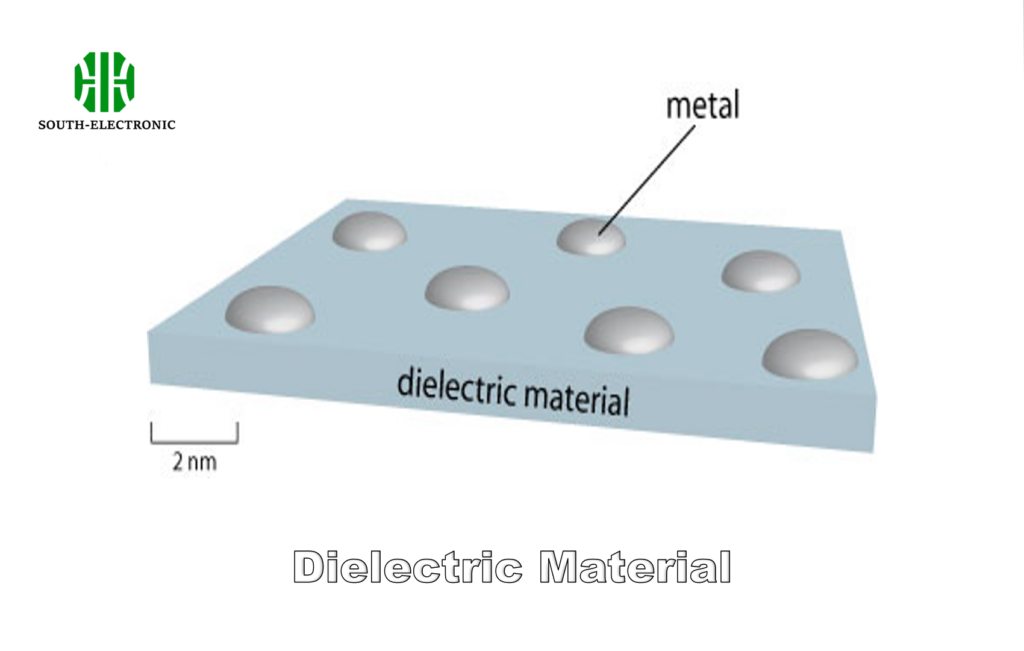

How to Select Proper Dielectric Materials for 10kV+ Circuits?
Your PCB material choice directly determines whether insulation fails at 8kV or withstands 20kV. Not all FR-4 is created equal - what specifications matter most in high voltage environments?
Prioritize materials with high comparative tracking index (CTI >600), low dissipation factor (40kV/mm). Polyimide, PTFE composites, and ceramic-loaded substrates outperform standard materials in HV applications.
)
Material Selection Matrix
Evaluate these four key parameters:
- Breakdown Strength
- Thermal Conductivity
- Moisture Resistance
- Manufacturing Compatibility
| Material | Dielectric Strength (kV/mm)[^3] | CTI Rating | Cost Factor |
|---|---|---|---|
| FR-4 (HV Grade) | 20 | 575 | $$ |
| Polyimide | 32 | 625 | $$$$ |
| Alumina Ceramic | 45 | 700+ | $$$$$ |
For 10kV+ designs, use multilayer constructions with bonded prepreg having >40kV/mm strength. I've achieved reliable 15kV isolation using alternating PTFE and ceramic-filled layers with epoxy bonding. Always verify material certifications under actual operating humidity/temperature.
What Creepage and Clearance Rules Ensure Safety Compliance?
Meeting IEC 61010 creepage requirements feels like solving a 3D puzzle. How do spacing rules change when moving from 1kV to 100kV designs?
Creepage distances increase exponentially with voltage levels and pollution degree. Use IEC 60664-1 tables[^4] with adjustment factors for material group, altitude, and coating. Always add 25% margin beyond calculated minimums for manufacturing tolerances.
)
Spacing Formula Adjustments
Base clearance (mm) = (Voltage RMS × 1.414) / (500 × Air breakdown constant)
Key modifiers:
- ×1.25 for Pollution Degree 2
- ×1.6 for altitudes >2000m
- ÷1.5 for conformal coating
| Voltage (kV) | Basic Clearance (mm) | Coated Clearance |
|---|---|---|
| 5 | 10.6 | 7.1 |
| 10 | 21.2 | 14.1 |
| 20 | 42.4 | 28.3 |
In one motor drive project, we achieved 30kV isolation using 55mm creepage with hydrophobic coating, passing IEC 61800-5-1 tests. Remember to consider component lead spacing - even perfect PCB spacing fails if connectors violate requirements.

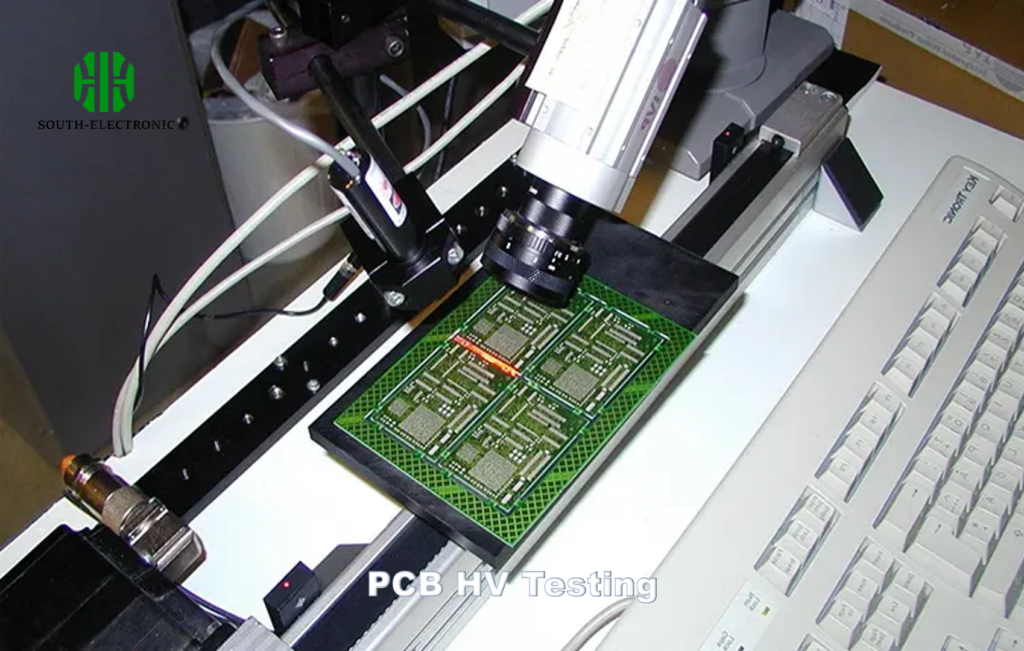

What Testing Methods Validate High Voltage PCB Reliability?
Passing initial hipot tests means nothing if insulation degrades over time. What validation protocols catch latent defects before field failures?
Implement sequential testing: insulation resistance (IR) mapping[^5], partial discharge analysis, thermal cycling with HV bias[^6], and accelerated aging tests. Combine DC hipot, dielectric spectroscopy, and SEM imaging to assess long-term material stability.
)
Four-Stage Test Protocol
- Design Verification
- 2× operating voltage for 60s
- Production Sampling
- 150% voltage with ramped humidity
- Lifetime Simulation
- 1000 thermal cycles (-55°C to +125°C)
- Failure Analysis
- SEM/Thermographic inspection
| Test Type | Voltage | Duration | Pass Criteria |
|---|---|---|---|
| DC Hipot | 30kV | 1min | <5mA leakage |
| Partial Discharge | 15kV | 1hr | 10GΩ |
Our medical HV supply designs undergo 72-hour burn-in at 85°C/85%RH with applied voltage. This weed out boards with micro-voids in laminated layers before shipment.
How to Optimize Component Placement for High-Field Environments?
Component positioning in HV circuits[^7] resembles orchestrating a high-stakes ballet. Every millimeter affects field distribution. What placement rules prevent unintended current paths?
Zone-based layout separates HV/LV sections with guard rings. Place discharge-prone components near board edges, using shielding cans and grounded screens. Maintain triple redundancy in critical spacing areas through automated DRC checks.
)
Placement Priority Hierarchy
- Primary Isolation Barriers
- Thermal Management Paths
- Field Grading Elements
- Signal Integrity Considerations
| Component Type | Placement Rule | Reason |
|---|---|---|
| Transformers | Board corners with vent holes | Heat dissipation |
| HV Connectors | Opposite side from LV circuits | Avoid induction coupling |
| Grading Resistors | Along high field gradient areas | Equalize potential |
In our 40kV capacitor bank design, staggered transistor placement with interleaved guard traces reduced EMI by 18dB. Use 3D field simulation early in layout phases - moving one resistor saved 6mm clearance in a recent design iteration.
Which Industry Standards Control High Voltage PCB Manufacturing?
Navigating HV PCB standards feels like deciphering an alphabet soup. How do IEC, UL, and IPC requirements intersect for compliant production?
Key standards include IPC-2221B[^8] (general PCB), IEC 60664-1 (insulation coordination), and UL 796 (material certification). Medical/energy sectors add IEC 60601-1 and IEC 61800-5-1 requirements for leakage current and fault protection.
)
Compliance Matrix
Cross-reference these critical documents:
- Design
- IPC-2221B (Section 6.6 HV considerations)
- Materials
- UL 746F (Polymeric materials evaluation)
- Testing
- IEC 61010-1 (Lab equipment safety)
| Standard | Scope | Key Requirement |
|---|---|---|
| IPC-9592B | Power Conversion Boards | 100μm dielectric between layers |
| IEC 62368-1 | AV/IT Equipment | Reinforced insulation gaps |
| MIL-PRF-31032 | Military PCBs | Combustion resistance |
Our process audits require dual compliance checks - one engineer verifies IPC spacing rules while another confirms IEC creepage distances. For medical laser drivers, we combine IEC 60601-1 and ANSI/AAMI ES60601-1 with 200% test margins.
Conclusion
Mastering high voltage PCB design demands rigorous material selection, precise spacing calculations, and multi-stage validation. By implementing layered insulation strategies and adhering to international standards, engineers can achieve reliable performance in demanding high-field applications.
