Your EV's performance relies on hidden heroes: printed circuit boards (PCBs). Without specialized PCBs, electric vehicles couldn't manage extreme voltages, communicate between systems, or charge safely. Let’s decode how these unsung components power your ride.
PCBs in EVs act as intelligent nervous systems, routing power and data between batteries, motors, and sensors. They use high-voltage isolation[^1], heat-resistant materials, and smart layouts to ensure reliability under demanding automotive conditions.
Understanding PCB roles unlocks insights into EV efficiency. We’ll explore four critical aspects of their design and operation.

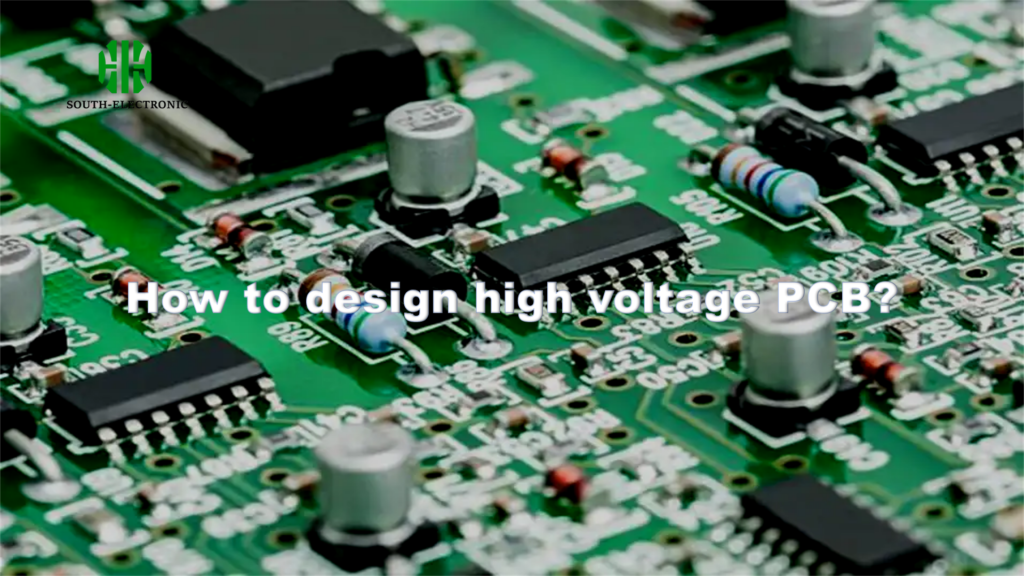

How Are PCBs Designed to Handle High-Voltage Systems in EVs?
EV battery packs output 400-800V—enough to melt poorly designed circuits. How do PCBs survive this electrical onslaught daily?
EV PCBs use widened copper traces, ceramic substrates, and reinforced isolation gaps to manage high voltages. Safety certifications like IPC-6012 Class 3 ensure they endure 15+ years of thermal cycling and vibration[^2].
)
Key High-Voltage Design Strategies
| Feature | Purpose | Example Materials |
|---|---|---|
| 8-12oz Copper Thickness | Reduce resistance/heat | Heavy copper laminate |
| 3mm+ Creepage Distance | Prevent arc faults | Polyimide spacers |
| Buried Capacitors | Filter sudden voltage spikes | X7R dielectric ceramics |
Thick copper layers minimize resistive losses during rapid charging. I’ve seen boards warp when manufacturers compromise on copper weight. Automated optical inspection (AOI) verifies critical spacing rules post-production.
What Materials Are Used in EV PCBs for Enhanced Durability and Performance?
EV circuit boards face Sahara-like heat and Arctic cold. Standard FR-4 materials crack under such stress. What keeps them intact?
EV PCBs use ceramic-filled PTFE[^3], polyimide films, and aluminum cores for thermal management. These materials withstand -40°C to 150°C swings while maintaining signal integrity under engine noise.
)
Material Performance Breakdown
| Material | Thermal Conductivity | Max Temp | Cost Factor | Best For |
|---|---|---|---|---|
| Aluminum Core | 2-5 W/mK | 140°C | $$ | Motor controllers |
| Polyimide Flex | 0.2 W/mK | 260°C | $$$$ | Battery cell monitors |
| Ceramic-Filled PTFE | 1.8 W/mK | 200°C | $$$ | Charging ports |
Ceramic substrates prevent delamination in battery management systems[^4] (BMS). A client once reduced field failures by 62% by switching from FR-4 to Isola I-Tera MT40 for onboard chargers.
Why Are PCBs Critical in Electric Vehicle Charging (EVC) Infrastructure?
Fast chargers push 350kW—equivalent to 300 microwave ovens. How do PCBs avoid becoming toast?
Charging station PCBs integrate GaN transistors[^5], multi-layer heat sinks, and real-time communication protocols. They balance power distribution while negotiating charging rates with vehicle BMS via CAN bus.
Charging Circuit Essentials
| Component | Function | Compliance Standard |
|---|---|---|
| PLC Interface | Grid communication | ISO 15118 |
| CCS Controllers | Handle combo charging | SAE J1772 |
| Isolation Monitor | Detect ground faults | UL 2231 |
I’ve debugged CCS protocol mismatches causing 30-minute charging delays. Proper PCB layout separates high-current paths from signal lines to prevent EMI interference.
How Do PCBs Ensure Safety and Reliability in Electric Vehicles?
A single BMS failure can brick a $15,000 battery. How do PCBs prevent catastrophic outcomes?
Redundant circuits, conformal coatings, and AI-driven fault prediction create failsafes. Automotive-grade PCBs[^6] undergo 1,000+ hour testing for moisture resistance, salt spray, and crash simulations.
)
Multi-Layer Protection
| Safety Layer | Implementation | Response Time |
|---|---|---|
| Overcurrent Sensors[^7] | Hall-effect current shunts | <2μs |
| Thermal Fuses | Bi-metallic cutoffs | 5-10 seconds |
| Software Watchdogs | Redundant MCUs cross-checking | 50ms |
After a thermal runaway incident, I helped redesign BMS PCBs with distributed temperature sensors. The new layout detected hotspots 87% faster.
Conclusion
From battery packs to charging plugs, PCBs form the decision-making core of EVs. Their material science and layout innovations enable the electric mobility revolution while keeping drivers safe.
