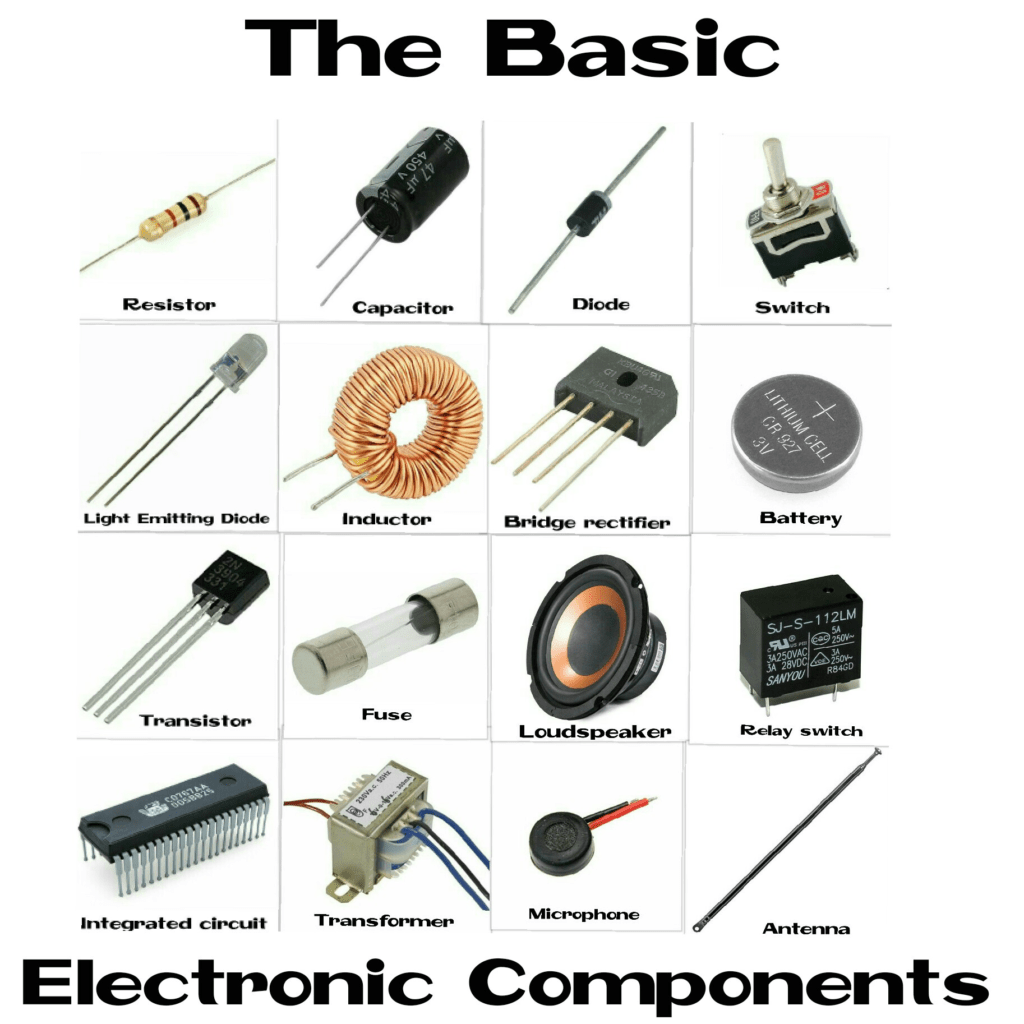

The Basic Electronic Components

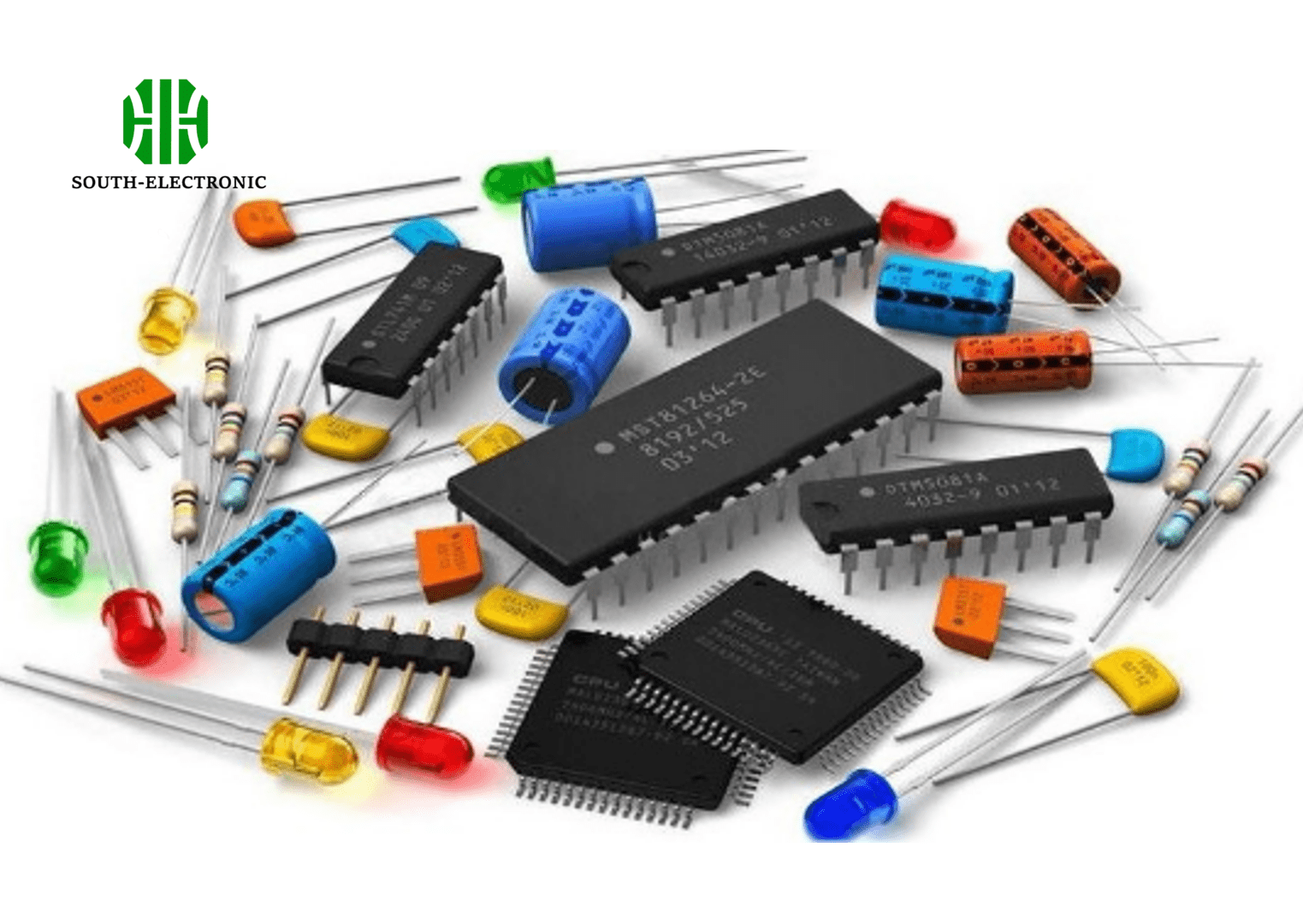

I'm going to be sharing with you the basic electronic components meant to be known before working on any electronic circuit. Electronic devices are the backbone of modern technology, built from a variety of components, each serving a specific purpose. These components are broadly categorized into two main types: Passive Components and Active Components. This article explores the essential electronic components, detailing their types, functions, applications, and key selection parameters.

Passive Components

Passive components are those that do not require an external power source to operate and cannot amplify signals. They can store or dissipate energy. The primary passive components include resistors, capacitors, and inductors.

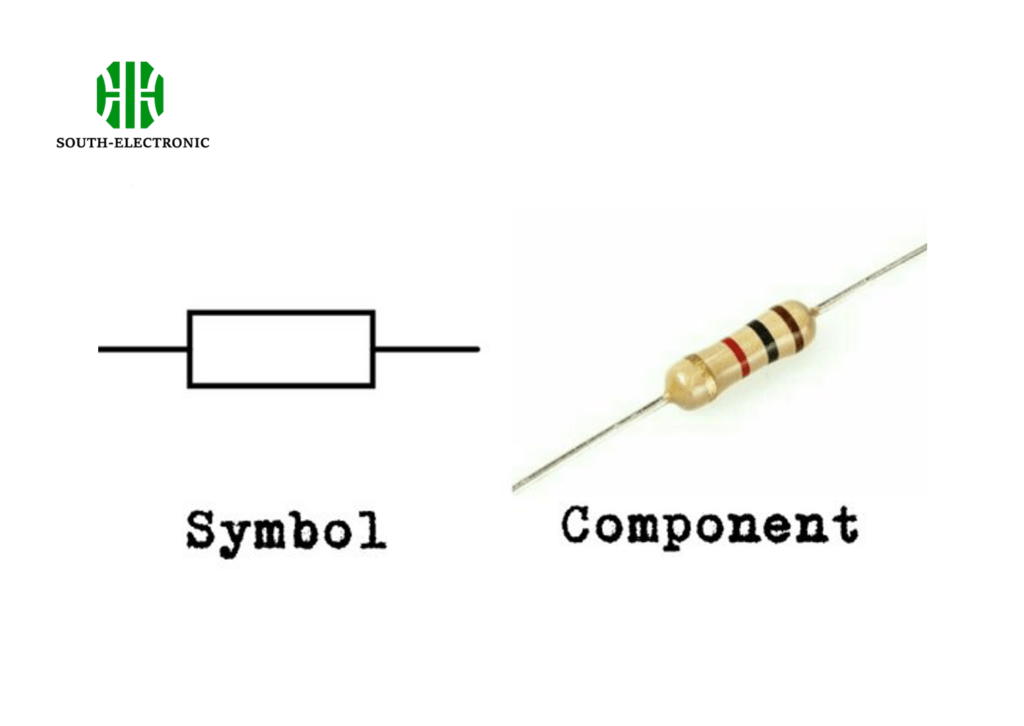

Resistors:

Resistors are crucial in controlling the flow of electric current within circuits. They work by providing resistance, a measure of opposition to current flow, which is expressed in ohms (Ω). The fundamental relationship governing resistors is Ohm's Law: ( V = IR ), where ( V ) is the voltage, ( I ) is the current, and ( R ) is the resistance.

Types of Resistors

• Through-hole Resistors: Traditional resistors with leads inserted into holes on a printed circuit board (PCB).
• Surface-mount Resistors (SMD/SMT): Smaller resistors mounted directly onto the surface of the PCB.

Applications

Resistors are used in various applications such as:

• Current limiting
• Voltage division
• Biasing of active components
• Signal filtering

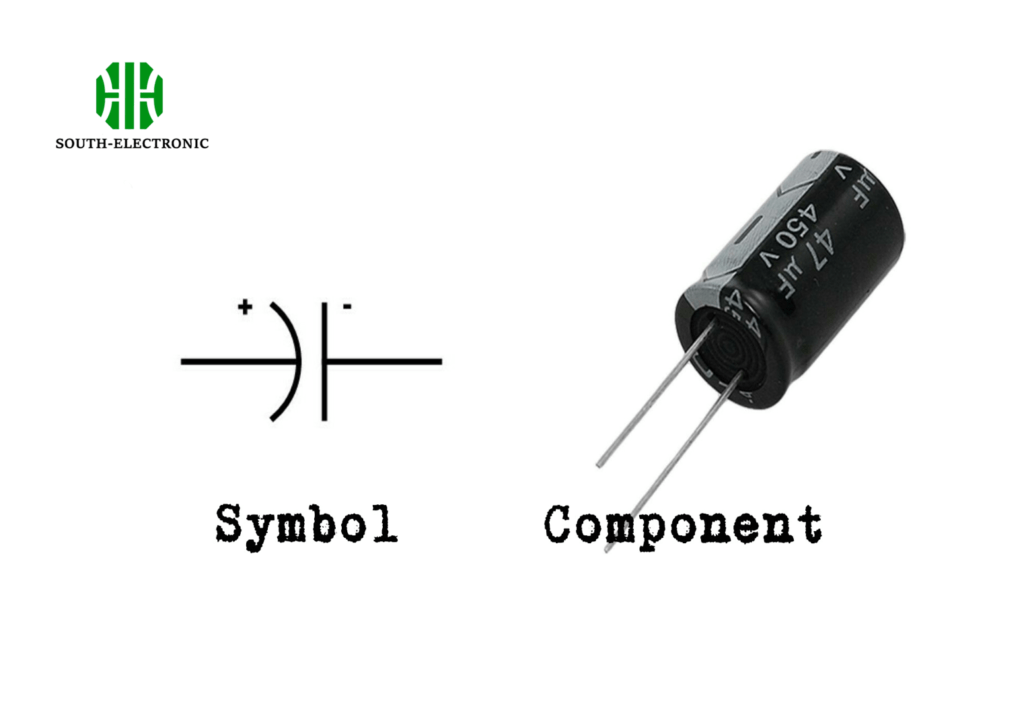

Capacitors

Capacitors are components designed to store and release electrical energy. The amount of electrical charge a capacitor can store is determined by its capacitance, measured in Farads (F). Capacitors are widely used for filtering, signal coupling, and energy storage.

Types of Capacitors

• Polarized Capacitors: Include electrolytic and tantalum capacitors, which must be connected with the correct polarity.
• Non-Polarized Capacitors: Include ceramic, polyester, and paper capacitors, which can be connected in any direction.

Applications

Capacitors serve numerous functions, such as:

• Blocking DC while allowing AC signals to pass
• Filtering noise in power supplies
• Coupling signals between stages of amplifiers
• Timing applications in oscillator circuits

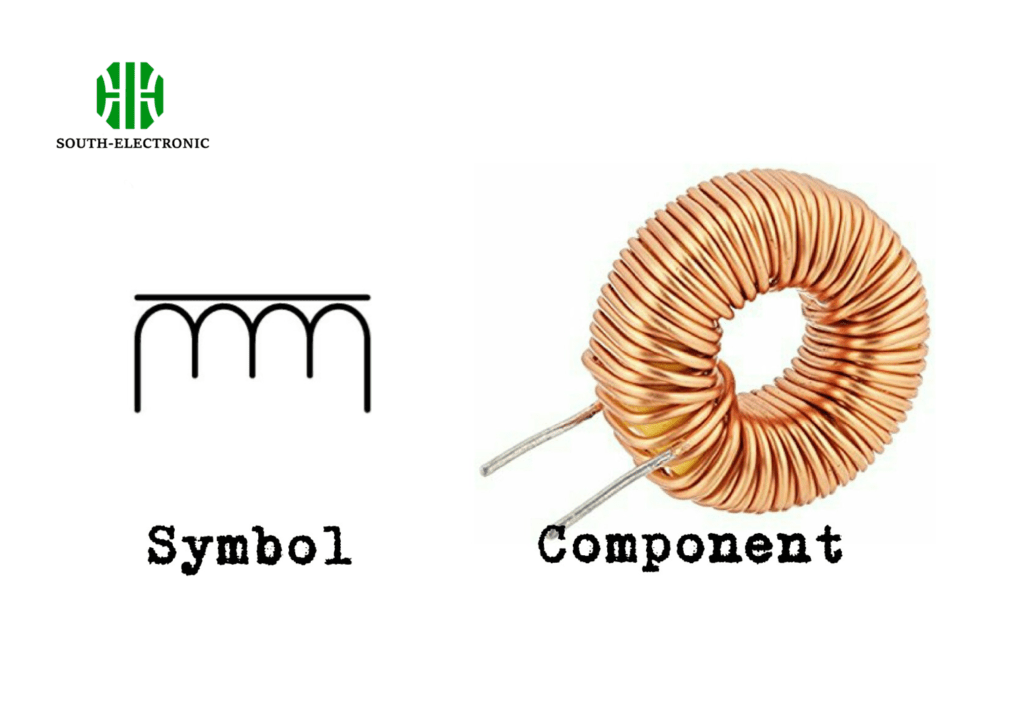

Inductors

Inductors, also known as coils or chokes, store energy in a magnetic field when electrical current flows through them. They are measured in Henries (H) and are essential for applications requiring energy storage or filtering of AC signals.

Types of Inductors

• Iron Core Inductors
• Air Core Inductors
• Ferrite Core Inductors

Applications

Inductors are used in:

• Power supply filters

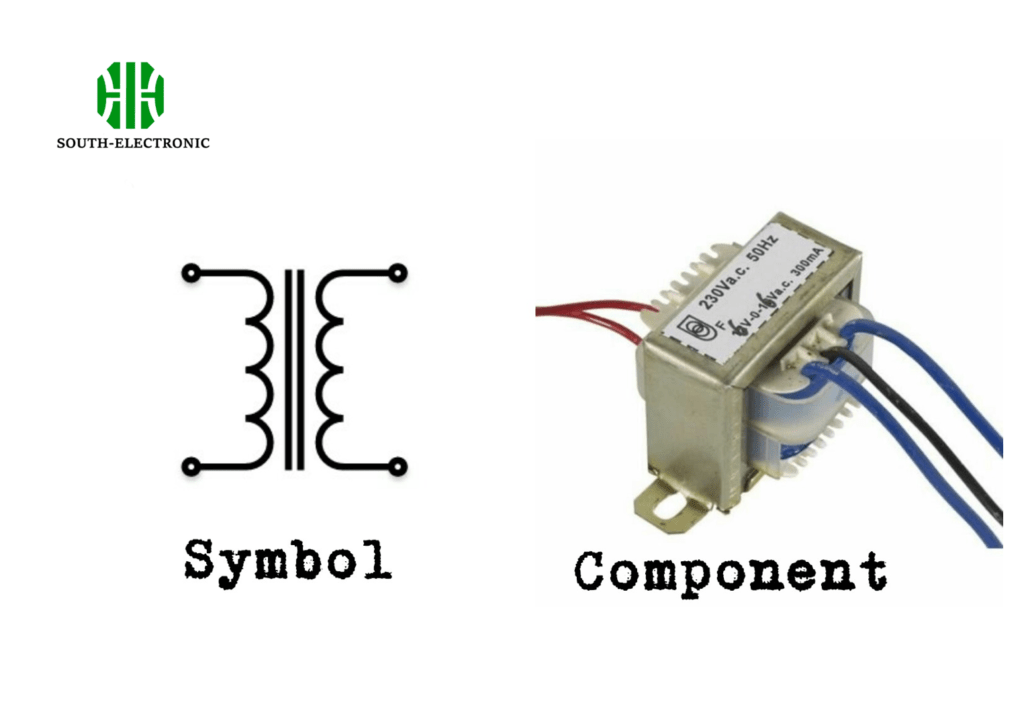

• Transformers
• Tuning circuits
• Signal isolation

Active Components

Active components require an external power source to operate and can amplify or switch electronic signals. The key active components include transistors, diodes, and integrated circuits (ICs).

Transistors

Transistors are fundamental in digital and analog circuits, functioning as amplifiers and switches. They are three-terminal devices capable of controlling a large current with a small input voltage.

Types of Transistors

• Bipolar Junction Transistors (BJT): Include NPN and PNP types.
• Field-Effect Transistors (FET): Including JFETs and MOSFETs.

Applications

Transistors are used for:

• Signal amplification
• Switching operations
• Voltage regulation

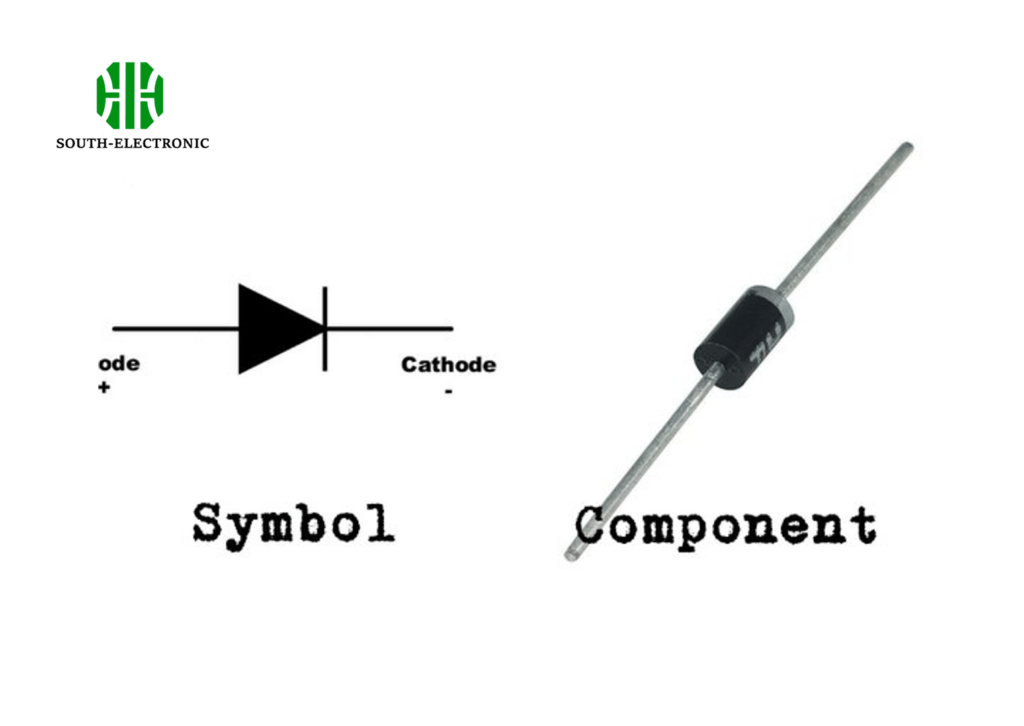

Diodes

Diodes are semiconductor devices that allow current to flow in one direction while blocking it in the opposite direction, essential for rectification and signal modulation.

Types of Diodes

• Rectifier Diodes
• Zener Diodes
• Light Emitting Diodes (LEDs)
• Schottky Diodes

Applications

Diodes are used in:

• Power conversion (AC to DC)
• Voltage regulation
• Signal demodulation

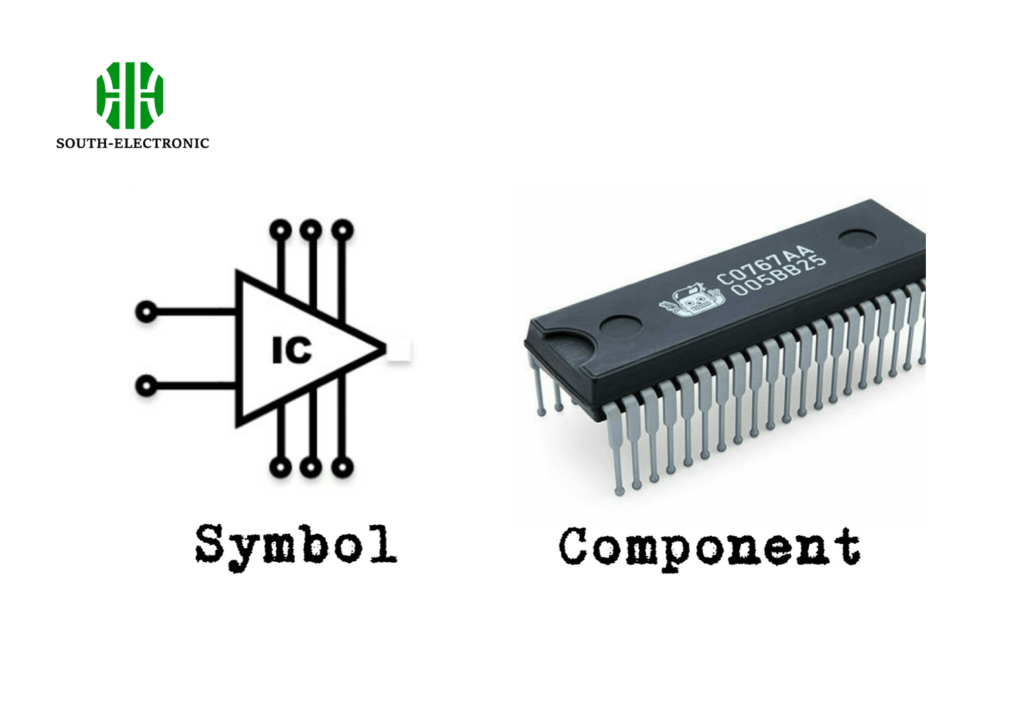

Integrated Circuits (ICs)

Integrated Circuits (ICs), also known as microchips, integrate millions of transistors and other components into a small package to perform complex functions.

Types of ICs

• Digital ICs: Include microprocessors, memory chips, and digital signal processors (DSPs).
• Analog ICs: Include operational amplifiers and voltage regulators.
• Mixed-Signal ICs: Combine analog and digital functions.

Applications

ICs are critical in:

• Computing and data processing
• Communication systems
• Consumer electronics
• Industrial control systems

An IC is a special component that contains an entire electronic circuit, including transistors, diodes, and other components, all photographically etched onto a small piece of silicon.

If you can get a handle on the basic electronic components listed above, you are one step closer to building any electronic circuit you want.
