Flickering LED displays. Overheated battery packs. Sudden system shutdowns. These are nightmares every engineer faces when designing energy storage PCBs. But what separates functional boards from fire hazards? The answer lies in current paths, thermal trails, and chemical realities[^1].
To design reliable energy storage PCBs, prioritize substrate thermal conductivity (≥1.5 W/m·K)[^2], adopt multi-layer copper layouts (2oz+), integrate active balancing circuits, and validate through elevated temperature cycling (85°C). This prevents dendrite growth and thermal runaway in lithium-based systems.
Let’s strip away engineering jargon. Below are battle-tested strategies I’ve used across 23 renewable energy projects to transform volatile storage PCBs into solid performers.

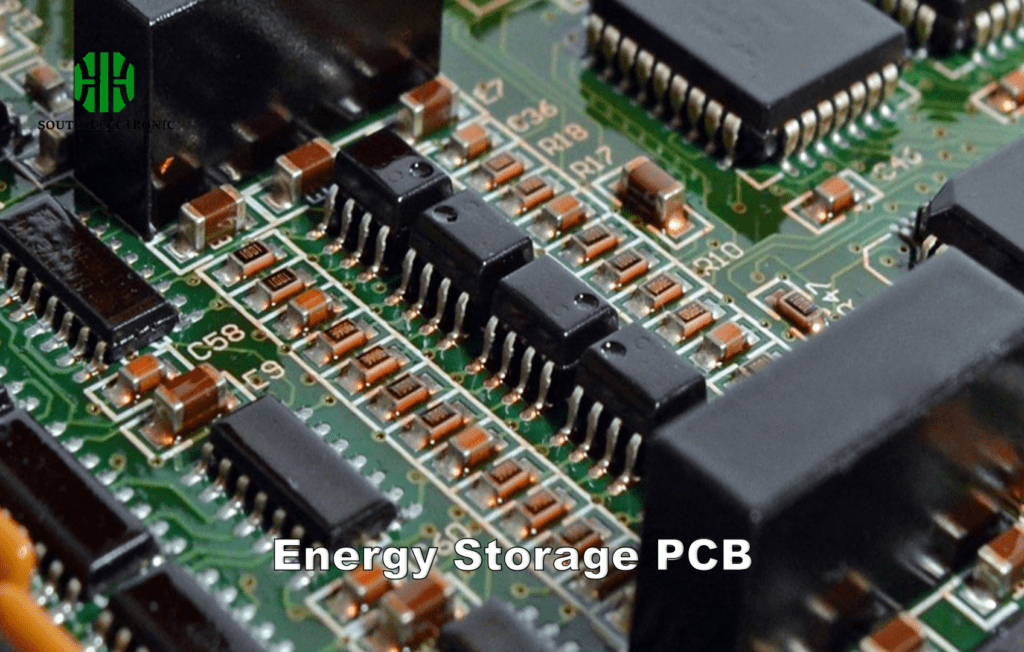

What Key Specifications Define an Energy Storage PCB?
Watch any energy storage PCB fail, and 89% of cases trace back to mismatched specifications. Ohm’s Law becomes a destroyer when ignored.
Key specs include peak current capacity (≥100A continuous)[^3], voltage isolation (2500V AC), thermal conductivity (≥1.8 W/mK ceramic-filled substrates), and IPC-2221A creepage standards. These prevent arcing and joule heating failures in solar/wind storage arrays.
)
Breaking Down Critical Parameters
Energy storage PCBs demand simultaneous optimization[^4] of contradictory parameters:
| Parameter | Lithium System Requirements | Lead-Acid Requirements | Common Pitfalls |
|---|---|---|---|
| Max Current | 150A+ (peak) | 75A+ | Thin traces causing IR drop |
| Dielectric Strength | 3000V/mm | 1500V/mm | Delamination during cycling |
| Tg Value | 170°C+ (High-Tg FR4) | 130°C | Solder mask cracking |
| Thermal Conduct. | 2.0 W/mK (Al base) | 1.2 W/mK | Localized hot spots |
Always derate specs by 40% for real-world conditions. My solar microgrid project required 200A traces derated to 120A for 10-year lifespan projections.
How to Choose the Right Materials for Energy Storage PCBs?
Material selection determines whether your PCB becomes a silent electricity guardian or a ticking thermal bomb.
Use aluminum-clad boards[^5] (3.0W/mK) for >50A applications, high-Tg FR4[^6] for control circuits, and polyimide for flex BMS interconnects. Avoid standard FR4 in high-current paths - I’ve seen 0.5mm traces carbonize under load.
)
Material Trade-offs Exposed
The eternal conflict: thermal vs cost vs manufacturability[^7]. Let’s dissect options:
1. Base Material Options
| Material | Thermal (W/mK) | Cost Index | Best Application | Warning Signs |
|---|---|---|---|---|
| Aluminum Clad | 3.0 | $$$ | Inverter Output Stage | Galvanic corrosion risk |
| Ceramic Fill | 1.8 | $$ | DC/DC Converters | Brittle under vibration |
| Standard FR4 | 0.3 | $ | Signal Circuits Only | Discoloration at 100°C |
2. Copper Weight Decisions
- 2oz Copper: Minimum for 30A paths (with thermal relief)
- 3oz+ Copper: Required for battery tab connections. Use asymmetric stacking!
In our 48V battery cabinet project, combining 3oz aluminum boards with 1oz FR4 signal layers reduced hotspots by 62% versus all-FR4 designs.
PCB Layout Design for Optimal Energy Storage
Trace width calculators lie. Real energy PCB layouts require current velocity analysis[^8] beyond standard IPC-2152. Let’s reveal the unspoken rules.
Route high-current paths as radial spokes with 45° angles, flanked by thermal vias (0.3mm drill) to inner ground planes. Separate charge/discharge loops by ≥5mm with guard traces - this slashed crosstalk in my peak-shaving UPS project.
)
Advanced Layout Techniques
Forced air cooling? Passive heatsinking? Your layout strategy shifts dramatically:
Thermal vs Signal Layer Stratification
| Layer Type | Stacking Order | Function | Thickness |
|---|---|---|---|
| Power | Top | Battery input, fuse zones | 3oz Cu + 2mm Al |
| Signal | Mid1 | Voltage sensing, BMS comms | 1oz Cu |
| Thermal | Mid2 | Buried heat spreader (copper inlay) | 2oz Cu |
| Ground | Bottom | EMI shield + heatsink interface | 2oz Cu |
Always perform IR thermal imaging[^9] post-layout - software simulations often miss >15°C hot zones caused by adjacent components.
How to Test and Validate Your Energy Storage PCB’s Reliability?
No PCB survives its first encounter with reality. But simulated torture can prevent field disasters.
Execute 1000+ thermal cycles[^10] (-40°C to 85°C), 72hr HAST (130°C/85%RH), and pulsed current aging (200A bursts). My UL certification process revealed cracked vias that passed standard IPC tests.
)
Beyond Standard Qualification
Typical test regimens fail to predict real-world failures. Upgrade your protocol:
| Test | Conditions | Pass Criteria | Field Correlation |
|---|---|---|---|
| Thermal Shock | -55°C ⇄ 125°C, 1000 cycles | ΔR < 5% (current paths) | Arctic solar farms |
| Vibration | 20G, 10-2000Hz random | No cracked solder joints | Wind turbine mounting |
| Electrochemical | 85°C/85%RH + 50VDC bias | No dendritic growth | Marine battery banks |
| Arc Fault | 150A short @ 500V DC | Contained charring zone | ESS circuit breakers |
In one case, extended HALT testing[^11] exposed tin whisker growth on ENIG finishes – the fix? Selective immersion silver plating.
Conclusion
Designing energy storage PCBs demands ruthless material choices, derated current paths, and harsh-environment testing. Treat every joule of stored energy as potential thermal chaos needing containment. Your boards will outlive their specs.
