We all rely on electronics daily. Their function often starts with printed circuit boards. If you want to create reliable devices, you need good pcb design.
PCB design transforms electronic schematics into physical layouts. Engineers use software to place components and copper traces. This process defines where electricity flows for proper device function.
Understanding basic design helps when buying pcb boards for sale. Now, let’s examine key decisions you'll face.
Single vs. Double Layer: Which PCB Type Fits Your Project?
Choosing PCB layers can confuse beginners. A wrong pick makes your circuit messy. I learned this hard way on my first prototype.
Single sided pcb uses one copper layer. Double layer printed circuit board has copper on both sides. Simple projects need only one layer. Complex designs require two for crossing traces.
Breaking Down Layer Selection
Think about three core aspects: complexity, space, and budget.
Complexity
- Single layer limits routing. Traces avoid each other manually.
- Double layers route freely. Paths cross using vias between sides. Digital devices need this freedom.
Space Efficiency
Single layer boards are bigger. Components spread out for connection room. I wasted space on my initial thermometer design. Double layer solves this. Components stack densely.
Cost Differences
Here’s a price comparison:
| Feature | Single Layer PCB | 2 Layer Printed Circuit Board |
|---|---|---|
| Base Material | Cheaper | Moderate cost |
| Production Time | Faster | Slower |
| Failure Rate | Higher | Lower |
Your budget matters. But avoid penny-pinching. I saved money using single layer early. Later, fixing flaws cost triple. Choose based on your project's true needs.

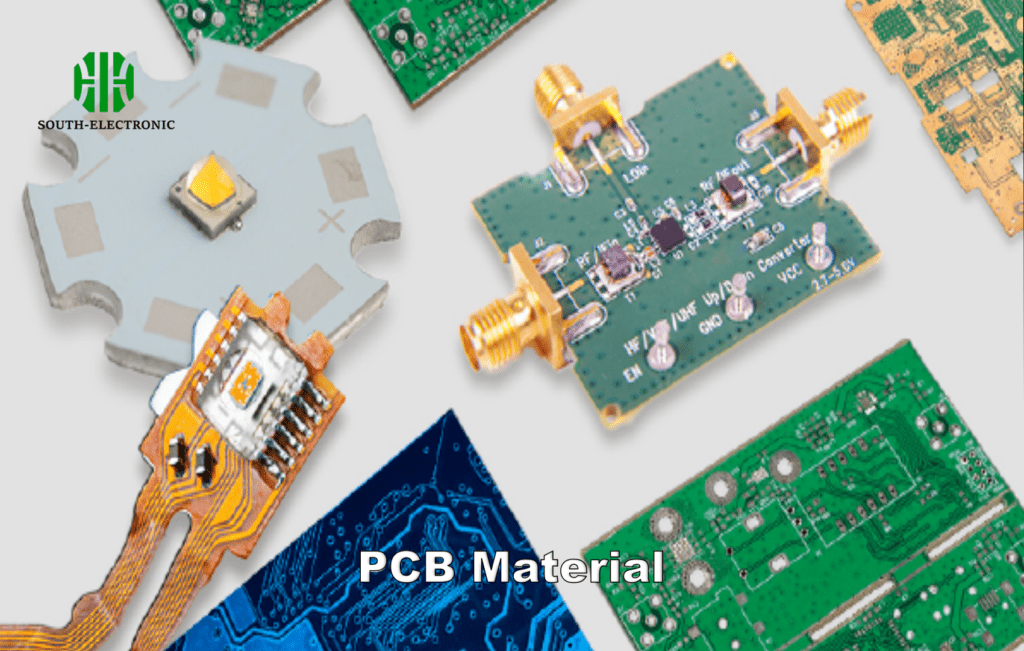

Which PCB Material Should You Choose?
Circuit board material types impact performance. Pick wrong and your device overheats. I destroyed a sensor this way. Don’t repeat my error.
Standard materials include FR-4 (fiberglass) or metal core circuit boards. FR-4 suits most general uses. High-power devices demand metal cores for cooling.
Decoding Material Options
Material selection involves heat, strength, and electrical needs.
Core Choices
FR-4 dominates pcb circuit production. It’s cheap. Copper-clad circuit board variants work too. But extreme heat buckles FR-4. For LED drivers and power supplies, metals like aluminum conduct heat better.
Flexibility vs. Rigidity
Rigid boards dominate electronics. Manufacturing printed circuit boards with FR-4 creates robust foundations. Flexible materials cater to wearable devices. Consider your device's bending needs.
Cost-Environment Balance
FR-4 withstand normal conditions well. Harsh environments need pricier options. Metal cores handle vibrations and extreme temperatures. Weigh expenses against device lifespan. My drone project crashed using standard boards. Upgraded materials fixed it.
Always verify suppliers. When seeking pcb boards for sale, specify your core material needs clearly. This avoids mismatches.

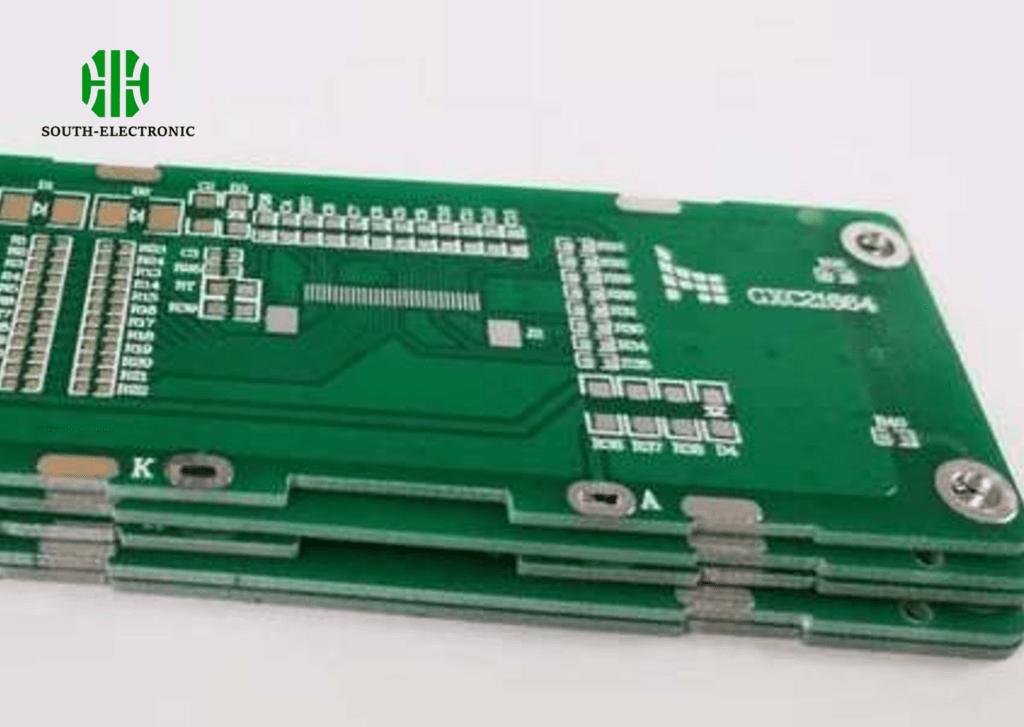

How Thick is a Standard PCB?
Circuit board thickness seems minor. But it affects assembly and durability. I once broke boards forcing them into tight slots.
Typical circuit board thickness is 1.6mm. However, it ranges from 0.4mm (flexible) to 3.2mm (industrial). Your design specs dictate the right choice.
Thickness Variables Explained
Three factors change thickness needs: application, components, and structure.
Layer Count
More layers need thicker boards. My audio amplifier had six layers. It reached 2.3mm thick. Single-layer boards stay thin. Double layers average 1.6mm.
Mechanical Demands
Heavy components strain boards. Thinner than 1.0mm risks cracking. Industrial gear needs over 2.0mm. Check weight distribution carefully.
Industry Standards
Here’s common usage:
| Thickness | Best For | Limitations |
|---|---|---|
| 0.4mm-0.8mm | Phones, smartwatches | Fragile, low power |
| 1.6mm | Consumer devices | Standard |
| 3.0mm+ | Server parts, power tools | Costly, limited routing |
Always specify thickness when designing PCB. Avoid printed circuit board scrap from miscalculations.
Conclusion
PCB design focuses on layers, material, and thickness. I've outlined key choices. Balance your project needs with these fundamentals. Design smart.
