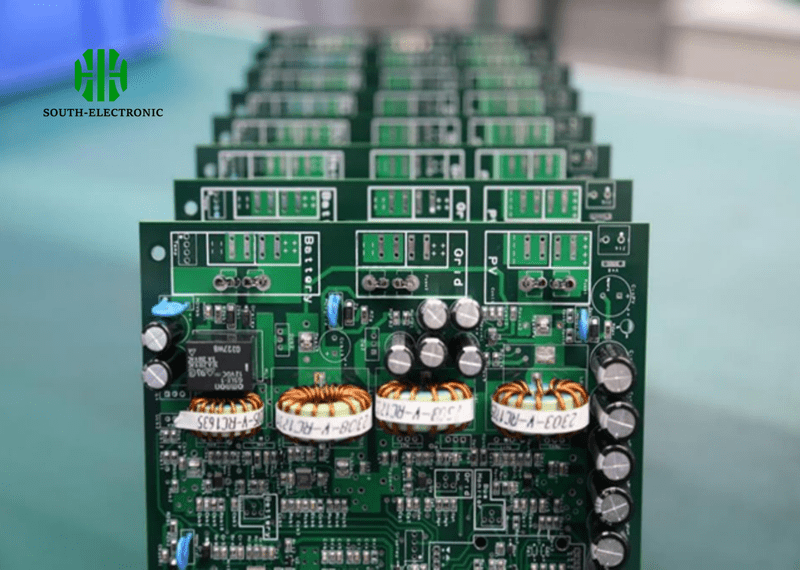

PCB prices can vary from 50 cents to $500 to make, depending on a number of factors. The precision and flexibility in the size and shape of the board outlines can also influence the cost, as more complex outlines may require specialized routing tools and processes. The actual price is determined by the board’s size, type of material, and whether it is a high or low volume board. The cost of PCB boards often makes up more than 50% of the total project cost, so it is important to reduce the cost of PCBs while still maintaining optimal performance.
What are the Factors Affecting to PCB Cost?
The cost of a printed circuit board (PCB) is influenced by several factors, including the type of materials used, the complexity of the design, the number of layers, and the production volume. Understanding these factors can help you optimize your PCB design and reduce costs. Material selection is crucial; for instance, FR-4 is a common choice due to its balance of performance and cost, while materials like Polyimide and Rogers are used for specific applications but come at a higher price.
The complexity of the design, including the number of layers and the precision required for trace widths, also plays a significant role. More complex designs with multiple layers and intricate details will naturally cost more. Additionally, the production volume can affect the cost per unit, with larger batches typically being more cost-effective.
1.Material Costs

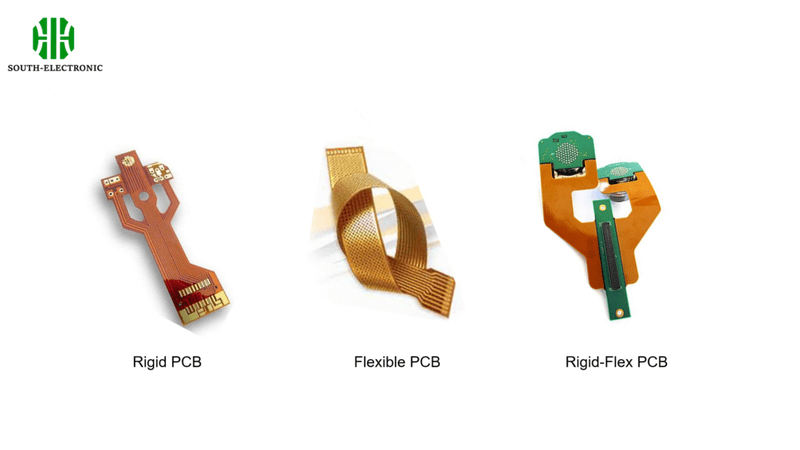

The type of material used to make the PCB will determine the price of the PCB. Different PCBs have different materials that can increase or decrease the cost of the PCB. There are three types of printed circuit boards on the market: rigid, flexible, and rigid-flex PCBs. Common options include:
- FR-4: It\'s the most common material used for PCBs because it\'s a good balance of performance and cost.
- Polyimide: It\'s used when you need a flexible PCB, but it\'s more expensive.
- Rogers: It\'s used for high-frequency applications because it performs better, but it\'s more expensive than FR-4.
Copper weight, which refers to the thickness of the copper layer, also affects the cost, with higher copper weights requiring more material and precise manufacturing processes.
Material Cost Comparison：
| Material | PCB Cost per Square Foot |
|---|---|
| FR-4 | $2 - $10 |
| Polyimide | $10 - $30 |
| Rogers | $30 - $100 |
2.PCB Cost Design Complexities
The complexity of the PCB design also affects the cost. The design and specifications of inner layers, including trace width and spacing, are crucial for ensuring the quality and reliability of multi-layer PCBs. More complex boards require more time and precision in manufacturing, which increases costs. This includes the number of layers, types of vias, and the precision required for trace widths.

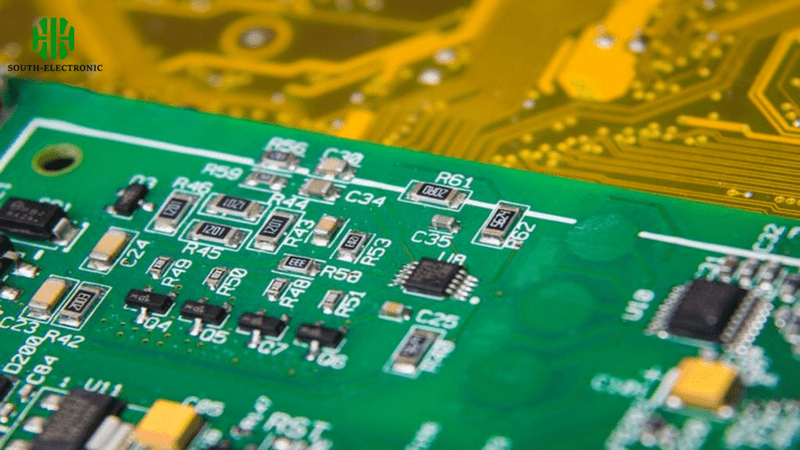

3.PCB Cost Manufacturing Processes
The manufacturing process itself, including the number of layers, the use of via technologies (through-hole vs. blind/buried vias), and the finish (e.g., HASL vs. ENIG), can greatly impact the cost. The choice of surface finish, such as immersion gold (ENIG), can also affect the cost, as it provides a high-quality finish for the internal edges of cutouts. .
4.PCB Cost Comparison Across Regions
| Region | PCB Cost per Square Inch |
|---|---|
| North America | $0.10 - $0.50 |
| Asia | $0.05 - $0.25 |
| Europe | $0.08 - $0.40 |
PCB Fabrication Costs ### 1. Overview of Fabrication Process Across Regions
The fabrication process of a PCB involves several critical steps, each contributing to the overall cost. It begins with material selection, where the type of substrate is chosen based on the application requirements.This is followed by drilling, where holes are created for component leads and vias.
Copper plating is then applied to create the conductive pathways, followed by the application of a solder mask, which protects the copper traces and prevents solder bridges.
Finally, a surface finish is applied to protect the exposed copper and ensure reliable soldering. Each of these steps requires specialized equipment and skilled labor, which collectively influence the final cost of the PCB.
2. Fabrication Pricing Ranges
The cost of PCB fabrication can vary widely depending on the complexity of the design, the number of layers, and the production volume. Here are some general pricing ranges for PCB fabrication: Simple PCBs with a single layer: $5-$20 per unit Mid-range PCBs with 2-4 layers: $10-$50 per unit Complex PCBs with 6-8 layers: $20-$100 per unit High-frequency PCBs with advanced materials: $50-$200 per unit These ranges provide a rough estimate, but actual costs can vary based on specific requirements such as controlled impedance, edge plating, and the use of advanced materials. ## Design Considerations for PCBs
1. Design for Manufacturability (DFM)
Design for manufacturability (DFM) is a critical aspect of PCB design that involves optimizing the design for efficient fabrication and assembly. A well-designed PCB can reduce fabrication costs, improve yield, and increase reliability. Some key considerations for DFM include:
- Using standard components and footprintsThis reduces the need for custom parts and simplifies the assembly process.
- Minimizing the number of layers and vias: Fewer layers and vias can significantly reduce manufacturing complexity and cost.
- Optimizing the placement of components and traces: Proper placement can improve signal integrity and reduce the risk of errors during assembly.
- Ensuring adequate clearance between components and edges: This helps prevent short circuits and makes the board easier to manufacture.
- Using a consistent and efficient routing strategy: Efficient routing can reduce the length of copper traces, improving performance and reducing material costs.
By considering these factors and optimizing your PCB design for manufacturability, you can reduce costs, improve quality, and increase the reliability of your printed circuit boards.
Why Are Some PCBs More Expensive?
Factors that lead to higher PCB Costs include:
- Flexibility and Layers: Flexible PCBs and those with multiple layers are more expensive due to higher material and manufacturing complexity.
- Technological Requirements: High-frequency PCBs or those requiring precise impedance control are more costly.
- Economies of Scale: Smaller production runs are typically more expensive per unit than larger batches.
Conclusion
Since there are many factors to consider when producing PCBs, there is no specific number that can be set. Are you looking for a specific type of PCB? Or do you want to determine which factors will affect the cost of PCBs? Please contact us via email or support, and we would be happy to provide you with answers guided by our experts.
