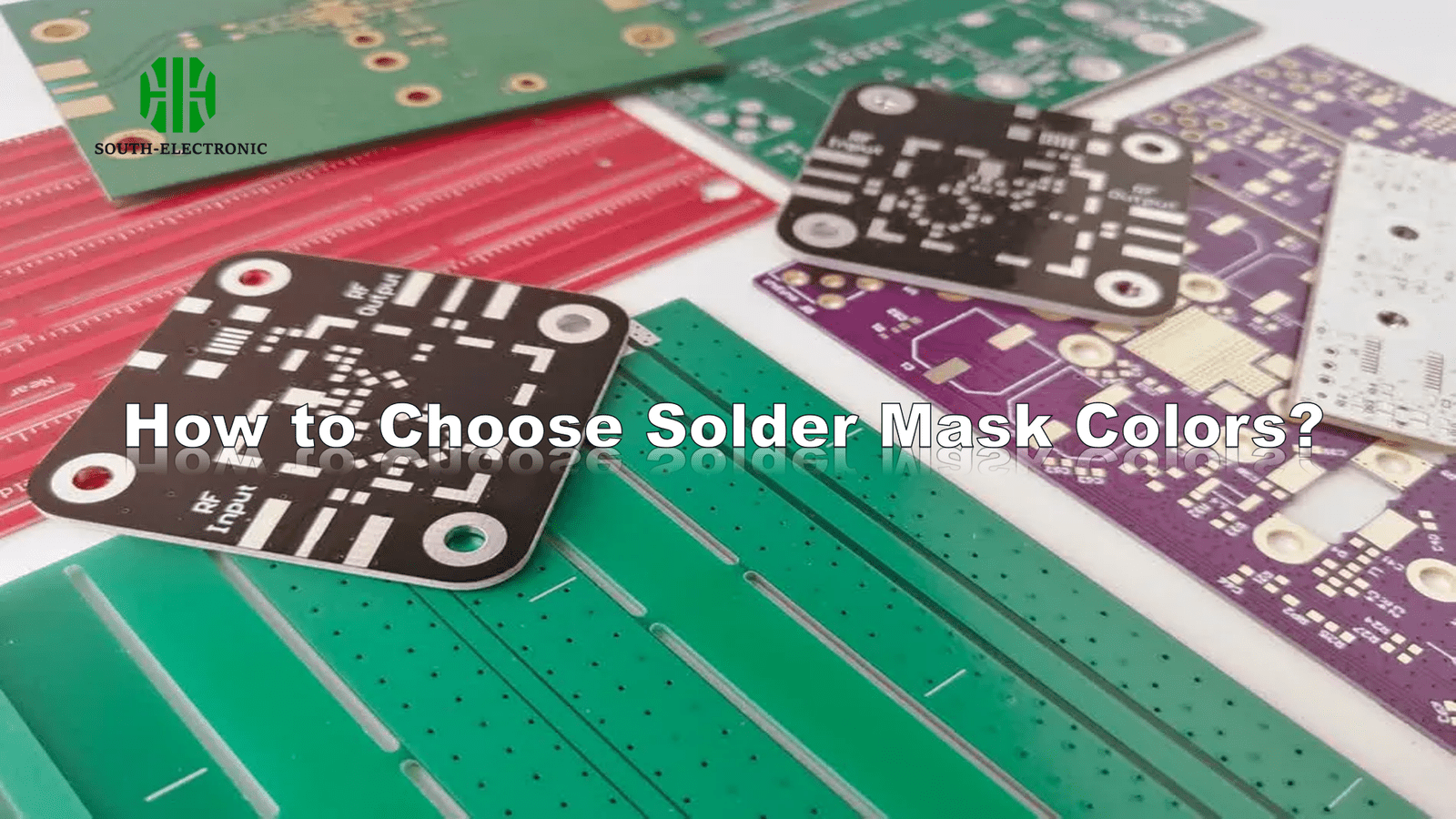

Imagine spending weeks designing a PCB layout, only to have assembly fail because you picked the wrong solder mask color. That sinking feeling when soldering errors hide until final testing! Choosing solder mask color wisely prevents costly errors and improves functionality.
Select solder mask colors by balancing function, cost, and looks. Green offers top value with clear contrast for inspections. Colors like blue or black suit branding but check UV resistance and durability with your manufacturer first.
Picking color feels simple, but key technical factors matter more than you think. Let’s break down critical questions affecting your PCB’s performance and reliability.
Solder Mask vs. Paste Mask: What’s the Critical Difference?
Ever mixed up solder and paste masks during design? Confusion here delays orders and causes assembly chaos. Understand their distinct roles before prototyping.
Paste mask guides solder paste placement during SMT assembly. Solder mask acts as a protective layer. The critical difference? Paste mask ensures precise soldering, solder mask prevents shorts and corrosion.
Core Functions and Applications
Solder mask and paste mask serve unrelated purposes in PCB manufacturing. Confusing them risks board failure or rework costs. Below is a direct comparison:
| Aspect | Solder Mask | Paste Mask |
|---|---|---|
| Primary Role | Insulates copper traces | Stencils solder paste on pads |
| Material | Liquid epoxy or polymer | Stainless steel or laser cut |
| Placement | Applied pre-soldering | Used during SMT assembly |
| Impact if Wrong | Electrical shorts occur | Solder bridges form |
Solder mask acts like a permanent plastic coating. It covers everything except electrical connection points. This prevents environmental damage and accidental bridging. Paste mask is a temporary tool—only used to apply solder paste accurately. If paste mask designs are off even slightly, components won’t adhere correctly. Always verify file labels with your fabrication partner. I once saw a blue PCB fail EMI tests because paste mask errors increased capacitive coupling. Double-check your Gerber files.
Why Do PCB Vias Need Solder Mask?
Notice tiny holes peppering your PCB? Unprotected vias invite corrosion and short circuits silently. Ignoring via treatment sinks reliability like a leaking boat.
Vias need solder mask to block moisture, pollution, and solder leakage during assembly. This insulation prevents electrical failures and extends board life in harsh conditions.
Protection Methods and Risks
Vias conduct signals between layers but left open, they accumulate contaminants. Solder mask is essential for sealing or "tenting" them. Consider these approaches:
| Coverage Type | Process | Best For | Risk if Skipped |
|---|---|---|---|
| Tented | Mask spans via opening | Cost-sensitive designs | Solder wicking into holes |
| Plugged | Filled with epoxy/resin | High-density boards | Air pockets causing cracks |
| Open | No coverage (uncommon) | Test points / diagnostics | Corrosion & shorts |
Tented vias use solder mask as a roof over holes. It’s fast but thin coatings risk tearing. Plugged vias inject filler material before coating, blocking contaminants thoroughly. This prevents ionic migration and dendrite growth. For outdoor electronics, I recommend full plugging—unprotected vias in a weather sensor design once collected moisture like sponges. Work with fabricators to choose materials matching thermal expansion rates, or temperature cycles will crack the mask.
Solder Mask Thickness Matters: How It Affects Your SMT Yield?
Picture solder paste pooling like pancake batter. Incorrect mask thickness wrecks automated assembly yields overnight. Too thin? Pads smear. Too thick? Parts float.
Ideal thickness ranges 0.3-0.8 mils (8-20µm). Thinner layers boost precision but tear easily. Thicker coats withstand handling but cause tombstoning if misapplied around fine-pitch ICs.
Thickness Control and Defects
Uniform solder mask minimizes SMT failures. Modern Liquid Photoimageable (LPI) masks require strict thickness control. Variability triggers multiple defect types:
| Thickness Issue | Defect Created | Field Impact |
|---|---|---|
| 0.8 mils | Component float/tombstoning | Increased reflow rejects |
| Uneven zones | Solder bridges | Short circuits during use |
Thickness starts with clean copper surfaces. Fabricators coat boards using curtain coating or spraying, then UV-cure the pattern. I’ve seen 0.1-mil variations lift resistors during reflow. For dense boards, request post-cure measurements near edge pads. Thermal expansion mismatches get worse with thickness errors—a medical device project had 23% yield loss until we standardized at 0.5 mils. Communicate required dielectric strength based on operating voltage.
Conclusion
Choose solder mask color considering inspection ease, reliability, and budget. Always validate choices with manufacturers to avoid hidden risks.
