Poor solder joints plague electronics. They fail suddenly, causing device breakdowns. Frustration builds as gadgets die prematurely. Why guess when visual clues reveal truth instantly? Save time and money by recognizing quality.

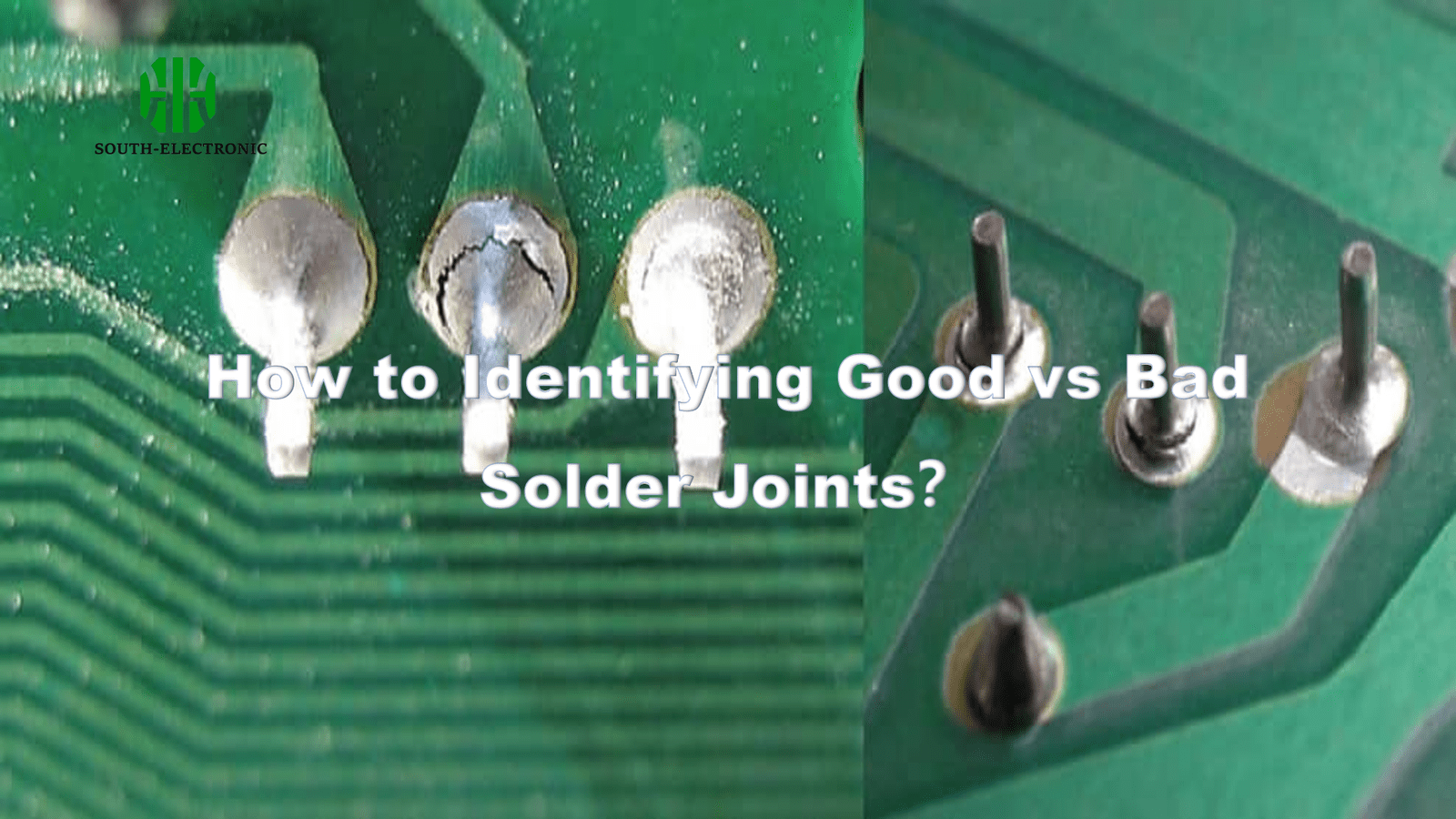

Good solder joints are smooth, shiny, and concave with symmetrical fillets, ensuring strong connections. Bad solder joints appear dull, rough, cracked, or lack wetting. Use visual checks and continuity tests to spot trouble early.
Spotting quality solder makes repair work reliable. Now uncover why factories obsess over this skill. We explore what materials matter most in plumbing too.
Why does this factory emphasize welding quality?
Factories suffer costly shutdowns from bad solder. Product recalls slash brand trust. A single cracked solder joint means lost client contracts.
Factories emphasize solder joint quality[^1] to prevent safety hazards and equipment failures. Bad solder joints cause short circuits, fires, and costly repairs, impacting profits and reputation.
The High Costs of Ignoring Quality
Every cold joint solder starts small. Hidden fractures spread under stress. Temperature changes speed up solder joint crack formation. Let's breakdown why quality is non-negotiable:
| Risk Factor | Consequence | Prevention |
|---|---|---|
| Cold solder joints | Intermittent failures | Proper pre-heating |
| Solder dry joint | Weak mechanical bond | Flux application |
| Poor wetting | Connection gaps | Clean surfaces |
| Excess solder | Bridging components | Precision application |
Consider a pump motor failure at our plant last winter. A cold solder joint on the control board sparked erratic operation. Production halted for 12 hours. Technicians traced it to one bad solder joint near a resistor. Pre-heating might have prevented it. Voltage surges found that weak spot. Fixing obvious cracks during inspections saves big later. Reliability begins at the solder point.
The Role of Standards
Protocols enforce consistent quality checks. Workers photograph critical solder joints monthly. Training emphasizes the difference between good solder joint vs bad. Documentation proves compliance during audits.
Which solder/flux is the best?
Choosing wrong solder ruins projects. Acid-core flux eats through pipes. Lead-free options need higher heat. Your solder choice defines durability.
The best solder combines quality flux with the right alloy. 60/40 tin-lead solder[^2] flows easily for electronics. Lead-free SAC305 suits plumbing but requires hotter irons. Rosin flux prevents corrosion for circuit boards.
Matching Materials to Tasks
Soldering copper pipes differs from circuit boards. Pipe fittings need silver-bearing alloys[^3]. Electronics demand low-temperature options. Here's how materials impact results:
| Material Type | Best Use | Key Quality |
|---|---|---|
| Leaded Solder | Electronics | Smooth, shiny wetting |
| Silver Solder | Pipe fittings | Strong cold solder joint resistance |
| Water-Soluble Flux[^4] | Easy cleanup | Corrosion concerns |
| No-Clean Flux | Electronics | Minimal residue |
For home repairs last spring, I used the wrong flux on a leaky pipe joint. A solder dry joint formed within days. Using silver solder and tinning paste fixed it permanently. Wetting quality matters most. Flux choice affects residue too. Corrosion thrives where flux lingers. Cleanliness ensures a good solder joint.
Temperature and Technique Tips
Thicker joints need hotter settings. Kester 60/40 works well at 660°F for circuits. Copper fittings require 750°F+. Test on scrap pieces first. Preheat thick metals to avoid cold solder joints.
What are the common types of copper welded pipe fittings?
Using wrong copper fittings causes leaks. Sweat joints loosen when cold water hits. Elbows split as frost expands. Recognize common shapes for watertight bonds.
Common copper welded joints include sweat solder joints on pipes, couplings between pipes, elbow joints at corners, and tee joints for splits. Each needs smooth concave fillets without gaps to avoid bad solder joints.
Critical Joint Designs
Plumbing relies on specific fittings. Tees direct flow sideways. Caps seal unused lines. Failure points hide at angles:
| Fitting Type | Purpose | Risk Area |
|---|---|---|
| Couplings | Connect pipe sections | Center gaps |
| Elbow (90°/45°) | Change direction | Inside bend crack |
| Tees | Split fluid paths | Branch seam failure |
| Caps | End pipe lines | Edge gaps |
My neighbor’s burst pipe stemmed from a solder joint crack in a 90° elbow. The cold solder joint there never flowed fully at the back. Water seeped out over months. Pinhole leaks form fastest at flawed joints. Stress concentrates at thin spots. Proper support prevents vibration breaks.
Inspection and Prevention
Check for good solder joint symmetry after cooling. Look for shininess versus dull patches. Apply flux only to clean mating surfaces. Pressure test systems before final use. Replace fittings with obvious gaps.
Conclusion
Recognize good and bad solder joints by sight. Use flux and heat properly. Lasting connections resist failure and save money. Your tools matter as much as technique.
[^1]: Understanding the significance of solder joint quality can help prevent costly failures and enhance device reliability.
[^2]: Explore the benefits and applications of 60/40 tin-lead solder, a popular choice for electronics due to its excellent flow and durability.
[^3]: Learn about silver-bearing alloys and their advantages in plumbing applications, ensuring strong and reliable joints.
[^4]: Discover the advantages of Water-Soluble Flux for easy cleanup and its effectiveness in preventing corrosion in soldering.
