Your PCB layers are separating after manufacturing. Boards warp, connections fail, and reliability plummets. This hidden defect often stems from preventable causes – let’s fix it.
To prevent PCB delamination, control moisture exposure in base materials, optimize lamination pressure/temperature cycles, and avoid thermal shock during assembly. Use fresh substrates with proper Tg values and validate process parameters through TGA testing.
Delamination sabotages boards at the molecular level. To protect your designs, we’ll dissect the root causes and countermeasures across four critical areas.
What Causes PCB Delamination During Manufacturing?

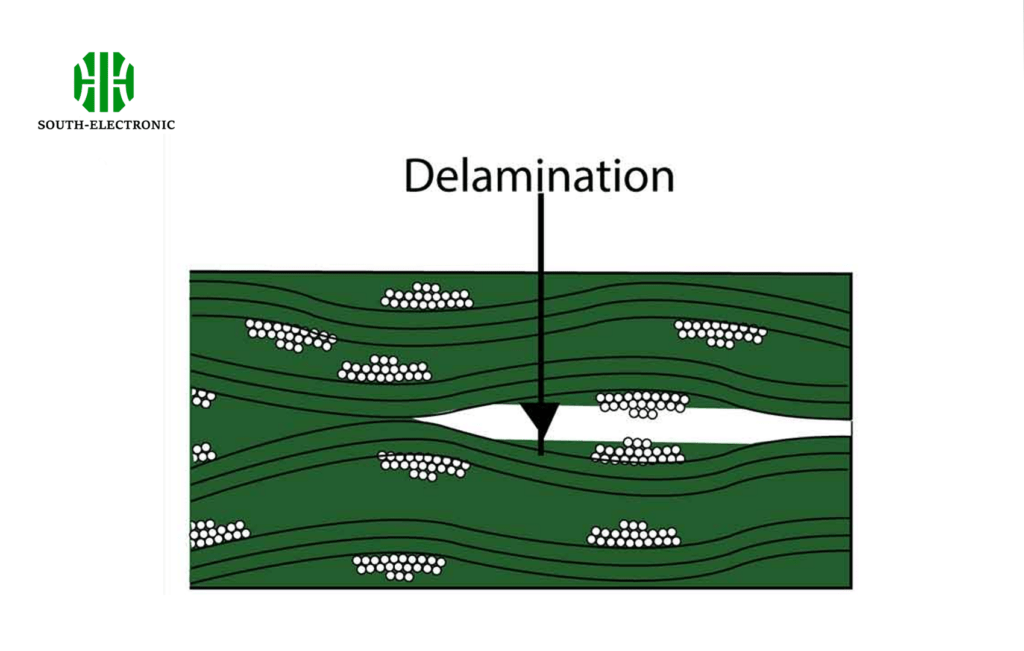

Imagine your PCB layers peeling like wet cardboard. This nightmare often starts before components are ever placed.
PCB delamination primarily occurs from moisture absorption in substrates, improper lamination parameters, and CTE mismatches between materials. Residual stress from rapid thermal cycling accelerates layer separation.
)
Key Culprits and Defense Tactics
Three dominant failure mechanisms plague PCB layers:
| Cause | Mechanism | Prevention Strategy |
|---|---|---|
| Moisture Absorption | Substrate absorbs humidity → vaporizes during soldering | Store laminates in dry cabinets (<5% RH) |
| Thermal Shock | Rapid temp changes exceed material CTE limits | Slow ramp rates (<3°C/sec in reflow) |
| Adhesive Failure | Insufficient resin flow during lamination | Verify glass transition temperature (Tg) matches process temps |
Base material selection proves critical. I once salvaged a medical device project by switching from FR-4 (Tg 130°C) to IT-180 (Tg 180°C) when lead-free soldering caused blistering. Always cross-check the manufacturer’s moisture sensitivity level (MSL) – grades above MSL 3 require bake-outs before assembly.
Lamination parameters demand precision. For multilayer boards, staging pressure between 350-450 PSI across 2-hour cycles ensures complete resin flow. Post-lamination, check for voids using automated X-ray inspection (AXI).
How to Choose PCB Materials That Resist Delamination?
Not all PCB substrates are created equal. Your material choice directly determines delamination resistance.
Select PCB materials with low moisture absorption (<0.1%), high Tg (≥170°C), and matched CTE across layers. Polyimides and hydrocarbon ceramics outperform standard FR-4 in harsh environments. Verify UL94 V-0 flame ratings for safety.
)
Material Decision Matrix
Balance cost vs performance using these key parameters:
| Property | Ideal Range | Test Method | High-Performance Example |
|---|---|---|---|
| Moisture Absorption | ≤0.08% | IPC-TM-650 2.6.2 | Rogers 4350B (0.04%) |
| Tg | ≥170°C | DSC | Isola IS410 (180°C) |
| Z-Axis CTE | 1.0 N/mm | IPC-650 2.4.8 | Arlon 85N (1.3 N/mm) |
When prototyping space electronics, we achieved zero delamination by using Arlon 25N’s ceramic-filled PTFE composite – despite 15 thermal cycles from -55°C to +125°C. For high-frequency designs, Rogers RO4000 series laminates provide both stable Dk and moisture resistance. Always request material certification sheets showing actual test data, not just datasheet claims.
Can Design Errors Lead to PCB Layer Separation?
Your flawless soldering can’t compensate for flawed PCB layouts. Hidden design mistakes pry layers apart.
Yes, improper copper balancing, acute angles in power planes, and mismatched via pad sizes create stress concentrations that initiate delamination. Maintain 0.3mm diameter |
One automotive PCB failed during thermal shock testing due to unbalanced 18oz power planes. Redistributing copper into hatched polygons reduced peak stress by 63%. For mixed-material stacks, model CTE differences using tools like Ansys Mechanical – aim for ΔCTE <5 ppm/°C between adjacent layers.
What Process Controls Prevent Delamination in PCB Assembly?
Your perfect board can still delaminate if assembly processes attack its weaknesses.
Prevent delamination during assembly with pre-bake (125°C/6hr for MSL3+), soldering profiles below material Tg, and avoidance of multiple rework cycles. Monitor press-fit insertion force and conformal coating cure temperatures.
)
Assembly Line Defense Checklist
| Process Step | Risk Factor | Control Measure |
|---|---|---|
| Board Storage | Moisture absorption | Maintain 10% RH dry storage with 72-hour exposure limit |
| Preheat | Thermal gradient stress | Max 3°C/sec ramp rate in oven zones |
| Reflow Soldering | Peak temp exceeding Tg | Set max 240°C for FR-4 (Tg 130°C) |
| Rework | Localized overheating | Limit to 2 reflow cycles, use thermal shields |
| Testing | Mechanical stress | <5N test probe force, support boards during ICT |
When we implemented vacuum baking (4 hours at 110°C) for aerospace PCBAs, field failure rates dropped 82%. For lead-free assemblies, watch solder mask degradation – darker discoloration indicates overexposure. Utilize IR thermography to detect cold joints needing rework before final curing.
Conclusion
Combat PCB delamination through material science, intelligent design, and ruthless process control. Dry substrates, balanced layouts, and gentle thermal profiles form an impregnable defense against layer separation.
