What is Solder and Why Remove It?

Solder is a fusible metal alloy used to create a permanent bond between metal workpieces. In electronics, it’s used to join components to circuit boards. You might need to remove solder to replace a faulty component, correct a soldering mistake, or recover parts from a damaged board.

Tools and Safety Precautions

Before you start, gather the necessary tools and take safety precautions.

Essential Tools:

1. Soldering iron
2. Desoldering pump (solder sucker)
3. Desoldering braid (wick)
4. Heat gun
5. Tweezers
6. Isopropyl alcohol
7. Soft-bristled toothbrush

Safety Precautions:

• Work in a well-ventilated area: Soldering fumes can be harmful.
• Wear safety glasses: Protect your eyes from molten solder splashes.
• Use heat-resistant gloves: Prevent burns from hot tools and solder.
• Keep a fire extinguisher nearby: Be prepared for any accidental fires.

Step-by-Step Guide to Remove Solder

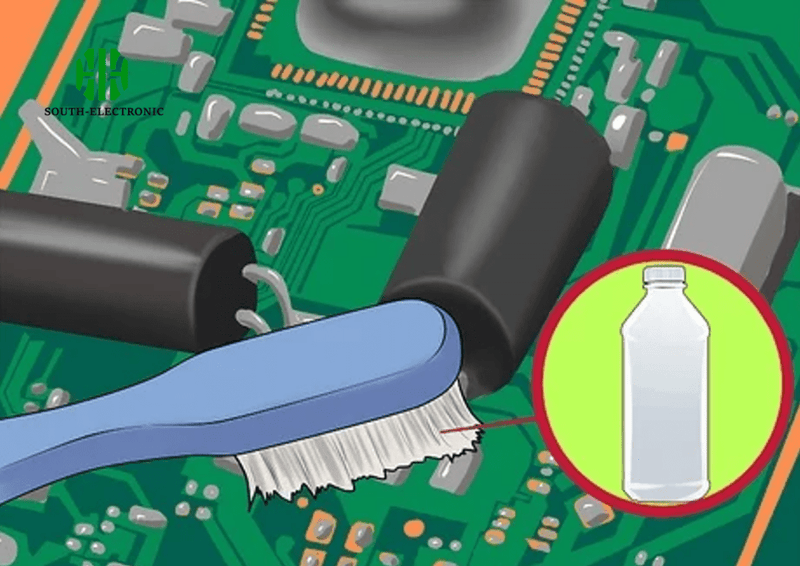

1. Prepare the Circuit Board

Before you start desoldering, ensure the circuit board is free from any power sources and capacitors are discharged.

1. Remove the PCB from its enclosure: Carefully take out the circuit board from its casing.
2. Clean the board: Use isopropyl alcohol and a soft-bristled toothbrush to remove any dirt or residue.

2. Use a Soldering Iron and Desoldering Braid

The desoldering braid is effective for removing small amounts of solder.

1. Unroll some wick: Add flux if necessary.
2. Place the wick on the solder joint: Ensure it covers the entire joint.
3. Press the hot iron on top of the wick: The solder will melt and be absorbed by the braid.
4. Lift the wick and iron: Do this while the solder is still melted.

3. Use a Desoldering Pump

A desoldering pump, or solder sucker, is useful for removing larger amounts of solder.

1. Heat the solder joint with a soldering iron: Until the solder is molten.
2. Position the desoldering pump over the molten solder: Quickly press the pump button to suck up the solder.

Alternative Methods

1. Removing Solder without a Wick

1. Heat the solder joint: Use a soldering iron.
2. Tap the board on a table: Melt the solder and then tap the board to remove the solder.

2. Using a Heat Gun

1. Heat the surface with a heat gun: Place the PCB on a non-flammable surface.
2. Remove the melted solder: Use tweezers or picks to remove the solder.

Tips and Tricks

• Use flux: Helps in removing oxidized solder.
• Work quickly: Prevents overheating and damaging the board.
• Keep your tools clean: Regularly clean the soldering iron tip.

Removing solder from a circuit board involves several steps and can be accomplished using different tools and techniques. By following the methods outlined in this guide, you can safely and effectively desolder components without damaging your circuit board.
