Have you ever wondered how your smartphone survives countless drops or how smartwatches bend around your wrist? These marvels rely on a hidden hero: flexible circuit boards.

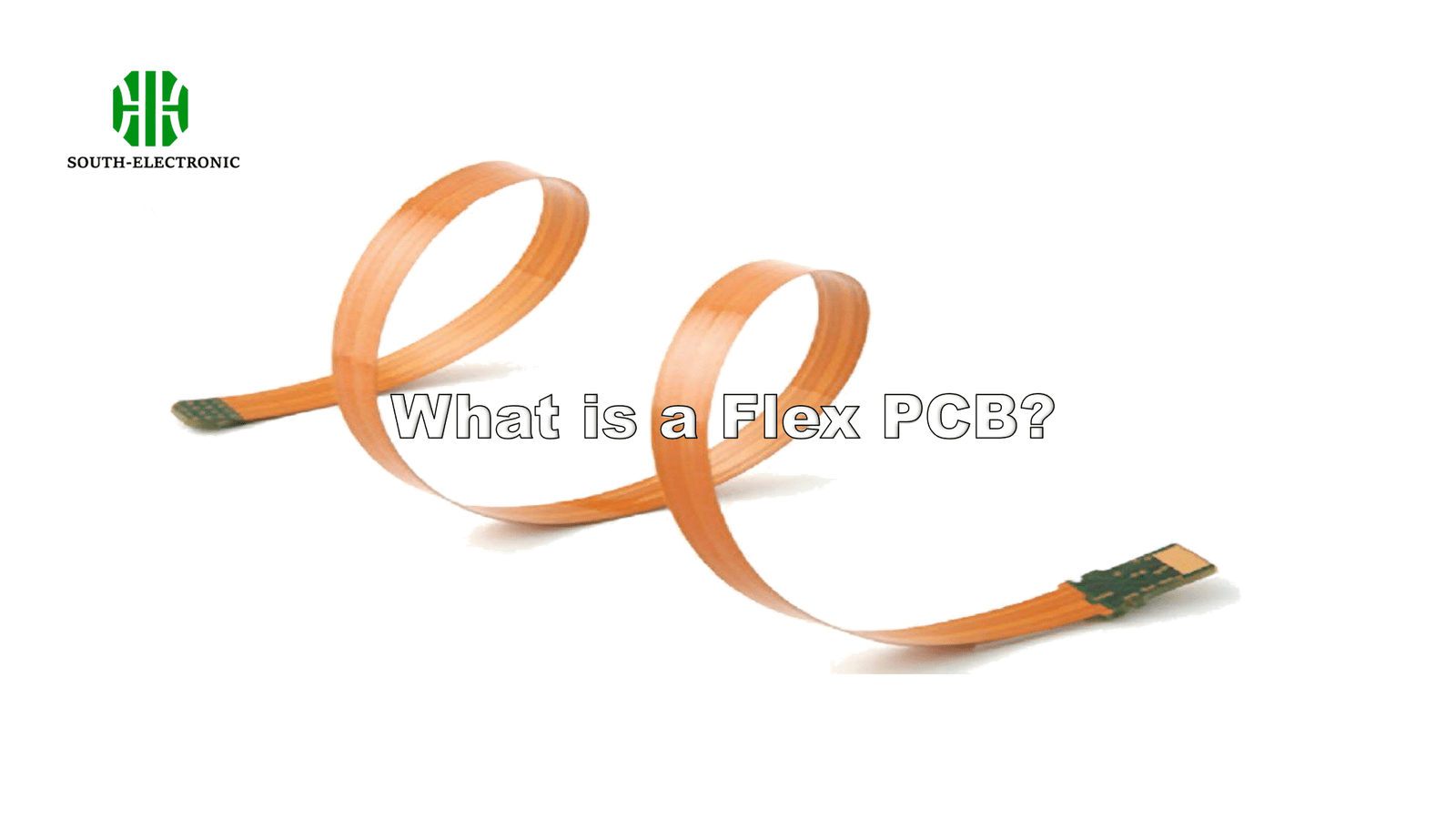

Flex PCBs[^1] are bendable electronic circuits that replace rigid wiring, using ultrathin materials like polyimide to create lightweight, durable connections in tight spaces like wearables and medical implants.
Like digital origami engineers, Flex PCBs solve problems rigid boards can’t touch. Let’s dissect how they work and where they're reshaping technology.
How Does a Flex PCB Differ from a Traditional Rigid PCB?
Trying to thread a USB cable through a narrow gap? That's the daily struggle for rigid PCBs in modern gadgets. Flex PCBs slip through these challenges like silk.
Flex PCBs use bendable polyimide layers[^2] instead of rigid fiberglass[^3], enabling 500x more bend cycles (up to 200,000 folds), while being 80% thinner (0.1-0.3mm) than standard 1.6mm rigid boards.
Structural Showdown: Flex vs Rigid
| Feature | Flex PCB | Rigid PCB |
|---|---|---|
| Base Material | Polyimide film | Fiberglass |
| Thickness | 0.1-0.3mm | 0.8-1.6mm |
| Bend Capability | Dynamic (repeated flex) | Static (fixed shape) |
| Weight | 70% lighter | Heavy |
| Assembly Cost | Higher initial cost | Lower cost |
| Application | Wearables, robotics | Computers, appliances |
Designers choose Flex PCBs when products demand:
- 3D shaping around moving parts (watch hinges)
- Vibration resistance (car engine sensors)
- Space constraints (hearing aid components)
The trade-off? Polyimide costs 3-5x more than standard FR4 material.
What Materials Are Used in Flex PCB Construction?
Imagine building circuitry on plastic wrap. Flex PCB materials combine surgical precision with material science innovation.
Flex PCBs use heat-resistant polyimide films[^4] (∼300°C tolerance), rolled annealed copper[^5] (for bending durability), and advanced adhesives to survive millions of flex cycles without cracking.
)
Material Menu for Flex Circuits
| Layer | Purpose | Key Properties |
|---|---|---|
| Base Film | Foundation | Polyimide (Kapton®) |
| Conductive | Circuit paths | Rolled annealed copper |
| Adhesive | Layer bonding | Acrylic/epoxy resins |
| Coverlay | Protection | Photoimageable film |
| Stiffeners | Support areas | FR4/aluminum plates |
Specialized versions use:
- Liquid crystal polymer (LCP) for 5G antennas
- Silver ink for stretchable medical sensors
- Transparent substrates for OLED lighting
Thinner 18μm copper vs standard 35μm allows tighter bending radii (up to 1mm). Adhesives cure at 150-170°C for stable performance in car engine bays.
Material Menu for Flex Circuits
| Layer | Purpose | Key Properties |
|---|---|---|
| Base Film | Foundation | Polyimide (Kapton®) |
| Conductive | Circuit paths | Rolled annealed copper |
| Adhesive | Layer bonding | Acrylic/epoxy resins |
| Coverlay | Protection | Photoimageable film |
| Stiffeners | Support areas | FR4/aluminum plates |
Specialized versions use:
- Liquid crystal polymer (LCP) for 5G antennas
- Silver ink for stretchable medical sensors
- Transparent substrates for OLED lighting
Thinner 18μm copper vs standard 35μm allows tighter bending radii (up to 1mm). Adhesives cure at 150-170°C for stable performance in car engine bays.
Where Are Flex PCBs Most Commonly Applied?
From your AirPods to Mars rovers, flex circuits enable technologies that would snap standard boards.
Over 70% of modern medical devices[^6] use Flex PCBs for their ability to:
- Withstand sterilization (autoclave cycles)
- Conform to body contours (pacemakers)
- Survive constant motion (robotic surgery tools)
Innovation Hotspots Using Flex Tech
| Industry | Use Case | Flex Benefit |
|---|---|---|
| Consumer | Foldable phones | 200k+ bend cycles |
| Automotive | Steering wheel sensors | Vibration resistance |
| Aerospace | Satellite solar arrays | -55°C to 125°C range |
| Medical | Endoscope cameras | 2mm diameter flexibility |
| Industrial | Robotic arms | Continuous motion |
| Military | Wearable tech | EMI shielding |
In Tesla's battery packs, flex PCBs monitor 7,000+ battery cells while withstanding road vibrations. Apple Watch uses 12-layer flex boards thinner than human hair (0.2mm).
Conclusion
Flex PCBs enable smaller, smarter devices by bending circuitry to fit our world – one foldable screen and life-saving implant at a time.
