What is PCB Material？
PCB material is the stuff that printed circuit boards are made of. It can be good at handling heat, keeping electricity from leaking, and being strong. There are different kinds of PCB material, like FR4, Rogers, polyimide, and others. Each kind of material is good for different things.

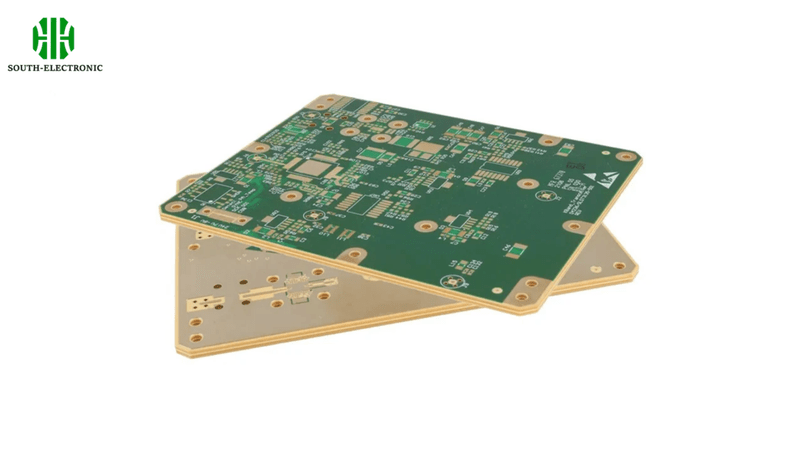

What is FR4 Material in PCB?
FR4 is a popular PCB material because it's reliable and cheap. It's made by putting woven fiberglass cloth in epoxy resin, so it won't catch fire. It meets the UL 94V-0 fire safety standard, so it's safe to use in electronics.
Properties of FR4 Material
- Electrical Insulation: Excellent electrical insulating properties.
- Mechanical Strength: High mechanical strength and rigidity.
- Thermal Stability: Good thermal stability, suitable for standard soldering processes.
- Moisture Resistance: Low moisture absorption, ensuring stable performance in humid conditions.
Applications of FR4
- Communication Equipment: Routers, switches, and antennas.
- Computer Hardware: Motherboards, graphic cards, and CPUs.
- Consumer Electronics: Smartphones, tablets, and gaming consoles.
- Industrial Electronics: Control systems and automation equipment.
- Medical Devices: Diagnostic equipment and medical imaging systems.
Design Considerations for FR4
- Thickness and Copper Cladding: Standard copper cladding ranges from 1 to 3 ounces per square foot.
- Surface Finishes: Common finishes include HASL, ENIG, and OSP.
- Operating Temperature: Suitable for applications up to 150°C with high-performance variants available for higher temperatures.

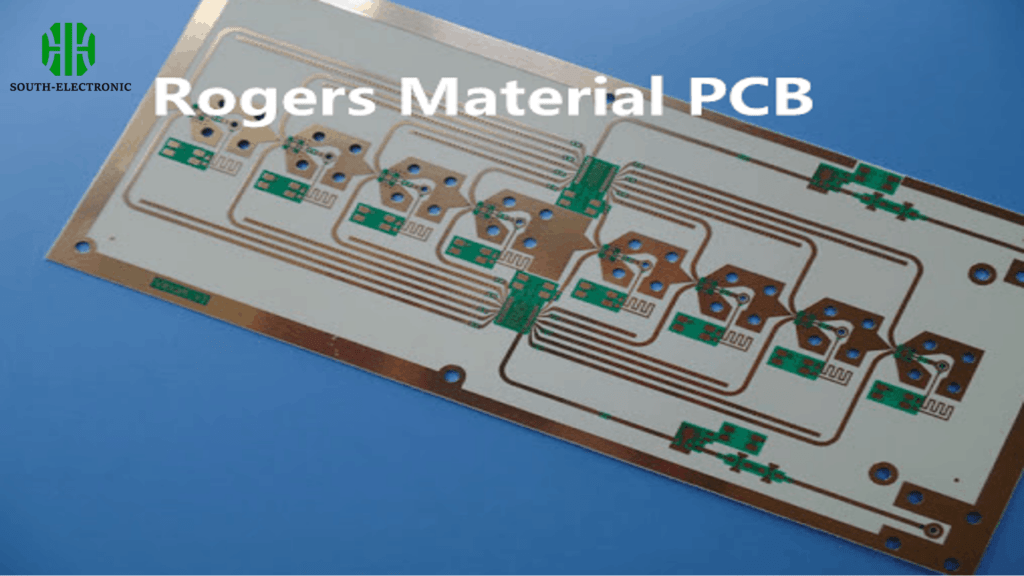

What are Rogers PCBs?
Rogers materials are high-frequency laminates known for their superior performance in RF and microwave applications. These materials are used when high electrical performance and low signal loss are critical.
Properties of Rogers Material
- Low Dielectric Loss: Minimal signal loss, making it ideal for high-frequency applications.
- Thermal Conductivity: High thermal conductivity, enhancing thermal management.
- Stable Dielectric Constant: Consistent dielectric properties across a wide frequency range.
- Low Moisture Absorption: Better performance in harsh environments.
Applications of Rogers
- RF and Microwave Circuits: Suitable for communication systems and radar applications.
- Aerospace and Defense: Used in critical applications requiring high reliability.
- High-Speed Digital Designs: Ideal for high-speed data transmission systems.
Design Considerations for Rogers
- High-Frequency Design: Ideal for applications requiring stable impedance and low signal loss.
- Thermal Management: Effective for designs with significant thermal dissipation requirements.
- Moisture Sensitivity: Better suited for environments with high humidity or moisture exposure.

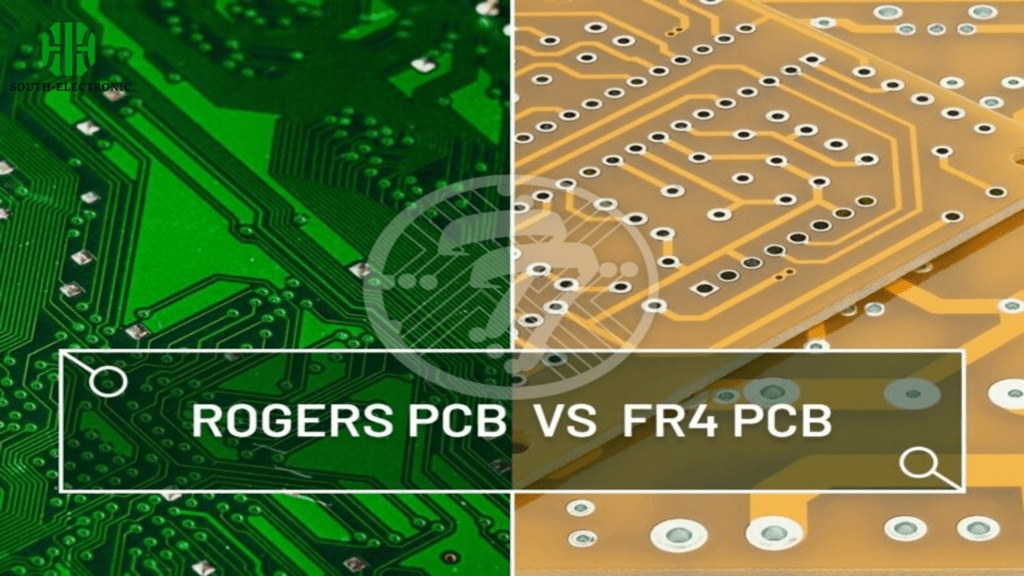

FR4 vs Rogers PCB: Which to Choose?
| Property | FR4 | Rogers |
|---|---|---|
| Dielectric Constant (Dk) | ~4.5 | 2.5 to 11 |
| Dissipation Factor (Df) | Higher | Lower |
| Thermal Conductivity | ~0.3 W/mK | 0.5 to 0.95 W/mK |
| Moisture Absorption | 0.1 to 0.2% | 0.02 to 0.08% |
| Cost | Lower | Higher |
| Frequency Range | Up to 10 MHz | Beyond 500 MHz |
Why is dielectric constant important in PCB materials？
The dielectric constant of PCB materials is super important for making sure your electronics work right. It affects how fast signals go through your circuit, helps keep the impedance under control so your circuit does what it's supposed to do, lets you make your stuff smaller by packing more traces together, and even affects how heat moves around in your circuit because of how it's related to thermal conductivity. So, picking materials with the right dielectric properties is really important if you want your electronics to work the way you want them to, especially when you're dealing with high-frequency stuff.
