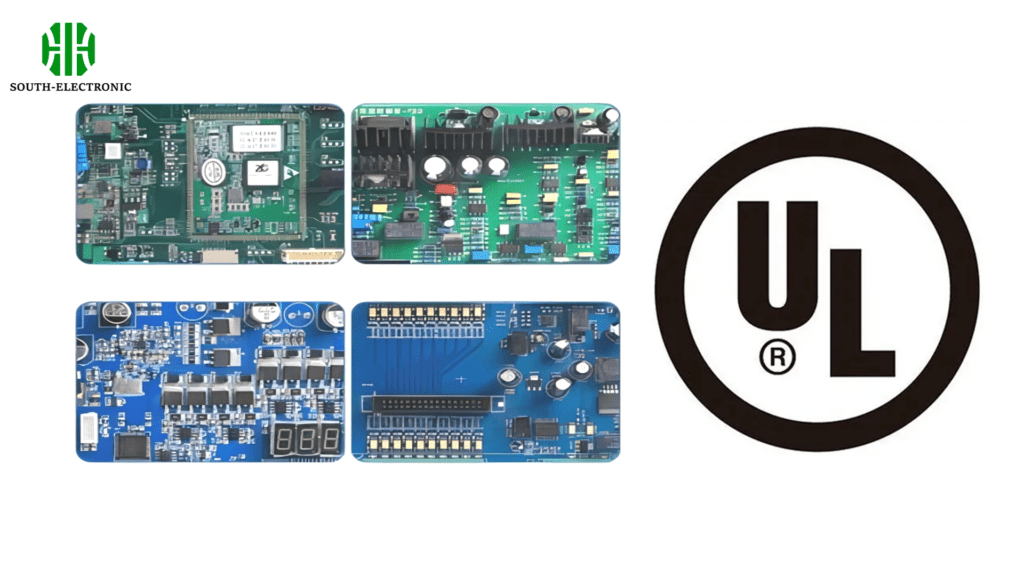

What is the PCB UL for Canada and US?
The UL mark is a widely recognized symbol of safety and quality. In Canada, PCB safety standards are regulated by the Canadian Standards Association (CSA). The relevant standard for PCBs is CSA C22.2 No. 60950-1. In the US, PCBs are regulated under UL 796, which is administered by Underwriters Laboratories (UL).
What is PCB UL Certification?
PCB UL Certification ensures that printed circuit boards meet specific safety standards required in Canada and the US. The certification, known as ZPMV2, covers “Printed Wiring Boards – Materials and Processes – Voltages up to and Including 600 Volts.” It is essential for manufacturers who want their products to be recognized for safety and quality in North American markets.
UL Certification Standards for Canada and the US
The standards for UL certification in Canada and the US, while aligned in their core safety principles, have nuances that reflect the regulatory environment of each country. Here is a comparison of PCB UL Standards between Canada and the US:
| Standard | Canada (CSA C22.2) | US (UL 796) |
| Scope | Electrical safety | Electrical safety |
| Voltage Rating | Up to 600V | Up to 600V |
| Testing Required | Thermal, Dielectric | Thermal, Mechanical |
| Certification Mark | cUL mark | UL mark |
Steps to Obtain UL Certification

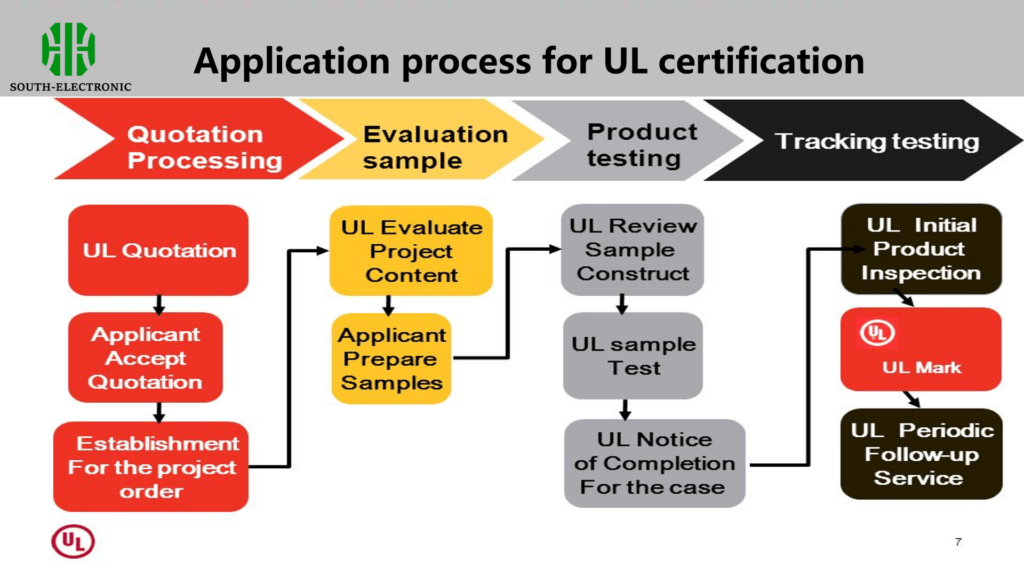

Application process for UL certification
- Quotation Processing: The first step in the UL certification process involves obtaining a quote from UL. This requires submitting detailed information about the product, including its design, materials, and intended usage.
- Evaluation Sample: UL conducts a thorough evaluation of the PCBs to assess compliance with the relevant standards.
- Product Testing: The PCBs undergo rigorous safety tests to ensure they meet all required parameters.
- Tracking Service: After the product has passed all necessary tests and is certified, UL offers a tracking service to continuously verify the ongoing compliance of the product with UL standards.
Costs and Timeframe
The cost and time required to achieve UL certification can vary greatly depending on the complexity of the PCBs and the specific requirements of the applicable standards. Estimated costs and timeframe for PCB UL Certification are as follows:
| Step | Cost Estimate | Timeframe |
| Application | $500 – $1,000 | 1-2 weeks |
| Evaluation and Testing | $2,000 – $10,000 | 4-12 weeks |
| Certification | $1,000 – $3,000 | 2-4 weeks |
Conclusion
Obtaining UL certification can significantly enhance a manufacturer’s marketability and trustworthiness in the industry. It is essential for manufacturers who want their products to be recognized for safety and quality in North American markets. For consumers, UL certification provides assurance that the PCBs in their devices are safe, reliable, and meet high-quality standards, reducing the risk of product failure and increasing overall device longevity.
