Struggling with tight electronics deadlines? Board delays killing your project momentum? Quick turn PCBs solve time-sensitive manufacturing challenges while maintaining quality standards.
Quick turn PCBs[^1] are circuit boards manufactured in 24 hours to 7 days through optimized processes. They enable rapid prototyping and emergency production runs without sacrificing reliability, using advanced fabrication techniques to compress traditional 2-3 week timelines.
While speed defines quick turn PCBs, true value lies in understanding their capabilities and limitations. Let's examine six critical aspects that determine when and how to use accelerated manufacturing[^2] effectively.

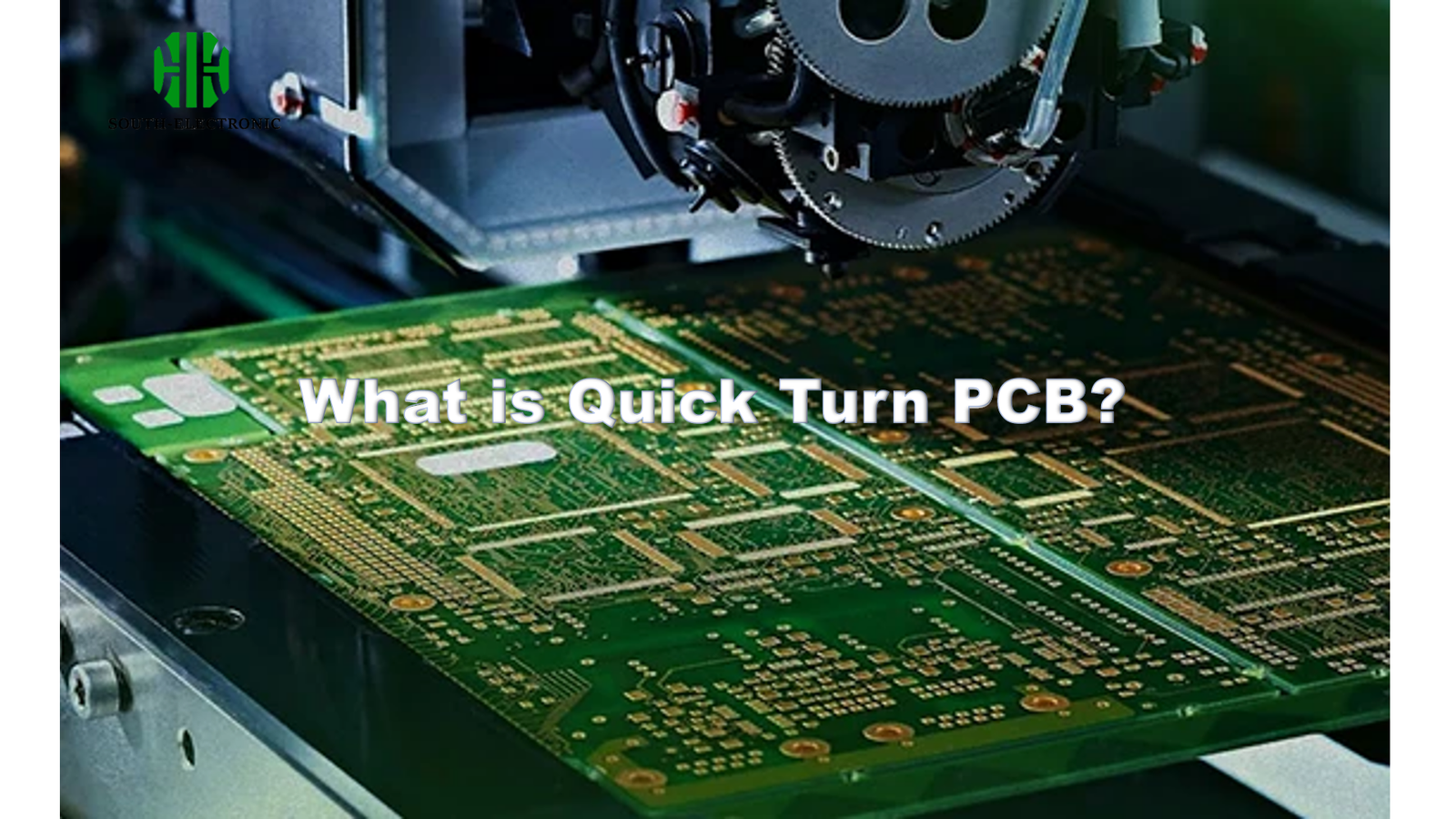

What Defines a Quick Turn PCB?
Many confuse quick turn PCB with rushed jobs. True quick turn manufacturing combines three pillars that distinguish it from standard services.
Quick turn PCBs require:
- Dedicated rapid-production lines
- Automated DFM checks
- Flexible scheduling
Unlike rushed standard orders, they maintain full testing protocols while achieving 5-10x faster turnaround.
)
Core Differentiators Explained
| Process Component | Standard PCB | Quick Turn PCB |
|---|---|---|
| Design Review | 24-48 hours | 2-4 hours (automated) |
| Material Preparation | 3-5 days | On-demand stocking |
| Plating Process | Batch processing | Single-lot optimization |
| Electrical Testing | Sample basis | 100% coverage |
Quick turn services maintain quality through:
- Pre-stocked materials: Common substrates stored for instant use
- Modular production: Independent workflow cells prevent bottlenecks
- Shift overlapping: 24/7 operations with handoff protocols

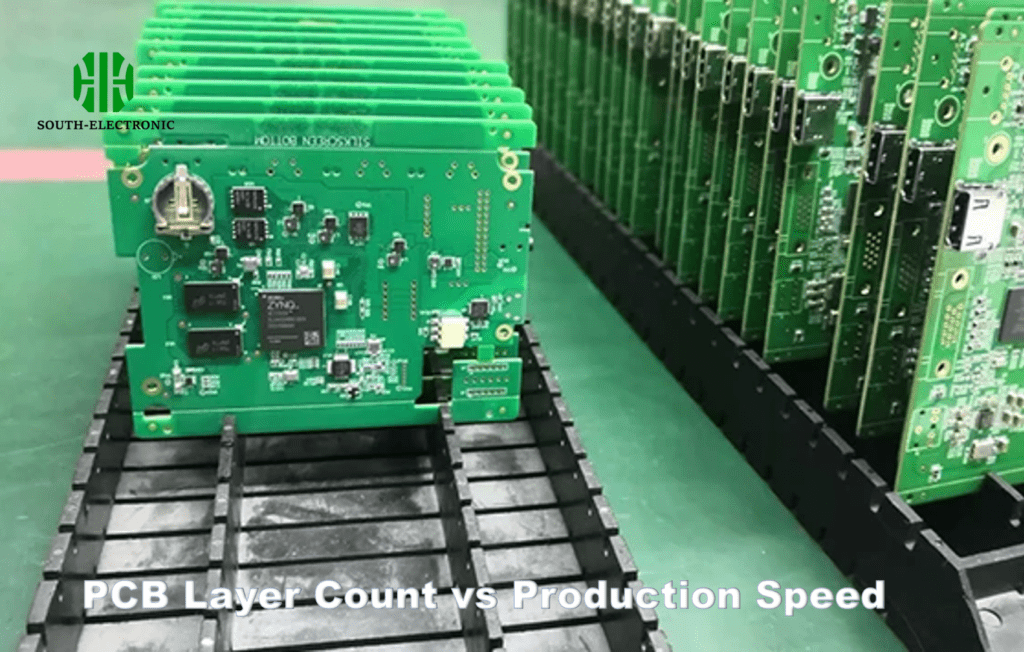

How Fast Can You Really Get PCBs?
24-hour PCB delivery sounds mythical until you understand the tiered speed options manufacturers actually provide.
True 24-hour service exists for simple 1-2 layer designs, while complex 16+ layer boards typically require 5-7 days. Most projects fall in the 48-72 hour range for 4-8 layer prototypes.
)
Speed Reality Check
| Design Complexity | Minimum Time | Additional Layers |
|---|---|---|
| 1-2 Layer Rigid | 24 hours | +8 hours per layer |
| 4-6 Layer HDI | 48 hours | +12 hours per layer |
| Flex-Rigid | 72 hours | +24 hours per stackup |
My team once received "24-hour" boards in 18 hours by:
- Using 0.062" FR-4 stock thickness
- Avoiding scored panels
- Submitting before 7 AM local fab time
Is Quick Turn PCB More Expensive?
The cost-speed tradeoff exists but isn't linear. Smart process optimization reduces premium charges.
Quick turn PCBs typically cost 15-30% more than standard orders, but prevent costly project delays. Bulk pricing applies at 50+ units, with some suppliers offering speed guarantees.
)
Cost Factors Breakdown
| Cost Driver | Standard PCB | Quick Turn PCB |
|---|---|---|
| Setup Charges | $100-$300 | $250-$500 |
| Per Unit Cost (10pcs) | $8/board | $11/board |
| Rush Fee Savings | N/A | 5% for repeat orders |
Key cost control strategies:
- Panel sharing: Combine multiple designs on single panels
- Material matching: Use fab house's common stock
- Off-peak scheduling: Some charge less for weekend runs

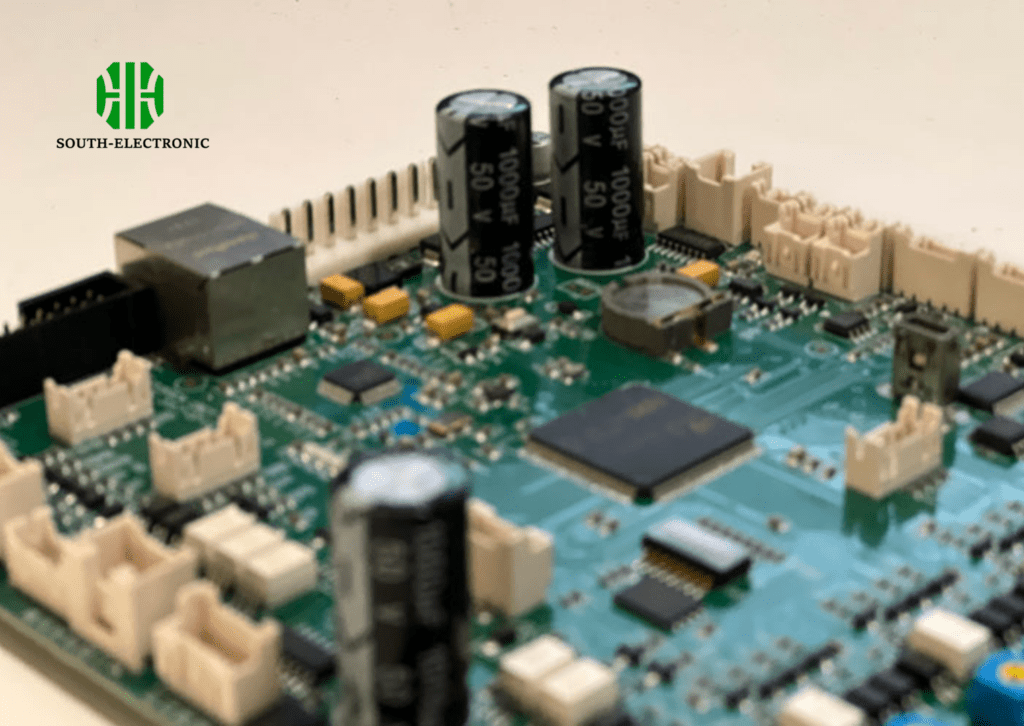

Prototyping vs. Production: Which Quick Turn Service Fits Your Stage?
Choosing wrong service type causes either over-engineering or under-tested boards. Align choices with project phase.
Prototyping needs fast iterations[^3] with relaxed tolerances. Production requires certified processes and batch consistency. Some manufacturers specialize in one area - verify capabilities match your stage.
Phase-Specific Requirements
| Requirement | Prototyping | Production |
|---|---|---|
| Tolerances | ±20% acceptable | ±5% required |
| Testing Depth | Basic functionality | Full MIL-STD-883 |
| Documentation | Simplified | Full traceability |
| MOQ | 1-5 boards | 100+ boards |
We once lost 3 days using a production-focused vendor for prototypes. Their 200-unit MOQ and 48-hour burn-in made small batches impractical.
What Engineers Overlook in Quick Turn PCB Design?
Rushing to meet deadlines causes preventable errors. These four overlooked factors create 73% of quick turn failures.
Common oversights:
- Missing fab drawing notes
- Incorrect via fill specs
- Unverified 3D component clearance
- Outdated IPC standards
Critical Oversight Analysis
| Oversight | Impact | Prevention |
|---|---|---|
| Incomplete layer stackup | 62% delay rate | Supply JPG cross-section |
| Unapproved materials | 48-hour material wait | Pre-check stock list |
| Edge clearances <0.5mm | 100% rework | Run DRC before export |
| Missing impedance notes | Failed signal tests | Include calculation sheet |
Implement a 5-point pre-submission checklist[^4]:
- Verify all drill files
- Confirm copper weights
- Check soldermask openings
- Review silkscreen markings
- Validate BOM matches layout
How to Choose a Reliable Quick Turn Manufacturer?
Not all "rapid" suppliers deliver. These selection criteria separate truly capable partners from marketing claims.
Evaluate manufacturers by:
- Actual turnaround histogram data
- In-house vs outsourced processes
- Failure analysis reports
- Customer emergency response protocols
)
Vendor Scorecard Matrix
| Criterion | Weight | Check Method |
|---|---|---|
| Same-day DFM Feedback | 25% | Test file submission |
| Transparent Capacity | 20% | Ask for shift schedule |
| Escalation Contacts | 15% | Get support roster |
| Root Cause Analysis | 30% | Request sample report |
| Shipping Flexibility | 10% | Check courier partners |
We maintain a manufacturer scorecard with 23 weighted parameters. Top performers consistently show:
- <4 hour initial response time
- ≥90% on-time delivery
- ≤5% engineering query rate
Conclusion
Quick turn PCBs enable rapid development when used strategically. Balance speed needs with design readiness and phase requirements. Choose partners offering transparency beyond marketing claims.
