How to Reflow a Two-Sided PCB: A Comprehensive Guide

CONTENTS

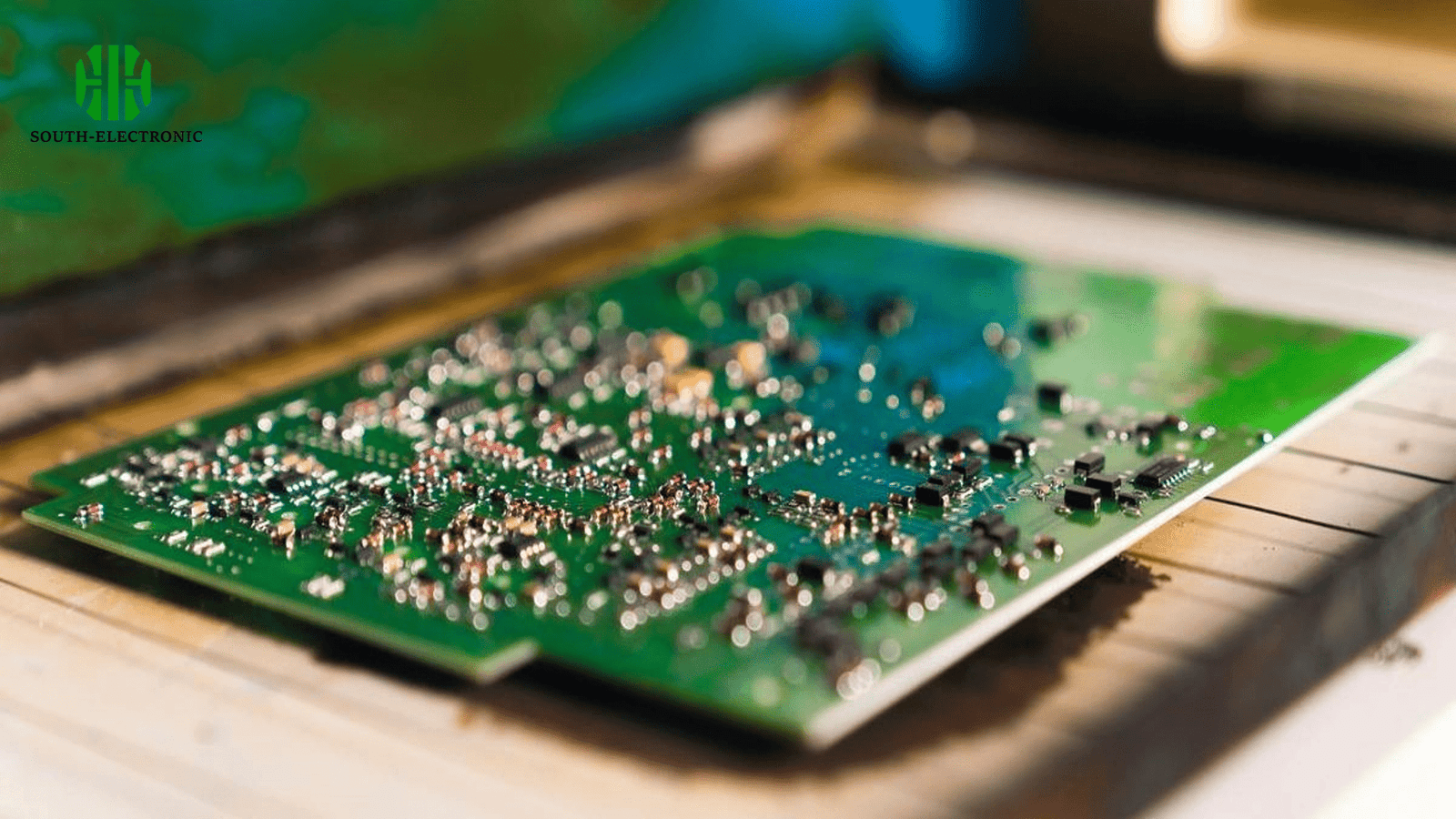

PCB

How to Reflow a Two-Sided PCB?

To reflow a double-sided PCB, you need to put solder paste and components on one side first, then reflow it. After the first side cools down, flip the board, repeat the process on the other side, and reflow it again. This sequential reflow process ensures that components on both sides are properly soldered without disturbing the already soldered parts.

How to Reflow a Board Twice?

When reflowing a double-sided PCB, secondary reflow is a critical step. Here are the steps to follow:

  • First Reflow: Solder the first side of the PCB.
  • Cooling: Allow the board to cool down to room temperature.
  • Flip and Reapply Solder Paste: Flip the board and apply solder paste on the other side.
  • Place Components: Carefully place the components on the second side.
  • Second Reflow: Reflow the second side, ensuring not to disturb the components on the first side.

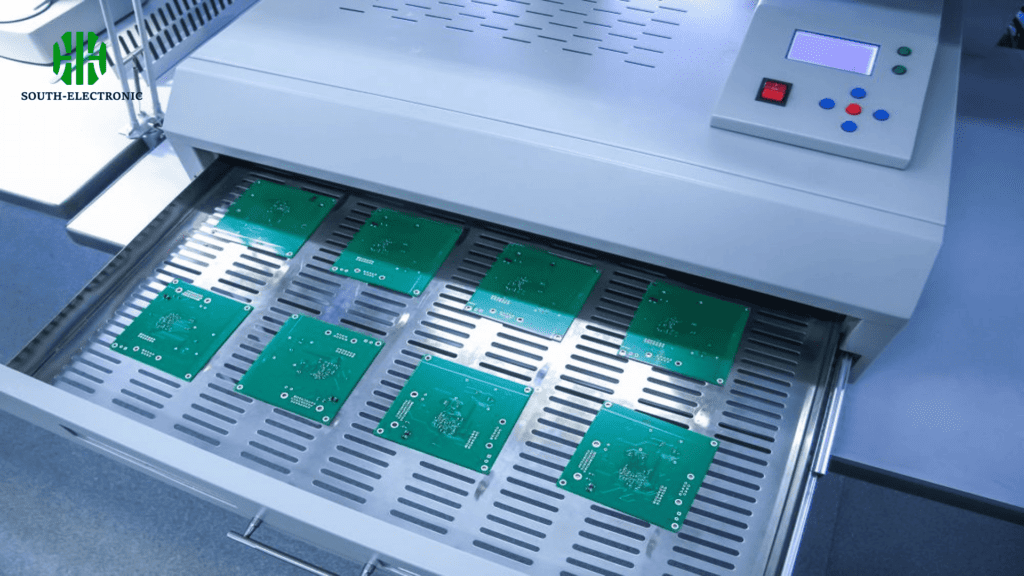

Reflow a Board

Step-by-Step Guide to Reflow Soldering a PCB

  • Applying Solder Paste:The first step in reflow soldering is applying solder paste to the pads where components will be placed. This can be done using a stencil to ensure precise application.
  • Applying Solder Paste:The first step in reflow soldering is applying solder paste to the pads where components will be placed. This can be done using a stencil to ensure precise application.
  • Preheating:Preheating the PCB is essential to avoid thermal shock to the components and the board. Gradually bring the board to the required temperature before reflow.
  • Thermal Soak:During the thermal soak phase, the board is held at a specific temperature to ensure the solder paste is activated and ready for reflow.
  • Reflow:The reflow phase is where the solder paste melts and creates electrical connections between the components and the PCB pads. This is typically done in a reflow oven.

Reflow Temperature Profile:

PhaseTemperature Range (°C)Duration (seconds)
Preheat150 – 18060 – 120
Thermal Soak180 – 20090 – 120
Reflow200 – 25030 – 60
Cooling30 – 15090 – 120

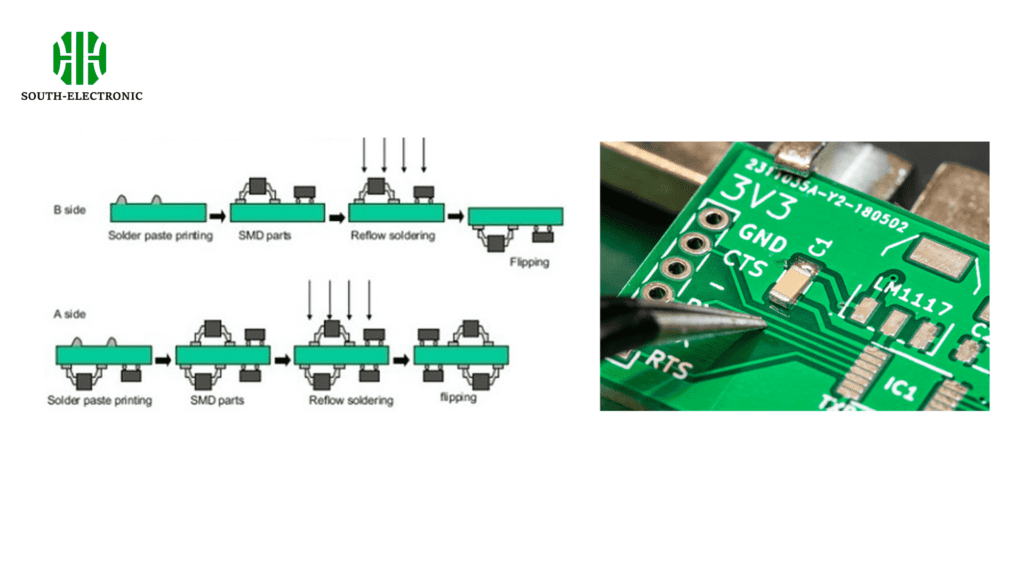

Reflow Soldering a PCB

Common Issues and Solutions

IssueCauseSolution
Component ShiftingUneven heating, vibrationEnsure even heating, stabilize the board
PCB WarpageHigh temperature, uneven coolingGradual preheating and cooling
Poor Solder JointsInadequate solder paste applicationUse proper stencil and application method
Component MisplacementIncorrect component placement during assemblyUse pick-and-place machine or precise manual placement

Reflow soldering a two-sided PCB requires careful planning and execution. By following the steps outlined in this guide, you can achieve reliable and high-quality results. Whether you’re working on a high-volume production run or a low-cost prototype, these best practices will help you succeed.
