Choose South-Electronic for unparalleled quality, dependability, and exceptional value in your PCB assembly needs. Experience the difference with our one-stop SMT PCB Assembly service – from initial design to final assembly, we ensure precision, durability, and compliance with the highest industry standards.
Your Trusted Supplier of SMT PCB Assembly
Welcome to South-Electronic, where you’ll discover top-tier SMT PCB Assembly services known for their excellent precision and reliability.
Our SMT PCB assemblies deliver outstanding performance, making them perfect for a wide range of applications. Explore options such as single-layer, double-layer, and multi-layer boards, all customized to fulfill your specific electronic requirements. Whether you’re enhancing efficiency in consumer electronics or need reliable operation in industrial controls, our SMT PCB Assembly services stand out in ensuring efficiency and precision. Trust South-Electronic for exceptional quality and consistency in your electronic ventures. Our SMT PCB assemblies boost your devices’ functionality with superior reliability and performance. Partner with us for excellence and innovation in your field.
![](https://southelectronicpcb.com/wp-content/uploads/2024/07/electronic-control-unit.webp)
Single-Sided SMT Assembly
Involves placing components on only one side of the PCB. Ideal for simpler, lower-cost designs.
![](https://southelectronicpcb.com/wp-content/uploads/2024/07/basic-function-controller-product-showcase_media-carousel.jpg)
Double-Sided SMT Assembly
Components are placed on both sides of the PCB, offering higher component density and functionality.
![](https://southelectronicpcb.com/wp-content/uploads/2024/07/Automotive-Infotainment-System-Based-on-FPGA-Coprocessor.jpg)
Ball Grid Array (BGA) Assembly
BGA (Ball Grid Array) assembly is a specific type of SMT (Surface Mount Technology) assembly and can be classified under several categories.
在此添加您的标题文本
Why Choose South-Electronic?
Opt for South-Electronic for our expertise in custom, high-quality SMT Assembly services for various applications. Our team offers extensive experience, ensuring superior quality at competitive prices and exceptional service from beginning to end.
- Flexibility in Ordering:
Enjoy the flexibility of ordering from MOQ 1pc, tailored to your specific needs.
- Experienced Team:
Benefit from the expertise of our team, each with significant experience in the PCB industry.
- Comprehensive Service:
Our wide range of processing equipment ensures total satisfaction.
- Fast Delivery:
Efficient production and operations ensure quick turnaround times.
- Guaranteed Satisfaction:
We are an ISO9001 certified factory committed to quality and clear communication.
Related Project We had Done
Customer Reviews
engineer
thank you, guys, the boards are really good, i am really happy to receive my boards, the components are perfect!
Operation Manager
South-Electronic is my first PCBA supplier in China. The service and quality are excellent, and the after-sales support is also very impressive. Good Job!
Common Questions
Most Popular Questions
Automotive PCBs are used in various applications within vehicles, including engine controls, infotainment systems, navigation systems, and safety features such as airbag deployments and anti-lock braking systems.
SMT (Surface Mount Technology) Assembly is the process of mounting electronic components directly onto the surface of a printed circuit board (PCB). This method is widely used for creating compact and efficient electronic devices.
We ensure quality through rigorous testing and inspection at every stage of the assembly process. Our facility is ISO9001 certified, and we utilize advanced equipment and techniques to guarantee the highest standards.
The lead time for an SMT Assembly project depends on the complexity and quantity of the order. Generally, we aim to complete most projects within 2 to 4 weeks from the design approval to final delivery.
Yes, we offer prototyping services to ensure the design meets your expectations before proceeding to full-scale production. This helps in identifying and rectifying any issues early in the process.
Yes, we offer prototyping services to ensure the design meets your expectations before proceeding to full-scale production. This helps in identifying and rectifying any issues early in the process.
Yes, we are equipped to handle both small and large volume orders. Whether you need a single prototype or a large production run, we can accommodate your needs with the same level of quality and service.
We have a reliable network of suppliers and use trusted sources to procure high-quality components. Additionally, we can work with components provided by the customer or recommend alternatives if needed.
Our SMT Assemblies are used in a variety of applications including consumer electronics, automotive electronics, industrial controls, medical devices, and telecommunications equipment.
Starting a project with us is simple. You can contact us via email at info@southelectronicpcb.com or visit our website at www.southelectronicpcb.com to fill out a contact form. We will get back to you promptly to discuss your project requirements and provide a tailored solution.
Send us a message
The more detailed you fill out, the faster we can move to the next step.
在此添加您的标题文本
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
The Complete Guide for SMT Assembly
Cahpter 1
![](https://southelectronicpcb.com/wp-content/uploads/2024/07/PCB-Systems-in-cars.webp)
Introduction to SMT Assembly
Surface Mount Technology (SMT) assembly is a pivotal technique in modern electronics manufacturing. It involves mounting electronic components directly onto the surface of a printed circuit board (PCB). Unlike the traditional through-hole method, SMT allows for more compact, lightweight, and complex designs, which is essential in today’s miniaturized electronic devices.
Cahpter 2

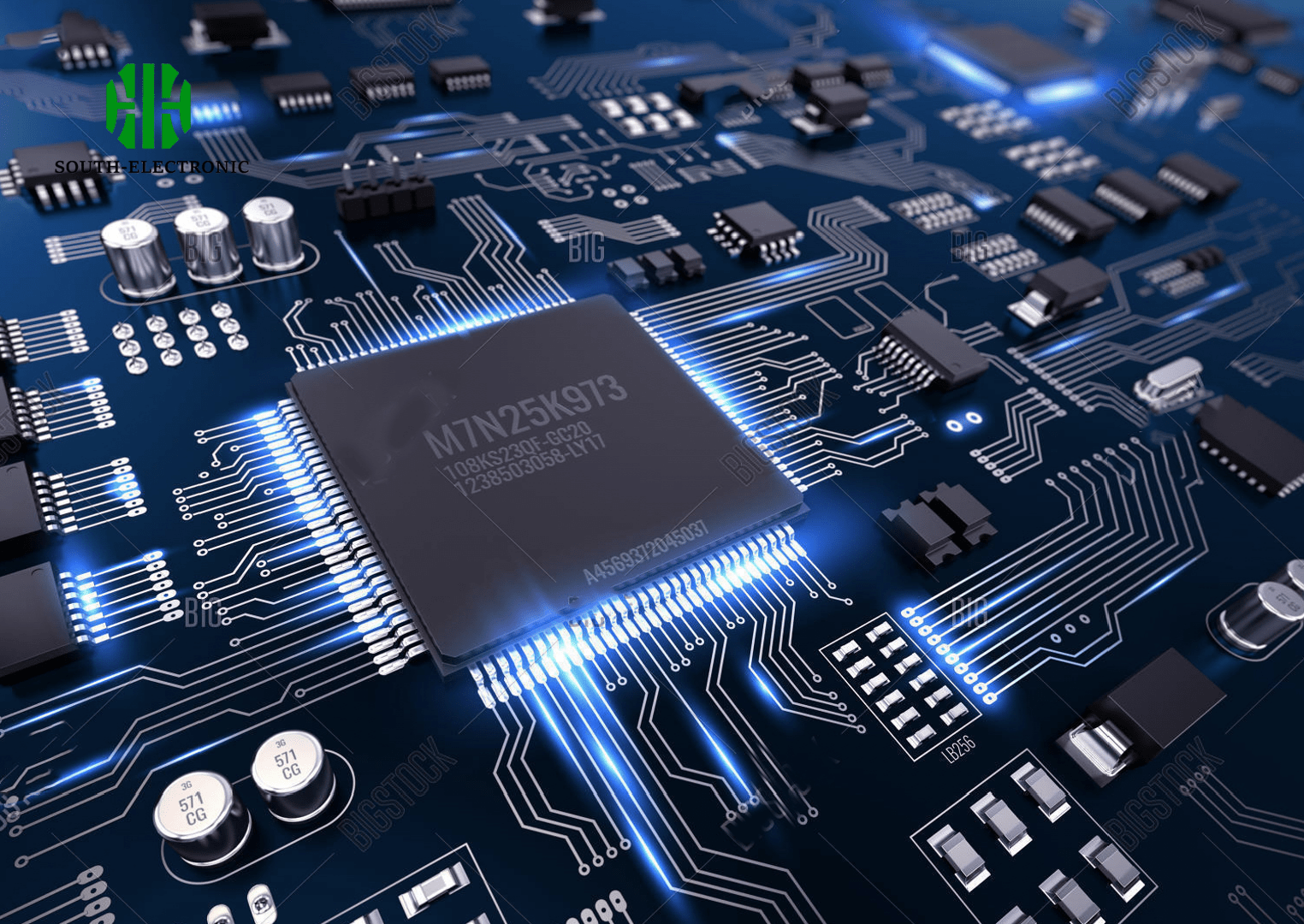

Understanding SMT Components
SMT components are designed for surface mounting and come in various forms, including resistors, capacitors, diodes, transistors, and integrated circuits (ICs). These components are smaller and lighter than their through-hole counterparts, allowing for more efficient use of PCB real estate.
![](https://southelectronicpcb.com/wp-content/uploads/2024/07/guide-2.jpg)
Cahpter 3
![](https://southelectronicpcb.com/wp-content/uploads/2024/07/powertain.jpg)
The SMT Assembly Process
SMT components are designed for surface mounting and come in various forms, including resistors, capacitors, diodes, transistors, and integrated circuits (ICs). These components are smaller and lighter than their through-hole counterparts, allowing for more efficient use of PCB real estate.
Types of SMT Components:
Passive Components: These include resistors, capacitors, and inductors. They are typically small and come in standard sizes.
Active Components: This category includes ICs, transistors, and diodes. They are more complex and may require careful handling during placement.
Electromechanical Components: Examples are connectors and switches, which may have moving parts and need precise placement.
Advantages of SMT Components:
Size and Weight Reduction: SMT components are significantly smaller, enabling more compact and lightweight designs.
Higher Component Density: More components can be placed on a single PCB, allowing for more complex and multifunctional devices.
Automated Assembly: The small size and standard packaging of SMT components make them ideal for automated pick-and-place machines, increasing production speed and consistency.
Cahpter 4
Solder Paste and Its Importance
The SMT assembly process involves several critical steps, each contributing to the overall quality and functionality of the PCB.
1. Solder Paste Application:
Solder paste, a mixture of powdered solder and flux, is applied to the PCB pads using a stencil. The stencil ensures that the paste is applied accurately to the areas where components will be placed. The quality of the solder paste application is crucial, as it affects the solder joints’ strength and reliability.
2. Component Placement:
Pick-and-place machines are used to place SMT components onto the PCB. These machines are programmed to place each component with high precision, ensuring that they are correctly aligned with the solder paste-covered pads. Proper placement is essential to avoid defects like misalignment or tombstoning.
3. Reflow Soldering:
The PCB with placed components is then heated in a reflow oven. The solder paste melts and forms solid solder joints, securing the components to the PCB. Reflow soldering profiles are carefully controlled to ensure proper soldering without damaging the components.
4. Inspection and Testing:
After soldering, the PCB undergoes inspection to check for defects such as solder bridges, missing components, or poor solder joints. Automated Optical Inspection (AOI) and X-ray inspection are commonly used methods. Functional testing may also be performed to verify the PCB’s performance.
![](https://southelectronicpcb.com/wp-content/uploads/2024/07/PCB-Materials.png)
Cahpter 5
![](https://southelectronicpcb.com/wp-content/uploads/2024/07/process.png)
PCB Design for SMT Assembly
Solder paste is a critical material in SMT assembly. It consists of tiny solder particles suspended in a flux medium. The flux helps
remove oxidation from the metal surfaces, ensuring good solder joint formation during the reflow process.
Components of Solder Paste:
Solder Powder: Made of a metal alloy, usually a combination of tin, lead, silver, and copper, though lead-free variants are increasingly common due to environmental regulations.
Flux: A chemical cleaning agent that removes oxidation from the surfaces to be soldered, improving the wettability of the solder and ensuring a reliable joint.
Binder: Keeps the solder particles and flux together in a paste form, allowing for easy application.
Application Methods:
Stencil Printing: The most common method, where a stencil with openings corresponding to the PCB pads is used to apply the paste. This ensures precise and consistent application.
Jet Printing: Uses a nozzle to dispense solder paste directly onto the PCB pads. This method is useful for prototypes and small production runs where stencil printing is not practical.
Importance of Solder Paste:
Electrical Connections: The solder paste forms the electrical connections between the PCB and the components. Proper application ensures reliable performance.
Mechanical Stability: Good solder joints provide mechanical stability, preventing components from shifting or detaching during operation.
Thermal Conductivity: Solder joints also facilitate heat dissipation from the components, which is crucial for high-power applications.
Cahpter 6

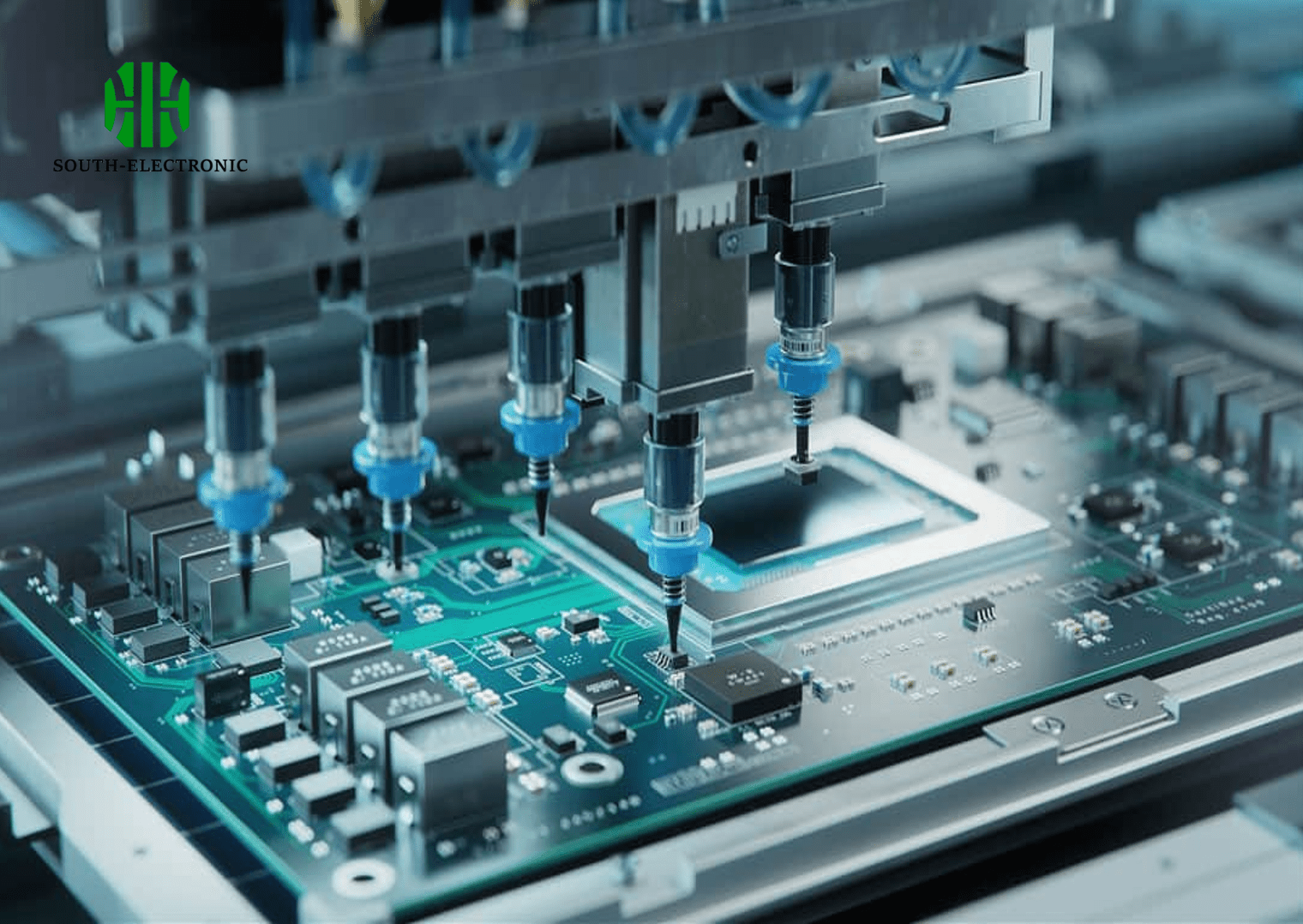

Pick-and-Place Machines
Pick-and-place machines are the backbone of SMT assembly, automating the placement of components onto the PCB. These machines significantly increase production speed and accuracy.
Features of Pick-and-Place Machines:
High Speed: Modern pick-and-place machines can place thousands of components per hour, drastically reducing assembly time.
Precision: Equipped with vision systems, these machines ensure components are placed accurately, minimizing misalignment and placement errors.
Flexibility: They can handle a wide range of component sizes and shapes, from tiny resistors to large ICs. This flexibility is crucial for assembling complex PCBs with diverse components.
Software Integration: Pick-and-place machines are controlled by software that uses the PCB design data to determine the placement coordinates for each component. This ensures consistency and repeatability across production runs.
Operation Process:
Component Feeding: Components are supplied to the machine via reels, trays, or tubes. The machine picks up components from these feeders using vacuum nozzles.
Placement: The machine places the components onto the PCB pads pre-applied with solder paste. Advanced vision systems help align the components precisely.
Adjustment: If any misplacement is detected, the machine can automatically adjust the component position before the reflow soldering process.

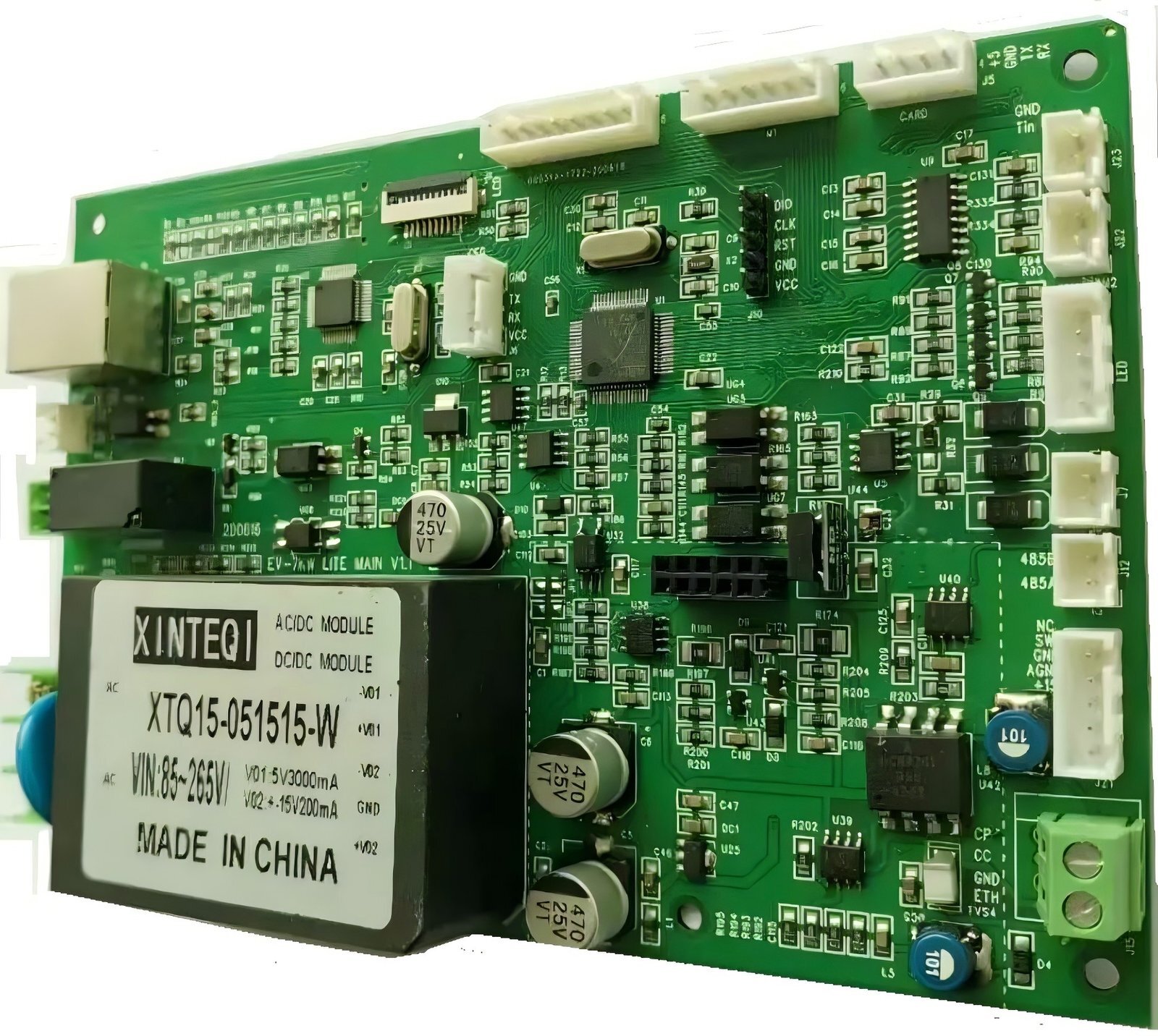

![](https://southelectronicpcb.com/wp-content/uploads/2024/07/charging-system.jpg)
Cahpter 7
![](https://southelectronicpcb.com/wp-content/uploads/2024/07/functional-testing.jpg)
Reflow Soldering Techniques
Reflow soldering is the process of melting the solder paste to form solder joints between the components and the PCB. This step is critical for the electrical and mechanical integrity of the assembly.
Types of Reflow Soldering:
Convection Reflow: The most common method, using heated air or nitrogen to melt the solder paste. It provides uniform heating and is suitable for a wide range of applications.
Infrared Reflow: Uses infrared radiation to heat the PCB. This method can be less uniform than convection but is effective for specific applications.
Vapor Phase Reflow: Involves heating the PCB in a vaporized inert liquid. It offers precise temperature control and is useful for assemblies with tight thermal profiles.
Reflow Profile:
Preheat: Gradually heats the PCB to avoid thermal shock. This stage activates the flux and starts the solder melting process.
Soak: Holds the temperature to ensure all components reach a uniform temperature, allowing the flux to clean the metal surfaces.
Reflow: The temperature is raised to the solder paste’s melting point, forming the solder joints.
Cooling: Rapid cooling solidifies the solder joints, ensuring strong and reliable connections.
Factors Affecting Reflow Quality:
Temperature Control: Precise control of the temperature profile is crucial to avoid defects like solder bridging or cold joints.
PCB Design: The layout and component placement can affect heat distribution, making it important to design with reflow soldering in mind.
Solder Paste Quality: Using high-quality solder paste with consistent properties ensures reliable reflow soldering results.
Cahpter 8
Inspection and Quality Control
Inspection and quality control are essential to ensure the reliability and performance of SMT assemblies. Detecting and addressing defects early in the process prevents costly rework and product failures.
Inspection Methods:
Automated Optical Inspection (AOI): Uses cameras to capture images of the PCB and compares them to a reference model. AOI can detect misaligned components, solder bridges, missing components, and other visible defects.
X-ray Inspection: Provides a view of the internal structure of solder joints and components, detecting hidden defects like voids, solder bridges, and insufficient solder.
In-Circuit Testing (ICT): Tests the electrical performance of the PCB by applying electrical signals and measuring the responses. It can identify shorts, opens, and component failures.
Functional Testing: Simulates the operating conditions of the PCB to ensure it performs as intended. This is the final test before the PCB is shipped to the customer.
Quality Control Processes:
Incoming Inspection: Verifies the quality of incoming materials and components to prevent defective parts from entering the assembly process.
Process Monitoring: Continuous monitoring of the assembly process helps detect and address issues in real-time, maintaining consistent quality.
Final Inspection: A thorough inspection of the finished PCBs ensures they meet the required specifications and standards before delivery.
![PCB](https://southelectronicpcb.com/wp-content/uploads/2024/07/image-92.png)
Cahpter 9
![PCB](https://southelectronicpcb.com/wp-content/uploads/2024/07/image-90.png)
Common SMT Assembly Defects and Solutions
Even with advanced technology, SMT assembly can encounter various defects. Understanding these defects and their solutions is essential for maintaining high quality.
Common Defects:
Solder Bridging: Occurs when solder forms an unintended connection between two adjacent pads, causing a short circuit. It can be prevented by ensuring proper stencil design and solder paste application.
Tombstoning: Happens when one end of a component lifts off the PCB during reflow, resembling a tombstone. This can be minimized by balancing the solder paste volumes and ensuring uniform heating.
Voids: Air pockets trapped in solder joints can weaken the connections and affect thermal conductivity. Proper reflow profiles and paste application techniques can reduce voids.
Insufficient Solder Joints: Result from inadequate solder paste deposition or poor reflow profiles. Ensuring correct stencil design and reflow settings helps achieve solid joints.
Solutions:
Improving Solder Paste Application: Consistent and accurate solder paste application is crucial. Regularly check and maintain stencils and printing equipment.
Optimizing Reflow Profiles: Adjust heating rates, peak temperatures, and cooling rates to ensure proper soldering without damaging components.
Enhancing PCB Design: Address layout issues, optimize pad design, and ensure adequate spacing between components to reduce defects.
Cahpter 10
Choosing the Right SMT Assembly Partner
Selecting a reliable SMT assembly partner is crucial for the success of your project. A good partner will provide high-quality assemblies, timely delivery, and excellent customer service.
Considerations:
Experience and Expertise: Look for a partner with a proven track record in SMT assembly. Experience with similar projects and industry-specific requirements is a plus.
Quality Standards: Ensure the partner adheres to industry standards like ISO9001. Quality certifications indicate a commitment to maintaining high standards.
Flexibility and Capacity: Choose a partner capable of handling different volumes and complexities. They should be able to scale production according to your needs.
Customer Service: Reliable communication and transparent processes are essential. A good partner will keep you informed and address any issues promptly.
Technology and Equipment: Advanced equipment and technologies ensure precise and efficient assembly. Check if the partner uses up-to-date machinery and software.
Steps to Start a Project:
Initial Consultation: Discuss your project requirements, timelines, and budget with the potential partner.
Quotation and Agreement: Obtain a detailed quote and ensure both parties agree on the terms and conditions.
Prototype and Testing: Start with prototyping to verify the design and assembly process. Make necessary adjustments before full-scale production.
Production and Delivery: Once the prototype is approved, proceed with production. Monitor the process and maintain open communication with the partner.
![Inspection of SMDs](https://southelectronicpcb.com/wp-content/uploads/2024/07/image-79.png)
