Staring at equipment price lists nearly gave me a panic attack. For electronics manufacturers, SMT line costs feel like solving a Rubik's Cube blindfolded. Let's unlock this puzzle systematically.

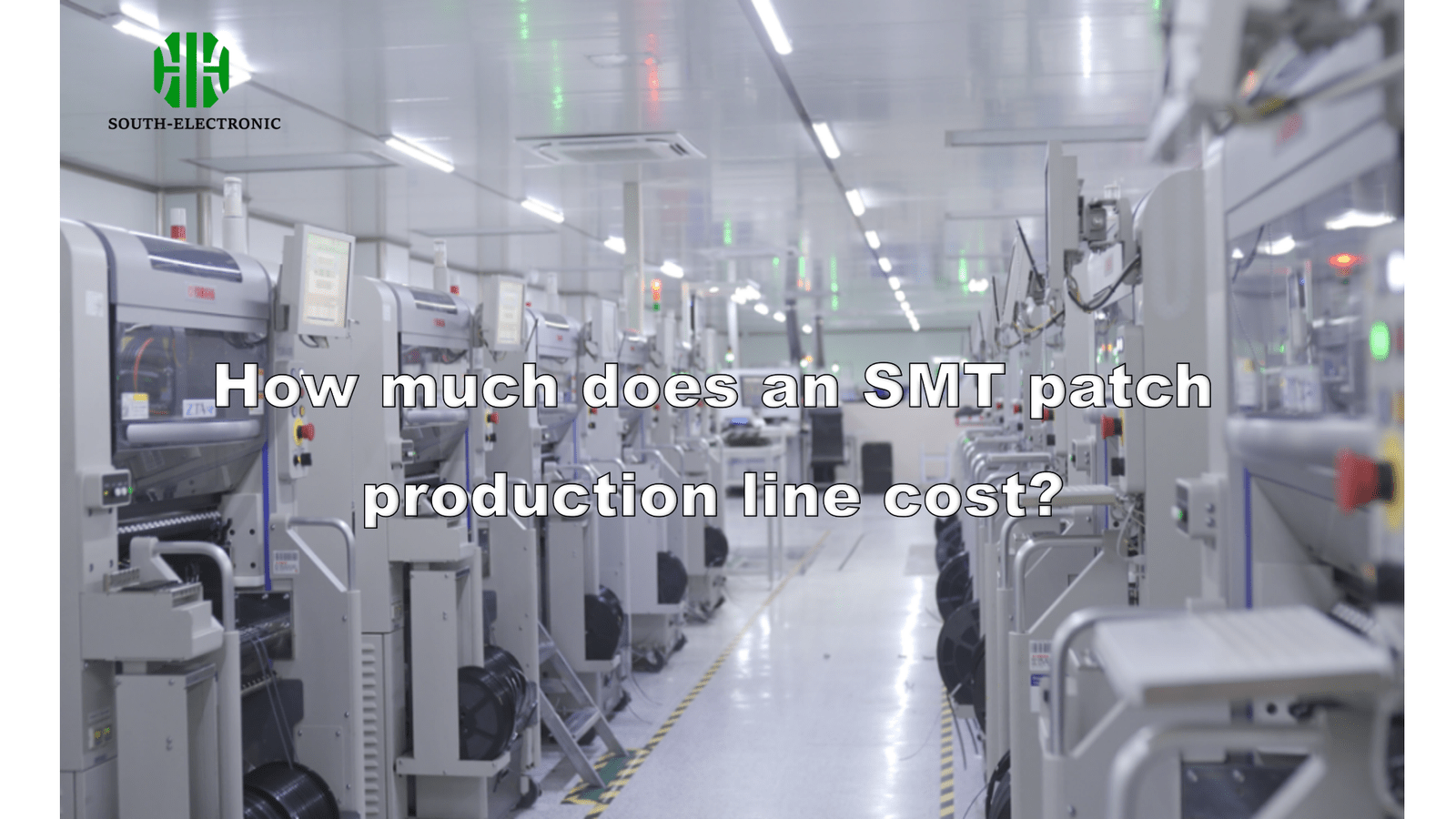

A complete SMT production line[^1] costs 400,000-800,000 yuan, where high-speed placement machines[^2] and reflow ovens[^3] dominate 65% of the budget. Entry-level systems using second-hand Japanese equipment can start at 400,000 yuan, requiring 8-12 months to break even with proper capacity planning.
These numbers only scratch the surface. Let me take you through five critical cost dimensions - from equipment selection secrets to hidden expenses even veterans overlook.
Core equipment configuration and basic cost?
Opening an equipment supplier's catalog feels like entering a tech labyrinth. The financial hemorrhage starts with four core components.

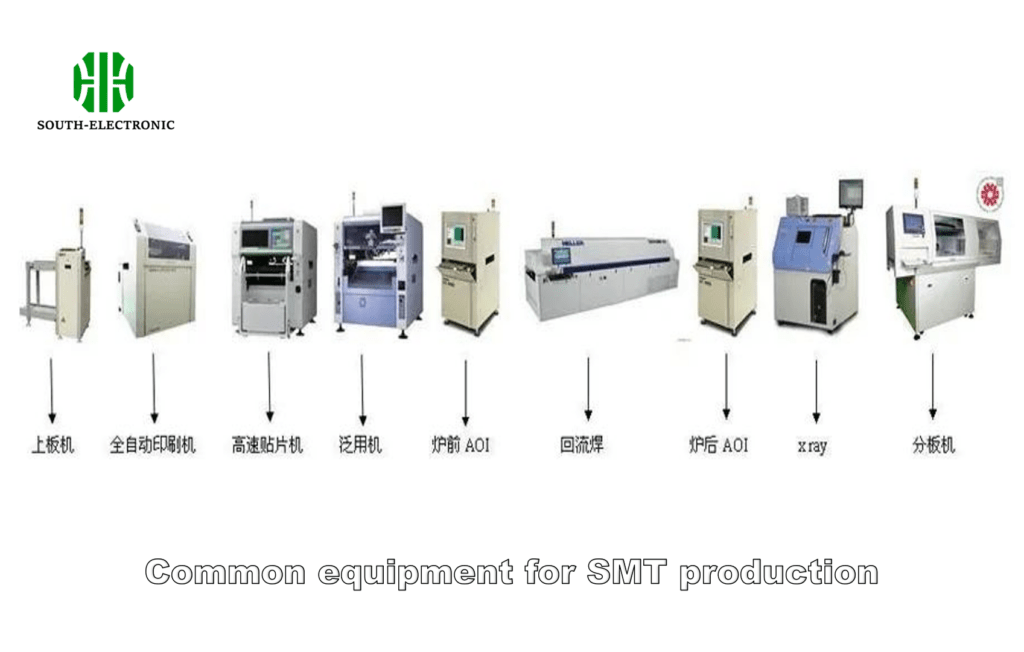

Essential equipment includes placement machines (50-65% of total cost), reflow ovens (15-20%), solder paste printers (8-12%), and AOI systems (10-15%). A basic line requires 3.2-5.8 million yuan for new equipment.
)
Budget Allocation Strategy
| Equipment Type | New Equipment Cost (10k yuan) | Second-hand Cost | Key Brands |
|---|---|---|---|
| High-speed Placement | 200-350 | 60-150 | JUKI, Yamaha |
| Reflow Oven | 40-80 | 15-35 | HELLER, BTU |
| SPI Printer | 25-50 | 8-20 | DEK, EKRA |
| AOI System | 30-60 | 10-25 | OMRON, Koh Young |
Case in point: A Shenzhen client built a foundational line with a JUKKEI RS-1R placement machine (second-hand) for 85,000 yuan and HELLER 1809EXL oven (refurbished) at 98,000 yuan, achieving 65% cost reduction versus new equipment.
Domestic VS imported equipment cost and technology differences?
The "Buy Chinese" vs "Import Premium" dilemma kept me awake for weeks. Let's dissect this with hard data.
Imported placement machines cost 2-3x domestic equivalents but deliver 30-50% better precision. Chinese reflow ovens now achieve ±1℃ temperature control at 60% of import prices, making hybrids the smart choice.
)
Technology Gap Analysis
| Metric | Domestic (Top 5 Brands) | Imported (JUKI/Yamaha) |
|---|---|---|
| Placement Accuracy | ±35μm | ±15μm |
| CPH (Components/hr) | 28,000-45,000 | 60,000-120,000 |
| Uptime Percentage | 82-88% | 93-97% |
| Energy Consumption | 6-8kW/hr | 4.5-6kW/hr |
Our Beijing client mixed equipment strategically: Yamaha placement machine + Guangdong-based oven + domestic AOI. This hybrid approach slashed costs by 40% while maintaining 0.8% defect rates.
Cost advantage analysis of the second-hand patch machine market[^4]?
Navigating the used equipment market feels like panning for gold. But here's how to avoid fool's gold.
Quality second-hand Japanese placement machines cost 30-45% of new units. Properly refurbished JUKI/Fujis[^5] maintain 90% lifespan at half price, with ROI periods under 10 months for medium batches.
)
Pre-owned Equipment Economics
| Cost Items | Japan (3-5 yrs old) | China New | Cost Ratio |
|---|---|---|---|
| Initial Cost | ￥800k | ￥2.2M | 36% |
| Maintenance/yr | ￥65k | ￥38k | 171% |
| Residual Value (5yr) | ￥400k | ￥900k | 44% |
| Total 5yr Cost | ￥1.03M | ￥1.58M | 65% |
Smart move: Source machines from Japanese OEM service centers. A Zhongshan factory acquired a JUKI RX-7 with full service history for 650,000 yuan (new: 2.1M), achieving 12-month payoff producing router boards.
Equipment speed classification and capacity cost accounting?
Speed grades bewildered me until I mapped CPH to real-world throughput. Let's convert specs to cash flow.
Each 10k CPH increase adds ￥150k-250k in machine cost but enables 1.2-1.8 million additional monthly placements. Balance speed tiers with product mix - smartphone lines need 80k+ CPH, while IoT devices thrive at 30k CPH.
)
Capacity Cost Matrix[^6]
| Speed Tier | CPH Range | Line Cost | Monthly Capacity | Ideal Products |
|---|---|---|---|---|
| Entry | 8k-25k | ￥400-600k | 2.4-4.8M | LED lighting |
| Mid | 25k-45k | ￥600-900k | 6-10M | Consumer PCBA |
| High | 45k-80k | ￥900-1.5M | 12-22M | Smartphones |
| Ultra | 80k-120k | ￥1.5-3M | 24-40M | Server boards |
Real-world example: Dongguan's YL Electronics upgraded from 25k to 45k CPH machines, boosting monthly output from 4M to 9.2M placements. The ￥310k investment paid back in 9 months through new router contracts.
The visible iceberg sank my first budget. Now I monitor these seven underwater cost monsters.
Hidden costs consume 18-25% of SMT budgets: Power (￥12k/mo), solder paste (￥25-40k), nozzles (￥3-8k/mo), and reactive maintenance (～￥60k/yr). Optimize line balance to reduce changeover losses by 30%.
)
Cost Control Checklist
| Category | Typical Cost | Savings Strategy |
|---|---|---|
| Energy | ￥0.8-1.2/kWh | Smart oven scheduling (save 15%) |
| Consumables | ￥2.5-4k/day | Bulk Paste Purchases (8% discount) |
| Labor | ￥35-60k/mo | Cross-training (20% efficiency gain) |
| Floor Space | ￥500-800/m² | Vertical component storage |
| Maintenance | ￥50-100k/yr | Predictive maintenance systems |
Waste reduction case: By implementing solder paste recovery[^7], Suzhou's HT Precision lowered monthly paste costs from ￥38k to ￥26k while reducing DPMO from 512 to 189.
Conclusion
Building an SMT line is like conducting an orchestra - balance cost, speed and precision. With strategic equipment selection and hidden cost control, achieve ROI within 10 months while maintaining 98%+ uptime.
