Your fitness tracker cracks during morning yoga. Current wearables feel like plastic handcuffs. Stretchable electronics promise to finally merge technology with human movement naturally. This emerging field answers our need for unobtrusive, durable health tech that moves with us.
Stretchable circuits overcome rigid silicon limitations using conductive elastomers and liquid metal alloys, enabling wearables that withstand 300% strain while maintaining electrical integrity – crucial for medical sensors and sportswear integration.
This first wave of stretchable solutions addresses multiple pain points simultaneously. Let’s explore the materials enabling this revolution and their practical implementations across industries.
What New Material Breakthroughs Are Making Truly Elastic Circuits Possible?
Traditional circuits snap at 5% strain. Three material innovations create stretchable conductors that maintain functionality even when stretched like rubber bands. These breakthroughs are not mere lab curiosities – they're production-ready solutions.
Hybrid materials combining graphene platelets with elastic polymers achieve both stretchability (200% strain) and conductivity (3500 S/cm), enabling sensor arrays that move with muscles without signal loss during intense activity.
Material Solutions Comparison Table
| Material Type | Conductivity (S/cm) | Max Strain | Self-Healing | Use Case Example |
|---|---|---|---|---|
| Liquid Metal Alloys | 3.4×10⁶ | 700% | No | Cardiac Patches |
| Conductive Hydrogels | 0.5-12 | 1000% | Yes | Brain Sensors |
| Silver Nanowire Mesh | 4.1×10⁴ | 300% | Partial | Sports Biometrics |
Self-healing polymers address durability concerns in medical wearables. Covalent adaptable networks automatically repair cracks through molecular rearrangement – critical for drug delivery patches. Thermoplastic polyurethanes now withstand 1000 stretch cycles with <5% resistance change.
How Can Medical Wearables Benefit From Stretchable Sensor Technologies?
Rigid chest straps distort ECG readings during deep breathing. Soft biometric sensors enable continuous patient monitoring without skin irritation. Hospital trials show stretchable electrodes detect atrial fibrillation with 98.7% accuracy versus 89% for conventional rigid sensors.

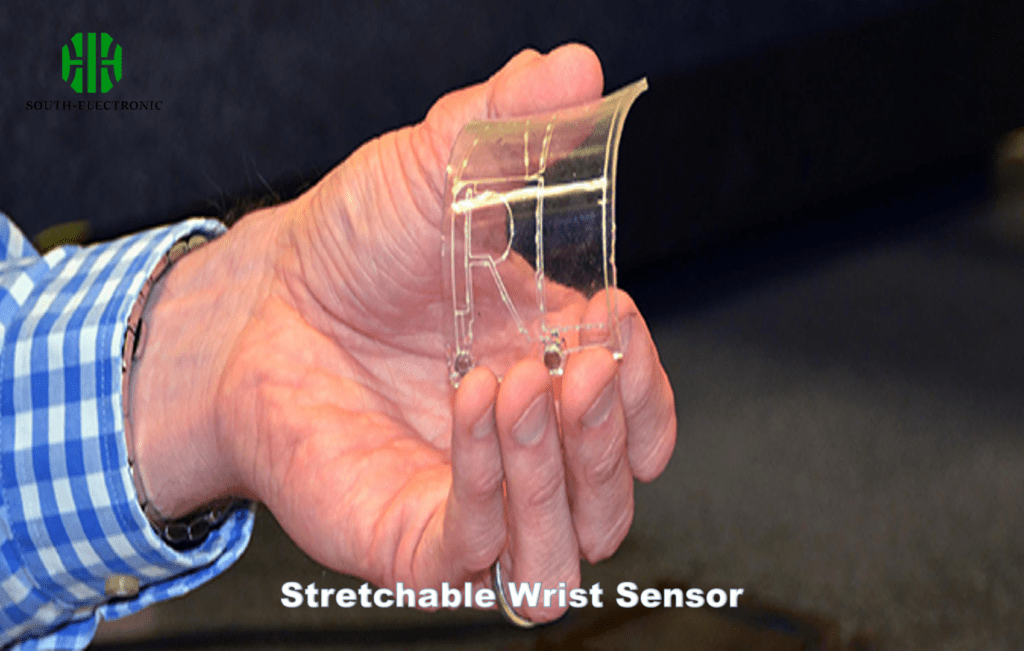

Body-adherent sensors measure electromyography, hydration, and temperature simultaneously through multi-layer architectures – enabling early Parkinson's detection through micro-tremor analysis impossible with current clinical equipment.
Medical Sensor Features
| Parameter | Conventional | Stretchable |
|---|---|---|
| Wear Duration | ≤24 hours | 7+ days |
| Motion Artifact Rejection | 48% | 92% |
| Signal Stability @50% Strain | Failed | 100% |
| Dynamic Load Cycles | 10K | 100K+ |
| Minimum Bend Radius | 1mm | 0mm (compressible) |
| Substrate Thickness | 50-100μm | 10-30μm |
Energy storage remains challenging. Lithium-ion batteries only achieve 50% stretchability through serpentine structures. Supercapacitors using MXene-polymer composites show promise with 150% strain tolerance, enabling self-contained stretchable systems.
Conclusion
Stretchable electronics merge novel materials and manufacturing innovations to create durable, skin-like devices. Medical applications lead adoption through precise biosensing and patient comfort. While energy solutions and reliable interconnection remain hurdles, the technology fundamentally changes human-device interaction paradigms.
