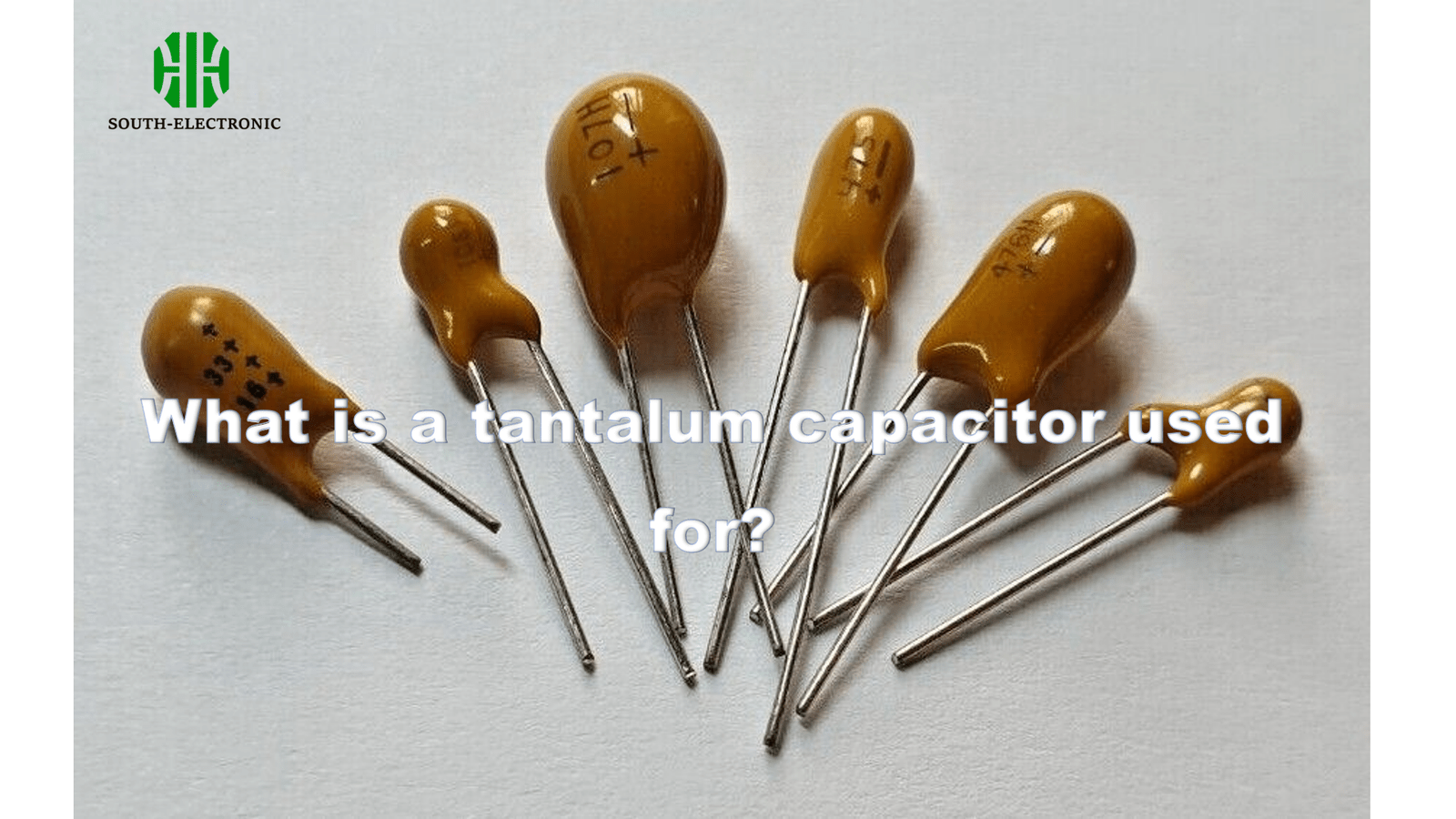

Have you ever wondered why your smartphone survives extreme temperature changes, or how pacemakers maintain flawless operation for years? The invisible hero enabling these feats isn’t software – it’s a tiny component called the tantalum capacitor.
Tantalum capacitors store energy efficiently in harsh environments, making them indispensable for mission-critical devices requiring compact size, ultra-stable performance, and minimal leakage. They power military systems, medical implants, IoT sensors, and other electronics where failure isn’t an option.
While tantalum capacitors[^1] might look like ordinary electronic components, their unique capabilities solve specific engineering challenges that other capacitors can’t handle. Let’s dissect why these components dominate specialized applications and how to maximize their potential.

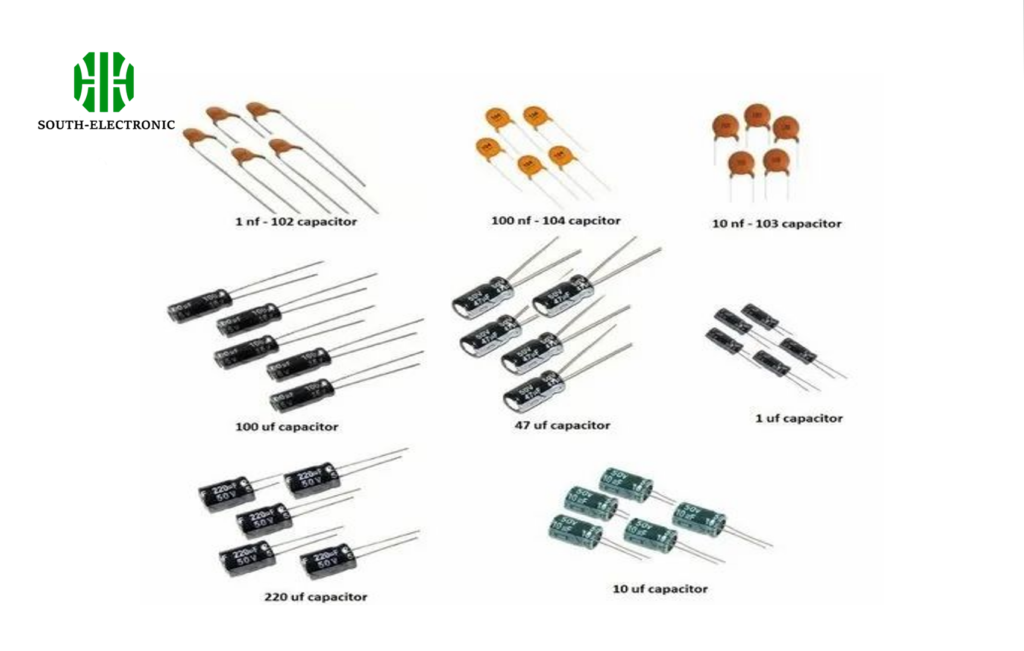

Why choose tantalum capacitors over aluminum electrolytic or ceramic capacitors?
Every electronics designer faces the capacitor dilemma: ceramic for stability, aluminum for cost, or something better? When engineers need reliability more than cheap solutions, tantalum capacitors become the default choice through process of elimination.
Tantalum capacitors outperform aluminum electrolytics in leakage current[^2] (10x lower) and surpass ceramics in volumetric efficiency (5x higher capacitance density). Their stable parameters under vibration/temperature shifts make them ideal for automotive safety systems and aerospace navigation hardware.
)

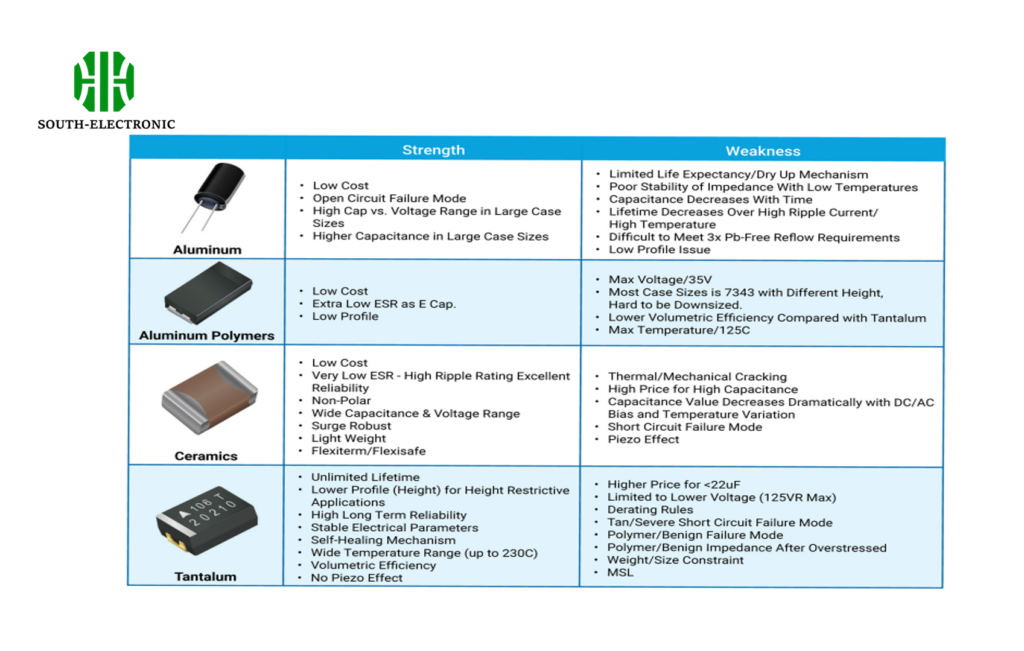

Performance Tradeoffs Decoded
Three critical factors determine capacitor selection in demanding applications:
| Parameter | Tantalum | Aluminum Electrolytic | Ceramic |
|---|---|---|---|
| Capacitance Stability | ±10% over 10 years | ±30% after 2 years | ±20% with voltage |
| Leakage Current | 0.01CV (µA) | 0.3CV (µA) | Near zero |
| Temperature Range | -55°C to +125°C | -40°C to +105°C | -55°C to +150°C |
Designing implantable medical devices taught me why tantalum’s 0.003% failure rate matters more than upfront cost. Unlike ceramics suffering from piezoelectric effects, or aluminum caps drying out, properly derated tantalums maintain microampere-level leakage even after 50,000 thermal cycles – a non-negotiable requirement for MRI-compatible neurostimulators.
How do tantalum capacitors enhance performance in portable electronics?
Your wireless earbuds die after 5 hours not because of battery limits, but due to inefficient power conversion. Tantalum capacitors extend runtime through three secret advantages most engineers overlook.
**Low equivalent series resistance (ESR 5°C/minute)[^3]
Solution:
- Opt for smaller case sizes (avoid EIA 2917+)
- Pre-bake boards at 125°C before reflow
A satellite power system redesign taught me that combining 60% voltage derating with <3A/ms current slew rates eliminated 100% of premature tantalum failures observed in vacuum conditions.
How to decode key specs like ESR and surge voltage when selecting tantalum capacitors?
Capacitor datasheets hide critical engineering constraints behind innocent-looking parameters. Learning to interpret three specifications separates successful designs from smoking craters.
Prioritize surge voltage rating[^4] over working voltage – a 10V tantalum capacitor with 15V surge withstands brief transients better than a 16V-rated cap with 18V surge capability. Target ESR below 0.5Ω[^5] for switching frequencies above 500kHz.
)
Specification Hierarchy
Build your capacitor selection checklist in this order:
-
Surge Voltage (Vs)
Minimum required: 1.3x maximum expected transient -
ESR @ Application Frequency[^6]
Calculate acceptable power loss: P = I² * ESR -
Leakage Current (Il)[^7]
Critical for battery-powered devices: Il < 0.5% of standby current -
Temperature Coefficient[^8]
Verify capacitance stays within ±15% over operating range -
Failure Rate (FIT)
Military-grade: <5 FIT (failures per billion hours)
In automotive ECU designs, matching the capacitor’s ESR to the switching regulator’s feedback loop stability requirements proved more critical than raw capacitance value – a lesson learned after debugging 23 hours of oscillator jitter.

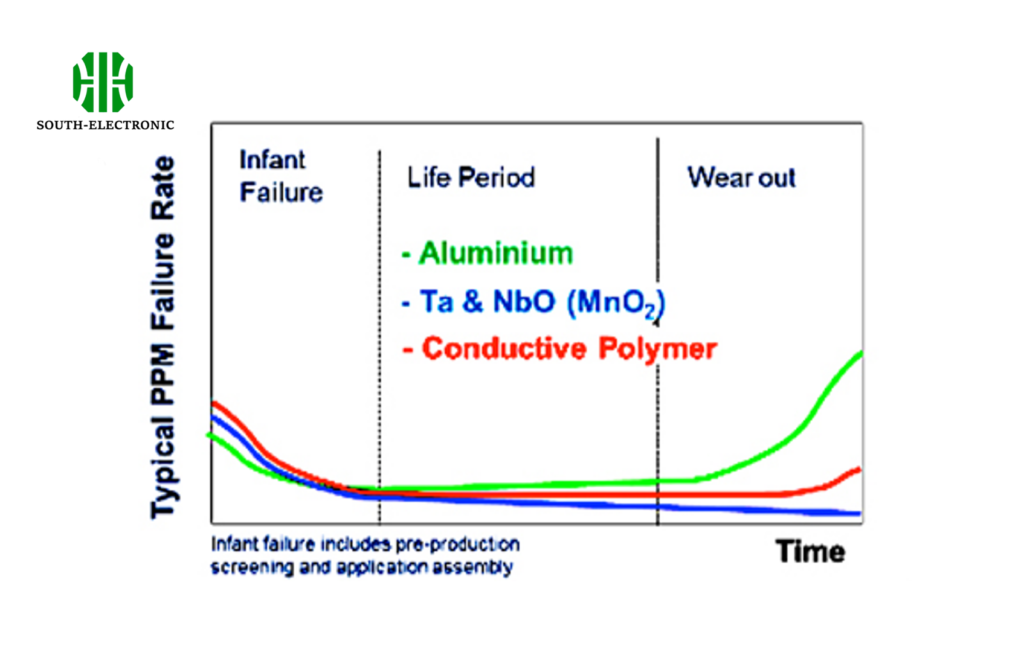

Can polymer capacitors effectively replace traditional tantalum capacitors?
The polymer vs tantalum debate resembles electric vs gasoline cars – each excels in specific scenarios. While polymers dominate consumer gadgets, traditional MnO₂ tantalums still rule aerospace and industrial markets.
Polymer tantalum capacitors offer 80% lower ESR and higher ripple current capacity but suffer 3x higher leakage. Traditional MnO₂ types maintain better bias stability (±3% vs ±10% capacitance shift at DC bias), making them irreplaceable in precision analog circuits.
)
Technology Crossroads
Engineers must evaluate five application-specific factors:
| Consideration | Polymer Choice | MnO₂ Choice |
|---|---|---|
| Power Density | ✔️ 50% higher | ❌ |
| Self-Healing | ✔️ Partial | ❌ |
| DC Bias Stability | ❌ 0.5%/V | ✔️ 0.05%/V |
| Operating Lifetime | ❌ 5k hours @ 105°C | ✔️ 15k+ hours |
| Cost Efficiency | ❌ $0.35/µF | ✔️ $0.18/µF |
When designing a 10Gbps router’s power plane, polymer capacitors allowed 40A transient response with just six 330µF components instead of twelve MnO₂ types. However, industrial motor drives still required MnO₂ for their +125°C continuous operation specs.
Conclusion
Tantalum capacitors solve critical electronics challenges where size, stability, and reliability override cost concerns. Mastering their unique requirements unlocks next-gen medical, aerospace, and automotive innovations demanding relentless performance.
