finalizing a board layout, then suddenly wonder, "Did I overlook the load current?" Ignoring this invisible force can turn your circuit into a ticking time bomb. Let’s decode what load current[^1] really means.

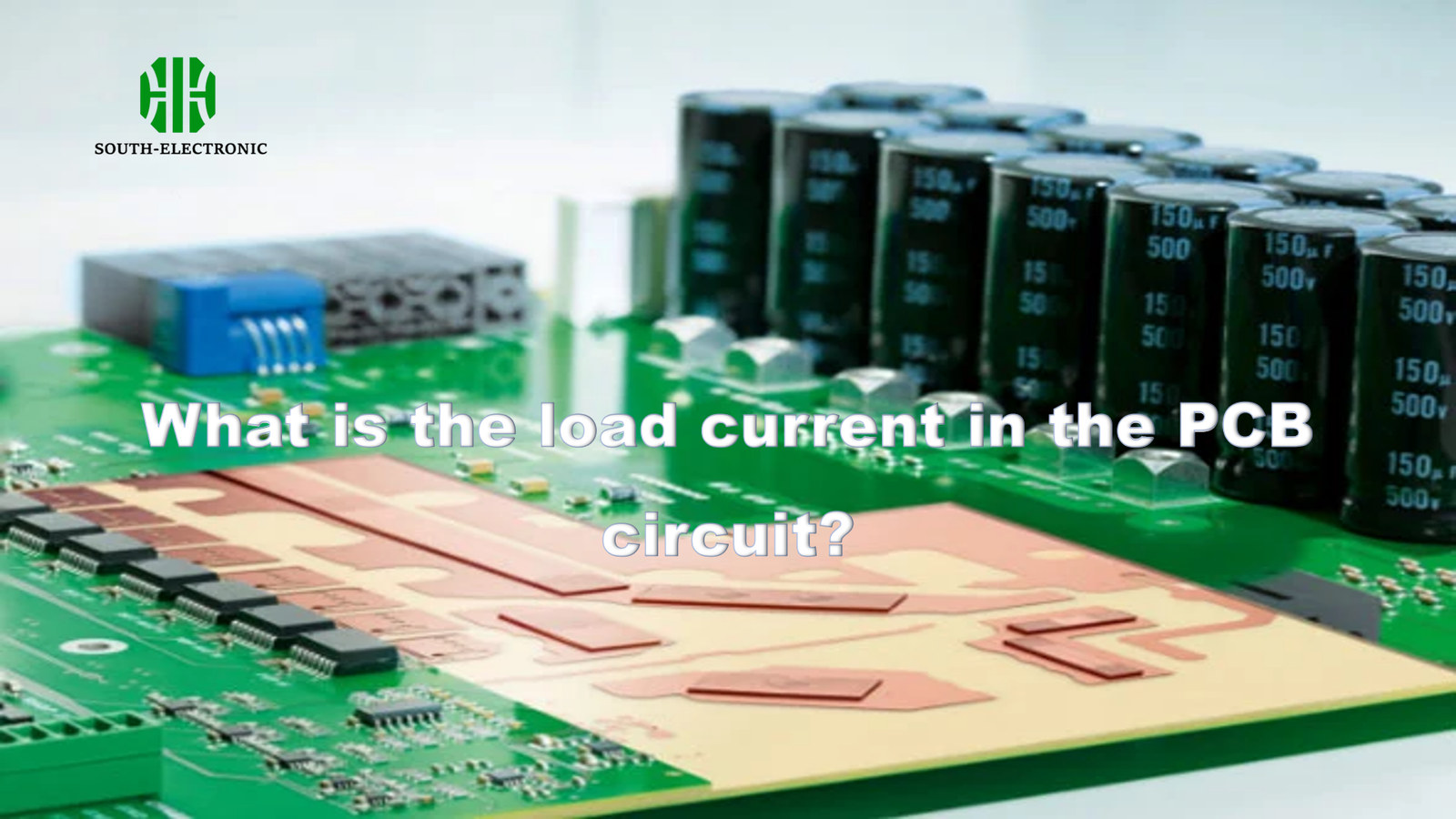

Load current is the electricity flowing through a PCB circuit[^2] to power connected devices. It determines component stress, heat generation, and system reliability – meaning getting it right impacts whether your design survives in the real world.
Understanding load current isn’t just textbook theory. From smartphone chargers to industrial controllers, I’ve seen boards fail when this critical parameter wasn’t calculated properly. Let’s break down what every designer needs to know.
Why Is Load Current Critical for PCB Reliability?
Your smartphone heats up while charging. A drone’s motor controller fries mid-flight. These real-world failures often trace back to one culprit: improper load current management.
Load current directly impacts component lifespan[^3] by determining operating temperatures and electrical stress. Exceeding safe thresholds accelerates wear-through mechanisms like electromigration in traces and thermal degradation in semiconductors.
)
Three Failure Modes Caused by Load Current Errors
| Mechanism | Threshold Current | Failure Mode | Typical Impact Time |
|---|---|---|---|
| Trace Overheating | >3A/mm² width | Delamination | Hours to days |
| Component Stress | >80% of I(max) | Parameter drift | Weeks to months |
| Connector Arcing | >20A per pin | Contact corrosion | Immediate to weeks |
I once debugged a medical device failing after 200 hours – the root cause was a 0.75mm trace carrying 2.3A. Using IPC-2152 standards, we found it should’ve been 1.2mm wide. Reliable current handling needs empirical data, not guesswork.
How to Calculate Load Current in Different PCB Circuits?
“Just use Ohm’s Law” – that common advice works until real-world circuits get messy. Whether you’re working on IoT sensors or motor drivers, the calculation method shifts.
Basic calculation uses Ohm’s Law[^4] (I=V/R), but real-world analysis must account for transient spikes, parallel paths, and temperature effects. Always add 30% margin for safety.
)
Current Calculation Methods by Circuit Type
| Circuit Type | Key Parameters | Formula | Margin Needed |
|---|---|---|---|
| Digital Logic | Switching frequency, I(cc) | I(avg) = C × V × f | 20% |
| Analog Sensors | Steady-state I(q) | I(total) = ΣI(q) | 10% |
| Power Conversion | Duty cycle, efficiency | I(out) = P(out)/(V×η) | 40% |
| Motor Drivers | Stall current, PWM % | I(peak) = 3×I(rated) | 50% |
I learned this the hard way working on a drone ESC. The motor’s 12A rating seemed safe, but locked-rotor peaks hit 38A – our traces weren’t ready. Now I always check stall conditions.
What Factors Can Cause Excessive Load Current in PCBs?

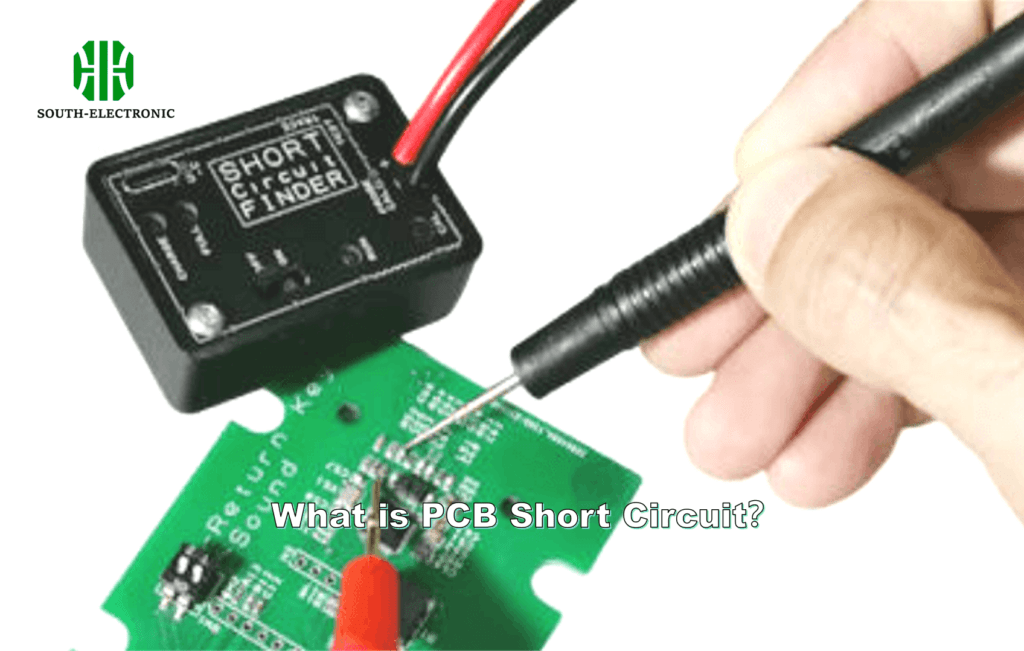

That smell of burnt PCB? Often caused by unexpected current spikes[^5]. But contrary to myths, component failure isn’t the main culprit.
Five primary causes drive excess current: short circuits (40% of cases), component degradation (25%), design errors (20%), environmental factors (10%), and manufacturing defects (5%). Prevention requires multi-layered analysis.
Solutions for Common Overcurrent Scenarios
| Root Cause | Detection Method | Mitigation Technique |
|---|---|---|
| Solder Bridging | Thermal imaging | Stencil optimization |
| Moisture Ingress | Humidity sensors | Conformal coating |
| Voltage Sag | Power monitoring ICs | Bulk capacitance addition |
| Faulty Load | Current clamping circuits | Polyfuse integration |
During a factory audit, we found 12% of boards failing from tin whiskers in humid environments. Adding nano-coating reduced failures to 0.3%. Environmental factors are often underestimated.
How to Avoid Overheating from High Load Current in PCB Designs?
“Bigger copper pours solve heating” – that’s like using a sledgehammer to crack a nut. Smart thermal management[^6] requires targeted strategies.
Three proven methods prevent overheating: calculating ampacity using IPC-2221 standards (45% heat reduction), implementing thermal vias (30% improvement), and forced airflow (cuts ΔT by 20°C). Layer stackup matters more than you think.
)
Ampacity Optimization Table
| Copper Weight (oz) | 1A Trace Width (mm) | With Thermal Vias | Temp Rise (°C) |
|---|---|---|---|
| 1 | 0.65 | No | 40 |
| 1 | 0.50 | Yes | 32 |
| 2 | 0.45 | No | 28 |
| 2 | 0.35 | Yes | 20 |
In a LED matrix project, we reduced thermal hotspots 60% not by widening traces, but by adding staggered thermal vias. Material choices make a huge difference – standard FR-4 vs. thermal clad laminates can halve temperature rise.

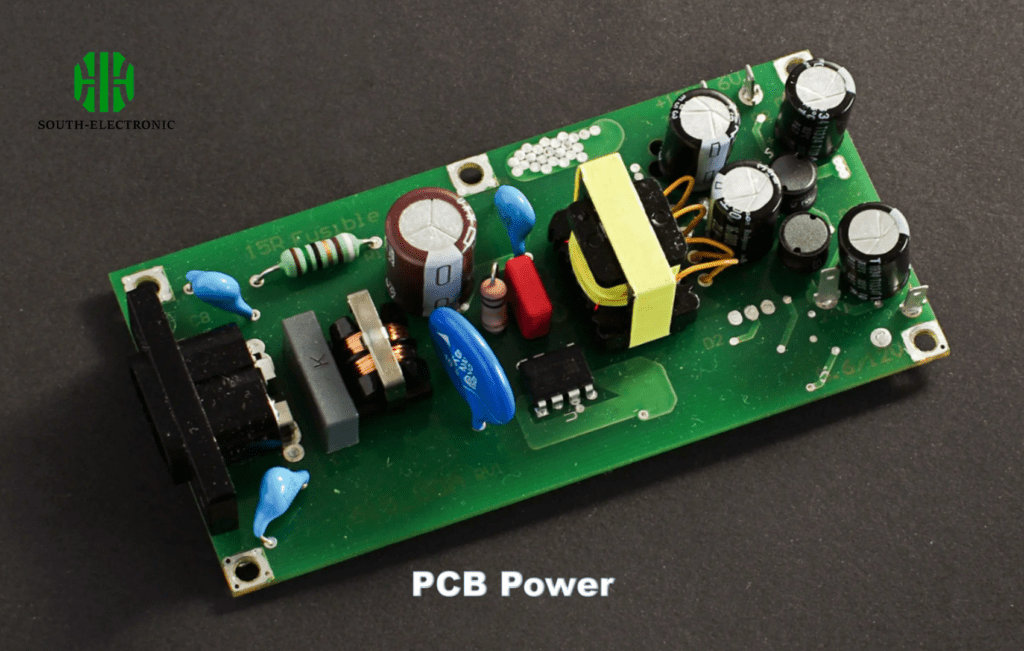

How Does Load Current Impact Power Supply Selection for PCBs?
Choosing a power module rated "10A" doesn’t guarantee safety. Real-world derating is essential – I’ve seen supplies fail at 70% of their label rating due to poor load profiles.
Critical parameters include continuous current (80% rule for linear regs), peak handling (200% for ≥100ms), and efficiency at operating loads (±20% from typical). Don’t overlook startup surges.
)
Power Supply Selection Checklist
| Parameter | Formula/Threshold | Example for 5A System |
|---|---|---|
| Continuous Rating | 1.25 × I(max_continuous) | 6.25A minimum |
| Efficiency Peak | η(max) at 40-60% load | 92%+ for >10W systems |
| Transient Response | <50mV deviation @ 50% load step | Needs bulk capacitance |
| Protection | OCP ≥150% of max current | Adjustable current limit |
In a robotics controller, our 5A-rated supply kept tripping – startup current hit 8.7A. Adding parallel capacitors and a soft-start circuit solved it. Always test beyond datasheet typicals.
Conclusion
Load current defines PCB reliability. From accurate calculation to thermal design and power selection, every decision must consider current flow – because electrons never forgive oversights. Measure twice, design once.
