Imagine your PCB surviving extreme temperatures, humidity, and chemical exposure. Three-proof varnish makes this possible by acting as an invisible shield. But how does it work, and why does your project need it?
Three-proof varnish[^1] protects PCBs from moisture[^2], dust, and corrosive elements through a thin protective layer, ensuring long-term reliability in harsh conditions while maintaining electrical performance. This cost-effective solution prevents premature failures in industrial, automotive, and outdoor applications.
Electronic devices face constant threats from their environments. Let’s break down how three-proof varnish defends PCBs and why it’s becoming essential for modern electronics.
What Is Three-Proof Varnish and How Does It Safeguard PCBs?
Ever wondered how PCBs survive in submarines or desert machinery? Three-proof varnish creates a barrier against environmental stressors most coatings can’t handle.

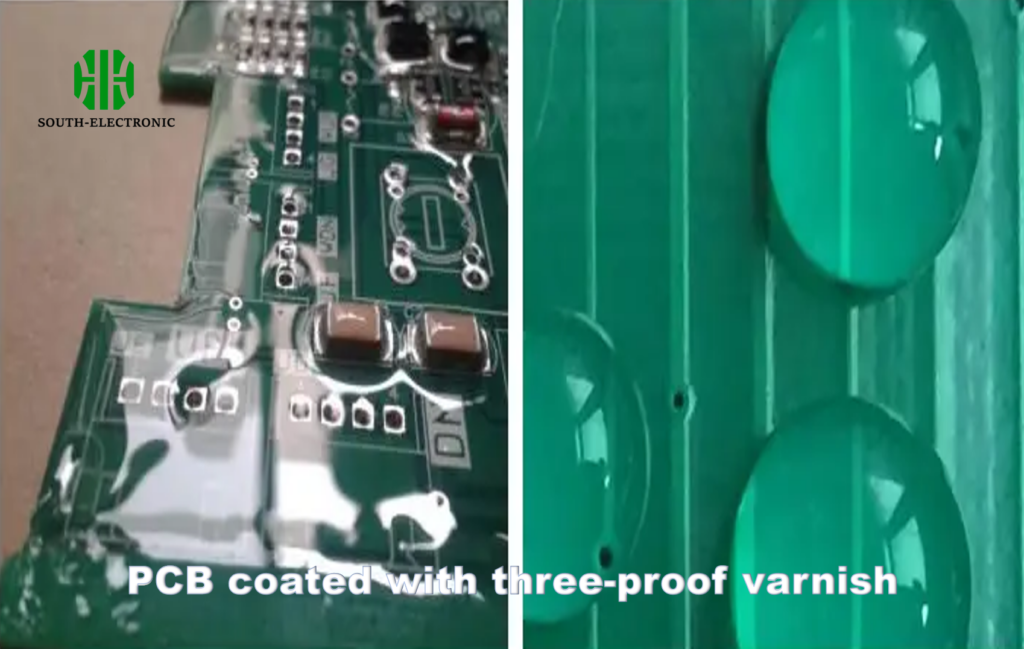

Three-proof varnish is a silicone/polyurethane-based coating[^3] that shields PCBs from moisture, chemical corrosion, and temperature fluctuations while allowing heat dissipation. It fills microscopic gaps in components without altering electrical properties.
)
Core Protective Functions
| Threat | Varnish Action | Result |
|---|---|---|
| Humidity | Forms hydrophobic layer | Prevents short circuits |
| Salt spray | Blocks ionic penetration | Reduces corrosion risk by 80%+ |
| Thermal shock | Expands/contracts with PCB | Maintains adhesion from -40°C to 150°C |
| Dust ingress | Seals component gaps | Prevents particle-induced failures |
Industrial tests show varnished PCBs last 3× longer in marine environments than uncoated boards. The self-leveling formula penetrates under components, a critical advantage over spray coatings that leave shadowed areas unprotected.

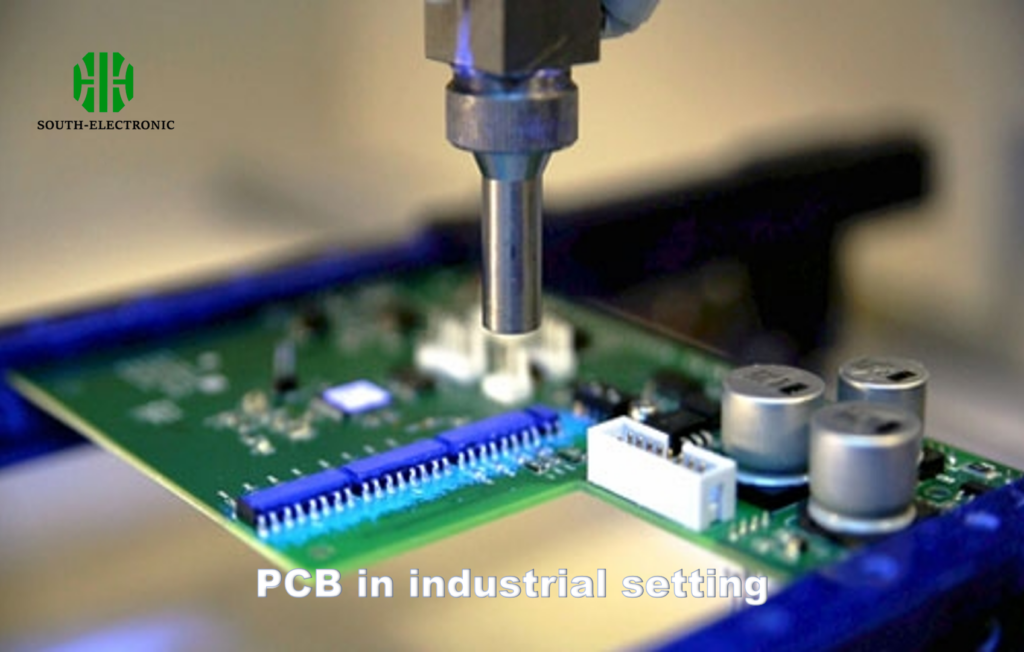

Why Is Three-Proof Varnish Critical for Harsh Environment Applications?
Why risk $10k equipment failing from a $0.50 corrosion issue? Three-proof varnish is the insurance policy you didn’t know your PCB needed.
Three-proof varnish prevents 94% of humidity-related failures[^4] in extreme environments, per IEC 60068-2-30 testing. It outperforms standard conformal coatings in temperature cycling resistance[^5].
)
Application-Specific Requirements
| Industry | Key Threats | Varnish Benefit |
|---|---|---|
| Automotive | Fuel vapors, thermal cycling | Withstands -40°C to 150°C swings |
| Aerospace | Altitude pressure changes | Maintains dielectric strength |
| Marine | Salt mist, condensation | UL 746F certified for 1000h salt spray |
| Outdoor IoT | UV degradation, rain | UV-stable formulas last 5+ years |
Without three-proof varnish, temperature fluctuations cause PCB substrate expansion/contraction, breaking solder joints. The varnish’s flexible bond absorbs mechanical stress, reducing vibration-induced failures by 60% in automotive applications.
How to Apply Three-Proof Varnish Correctly Without Damaging Components?
A single air bubble can compromise protection. Proper application turns three-proof varnish from liability to asset.
Apply three-proof varnish via selective coating or dipping after thorough cleaning. Cure at 80-120°C for 15-60 minutes, ensuring 25-50μm thickness. Avoid masking-sensitive components.
)
Step-by-Step Best Practices
-
Surface Prep
- Clean with plasma/non-ionic solvent (IPA leaves residues)
- Surface roughness <0.5μm for optimal adhesion
-

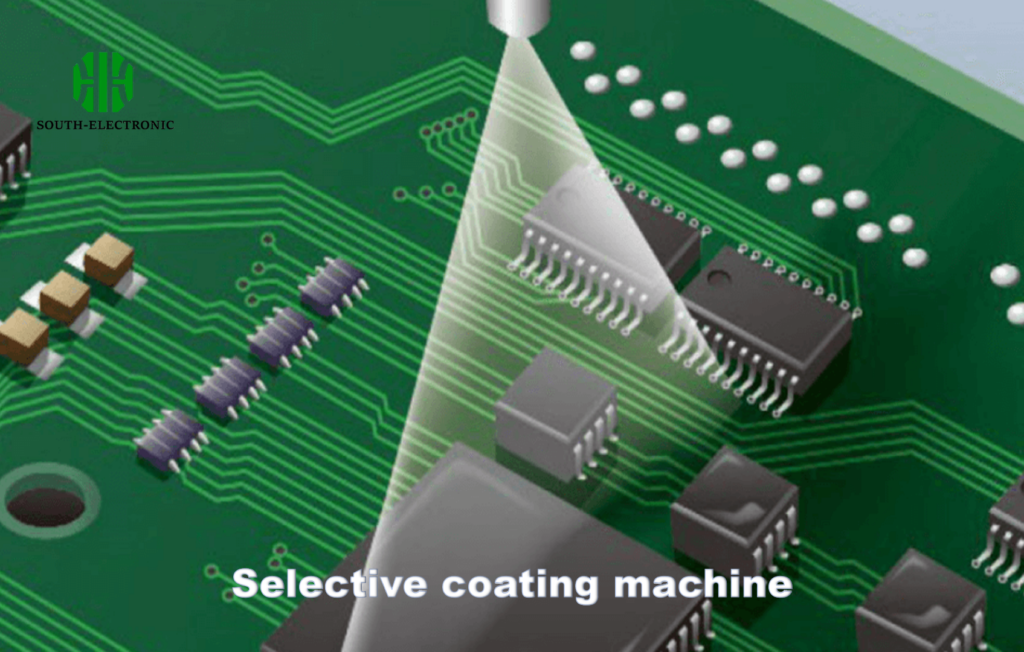

Application Methods Method Thickness Control Precision Speed Brush Poor Low Slow Spray ±10μm Medium Fast Selective Coating ±5μm High Moderate -
Curing Tips
- Humidity 75μm) causes component stress, while under-application (<20μm) risks pinholing. Automated systems achieve 98% coverage vs. 85% with manual brushing.

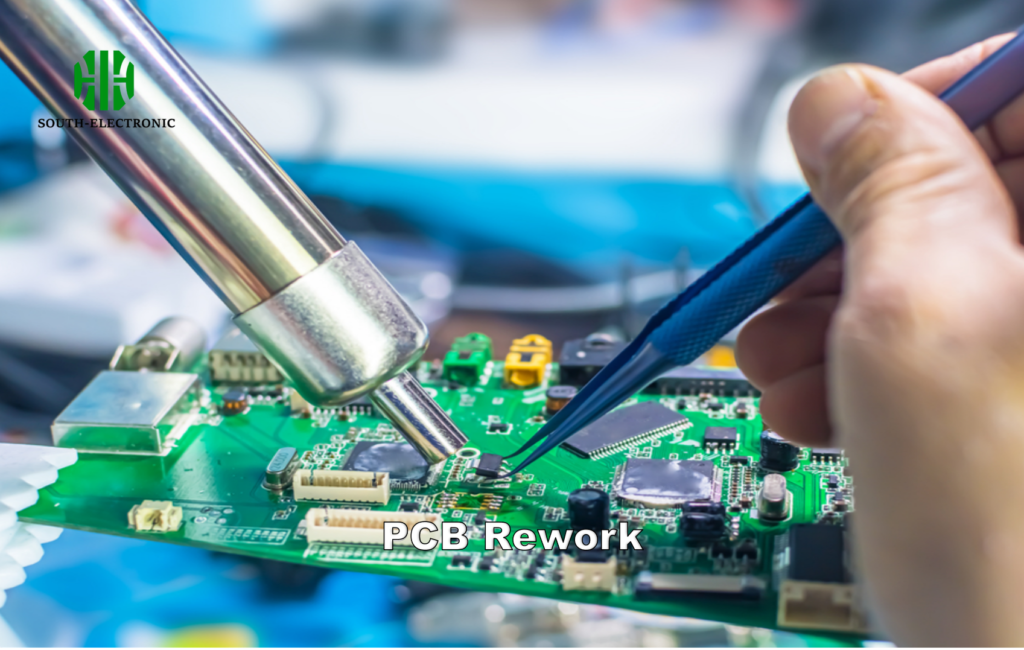

Can Three-Proof Varnish Repair or Revive Damaged PCBs?
Salvaging a corroded PCB isn’t science fiction—with three-proof varnish, it’s Tuesday afternoon.
Three-proof varnish can stabilize mildly corroded PCBs by sealing active corrosion sites and preventing further oxidation, but severely damaged traces require rework. It’s not a permanent repair solution.
)
Repair Effectiveness Matrix
| Damage Level | Varnish Action | Limitations |
|---|---|---|
| Surface Oxidation | Seals affected areas | Conductive paths remain intact |
| Minor Corrosion | Halts spread, restores insulation | Requires cleaning before application |
| Trace Delamination | Provides mechanical support | Doesn’t restore conductivity |
| Severe Corrosion | Temporarily insulates | Full functionality unlikely |
While three-proof varnish won’t regrow copper traces, field technicians use it to stabilize boards until replacements arrive. It's particularly effective on edge connectors and through-hole components prone to dendritic growth.

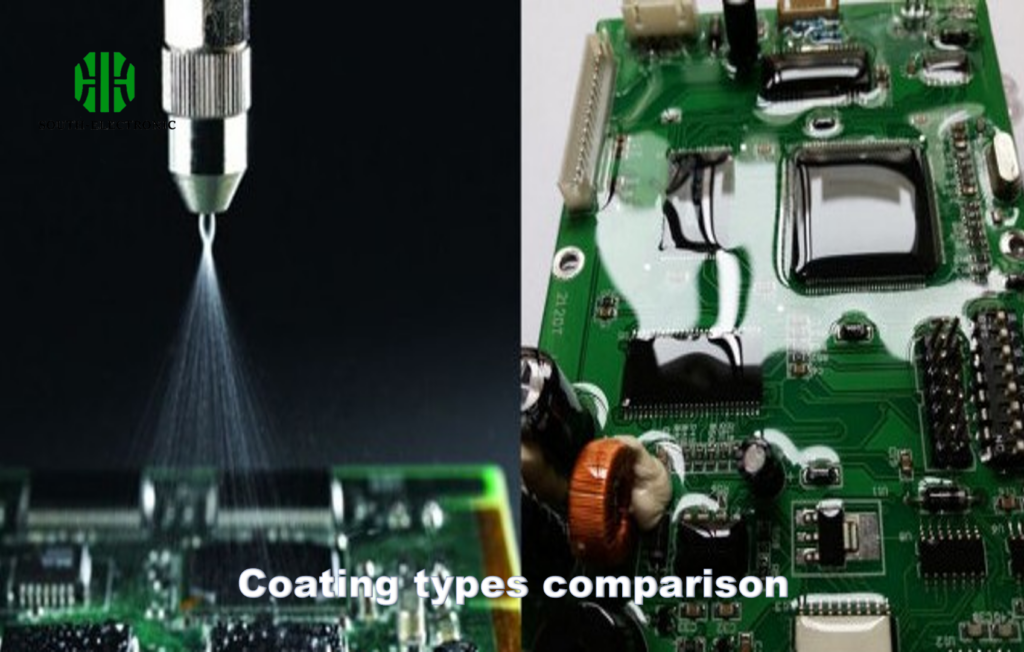

How Does Three-Proof Varnish Compare to Conformal Coatings and Encapsulation?
Choosing between protection methods? Three-proof varnish offers a middle ground between conformal coatings and potting.
Three-proof varnish provides better chemical resistance than acrylic conformal coatings yet remains reworkable—unlike epoxy encapsulation. It's ideal for components needing periodic maintenance.
)
Technical Comparison Table
| Property | Three-Proof Varnish[^6] | Conformal Coating[^7] | Potting Compound[^8] |
|---|---|---|---|
| Thickness | 25-50μm | 25-75μm | 1-5mm |
| Reworkability | Solvent removable | Limited | Impossible |
| Thermal Conductivity | 0.2 W/mK | 0.1 W/mK | 0.5 W/mK |
| Dielectric Strength | 50 kV/mm | 40 kV/mm | 30 kV/mm |
| Vibration Damping | Moderate | Low | High |
Conformal coatings excel in moderate environments, while three-proof varnish suits extreme conditions. Unlike potting, it allows component replacement—critical for aerospace and medical devices requiring component-level servicing.
Conclusion
Three-proof varnish delivers essential protection for PCBs facing harsh environments, combining chemical resistance with practical reworkability. Proper application extends device lifespan while maintaining serviceability—an optimal balance for modern electronics.
