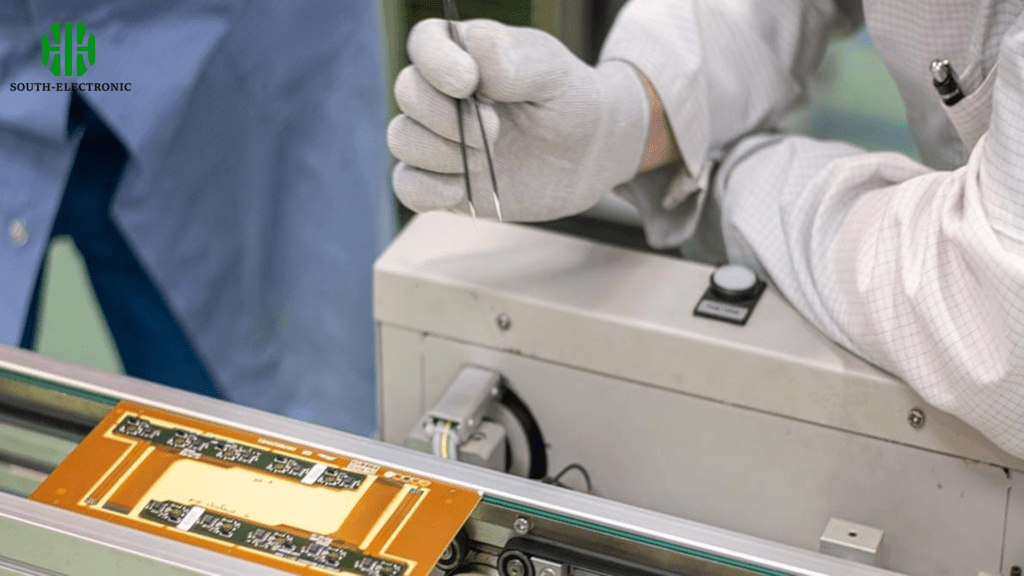

What are the types of PCB assembly processes?
PCB assembly processes are classified into three main types: Through-Hole Technology (THT), Surface-Mount Technology (SMT), and Mixed Technology.
- Through-Hole Technology (THT): In this old-school method, components with leads are inserted through holes drilled in the PCB. The leads are then soldered to pads on the opposite side of the board. This technique is good for high-reliability products that need stronger connections between layers.
- Surface-Mount Technology (SMT): Components are mounted directly onto the surface of the PCB without the need for big holes. SMT allows for more components to be placed on both sides of the board, reducing the size and improving the performance of the PCB.
- Mixed Technology: This method combines both through-hole and surface-mount technologies on the same board. It is used for complex devices that need the advantages of both assembly processes.

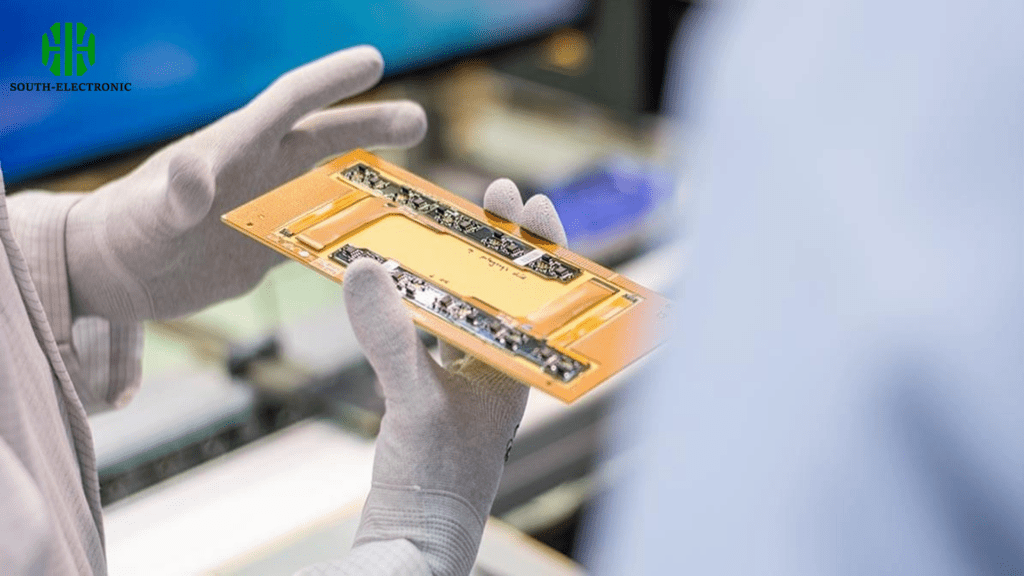

Standard for PCB Assembly
The standards for PCB assembly ensure reliability, quality, and uniformity in products. The most widely recognized standards are set by the IPC (Institute of Printed Circuits), specifically:
| Standard | Description | Application |
|---|---|---|
| IPC-A-610 | Acceptability of Electronic Assemblies | Defines PCB assembly quality metrics |
| ISO 9001 | Quality Management Systems | Ensures process consistency and quality assurance |
| ASTM F24 | Test Methods for Electronic and Electrical Component Parts | Specifies testing protocols for reliability |
These standards define the quality and acceptability criteria for PCB assemblies, guiding manufacturers in producing durable and functional electronic assemblies.
What are some common defects in PCB assembly and how can they be prevented?
Several common defects can occur during the PCB assembly process, including:
- Solder Bridges: Unintended solder connections between adjacent pads or pins, which can cause short circuits. Prevention includes using the correct amount of solder paste, proper stencil design, and accurate placement of components.
- Cold Solder Joints: Poorly soldered joints that can lead to unreliable electrical connections. Using proper solder temperature and ensuring components are not moved during the soldering process can prevent this.
- Misalignment of Components: Components that are not correctly aligned can lead to non-functional circuits. Automated placement machines and optical inspection systems help reduce this risk by accurately placing and inspecting components.
To avoid these defects, you can use quality control measures like Automated Optical Inspection (AOI) and X-ray inspection during assembly.
How has automation impacted PCB assembly processes?
Automation has significantly transformed PCB assembly processes by:
- Increasing Production Speed: Automated machines like pick-and-place machines can place thousands of components per hour, much faster than manual assembly.
- Improving Precision and Reliability: Automation minimizes human errors, increases the precision of component placement, and consistently applies solder paste.
- Enhancing Flexibility: Modern automated systems can quickly switch between different PCB designs and handle various component types, making them ideal for both high-volume and high-mix low-volume production.
- Reducing Labor Costs: While the initial investment in automation is substantial, the reduction in labor costs and the increase in throughput make it cost-effective in the long run.
Overall, automation in PCB assembly not only boosts efficiency but also enhances the quality of the electronic assemblies produced, adapting quickly to market demands and technological advancements.
