Ever noticed sudden glitches in your electronic projects? Voltage spikes and noise on power lines can silently sabotage sensitive components. Decoupling capacitors[^1] act as emergency power reservoirs to prevent these hidden disasters.
Decoupling capacitors stabilize power supply voltages by providing localized charge storage near integrated circuits (ICs). They suppress noise, minimize voltage drops during sudden current demands, and prevent system failures in electronic devices.
While their basic function seems simple, proper implementation requires understanding key principles. Let’s explore critical aspects every designer must know to maximize their effectiveness.
How Exactly Do Decoupling Capacitors Work in High-Speed Circuits?
Digital chips create instantaneous power spikes that regular power supplies can’t handle. Imagine a microprocessor suddenly needing extra current for calculations—this is where decoupling shines.
In high-speed circuits[^2], decoupling capacitors supply instant current during fast switching events. They reduce power rail impedance[^3] at high frequencies, preventing voltage sag that could cause logic errors or data corruption.
)
Three Operational Phases:
| Timeframe | Action | Impact |
|---|---|---|
| 0.1-10ns | Local charge delivery | Handles ultra-fast current demands |
| 10-100ns | Mid-range stabilization | Bridges power supply response gap |
| >100ns | Bulk capacitor takeover | Handles sustained current needs |

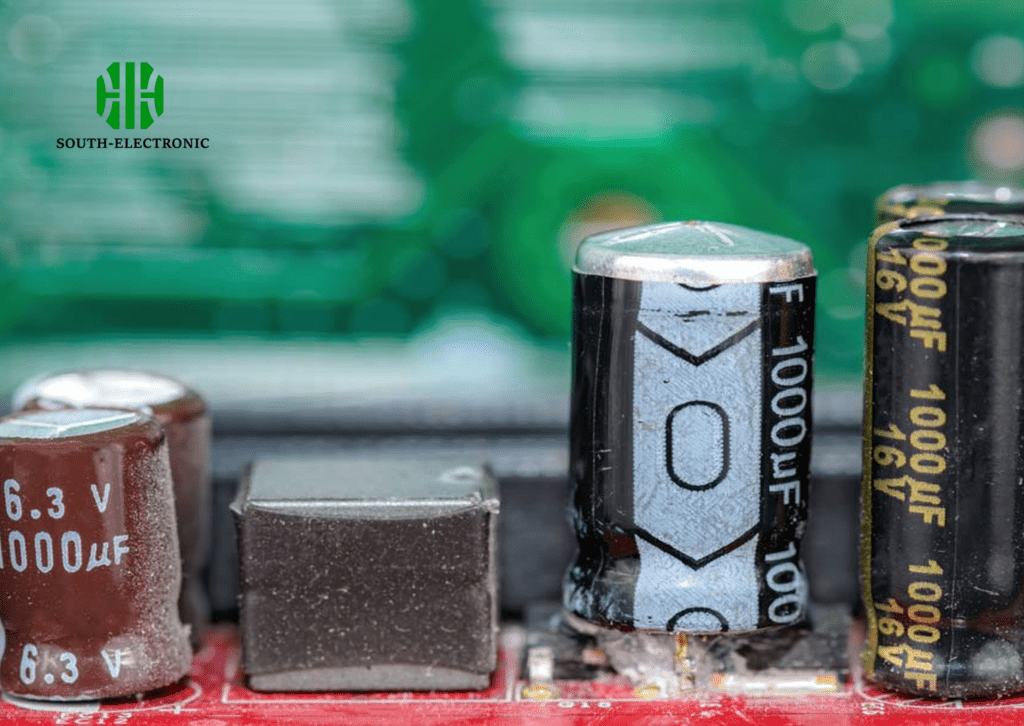

High-frequency capacitors (0.1μF ceramic) work with mid-range components (1-10μF tantalum) and bulk capacitors (>100μF electrolytic). This combination creates an low-impedance path across all frequency ranges. The capacitor’s parasitic inductance becomes critical here—surface-mount devices outperform through-hole versions in high-speed applications.

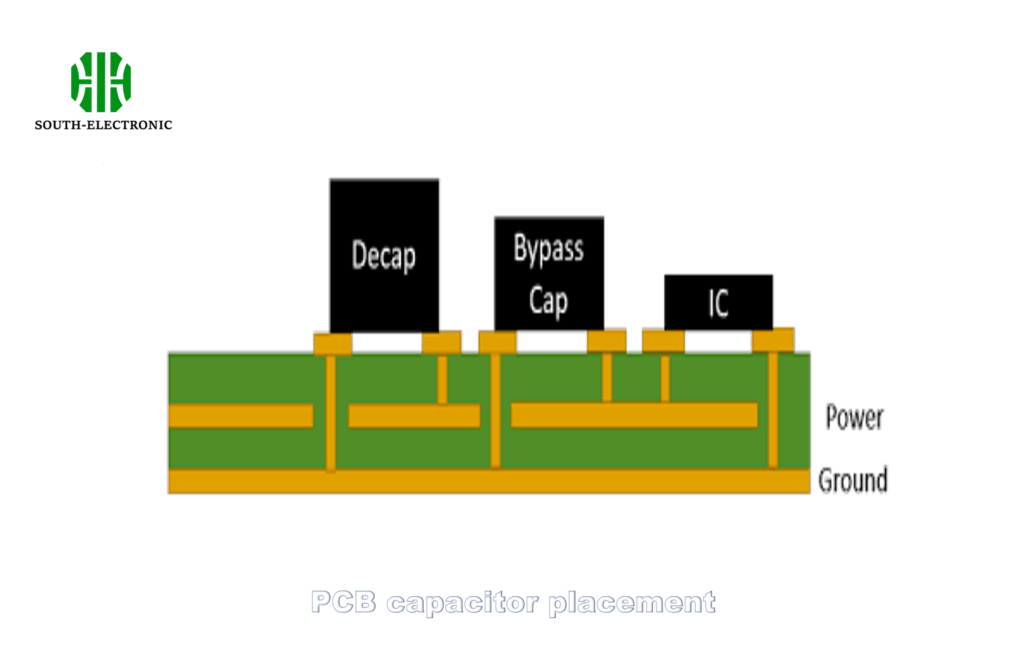

Why is Capacitor Placement Crucial for Effective Decoupling?
Placing capacitors far from ICs is like storing fire extinguishers in another building. Distance creates parasitic inductance that ruins high-frequency performance.
Optimal capacitor placement minimizes loop inductance.[^4] Decoupling caps must be positioned as close as possible to IC power pins, preferably with direct via connections to ground/power planes.
)
Placement Hierarchy:
| Priority | Location | Effectiveness |
|---|---|---|
| 1 | On-chip | Best (if available) |
| 2 | Within 2mm of IC | Excellent |
| 3 | Same PCB layer | Good |
| 4 | Adjacent layer | Acceptable |
| 5 | Power supply area | Useless |
I once debugged a board where moving a 0.1μF capacitor 5mm closer to the microcontroller solved random resets. Use multiple vias for low-inductance connections, and prioritize capacitors for noise-sensitive components like ADCs and clocks.

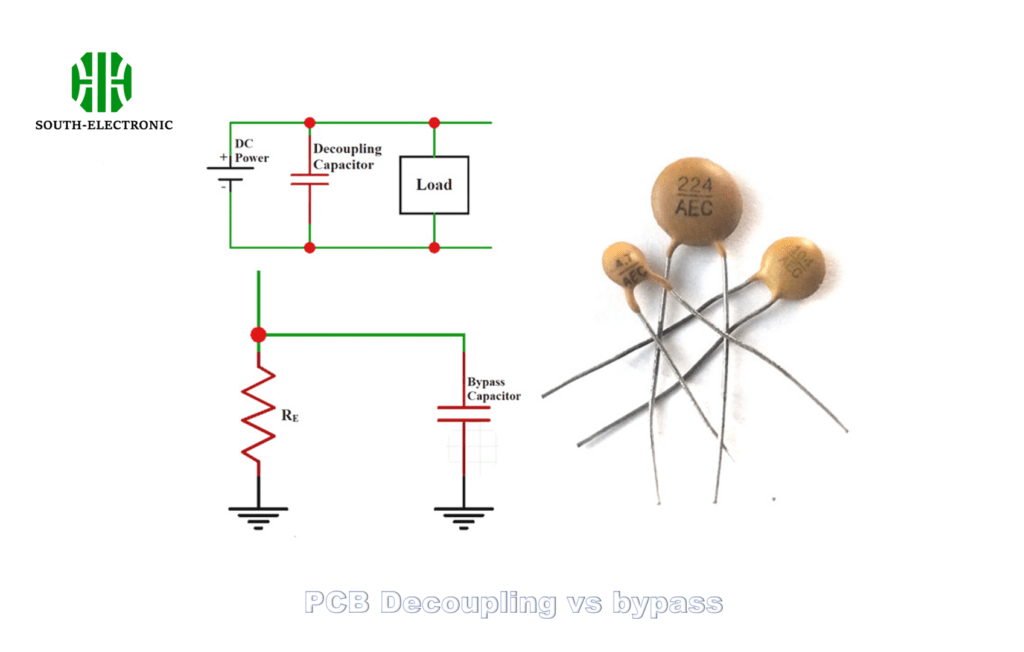

What’s the Difference Between Decoupling and Bypass Capacitors?
Engineers often use these terms interchangeably, but subtle differences matter in precision designs. Confusion here leads to ineffective filtering.
Decoupling capacitors primarily handle power supply noise[^5], while bypass capacitors short high-frequency noise to ground. Both stabilize voltage, but their placement and frequency targets differ.
)
Key Differences Table:
| Parameter | Decoupling | Bypass |
|---|---|---|
| Primary Function | Supply voltage stabilization | Noise shunting |
| Typical Value | 0.1μF-100μF | 1nF-0.1μF |
| Placement | Near IC power pins | Near noise sources |
| Frequency Range | DC-100MHz | 10MHz-1GHz |
| Impedance Target | Low impedance to supply | Low impedance to ground |
Bypass capacitors often pair with decoupling components. For example, a 10μF decoupling capacitor works with a 0.01μF bypass cap near a switching regulator. This combination handles both bulk current demands and high-frequency switching noise.
How to Calculate the Right Decoupling Capacitor Value?
Guessing capacitor values leads to either over-design (costly) or under-design (unreliable). Use physics, not intuition.
Calculate decoupling capacitor value using: C = ΔI × Δt / ΔV. Where ΔI=current change, Δt=transition time, ΔV=allowed voltage ripple.
Step-by-Step Calculation:
- Determine maximum current spike (ΔI) from device datasheet
- Find allowable voltage dip (ΔV) - typically 5% of supply
- Calculate transition duration (Δt) - 1/10th of signal rise time
- Apply formula: C = (ΔI × Δt) / ΔV
Example:
- FPGA requiring 2A spike in 1ns
- 3.3V rail with 165mV allowable dip
- C = (2A × 1e-9s) / 0.165V ≈ 12nF
- Use 10nF ceramic capacitor + 30% margin
Always verify with real-world measurements. Power integrity tools like Sigrity help simulate actual performance.
Can Multiple Decoupling Capacitors Cause Resonance Issues?
More capacitors don’t always mean better performance. Uncontrolled combinations create anti-resonance peaks that amplify noise.
Parallel capacitors with different values create impedance dips at multiple frequencies but risk resonance where inductive and capacitive reactances cancel (LC resonance).
Resonance Prevention Methods:
| Technique | How It Works | Effectiveness |
|---|---|---|
| Value Decade Spacing | Use 0.1μF, 1μF, 10μF | Reduces resonance peaks |
| ESR Staggering | Mix low/high ESR capacitors | Dampens oscillations |
| Active Suppression | Use active decoupling ICs | Eliminates resonance |
| Simulation | PI software pre-verification | Best prevention |
A 0.1μF (100nF) and 10μF capacitor pair could resonate around 15MHz. Always check parallel capacitor SRF (self-resonant frequency) and use spice models for critical designs.
What Happens If You Skip Decoupling Capacitors in Your Design?
“It worked on the bench” turns into field failures. Missing decoupling invites six silent killers of electronics.
Omission causes voltage droops during switching, ground bounce, electromagnetic interference (EMI), signal integrity issues, premature component failure, and random system resets.
Failure Mode Analysis:
| Symptom | Root Cause | Typical Impact |
|---|---|---|
| Intermittent faults | Voltage dips during load changes | Data corruption |
| Radiated EMI | Power rail oscillations | FCC test fails |
| Reduced clock speed | Insufficient peak current | Performance loss |
| IC overheating | Repeated power-on reset attempts | Thermal shutdown |
| ADC inaccuracy | Noisy reference voltage | Measurement errors |
I’ve seen “mystery” reboots disappear after adding a single 0.1μF capacitor. Modern chips with nanosecond switching times demand rigorous decoupling—there’s no alternative.
Conclusion
Decoupling capacitors are power integrity guardians. Smart selection, proper placement, and resonance management transform them from generic components to precision noise-control tools. Never underestimate their role in reliable electronics.
