Have you ever stared at solder bridges[^1] under a microscope, wondering if there's a better way to assemble PCBs? As production volumes shift and designs grow complex, choosing the right soldering method becomes make-or-break.
Wave soldering[^2] quickly processes entire batches but risks defects on dense boards, while selective soldering targets individual joints with surgical precision at higher costs. For high-volume simple boards: choose wave. For complex layouts or heat-sensitive components: go selective.
The real challenge lies in matching these technologies to your specific needs. Let’s break down critical technical differences and financial impacts through a manufacturer's lens.
Work Principles of Wave and Selective Soldering: How Do They Actually Function?
Imagine trying to water plants with a fire hose versus an eyedropper. That’s essentially the core difference between these two approaches.

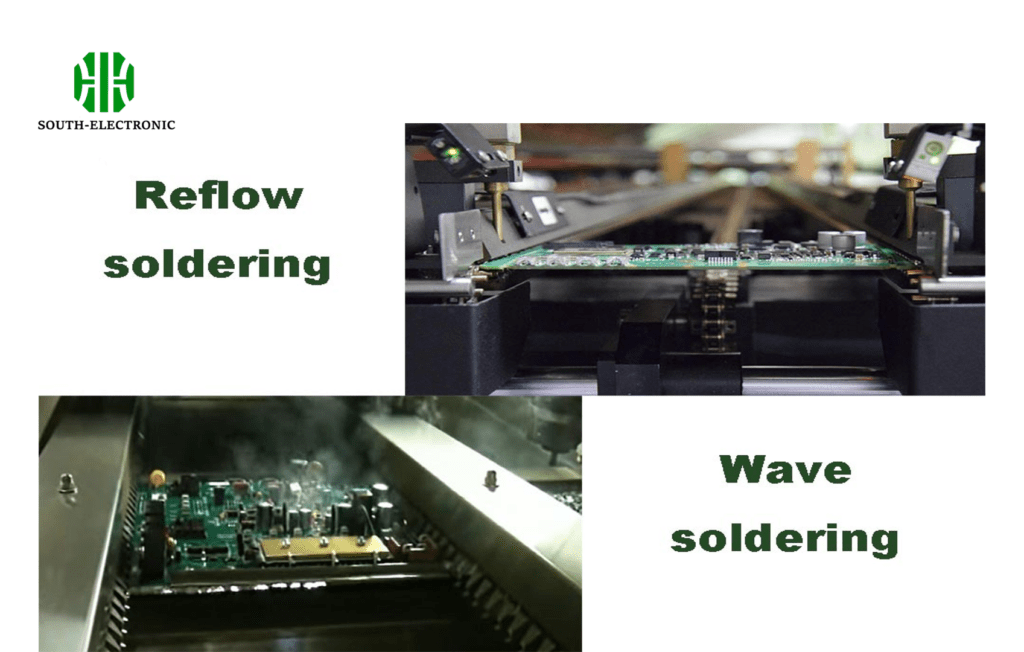

Wave soldering submerges PCB bottoms in molten solder waves, while selective systems use programmable nozzles to deposit precise solder amounts on specific joints.
)
Two Fundamentally Different Approaches
| Parameter | Wave Soldering | Selective Soldering[^3] |
|---|---|---|
| Contact Method | Full board immersion | Micro-nozzle application |
| Thermal Load | 245-260°C for 3-5 seconds | 280-300°C for 1-3 seconds |
| Flux Application | Spray or foam fluxing | Jet-spray localized fluxing |
| Typical Throughput | 500-800 boards/hour | 50-200 boards/hour |
The wave process's brute-force methodology explains why 78% of simple consumer electronics still use it, while medical device manufacturers pay premium prices for selective systems' pinpoint accuracy. I once watched a wave system drown a $15 BGA component in excess solder - an expensive lesson in process limitations.
Key Trade-Offs in Speed, Quality, and Flexibility: What Gets Compromised?
Production managers constantly juggle three balls: output speed, defect rates, and line flexibility. Let’s examine which method drops which ball.
Wave soldering wins on raw speed but struggles with complex boards, while selective systems sacrifice throughput for precision and adaptability.
)
The Trilemma of PCB Assembly
-
Speed
- Wave: 10x faster for simple boards
- Selective: Requires programmed paths per board type
-
Defect Rates
- Wave: 120-500 ppm typical (bridging, tombstones)
- Selective: 25-80 ppm when properly calibrated
-
Changeover Flexibility
- Wave: Needs mechanical adjustments (2-4 hours)
- Selective: Software-programmable in <30 minutes
A client producing automotive ECUs reduced their defect rate[^4] from 410ppm to 67ppm by switching to selective soldering, despite 35% slower throughput. The math worked out - warranty claims dropped faster than production speeds.
Cost Analysis: Which Method Actually Saves Money?
The sticker shock of selective soldering machines ($150k-$400k) versus wave systems ($50k-$150k) tells only half the story.
While selective systems cost 2-3x more upfront, they save 18-35% in long-term rework costs and enable higher-margin precision work.
)
Full Cost Breakdown (5-Year Horizon)
| Cost Factor | Wave Soldering | Selective Soldering |
|---|---|---|
| Machine Acquisition | $120,000 | $280,000 |
| Solder Consumption | $0.08/board | $0.12/board |
| Rework Costs | $1.25/board | $0.35/board |
| Energy Use | $0.15/board | $0.21/board |
| Total @ 500k boards | $686,000 | $752,000 |
Surprise twist: Above 700k units, wave becomes cheaper. Below 200k units, selective's lower rework costs win. The breakeven point? Around 550k boards for most mid-complexity designs.
Real-World Applications: Who Uses Which Technology?
Walk through any electronics factory and the soldering choice reveals their business strategy.
High-volume commoditized products (USB chargers, LED strips) use wave. Low/medium batch specialized gear (industrial sensors, aerospace PCBs) choose selective.
Market Segment Breakdown
| Industry | Wave Adoption | Selective Adoption |
|---|---|---|
| Consumer Electronics | 92% | 8% |
| Automotive | 64% | 36% |
| Medical Devices | 18% | 82% |
| Aerospace/Defense | 9% | 91% |
When a drone manufacturer client added fragile MEMS sensors, their wave system's thermal shock caused 22% failures. Switching to selective reduced sensor losses to 3% immediately.
5 Critical Questions to Pick the Right Method
Choosing isn't about which technology is better - it's about which better serves your requirements.
Ask these to avoid costly mistakes: board complexity, production volume, thermal constraints, budget, and future-proofing needs.
Your Decision Framework
-
Component Density
More than 30 components/dm²? Lean selective -
Annual Volume
500k units? Wave probable choice -
Thermal Sensitivity
Any components over 5W/mK thermal resistance? Require selective -
Budget
Can you absorb $0.35/board extra for better quality? -
Product Lifespan
Long-life products (>7 years) justify selective's reliability premium
I guide clients through this checklist - it once prevented a solar inverter company from making a $380k wave machine mistake. Their mixed-technology boards needed selective's precision.
Conclusion
Wave soldering dominates high-volume simple boards; selective excels where precision matters. Match your board complexity, production scale, and quality demands to pick wisely - the right choice can slash defects by 60% while optimizing costs.
