Have your flexible PCBs ever cracked or failed under stress? Picture this: your design works perfectly in the lab but fails when mounted. This is where PCB stiffeners become non-negotiable.

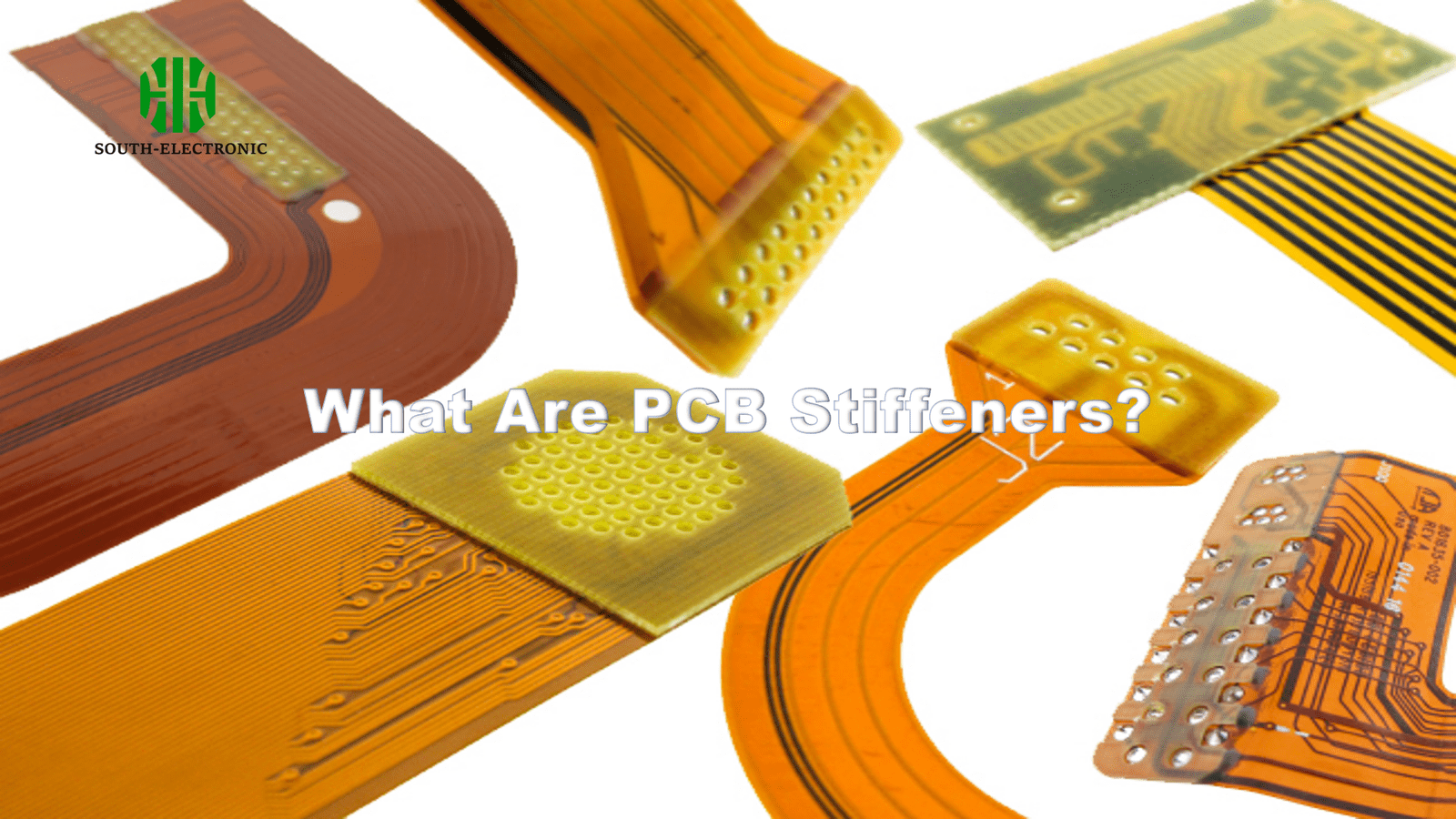

PCB stiffeners[^1] reinforce circuit boards, preventing damage during mechanical stress[^2]. They add rigidity to flexible areas, support connectors, and absorb shocks. Think of them as armor for your delicate circuits.
Choosing the right stiffener affects your board’s lifespan and performance. Let’s dissect why they matter and how to avoid costly errors.
Why Can't Your Flexible PCB Function Without Stiffeners?
Flexible PCBs bend, but repeated stress fractures circuits. Imagine a wearable device snapping after 100 bends. Without stiffeners, components detach, traces crack, and connections fail.
Stiffeners anchor solder points, protect bending zones, and distribute mechanical load. They turn flimsy circuits into durable systems ready for real-world use.
When Stiffeners Become Essential
Use stiffeners in these scenarios:
| Scenario | Without Stiffener Outcome | With Stiffener Improvement |
|---|---|---|
| Connector Mounting | Solder joints crack under force | Stable connections for 10,000+ insertions |
| Repeated Flexing | Traces fracture after 200 bends | Withstands 1,000+ flex cycles |
| Heavy Components | Board warps, causing misalignment | Maintains flatness within 0.1mm |
Stiffeners work by redistributing stress. For example, FR4 stiffeners near connectors prevent solder cracks during cable pulls. In foldable devices, polyimide stiffeners allow controlled bending without overstretching copper traces.
FR4 vs Polyimide vs Aluminum: Which Stiffener Material Fits Your Budget & Performance?
An IoT startup once chose aluminum stiffeners for their rugged device, only to face signal interference. Material choice directly impacts cost and functionality.
FR4 offers low-cost rigidity, polyimide handles high heat, and aluminum dissipates heat but risks shorting. Match material to your mechanical and electrical needs.
)
Cost vs Performance Breakdown
| Material | Cost per sq.in | Max Temp | Best For | Avoid If |
|---|---|---|---|---|
| FR4[^3] | $0.15 | 130°C | Consumer electronics | High-frequency signals |
| Polyimide[^4] | $0.35 | 260°C | Aerospace, automotive | Tight budgets |
| Aluminum[^5] | $0.50 | 150°C | Heat-sensitive power systems | Signal integrity needs |
FR4 suits budget projects without extreme heat. Polyimide’s thermal stability justifies its cost in engine control units. Aluminum excels in LED lighting but requires insulation layers to prevent shorts.
Thin as Paper or Thick as a Coin? How to Choose the Perfect Stiffener Thickness
A medical device failed because 2mm aluminum stiffeners made it too rigid. The redesigned 0.8mm polyimide version survived sterilization and flexing.
Thickness depends on bending radius and component weight. Thicker ≠ better—it’s about balancing support and flexibility.
)
Thickness Selection Rules
| Application | Recommended Thickness | Material | Reason |
|---|---|---|---|
| USB Connectors | 0.4-0.6mm | FR4 | Prevents wobble without bulk |
| Automotive Sensors | 1.0-1.2mm | Polyimide | Vibration resistance |
| Battery Terminals | 2.0-2.5mm | Aluminum | Supports heavy busbars |
For foldable phones, 0.2mm polyimide allows tight bends. Industrial motor controllers need 1.5mm FR4 to handle relay vibrations. Always test prototypes under real stress conditions.

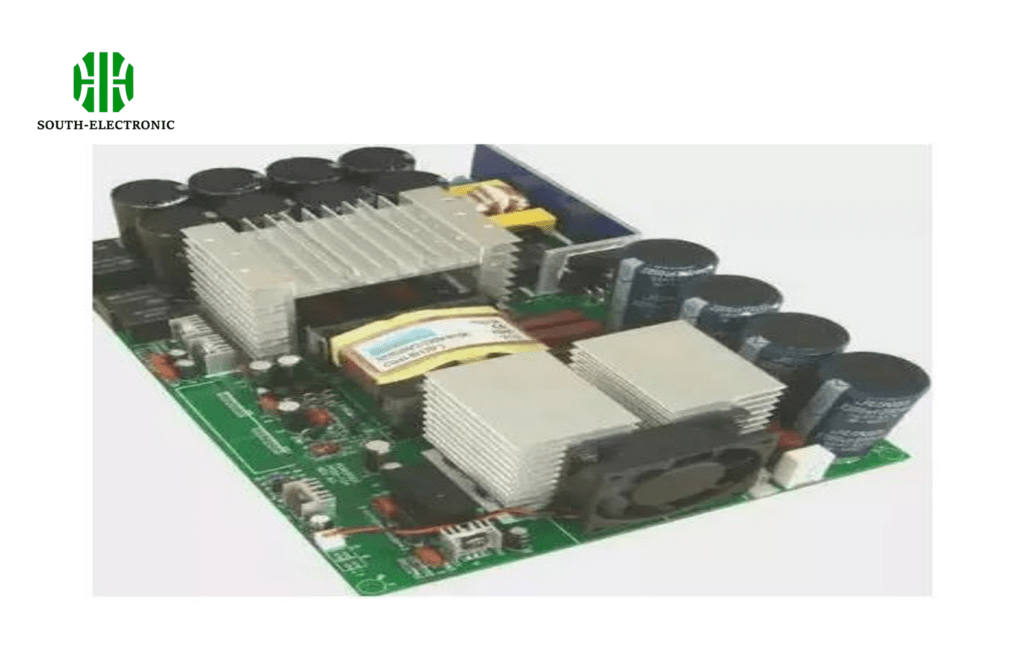

The Hidden Damage: Are You Installing PCB Stiffeners Wrong?
A factory glued stiffeners with standard epoxy, causing delamination in humidity. Installation errors negate stiffener benefits.
Wrong adhesives or placements cause warping and connection failures. Follow material-specific bonding protocols[^6].
)
Installation Checklist Table
| Mistake | Consequence | Fix |
|---|---|---|
| Uneven adhesive spread | Air gaps reduce bonding | Use patterned glue dispensing |
| Misaligned placement | Stress concentrates | Laser alignment markers |
| High-temp epoxy on polyimide | Material warping | Use low-temp acrylic adhesives |
Heat press parameters matter: 150°C for 60 seconds works for FR4, while polyimide needs 120°C for 90 seconds. Always cure adhesives in controlled humidity.
Conclusion
PCB stiffeners prevent costly failures—if you choose materials wisely, calculate thickness precisely, and install them correctly. They’re not optional; they’re your design’s insurance policy.
