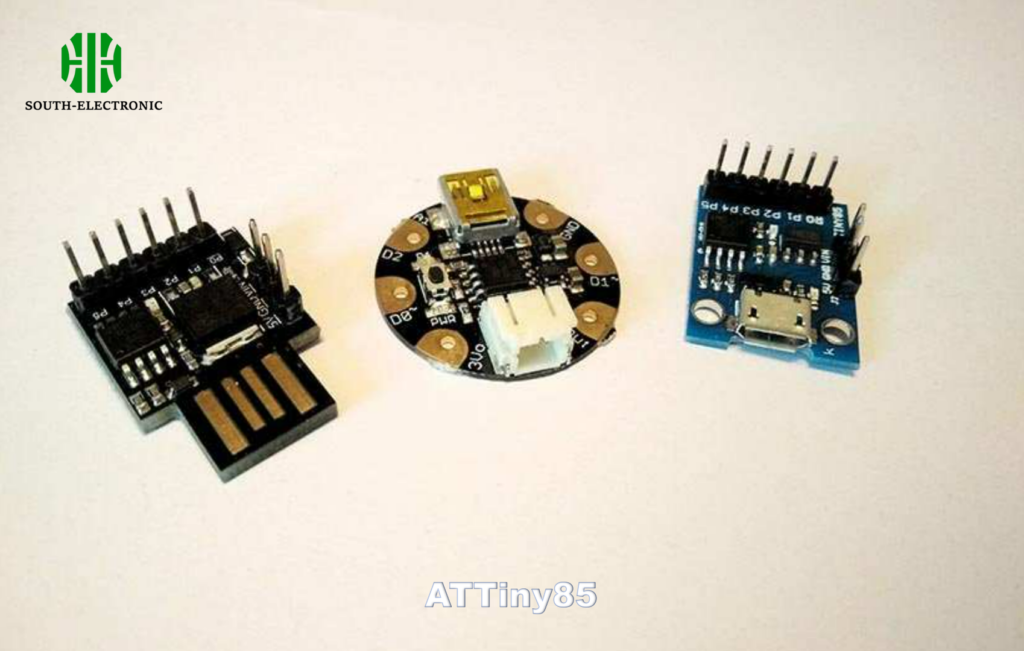

Got limited space but want big functionality? The ATTiny85 packs surprising power into an 8-pin package. This thumb-sized microcontroller solves space and power constraints while enabling creative electronics projects.

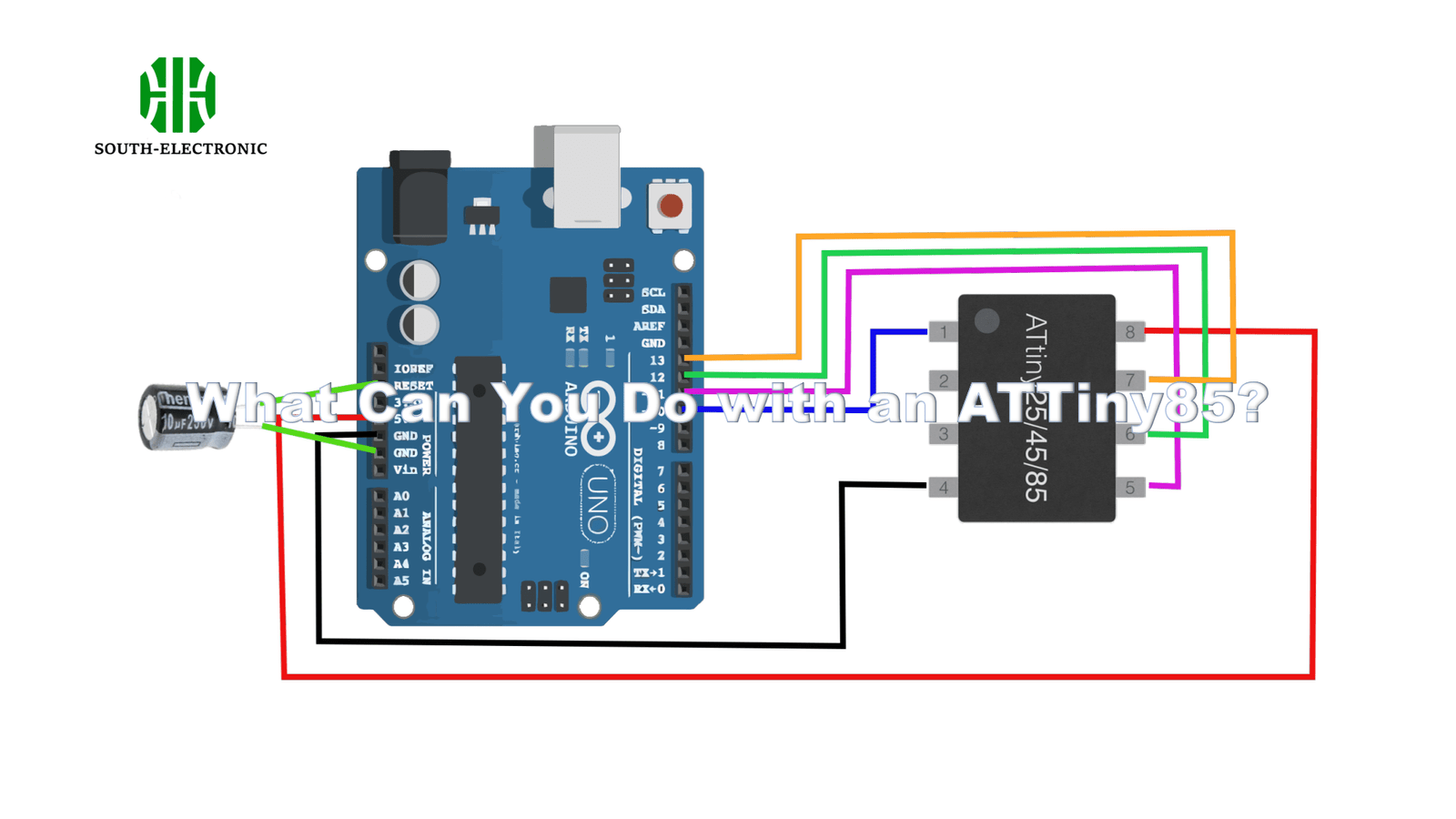

The ATTiny85 handles real-world tasks like LED lighting control, USB input devices, sensor monitoring, and custom programmable circuits. Its low cost and Arduino compatibility make it ideal for DIY wearables, compact IoT devices, and educational tools.

While the ATTiny85 looks basic at first glance, its capabilities explode when you dig deeper. Let's explore its key features, practical comparisons, coding tricks, and sourcing tips to maximize its potential.

What Are the Key Features of ATTiny85?

Ever tried squeezing projects into matchbox-sized spaces? The ATTiny85 delivers usable specs in a tiny format that often surprises first-time users.

Key features include 8KB Flash memory, 512B RAM, 6 I/O pins, 0-20MHz clock speed, and ultra-low power modes. These specs enable standalone operation for basic automation, sensor readouts, and compact interactive gadgets.

Technical vs Practical Value

Here’s how technical specs translate to real-world use:

Specification User Benefit
8 GPIO pins Controls multiple LEDs/sensors simultaneously
1.8-5.5V operation Works with coin cells or USB power banks
8KB Flash Stores code for multiple logic routines
0.7μA sleep mode Runs for years on small batteries
ADC converter Reads analog sensors (temperature, light, etc.)

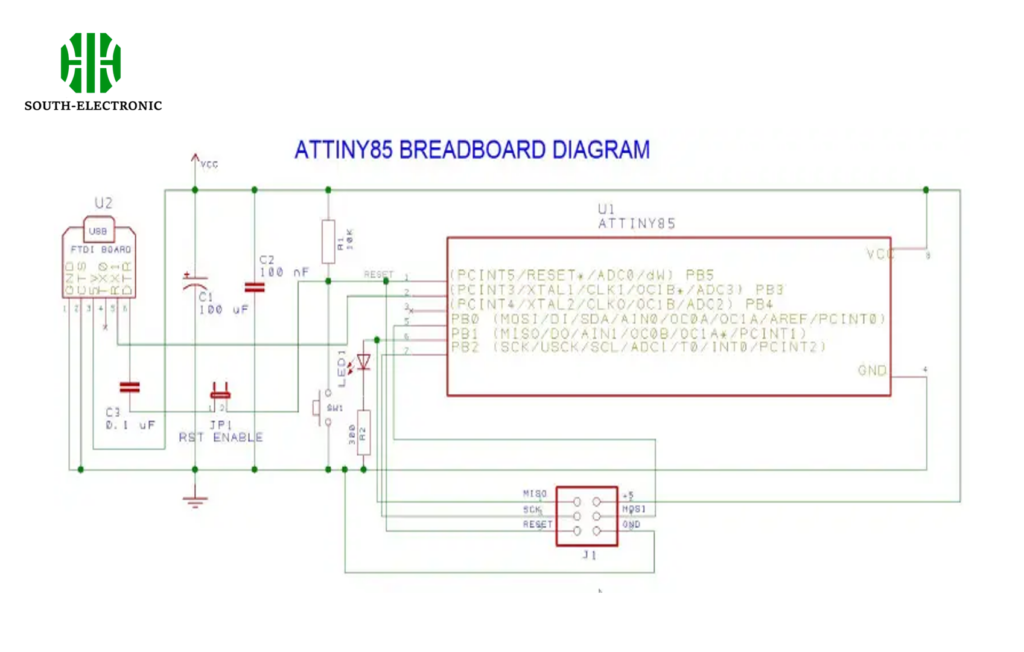

The 8-pin format does limit I/O options, requiring creative pin management. I once rewired a project three times to share pins between a temperature sensor and LED array. Use the attiny85 pinout diagram religiously to avoid "pin lock."

ATTiny85 vs Arduino: Which Microcontroller Is Right for Your Project?

Struggling to choose between power and portability? The answer lies in your project’s physical and computational needs.

Choose ATTiny85 for battery-powered mini-projects needing basic logic, and Arduino boards for complex tasks requiring multiple libraries. The ATTiny85 consumes 90% less power than Arduino Uno while occupying 1/10th the space.

Project Suitability Breakdown

Scenario Better Choice Why?
Wearable fitness tracker ATTiny85 Low power, small PCB footprint
Multi-sensor greenhouse Arduino More I/O pins, library support
USB rubber ducky ATTiny85 Digispark compatibility
3D printer controller Arduino Stepper motor libraries required

While prototyping robots, I learned this the hard way – my ATTiny85-based prototype couldn't handle motor control libraries that Uno managed easily. Always check your library dependencies against the attiny85 datasheet specs.

How to Optimize Code for ATTiny85?

Hitting memory limits with standard Arduino code? The ATTiny85 demands lean coding practices to maximize its limited resources.

Essential optimizations include using PROGMEM for data storage, minimizing serial outputs, and disabling unused features. Select Board: "Digispark ATTiny85" in Arduino IDE for automatic memory tweaks.

Coding Do's and Don'ts

Best Practice Example Memory Saved
Use bit-wise operators PORTB = (1 << PB3) 2% per operation
Avoid String class char message[10] over String 15%+
Disable ADC when unused ADCSRA &= ~(1<<ADEN); 0.1mA current
Use attiny85 datasheet timers TCCR0B = (1<<CS01); Hardware efficiency

An RGB controller project I built failed until I switched from analogWrite() to direct port manipulation – saving 23% program space. Always compile with verbose output to monitor memory usage.

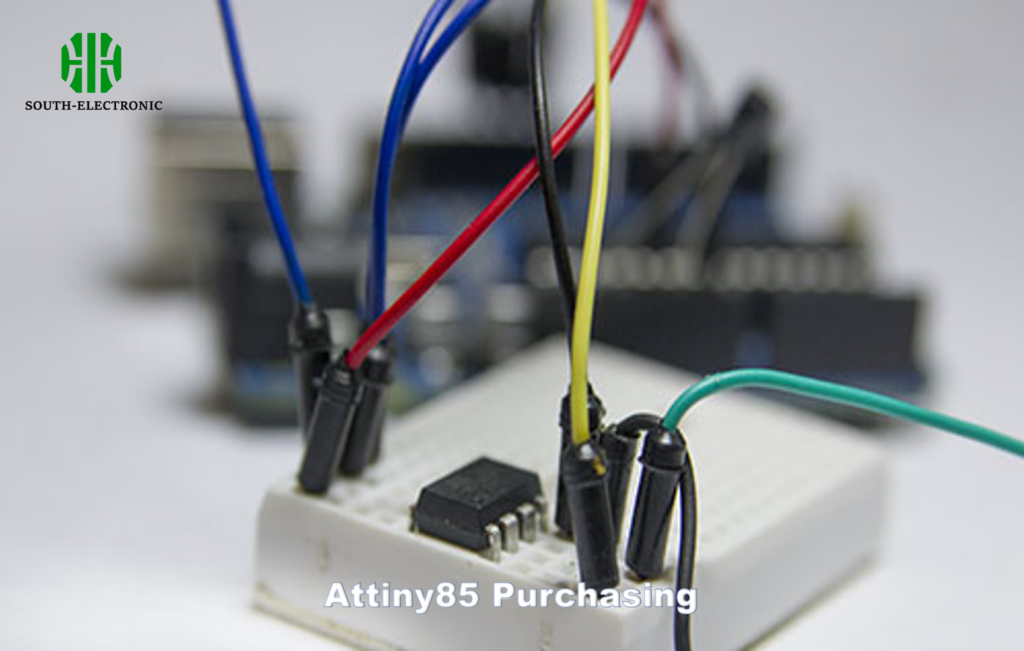

Where to Buy ATTiny85?

Worried about fake ICs? Several trusted suppliers stock genuine ATTiny85 chips at reasonable prices.

Best sources include DigiKey, Mouser, Amazon (sold by Atmel partners), and AliExpress stores with 98%+ ratings. Expect to pay $1.50-$3 per chip in bulk quantities.

Vendor Comparison

Seller Price per Unit Shipping Guarantee
DigiKey $2.10 2 days Authentic parts
Amazon $2.75 Prime Easy returns
AliExpress $1.20 3 weeks Mixed reviews

I once bought "ATTiny85" chips from an unknown eBay seller that were actually ATTiny25s – verify product codes upon delivery.

Conclusion

The ATTiny85 excels in compact, low-power projects needing basic automation. With careful coding and smart sourcing, this microcontroller unlocks countless DIY possibilities while fitting in your pocket.
