Imagine your electronic system drowning in tangled wires and unstable connections. Signal delays cripple performance. A backplane PCB cuts through this chaos, acting as the backbone to streamline data and power flow between multiple circuit boards.

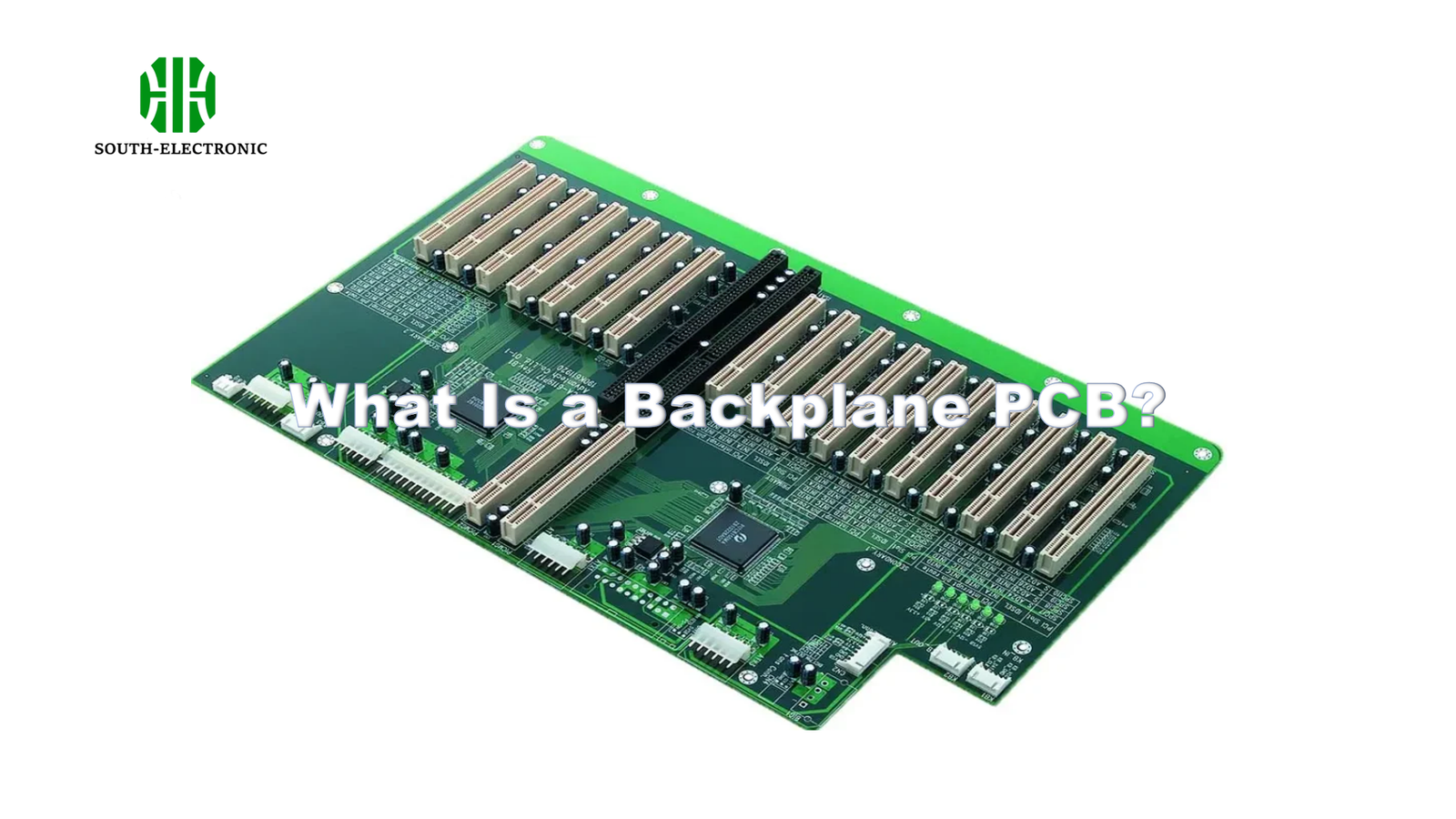

A backplane PCB connects printed circuit boards (PCBs) within electronic systems, enabling organized data/power transfer. It replaces messy wiring with structured pathways, managing signals efficiently across servers, telecom gear, and industrial hardware.

Now, let’s explore how backplane PCBs work, their design challenges, materials, and critical applications to understand why they’re indispensable in modern tech.

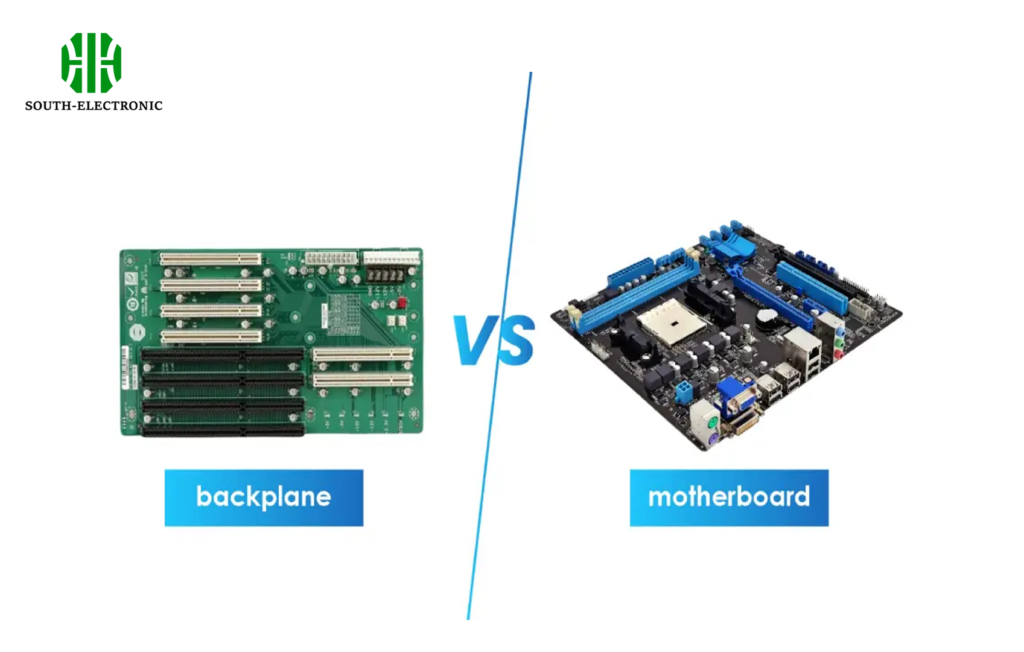

How Does a Backplane PCB Differ from a Standard Motherboard?

Picture a motherboard crowded with CPUs and memory slots. Now imagine a silent highway guiding traffic—this is the backplane PCB. While both connect components, their roles diverge sharply.

Motherboards host active components (CPUs, RAM) and manage computations. Backplane PCBs focus solely on interconnectivity, linking daughterboards without processing—think of them as passive signal routers for scalable systems.

Core Differences in Function and Design

While motherboards and backplanes share a PCB foundation, their designs serve distinct purposes:

Feature Backplane PCB Standard Motherboard
Primary Role Interconnect boards Host active components
Components Passive (connectors, traces) Active (CPU, RAM, chipsets)
Upgradability Modular slots for expansion Fixed component layout
Complexity High-speed signal optimization Power distribution, data processing

Backplanes prioritize signal integrity over component integration. For example, telecom racks use backplanes to link line cards, while motherboards power individual servers. This modularity lets engineers swap boards without rewiring entire systems—key for industries demanding scalability.


What Are the Key Design Challenges in High-Speed Backplane PCBs?

Modern systems demand blazing speeds—100Gbps and beyond. But pushing signals through a backplane is like racing cars on a foggy highway: one misstep causes chaos.

Signal degradation, crosstalk, and power noise plague high-speed backplanes. Overcoming these requires precise impedance control, advanced materials, and shielding to maintain signal clarity over long traces.

Signal Integrity and Noise Reduction with PCB Zigzag Lines

Battling Speed Barriers

High-frequency signals face three main hurdles:

Challenge Root Cause Solution
Signal Loss Skin effect, dielectric absorption Low-loss materials (Rogers, Megtron)
Crosstalk Electromagnetic interference Ground planes, differential pairs
Thermal Stress High-speed IC heat buildup Thermal vias, heat-resistant substrates

For example, 400G Ethernet backplanes use polyimide substrates to minimize loss at 25+ GHz. Designers also stagger connector lengths to equalize signal paths—critical for synchronizing data in supercomputers.


Which Materials Are Best for Durable Backplane PCBs?

A data center backplane endures years of thermal cycling. A military radar backplane survives vibrations and humidity. Material choice decides their fate.

FR4 suits low-cost applications, while polyimide and Rogers substrates excel in high-speed or harsh environments. Ceramic-filled PTFE offers ultra-low loss for millimeter-wave systems.

Material Showdown

Here’s how popular choices stack up:

Material Dielectric Constant (Dk) Thermal Stability Typical Use Case
FR4 4.3–4.8 Good (up to 130°C) Consumer electronics
Polyimide 3.5–3.9 Excellent (260°C+) Aerospace, automotive
Rogers 4350B 3.5 Very Good (180°C) 5G infrastructure, radar
PTFE (Teflon) 2.1–2.4 Moderate (160°C) RF/wireless systems

Polyimide’s flexibility suits bent backplanes in foldable hardware. For satellite systems, PTFE’s ultra-low Dk minimizes latency in space-grade boards.


How Do Backplane PCBs Power Mission-Critical Systems?

When a fighter jet’s radar fails, or a stock exchange server crashes, lives and fortunes hang in the balance. Backplane PCBs keep these systems alive.

Mission-critical backplanes use redundant pathways, fault-tolerant designs, and military-grade materials. They ensure zero downtime in defense, medical, and financial infrastructure.

Engineering Unbreakable Links

These systems demand:

Requirement Design Strategy Example Application
Redundancy Dual power planes, mirrored traces Air traffic control systems
EMI Shielding Metal cladding, RF gaskets Military comms equipment
Vibration Resistance Epoxy underfill, stiffeners Railway signaling systems

Nuclear power plants use triple-redundant backplanes to connect safety sensors. Medical MRI machines rely on backplanes immune to electromagnetic noise—lives depend on flawless imaging data.


Conclusion

Backplane PCBs tame complexity in modern electronics. From material science to fault-tolerant design, they enable systems that power our connected world—silently, reliably, and at lightspeed.
