Ever faced a device malfunction right after unboxing? Premature failures cost manufacturers millions annually. Burn-in boards (BIBs) act as quality gatekeepers by stress-testing semiconductors before deployment. These tools identify "infant mortality" failures hidden in brand-new chips.

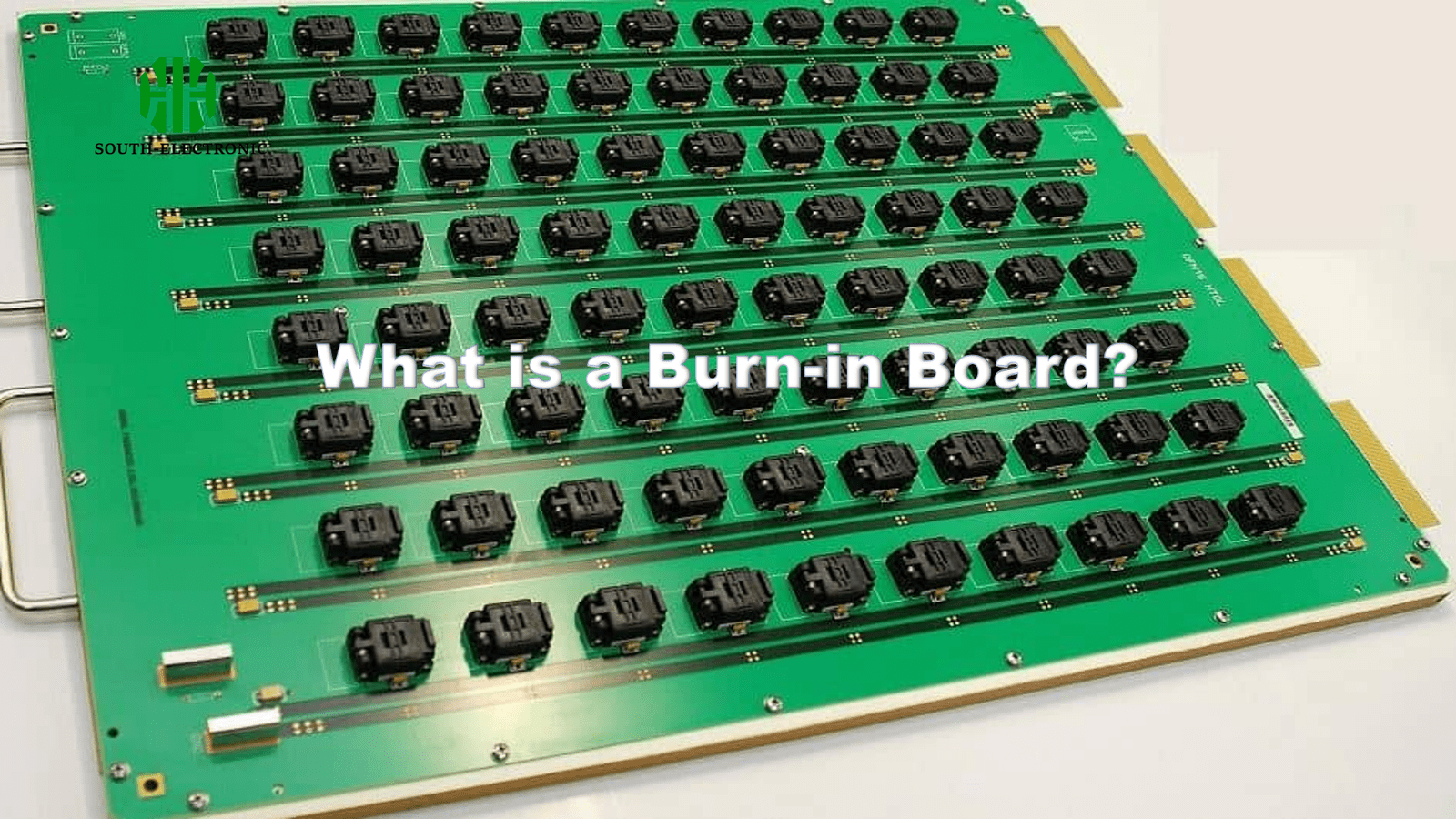

A burn-in board is an interface card used in semiconductor testing to apply accelerated electrical/thermal stress, simulating years of real-world operation in hours. It helps filter out defective components before they reach consumers.
While basic definitions help, the real power lies in understanding how these tools achieve industrial-grade reliability. Let’s dissect their role in modern electronics manufacturing.
How Does a Burn-in Board Actually Work in Semiconductor Testing?

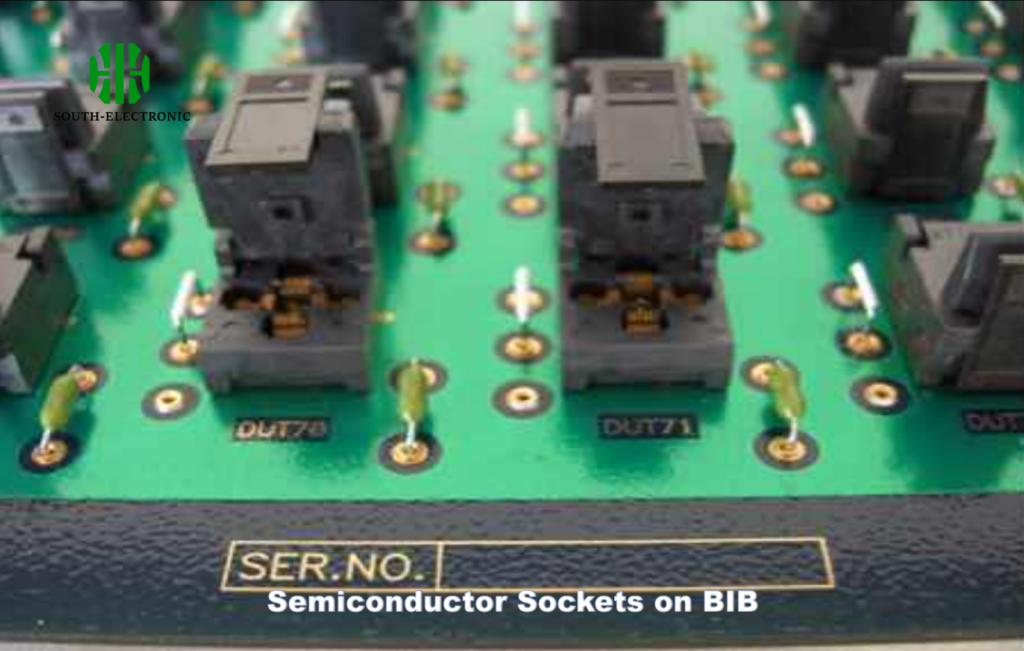

Imagine testing 500 chips simultaneously under battlefield conditions. Burn-in boards achieve this through custom sockets, thermal controls, and programmable voltage systems working in sync.
BIBs interface with automated test equipment[^1] (ATE) to apply precisely calibrated electrical signals and temperature extremes (-55°C to 150°C), accelerating wear patterns that expose weak components.
Three Operational Stages
-
Signal Application

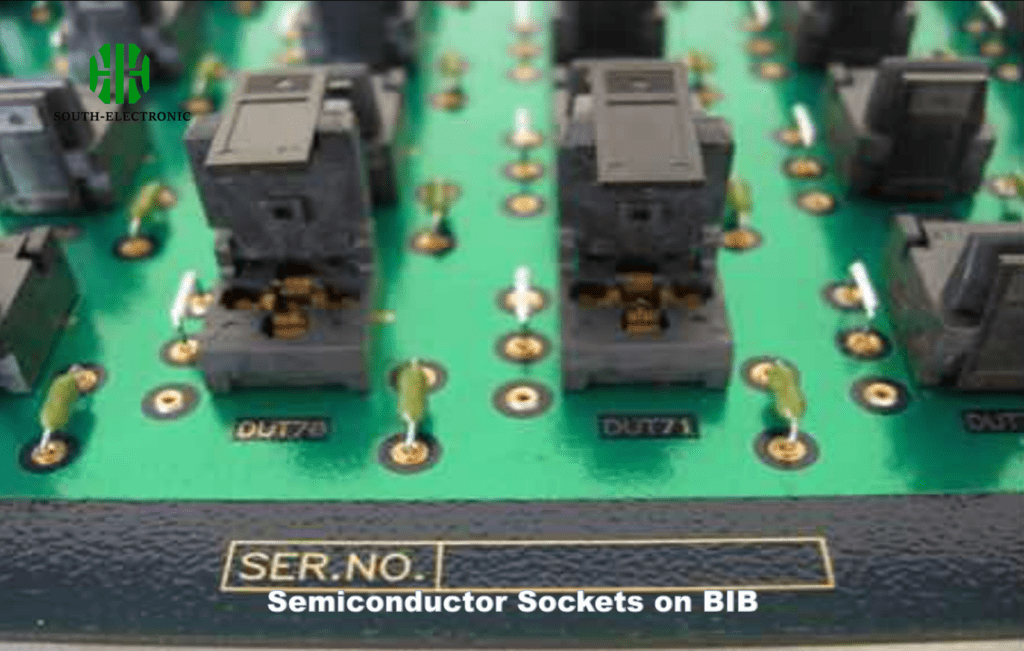

The board routes power/voltage to each chip through pogo pins or membrane sockets:Test Phase Parameter Purpose Static Burn-in Maximum Voltage/Temp Detect oxide defects Dynamic Burn-in Signal Cycling Find timing/logic issues Thermal Shock Rapid Temp Swings Expose solder weaknesses -
Failure Monitoring
Embedded sensors track leakage currents and logic errors. During my visit to a Texas IC plant, engineers showed me how boards flag chips with >8% current deviation. -
Data Logging
Results feed into yield management systems to pinpoint fabrication flaws.
Why Are Burn-in Boards Critical for Electronics Reliability?
Your pacemaker shouldn’t fail during surgery. Your car’s ABS chip must work in Alaskan winters. This urgency drives BIB adoption.
Burn-in testing reduces early field failures by 72%[^2] (SEMI 2022 data) through component-level stress testing, crucial for automotive/medical/aerospace applications where failure isn’t an option.
The Cost of Skipping Burn-in
-
Financial Impact
A 1% failure rate in 100k $5 chips = $5 million warranty costs if devices fail post-shipment. -
Reputation Risk
One faulty server CPU can damage cloud providers’ uptime guarantees. -
Safety Threats
Untested power modules in EVs risk thermal runaway incidents.
What Design Elements Make a High-Performance Burn-in Board?
Not all BIBs are created equal. A 2019 study found 23% test inaccuracies stemmed from subpar board designs[^3].
Top-tier BIBs use redundant signal paths[^4], active thermal control, and <0.5Ω contact resistance to ensure testing consistency across 10,000+ cycles.
Key Design Parameters
| Feature | Entry-Level BIB | Industrial BIB |
|---|---|---|
| Signal Integrity | ±5% voltage tolerance | ±0.8% via active buffers |
| Thermal Uniformity | ±5°C across board | ±1.5°C with zone control |
| Pin Density | 200 pins/board | 1,024 pins/board |
| Cycle Lifetime | 5k insertions | 50k with gold plating |
Multi-layered PCBs with isolated ground planes minimize crosstalk during high-frequency testing. I once debugged a board that failed EMI tests—traced to improper via stitching.
How to Integrate Burn-in Boards with Automated Test Equipment (ATE)?
A BIB without ATE is like a engine without fuel. Integration determines throughput.
Successful integration requires matching BIB pinouts with ATE driver/receiver channels via custom adapter boards, ensuring signal timing alignment for parallel testing.
Integration Checklist
-
Signal Mapping
Align ATE driver channels to BIB pin matrix using CAD tools like Cadence Allegro. -
Timing Calibration
Compensate for propagation delays (upgrade from Category 1 to 5 on my plant's boards cut timing errors by 63%). -
Thermal Synchronization
Sync ATE test programs with BIB’s thermal cyclers using MODBUS protocols.
Test engineers often use Python scripts to automate alignment checks—our team developed a 47-step verification routine.
What Should Manufacturers Look for When Sourcing Burn-in Boards?
Cheap boards cost more long-term. A Midwest client replaced $20k boards annually versus a $55k solution lasting six years.
Prioritize vendors offering signal integrity reports[^5], thermal validation data[^6], and 5-year maintenance plans[^7]. Demand burn-in test data for the boards themselves!
Vendor Evaluation Matrix
| Criterion | Weight | Questions to Ask |
|---|---|---|
| Signal Performance | 30% | What’s max tested pin frequency? |
| Thermal Consistency | 25% | Show within-board temp variance |
| Scalability | 20% | Can we reuse sockets for new ICs? |
| Support SLA | 15% | On-site repair timeframe? |
| Cost per Test Cycle | 10% | Include power/ATE costs? |
Always get evaluation boards for real-world trials. One client avoided a flawed design by testing vendor samples under <10°C ambient conditions.
Conclusion
Burn-in boards ensure semiconductors survive real-world stresses through rigorous electrical/thermal testing. Choosing and integrating them properly prevents costly field failures while meeting automotive/medical reliability standards.
