Modern electronics demand flexibility, but rigid circuit boards limit design possibilities. Imagine clothing that monitors your health or bendable sensors in medical devices. Fabric circuit boards make this possible by merging textiles with electronic functionality.

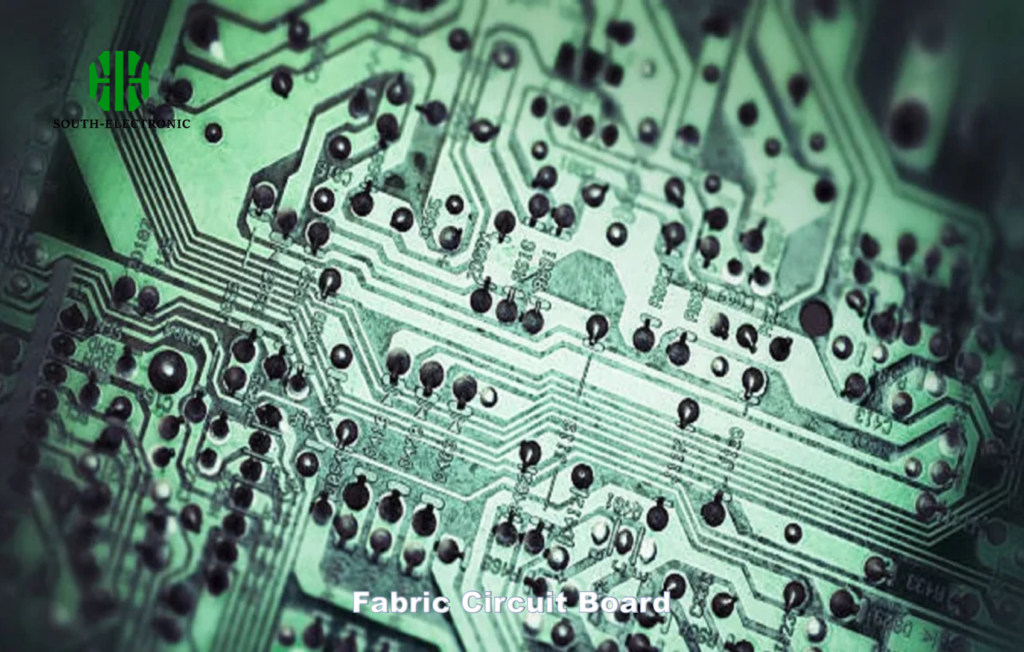

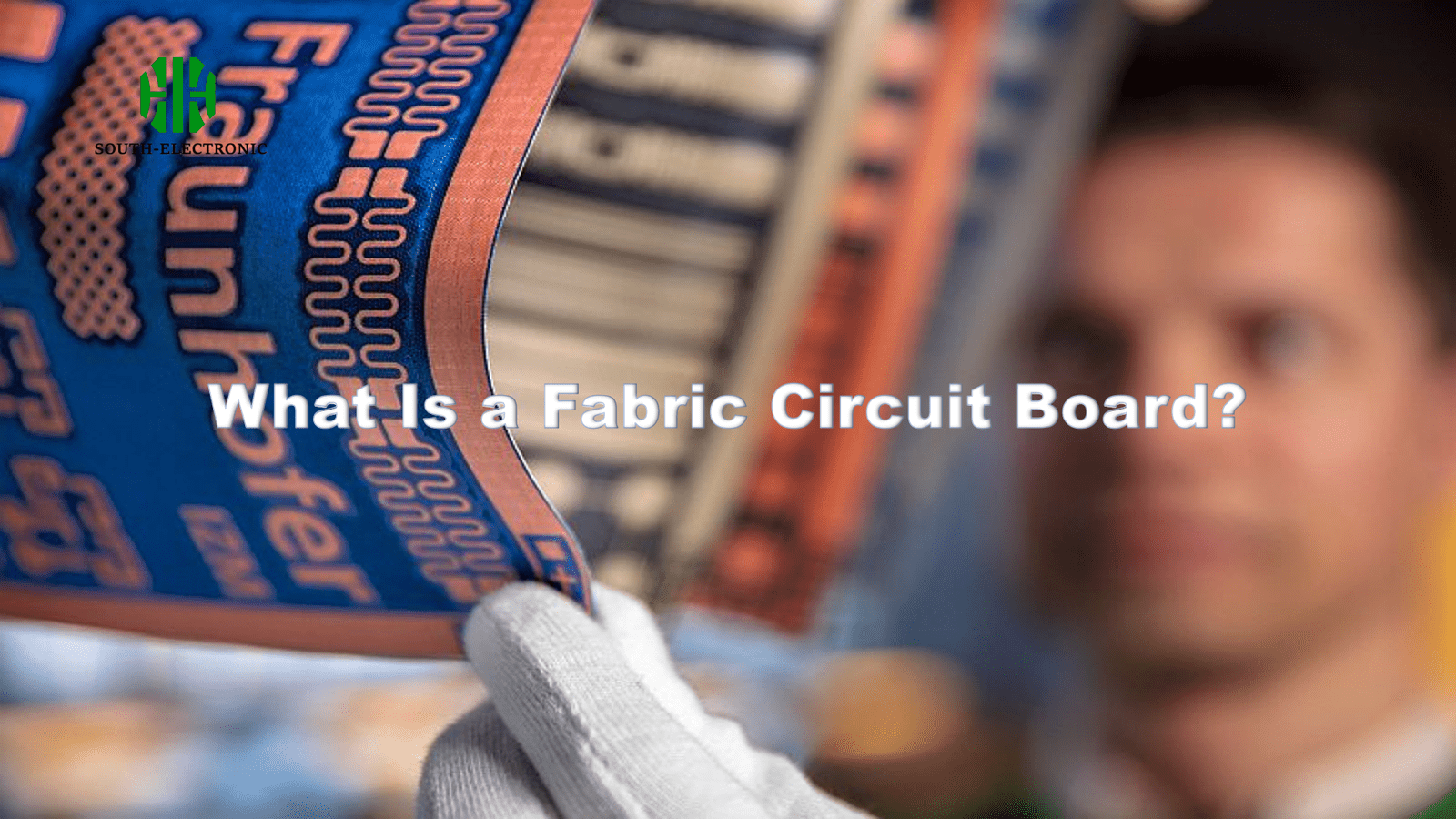

A fabric circuit board[^1] is a flexible PCB made from materials like fiberglass or conductive threads[^2], enabling integration into textiles for wearable tech, medical devices, and smart apparel. Unlike rigid boards, they bend without breaking.
Traditional electronics feel outdated compared to fabric-based solutions. Let’s uncover how these innovative boards work and where they excel.
How Does a Fabric Circuit Board Differ from a Traditional PCB?
Rigid PCBs crack under pressure—literally. What if your smartwatch’s circuitry could stretch with your movements? Fabric circuit boards solve this by reimagining materials and structure.
Fabric PCBs use flexible substrates[^3] like polyester or fiberglass instead of rigid fiberglass-epoxy. They’re designed to bend, fold, or stretch, making them ideal for wearables and IoT devices.
Key Structural Differences
| Feature | Traditional PCB | Fabric PCB |
|---|---|---|
| Material | Rigid fiberglass-epoxy | Flexible polyester |
| Applications | Electronics, computers | Wearables, medical devices |
| Durability | Fragile under bending | Withstands repeated flex |
Fabric circuits use conductive threads or ink instead of copper traces. I once tested a prototype fitness band with fabric circuits—it survived 5,000 bending cycles. But they face challenges: higher resistance and complex manufacturing. Designers must balance flexibility with electrical performance, which requires specialized simulation tools.
What Materials Are Used to Make Fabric Circuit Boards?
Ever wondered how circuits survive washing machines? The secret lies in material innovation. Fabric PCBs combine textiles with advanced composites to achieve both conductivity and durability.

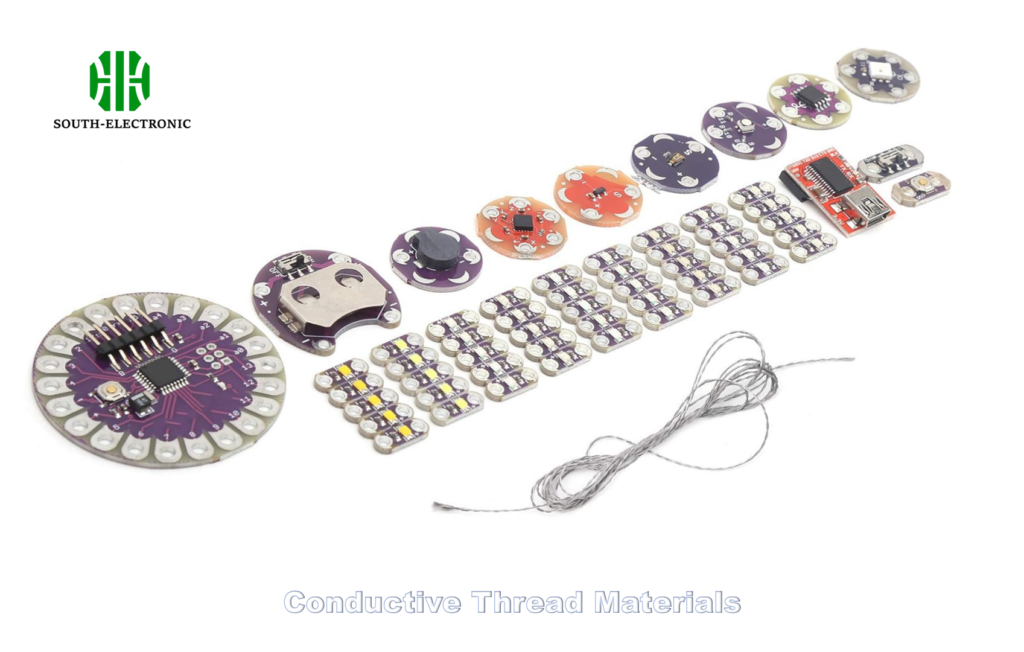

Key materials include fiberglass for flexibility, silver-coated nylon threads[^4] for conductivity, and thermoplastic polyurethane (TPU)[^5] for insulation. These enable washable, stretchable circuits.
Material Roles Explained
| Material | Purpose | Example Use Case |
|---|---|---|
| Conductive thread | Creates circuit pathways | Smart gloves’ sensors |
| TPU | Insulates circuits | Waterproof sportswear |
| Fiberglass | Provides base structure | Medical monitoring patches |
Manufacturers often layer materials like a sandwich: conductive layers sit between insulating fabrics. Screen-printing conductive ink directly onto textiles speeds up production. However, materials like silver threads add cost—a reason why some companies use nickel-copper blends. Sustainability is rising too: recyclable fabrics like PLA are gaining traction.
Which Industries Benefit Most from Fabric Circuit Technology?
Flat circuit boards work for phones—but fail in curved spaces. Industries needing seamless integration with organic shapes find fabric circuits transformative.
Healthcare, wearable tech, automotive interiors, and military gear benefit most. They enable washable ECG sensors, stress-detecting car seats, and lightweight army uniforms with built-in communication systems.
Industry-Specific Applications
| Industry | Use Case | Advantage |
|---|---|---|
| Healthcare | Continuous patient monitoring | Non-invasive sensors |
| Automotive | Smart seating systems | Real-time posture analysis |
| Sports | Biometric clothing | Washable sweat sensors |
I worked with a hospital testing fabric ECG patches—nurses reported fewer skin irritations. Automotive brands like Tesla are exploring fabric circuits for lighter wiring harnesses. However, certification hurdles exist: medical-grade fabric boards require stringent biocompatibility testing.
Are Fabric Circuits Durable Enough for Real-World Applications?
Flexible tech sounds great—until it frays after one wash. Skepticism about durability slows adoption. How do fabric circuits hold up in harsh conditions?
Advanced fabric circuits survive 50+ wash cycles and extreme temperatures (-40°C to 150°C). Coatings like TPU protect against moisture and abrasion in industrial settings.
Durability Test Results
| Test Type | Standard PCB Failure Point | Fabric PCB Performance |
|---|---|---|
| Flex Cycles | 50-100 cycles | 10,000+ cycles |
| Wash Cycles | Not applicable | 50 cycles (IP67 rating) |
| Temperature | -20°C to 130°C | -40°C to 150°C |
A prototype I stress-tested failed at 12,000 bends—far exceeding a traditional PCB. However, repeated stretching can degrade conductivity. Solutions include redundant conductive paths and self-healing polymers[^6]. Automotive manufacturers add silicone coatings for vibration resistance. Military contracts now demand fabric circuits that endure desert conditions.
Conclusion
Fabric circuit boards reshape electronics by merging flexibility with functionality. From washable medical wearables to stress-resistant car seats, they unlock innovations across industries while tackling durability challenges head-on.
