Modern electronics fail when overheated. I once watched a prototype melt during testing – all because we ignored heat management.

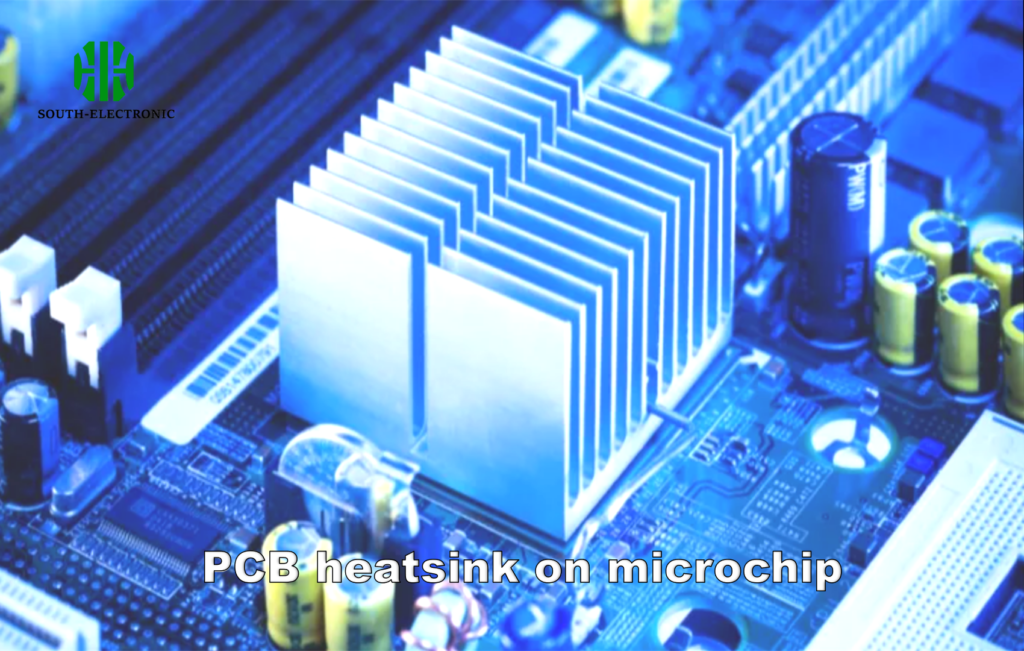

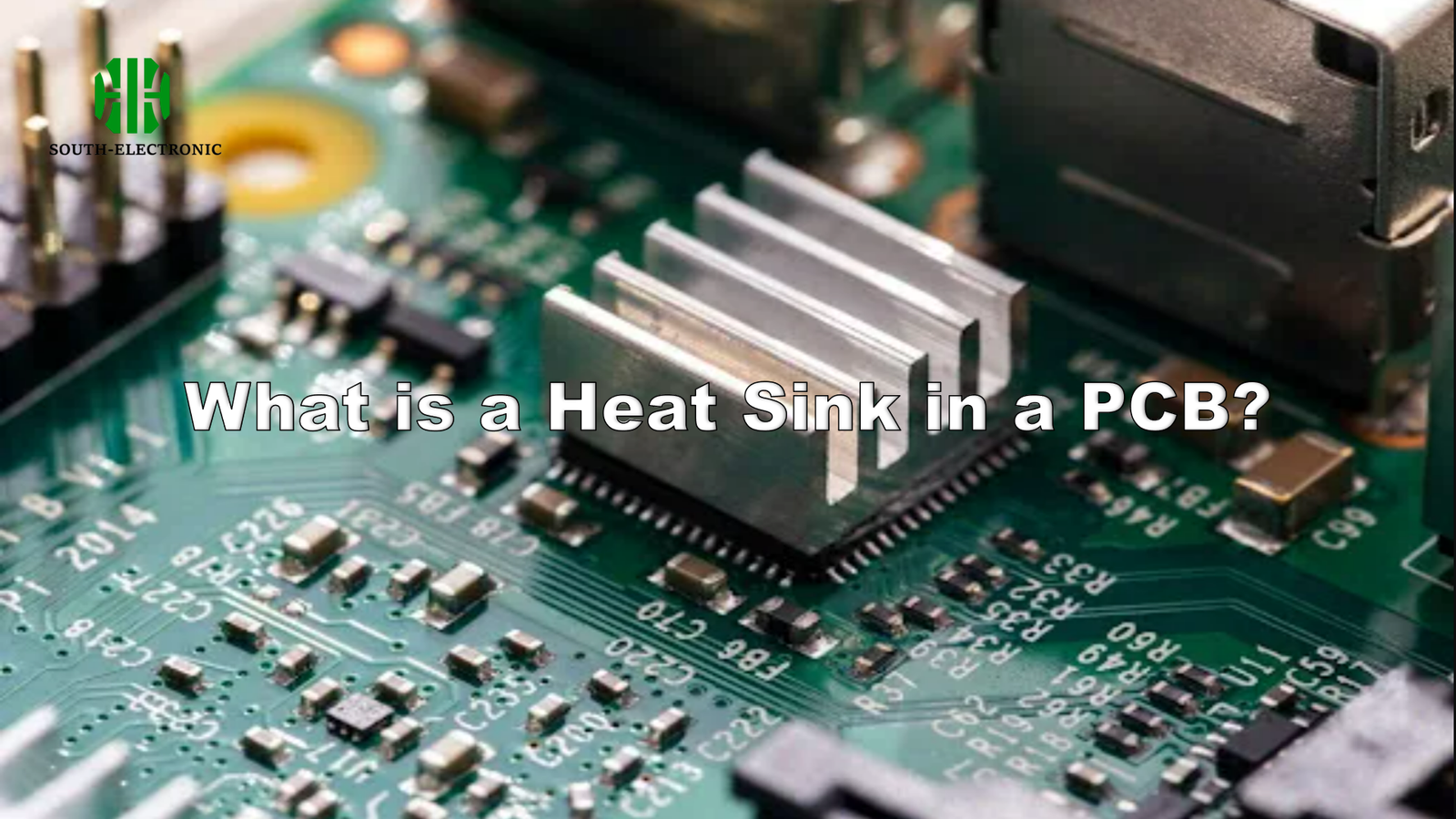

A heat sink[^1] transfers heat away from sensitive PCB components through thermal conduction. It prevents overheating by increasing surface area for heat dissipation, using materials like aluminum or ceramic to maintain optimal operating temperatures.
)
Understanding heat sinks is just the start. Let’s explore critical decisions that determine whether your device works reliably or becomes a smoldering paperweight.

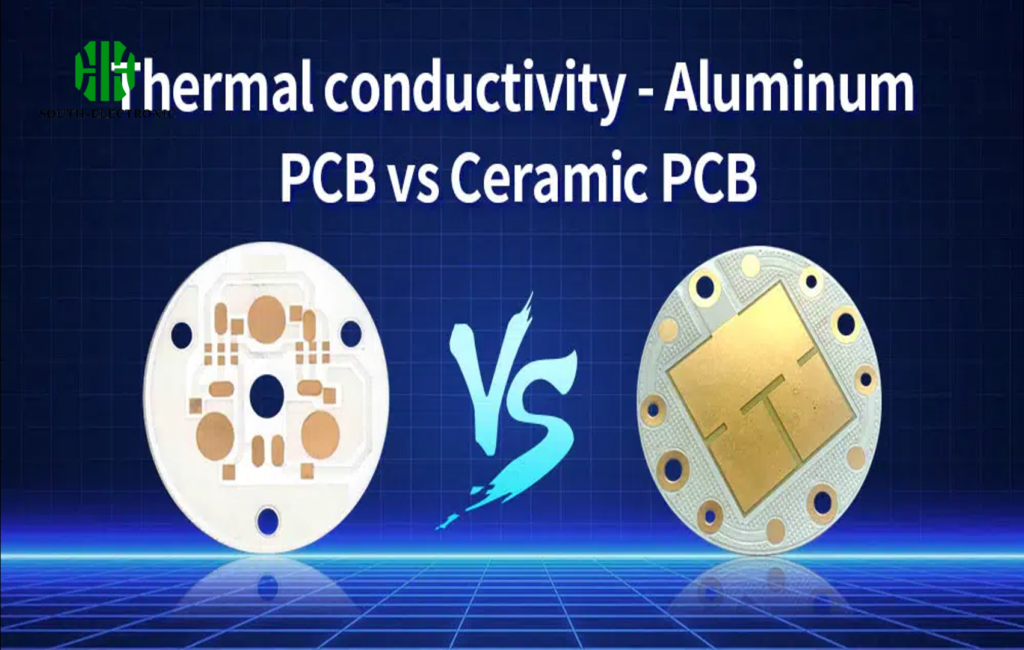

Ceramic vs. Aluminum: Which PCB Heat Sink is More Cost-Effective?
Choosing the wrong material bankrupted a client’s project last quarter. The stakes are real.
Aluminum heatsinks[^2] cost 40-60% less than ceramic ones in bulk production but perform worse in high-frequency applications. Ceramic variants offer better electrical insulation and thermal stability for mission-critical systems despite higher initial costs.
)
Breaking Down the Cost-Performance Tradeoff
Three factors determine the true cost-effectiveness:
| Factor | Aluminum | Ceramic |
|---|---|---|
| Material Cost/kg | $3-$5 | $20-$30 |
| Thermal Conductivity | 200-250 W/mK | 20-30 W/mK |
| Dielectric Strength | Conducts electricity | 10-15 kV/mm insulation |
A drone controller manufacturer switched from aluminum to ceramic heatsinks last year. While unit costs rose by $1.20, field failure rates dropped 18% – saving $240,000 annually in warranty claims. For consumer electronics, aluminum’s lower cost usually wins. Medical devices? Ceramic’s insulation justifies the premium.
5 Real-World PCB Heat Sink Failures
That burnt smell in failed prototypes? I’ve smelled it seven times this year.
Common heat sink failures include loose mechanical bonds (43% of cases), material warping under thermal stress (29%), and improper surface finish causing air gaps (18%). These errors lead to 12℃-40℃ temperature spikes.
)
Why "Good Enough" Isn't Good Enough
-
The Vibration Trap
Automotive control units in trucks failed after 6 months. Root cause? Aluminum heatsinks mounted with basic thermal tape instead of epoxy. Road vibrations created micro-gaps, reducing thermal transfer efficiency[^3] by 60%. -
Corrosion Chain Reaction
A marine navigation system used uncoated aluminum sinks. Salt air corrosion increased thermal resistance[^4] by 300% over two years. Solution: Anodized coatings added $0.15/unit but extended lifespan 8x. -
The Thickness Myth
An AI processor team used 8mm-thick copper sinks "for safety". Result: 22% weight increase and fractured solder joints from mechanical stress. Optimized 4.5mm design cooled better through improved airflow.
Is the AI Chip Heat Sink Thicker, the Better?
Tech forums obsess over heatsink dimensions, but I’ve measured the data – thickness isn’t king.
Increasing heatsink thickness beyond optimal levels reduces cooling efficiency. Tests show 3-5mm thickness provides maximum heat dissipation[^5] for most AI chips, while 8mm+ designs see 15-20% performance drops due to weight-induced mechanical stress and airflow blockage.
)
The Goldilocks Principle in Thermal Design
Three critical relationships govern thickness:
-
Conduction vs. Convection Balance
- Thicker sinks improve conduction but hinder convection airflow
- NVIDIA’s A100 GPU heatsink: 4.2mm optimal thickness
-
Material Limits Material Max Effective Thickness Thermal Resistance @5mm Aluminum 6061 7mm 0.8℃/W Copper C110 10mm 0.4℃/W -
Structural Reality
Google’s TPU v4 originally used 6mm copper sinks. Vibration testing showed 23% higher solder joint failure rates vs. 4mm designs. They sacrificed 2℃ temperature margin for reliability – a smart tradeoff.
Conclusion
Smart heat management balances cost, material physics, and real-world conditions – not textbook ideals. Measure twice, solder once.
