Ever felt frustrated when your circuit board suddenly fails? Or struggled to find hidden software bugs? That panic kills productivity. I've been there. Probe testing is your secret weapon against those headaches.
Probe tests measure key properties of objects through physical contact. They verify electrical circuits, diagnose software behavior, and even assess student learning. A probe is a tool with a calibrated tip that touches targets to collect precise data on performance, integrity, or understanding.
Understanding probe testing unlocks smarter workflows. Let's explore key aspects.

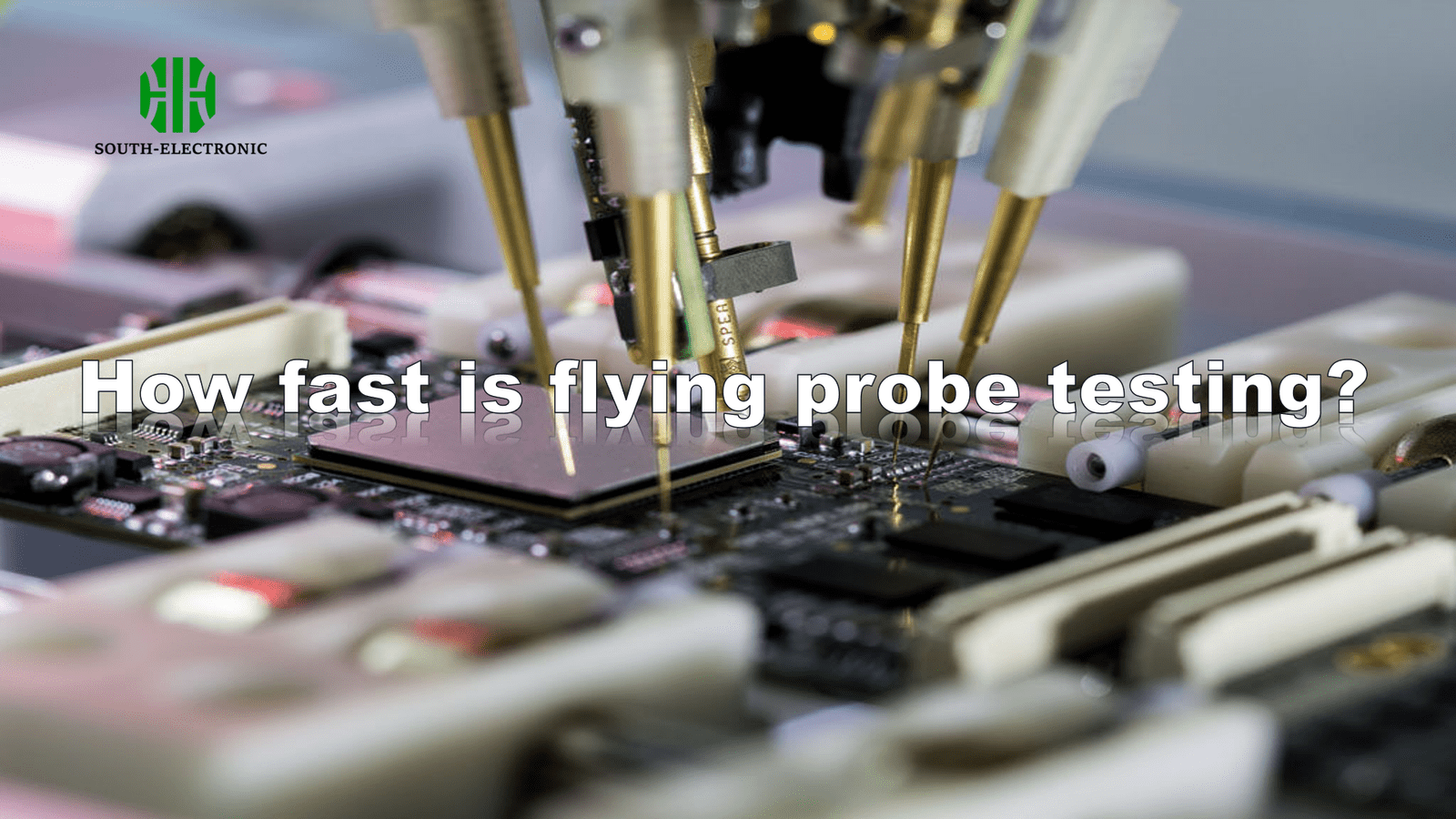

How long does a flying probe test take?
Waiting hours for test results slows production lines. I recall projects delayed by sluggish diagnostics. Faster tests mean quicker fixes and lower costs.
Flying probe tests[^1] typically take 5–20 minutes per board, depending on complexity. Simple designs finish faster; dense circuits with thousands of test points may exceed 30 minutes. This is often quicker than traditional ICT fixtures needing physical customization.
Why duration varies: A deeper look
Testing time isn't fixed—it pivots on three factors:
- Circuit density - Boards with 1K+ probes run longer.
- Test coverage[^2] - If the system validates 500 connections versus just critical paths.
- Technology - Modern probes with multi-pin heads reduce steps.
Here’s a comparison of impact factors:
| Factor | Low Impact (faster) | High Impact (slower) |
|---|---|---|
| Test Points | 2000 | |
| Component Types | Resistors/Caps only | ICs/FPGAs |
| Software Checks | Basic continuity | Functional testing |
In my experience, batch testing multiple identical boards reduces average time through optimized pathing. Always verify your vendor’s hardware capability first! This can cut overhead by 25%.
What is the difference between flying probe and ICT test?
Choosing the wrong testing method wasted my client $35K in fixture redos. Confusing the two tools risks budget hemorrhage.
Flying probe tests move robotic probes across PCBs without fixtures, using software-guided paths. In-circuit tests (ICT)[^3] use fixed bed-of-nails fixtures to contact test points simultaneously. Flying probes adapt to design changes; ICT requires custom fixtures per circuit.
When to pick which strategy
You need clarity to optimize cost-speed-accuracy tradeoffs.
- Flexibility
Flying probes win for prototypes—reprogramming software beats rebuilding $8K fixtures. - Volume efficiency
ICT runs 10× faster for mass production once fixtures exist. - Coverage depth
ICT fixtures test hidden points flying probes can’t physically reach.
Consider these critical differences:
| Parameter | Flying Probe | ICT |
|---|---|---|
| Setup Time | Minutes (software) | Weeks (fixture fabrication) |
| Change Cost | $0 (program update) | $500-$10,000 (new fixture) |
| Test Speed | 5-20 min/board | 0.5-2 min/board |
| Failure Risk | Lower (no fixture decay) | Higher (pogo pin wear) |
I recommend flying probes for R&D runs under 100 pieces—avoid sunk costs. Switch to ICT at higher volumes and stick with standard boards.
What are the top 5 flying probe test systems?
My team tested 12 systems last year. Three delivered garbage diagnostics. Finding reliable gear is critical.
The top flying probe tests include SPEA 4040[^4], Takaya APT-1400, Keysight i3070, Digitaltest Magnaray, and Acculogic FLEXa. They lead in speed (60+ points/sec.), millimeter-scale accuracy, and modern software integration for test automation.
Detailed performance breakdown
While pricing varies, prioritize these metrics:
- Speed - How many points tested/minute? High-end tools exceed 5K/hour.
- Adaptive alignment[^5] - Does the system auto-adjust for minor PCB misalignments?
- Failure diagnostics[^6] - Does it log error locations precisely? Check software interfaces.
Here's how our shortlist compares:
| System | Speed (pts/sec) | Max Test Points | Accuracy (μm) | Software |
|---|---|---|---|---|
| SPEA 4040 | 70 | 48,000 | ±15 | SPEA 3000™ |
| Keysight i3070 | 65 | 32,768 | ±10 | PathWave |
| Takaya APT-1440 | 62 | 65,536 | ±12 | Win7 Navigator |
| Acculogic FLEXa-32 | 58 | 32,000 | ±25 | FLXConnect |
| Digitaltest Magnaray | 55 | 16,384 | ±18 | F.A.M.E.™ |
We found SPEA best for complex medical devices due to precision control. For smaller shops, Acculogic offers better TCO with mid-range accuracy.
Conclusion
Probe testing solves electronic, software, or educational measurement challenges. Choose tactics wisely—robotics versus fixtures—and match systems to your project scale.
