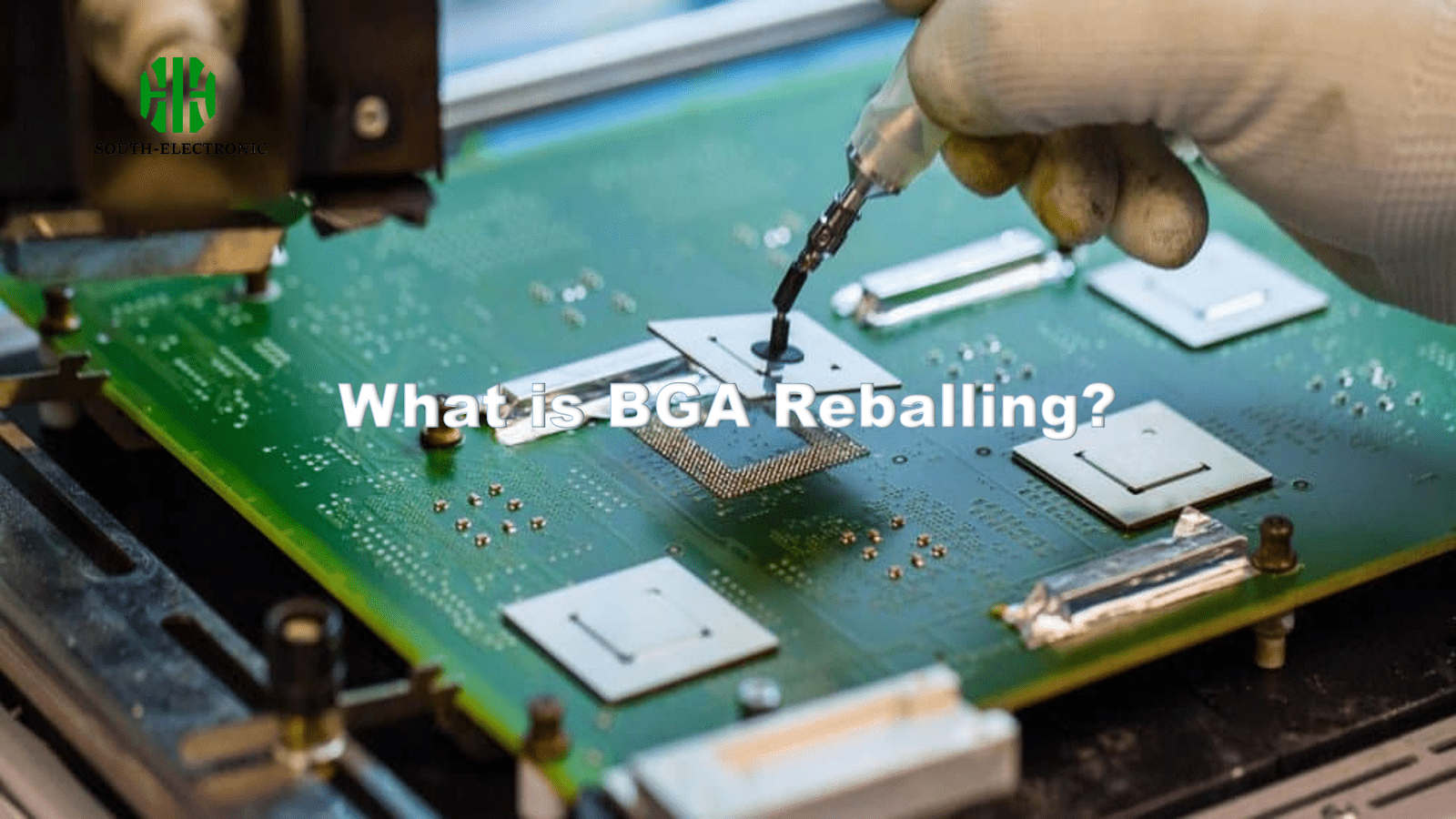

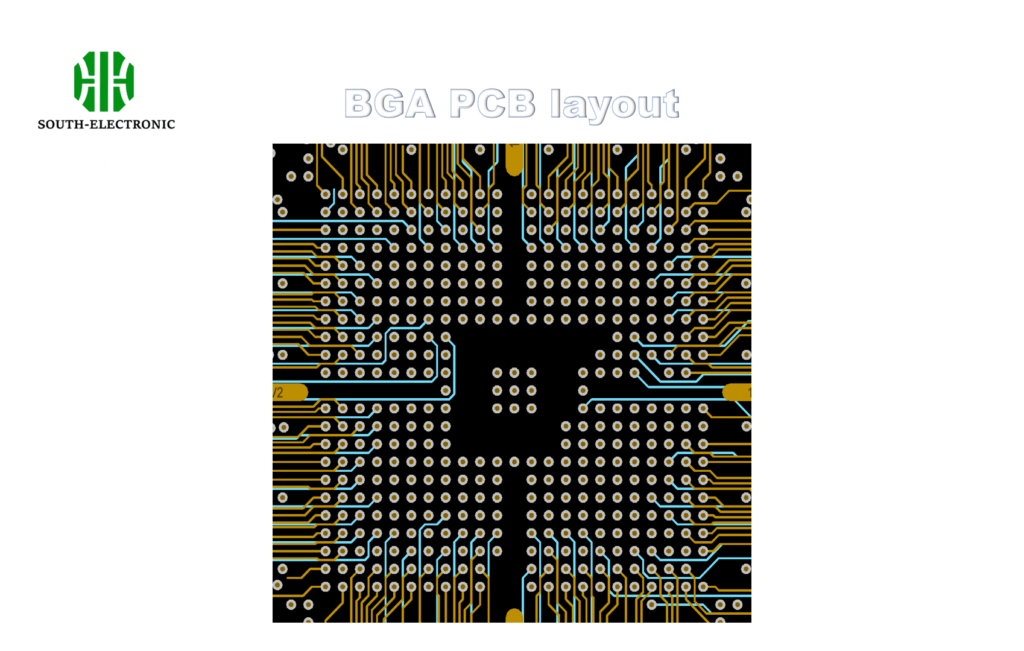

Your laptop freezes mid-task. Your gaming console overheats. The culprit? Failing solder connections in Ball Grid Array (BGA) chips. BGA reballing breathes new life into electronics by replacing worn-out connections.
BGA reballing[^1] replaces damaged solder balls under a chip’s grid array, restoring electrical connections in devices like laptops and consoles. It tackles issues caused by heat, physical stress, or manufacturing flaws.
Repairing BGAs might sound technical, but understanding the process helps you make informed decisions. Let’s break down why, how, and when this repair method works—and whether it’s worth the effort.
Why Does a BGA Require Reballing? Common Causes and Symptoms
A flickering screen or sudden shutdown isn’t always a death sentence. These glitches often trace back to cracked solder balls[^2] in BGAs.
BGA reballing fixes cracked or detached solder balls caused by overheating, physical impact, or poor manufacturing. Symptoms include random reboots, graphical errors, and unresponsive devices.
What Destroys Solder Connections?
Three factors weaken BGA solder balls over time:
| Cause | Effect on Solder Balls | Common Symptoms |
|---|---|---|
| Thermal Cycling | Expansion/contraction cracks | Crashes during heavy use |
| Mechanical Stress | Physical detachment | Intermittent power loss |
| Manufacturing Defects | Weak bonds from poor soldering | Early device failure |

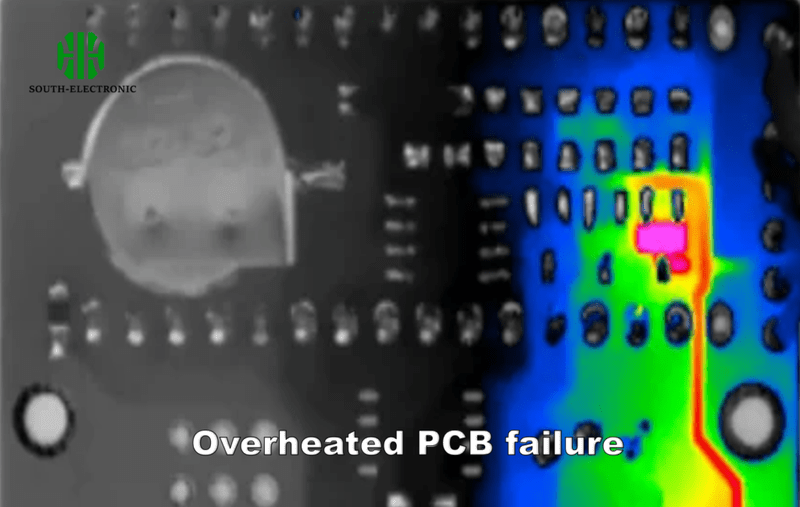

Heat is the primary enemy. Devices like gaming consoles or high-performance laptops endure constant temperature swings, stressing the solder until connections break. Physical drops or bends worsen the damage. Manufacturing defects—like uneven solder application—also create weak points.
How Does BGA Reballing Work? A Step-by-Step Process Explained
Imagine rebuilding a bridge, one tiny pillar at a time. BGA reballing follows a meticulous sequence to avoid destroying the chip.

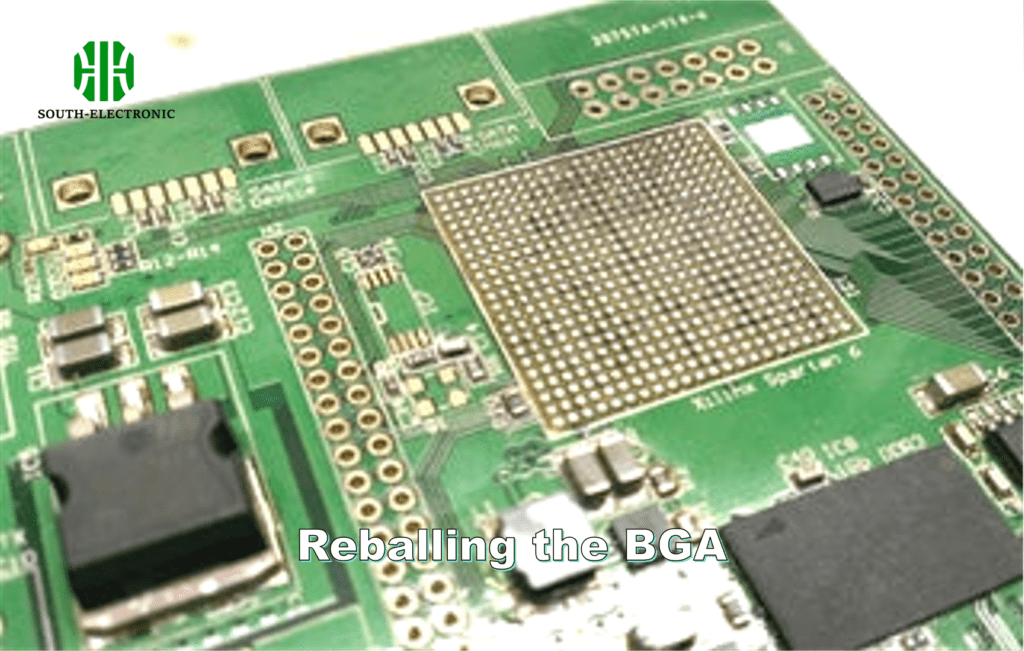

Reballing involves removing the chip, cleaning old solder, attaching new balls, and re-soldering. Precision tools like hot air guns and stencils ensure alignment and heat control.
The 4 Stages of Reballing
-
Chip Removal
A hot air station heats the board to melt existing solder. Tweezers lift the chip without damaging pins. -
Cleaning
Solder residue is scraped off, and the chip’s contact pads are polished. Any leftover debris causes weak bonds. -
Ball Placement
A stainless-steel stencil aligns new solder balls (usually lead-free) onto the chip. Flux holds them in place. -
Reattachment
The chip is aligned on the board and reheated until solder balls fuse with the PCB pads.
Mistakes here—like overheating or misalignment—can fry the chip. Skilled technicians use microscopes and temperature-controlled irons to minimize risks.
What Equipment is Needed for BGA Reballing? Essential Tools and Costs
Reballing isn’t a DIY soldering job. Specialized tools ensure accuracy and prevent multi-thousand-dollar chip losses.
Essential tools include a hot air rework station[^3], BGA stencils, solder paste, and microscopes. A full setup costs $1,500-$5,000, making professional repairs cost-effective for most users.
Must-Have vs. Optional Gear
| Essential Tools | Cost Range | Purpose |
|---|---|---|
| Hot Air Rework Station | $300-$1,200 | Safely remove/reheat chips |
| BGA Stencils | $20-$100 | Align solder balls accurately |
| Soldering Microscope | $200-$800 | Inspect tiny solder joints |
| Optional Add-Ons | ||
| X-Ray Machine | $10,000+ | Check internal solder integrity |
| Automated Placement System | $8,000+ | High-volume precision for factories |
Hobbyists rarely recoup equipment costs. For most, paying a pro $100-$300 per reballing job makes more sense than buying tools used once.
Is BGA Reballing Cost-Effective? Comparing Repair vs. Replacement
A cracked BGA in a $2,500 MacBook justifies repair. For a $300 tablet? Maybe not.
Reballing costs $80-$500, depending on device complexity. It’s cost-effective for high-end electronics[^4] but impractical for cheap or outdated devices.
When to Reball vs. Replace
| Scenario | Reballing Choice | Reason |
|---|---|---|
| Expensive device (e.g., gaming laptop) | Yes | Cheaper than $1,000+ replacement |
| Minor damage (1-2 broken balls) | Yes | Quick fix with high success rate |
| Outdated/low-value device | No | New device costs less than repair |
| Severe PCB damage | No | Underlying board issues persist |
Labor costs dominate. Complex devices like PS5s require 2-3 hours of work, but results last years if done right. Always get a diagnostic first—some shops hide additional fees.
Conclusion
BGA reballing revives electronics by fixing solder connections. It’s cost-effective for high-value devices but demands expertise. Weigh repair costs against replacement before deciding.
