What is Copper Clad Laminate (CCL)?

CONTENTS

Every smartphone and computer you use holds a hidden hero inside. Poking between those colorful components lies a silent foundation shaping how electrons dance, heat dissipates, and circuits survive real-world impacts.

Copper Clad Laminate (CCL)[^1] is the layered core material of all PCBs, combining resin, reinforcing materials like fiberglass, and copper foil. It determines a circuit board's electrical conductivity, thermal resilience, and physical durability through precisely engineered material interactions.

Most engineers only see the finished PCB, but getting this foundation wrong can turn a $5M production run into scrap. Let's dissect what makes CCL both fascinating and dangerous for product designers.

What categories does CCL have?

Open any PCB material catalog and you'll drown in FR-4/IS410/IT180A designations. Three fundamental classification methods cut through the chaos: material composition, performance tiers, and manufacturing processes.

CCL categorizes by base material (organic resins/ceramics/metals), application needs (high-frequency[^2]/low-loss/flexible), and manufacturing methods (hot-pressing/deposition). Paper-based boards cost $2/sheet while ceramic variants exceed $200, with 100X thermal conductivity[^3] differences.

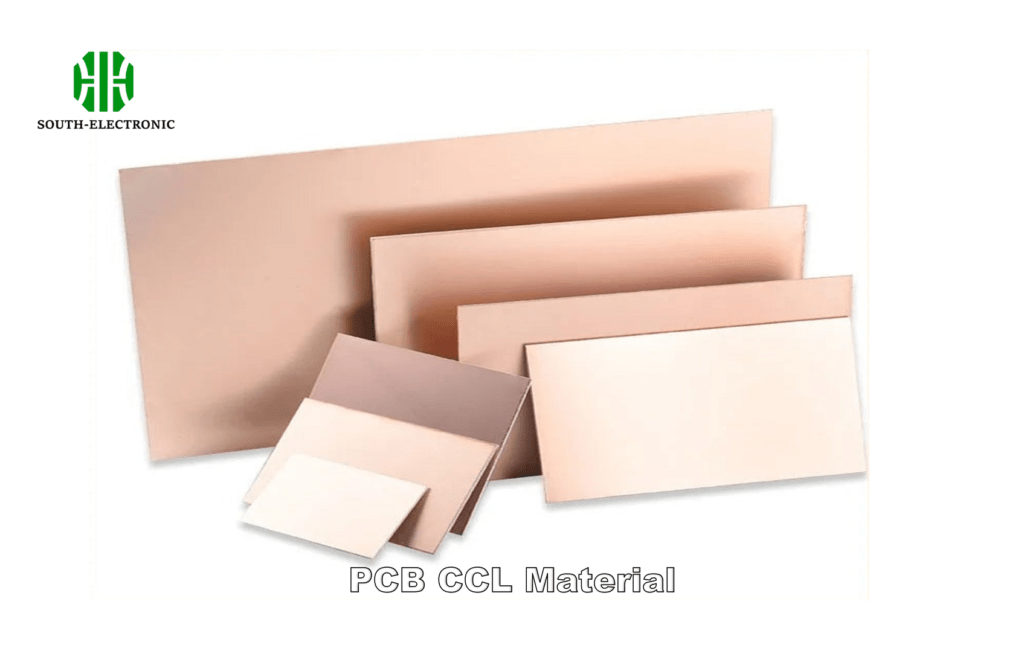

CCL type comparison

Breaking Down the CCL Taxonomy Maze

Raw material selection creates drastic performance splits:

Category Key Materials Dk Range Thermal Conductivity Cost Index
Standard FR-4, CEM-1 4.2-4.8 0.3 W/mK 1x
High Frequency Rogers 4350, Teflon 2.2-3.5 0.5 W/mK 10x
Metal Core Aluminum, Copper N/A 2-5 W/mK 8x
Ceramic AlN, Al₂O₃ 8-9.8 24-170 W/mK 50x

Designers must answer three questions upfront:

  1. What's the maximum operating temperature?
  2. What signal frequencies dominate?
  3. Does weight/flexibility constrain the design?

Choosing a $6 Rogers board over standard FR-4 reduces signal loss by 45% in 5G arrays but rockets material costs. I once wasted weeks debugging ghost signals before realizing the CCL's dielectric constant[^4] shifted by 0.3 across temperature ranges.

What are the differences between paper-based boards, CEM-3, and FR-4?

Those yellow-green boards in grandma's radio used paper laminates. Today's 8-layer smartphone PCBs demand FR-4. Material evolution mirrors electronics' rising complexity.

Paper-based boards use cellulose fiber ($0.5/sheet) for simple circuits under 1MHz. CEM-3 combines paper/fiberglass ($1.2) for basic industrial controls. FR-4's full fiberglass weave ($3+) handles GHz signals and 130°C temps in automotive electronics.

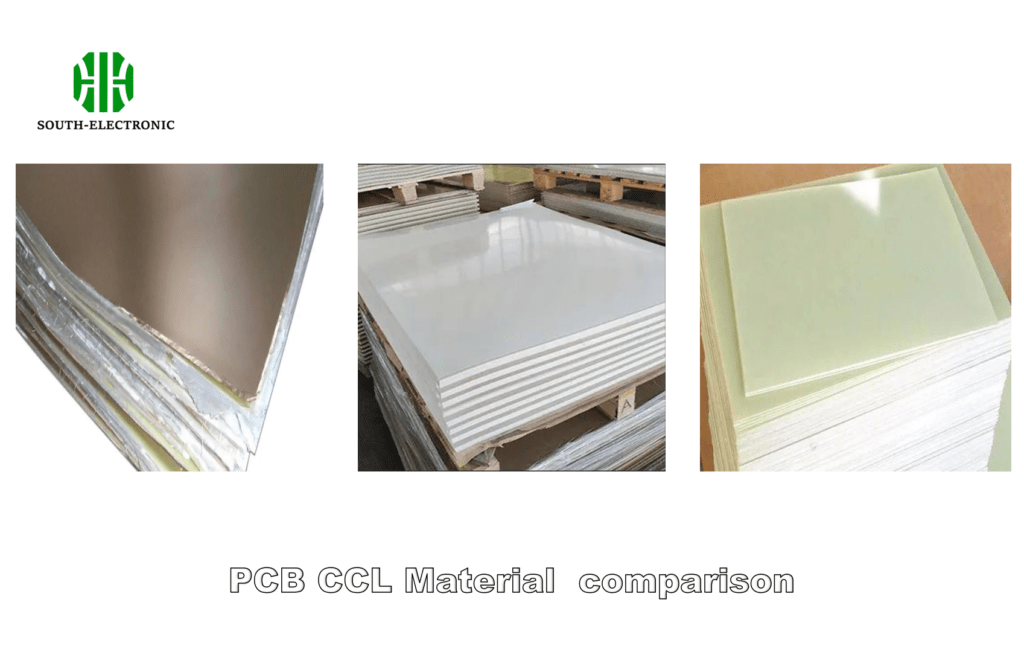

Material comparison

Navigating the Material Minefield

Designing with paper-based CCL in modern devices is like building with bamboo in a hurricane zone. Three critical failure modes expose material limits:

Failure Mode Paper-Based CEM-3 FR-4
Moisture Absorption[^5] 200% weight 120% 50%
Delamination Temp 105°C 130°C 150°C
Dk Variation ±15% ±8% ±3%

My team learned this the hard way: A battery management system using CEM-3 warped after 400 thermal cycles[^6]. Switching to high-Tg FR-4 solved it, but required adjusting trace widths for the 7% Dk difference. Always run material tests under worst-case scenarios.

Why are ceramic/metal substrates so expensive?

That Raspberry Pi heatsink costs less than the ceramic substrate[^7] beneath some server chips. Materials science dictates why budget boards don't use these thermal superheroes[^8].

Ceramic/metal CCLs demand 1500°C sintering furnaces and ultra-pure alumina powder ($200/kg). Processing consumes 15x more energy than FR-4 production, while 40% material loss occurs during laser cutting of fragile ceramic sheets.

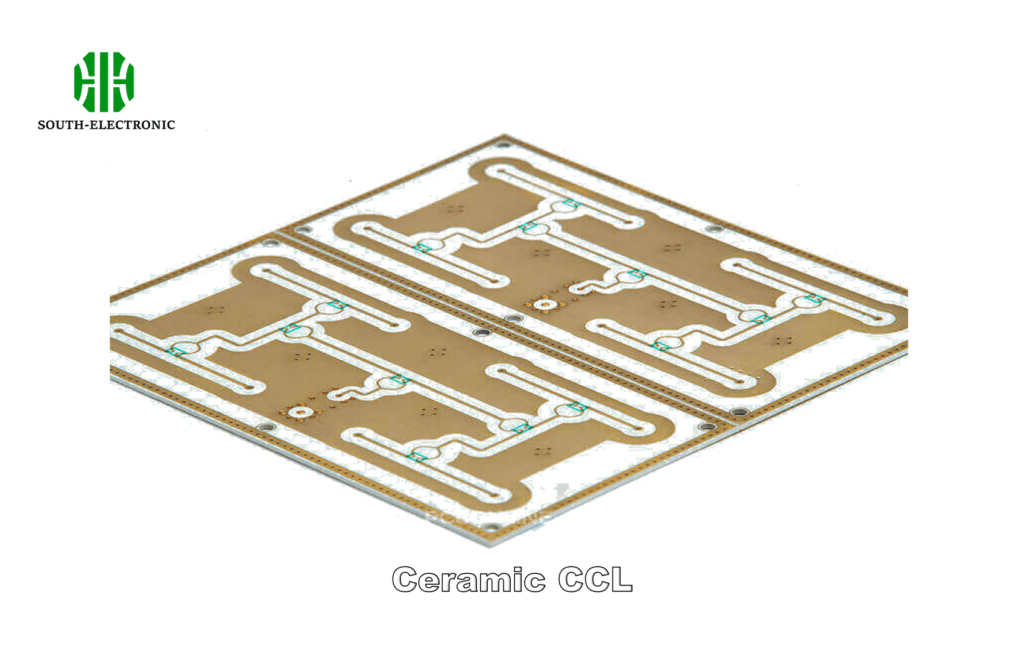

Ceramic substrate production

The Economics of High-Performance CCL

Breaking down a $280 ceramic substrate versus $3 FR-4:

Cost Factor Ceramic FR-4
Raw Material 45% 12%
Energy Consumption 30% 5%
Equipment Depreciation 18% 8%
Yield Loss 25% waste 3% waste

But when Tesla's inverters require 25 kW/m² heat dissipation, ceramic CCL prevents $500 MOSFETs from frying. It's not luxury - it's math: The $280 substrate enables $15,000 system value. Engineers must justify CCL costs through system-level reliability gains.

What gives flexible PCBs their "soft power"?

Your folding phone survives 200,000 bends because its CCL uses a sci-fi materials trio: polyimide films, rolled copper, and adhesive alchemy.

Flexible CCL achieves bendability through ultra-thin (12μm) copper and elastic polyimide (Kapton) layers. Adhesives maintain bonding through 5% repeated stretching while resisting sweat and oils in wearables.

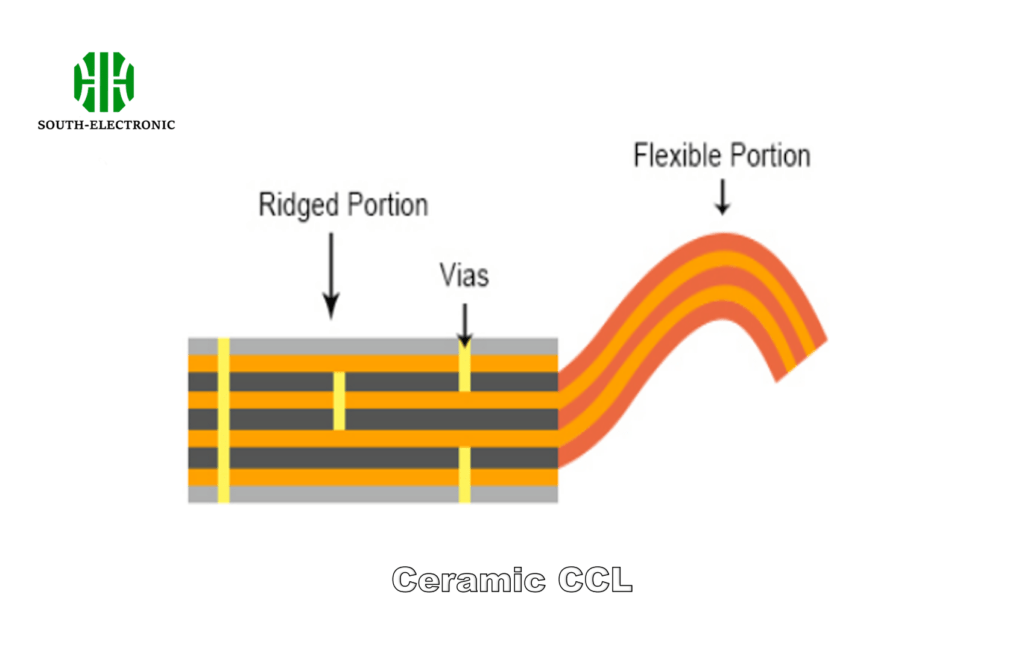

Flex PCB layers

Engineering Bend Without Breaking

A typical flex PCB[^9]'s material stack[^10] is an Olympic gymnast of materials:

Layer Thickness Function Failure Mode
Coverlay 25μm Insulation/Flex Protection Cracking at 90° bends
Copper (RA) 12μm Dynamic Conductivity Fatigue fractures
Adhesive 15μm Stress Buffer Delamination
Polyimide Base 50μm Structural Backbone Tear Propagation

I once tore $2k of flex PCBs by specifying 1oz copper. With 35μm traces, 90° folds split conductors. Switching to 12μm rolled copper solved it, but needed impedance retuning. Flex requires balancing conductor geometry with mechanical limits - a 3D puzzle.

Conclusion

From $0.5 paper boards to $200 ceramic sheets, CCL materials shape electronics' capabilities. Smart selection requires matching material physics to operational realities - get this foundation right, and your circuits will sing. Get it wrong, and they'll scream.
