Toxic fumes from burning electronics contain hidden dangers. Halogen-free PCBs solve this problem through safer material choices while maintaining performance standards.

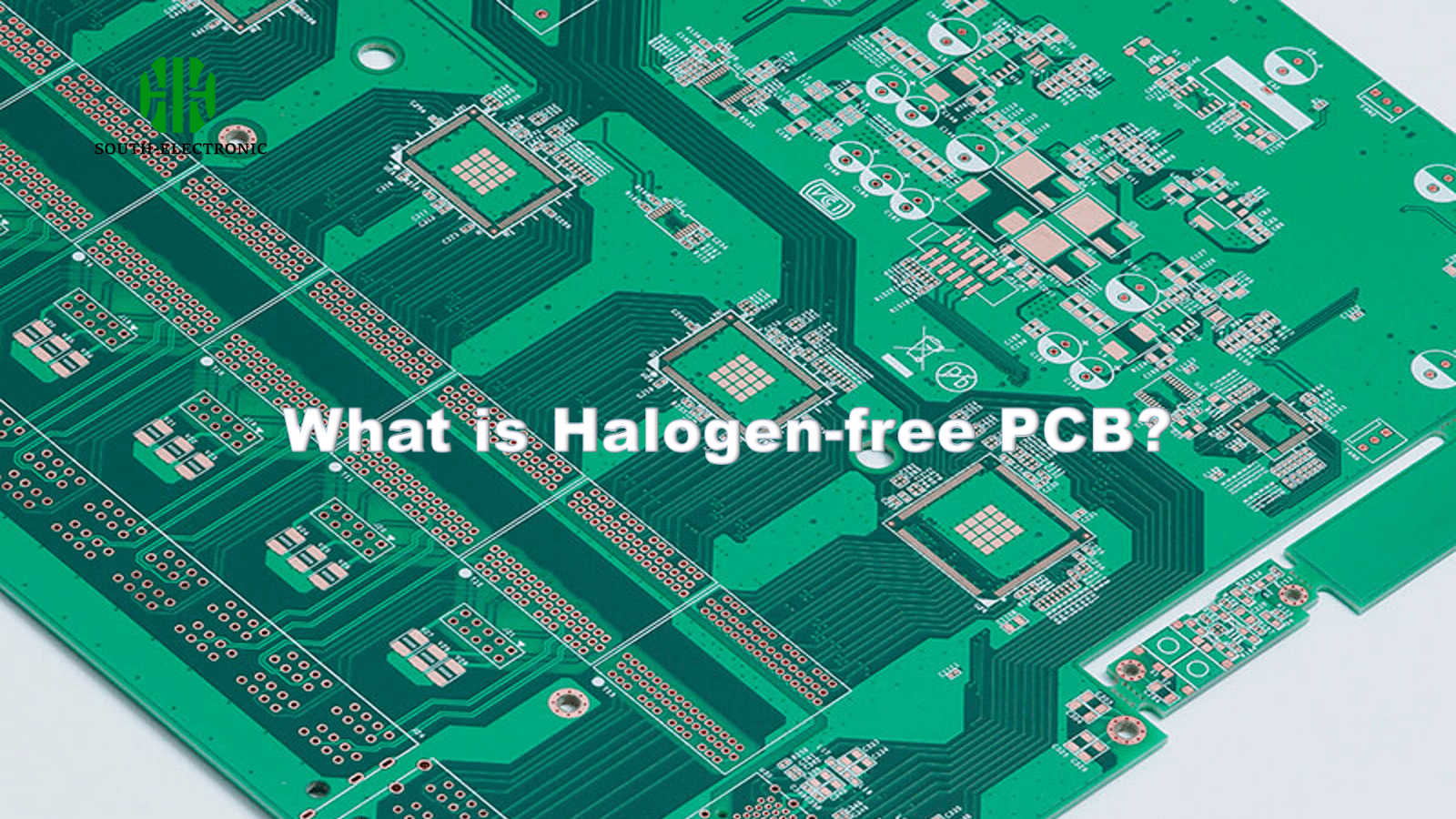

Halogen-free PCBs[^1] eliminate chlorine/bromine compounds (<900 ppm Cl, <1500 ppm Br) to reduce toxic emissions[^2]. These eco-friendly boards meet IPC-4101B standards and are essential for medical devices, automotive systems, and consumer electronics requiring safer disposal methods.
We've established what makes PCBs halogen-free. Now let's explore why this matters across six critical aspects of electronics manufacturing and compliance.
Why Are Halogens Restricted in PCB Manufacturing?
Imagine circuit boards releasing cancer-causing dioxins when discarded. That's why global regulations target halogen reduction.
Halogens like bromine in traditional PCBs create toxic dioxins during incineration. RoHS and WEEE directives restrict these substances to protect human health and prevent environmental contamination.
)
The Hidden Costs of Halogen Use
Three key factors drive halogen elimination:
-
Worker Safety
Table: Health Impacts ComparisonExposure Type Halogen PCBs Halogen-Free PCBs Production Respiratory risks Safe handling Disposal Toxic fumes Clean incineration Recycling Special handling Standard processes -
Environmental Compliance
Modern e-waste regulations impose heavy fines for non-compliance. California's Proposition 65 specifically restricts brominated flame retardants. -
End-User Protection
Consumer electronics using halogen-free materials show 40% lower toxic emissions during accidental fires based on UL testing data.
What Standards Define a Truly Halogen-Free PCB?
"Halogen-free" labels can be misleading without proper certification. Know what to verify.
True halogen-free compliance requires meeting IPC-4101B specifications[^3]: <900 ppm chlorine, <1500 ppm bromine, and <1500 ppm total halogens. Third-party testing through IPC-TM-650 methods validates these thresholds.
Decoding Compliance Certifications
Three-Tier Verification System:
-
Material Certificates
- Supplier-provided DS-1605 forms
- Batch-specific test results
-
In-House Testing
Common methods:- Ion chromatography
- X-ray fluorescence (XRF)
-
Third-Party Validation
Table: Recognized Certification BodiesOrganization Test Standard Scope UL UL 94 Flammability TÜV Rheinland EN 14582 Halogen content IPC IPC-4101B Base material
Always request recent test reports - some cheaper alternatives use expired compliance data.
How Do Halogen-Free PCBs Impact Circuit Board Performance?
Will removing halogens weaken your boards? The truth surprises many engineers.
Modern halogen-free formulations maintain comparable thermal performance (Tg 140-180°C) and dielectric stability while improving moisture resistance. Initial signal loss concerns have been resolved through advanced phosphorus-based flame retardants.
)
Performance Tradeoffs and Solutions
Table: Key Property Comparison
| Property | Traditional PCB | Halogen-Free PCB |
|---|---|---|
| Dielectric Constant | 4.3-4.5 | 4.2-4.4 |
| Thermal Resistance | Good | Improved |
| Moisture Absorption | 0.15% | 0.10% |
| Flexural Strength | 400 MPa | 390 MPa |
Three critical adaptations ensure reliability:
- Modified epoxy resins for equivalent CTE
- Nano-filled coatings for arc resistance
- Alternative flame retardants like DOPO derivatives
Field data shows halogen-free boards have 15% lower failure rates in high-humidity environments.
Which Industries Require Halogen-Free PCB Compliance?
Your market determines your materials. These sectors demand halogen-free by law.
Medical (ISO 13485), automotive (IATF 16949), and aerospace (AS9100D) sectors require halogen-free PCBs. Consumer electronics giants like Apple and Samsung mandate them for all new products since 2021.
)
Compliance Timeline by Sector
Table: Halogen-Free Adoption Deadlines
| Industry | Regulation | Deadline | Penalty |
|---|---|---|---|
| Automotive | ELV Directive | 2024 | 4% revenue |
| Medical | EU MDR 2017/745 | Active | Market ban |
| Consumer Goods | IEC 61249-2-21 | 2025 | CE loss |
Emerging requirements:
- EV charging stations (IEC 61851)
- IoT devices (ETSI EN 303 645)
- 5G infrastructure (3GPP TS 38.104)
Non-compliance risks product recalls - 23 medical devices were pulled in 2023 for halogen violations.
What Are the Cost Implications of Switching to Halogen-Free?
Budget concerns stall many transitions. Let's break down real numbers.
Initial costs rise 10-15% due to specialty materials, but lifecycle savings from easier recycling and regulatory compliance[^4] offset this within 2-3 years. Bulk purchasing reduces premiums to 5-7%.
)
Total Cost of Ownership Breakdown
Table: 5-Year Cost Projection (per 10k boards)
| Cost Factor | Halogen PCB | Halogen-Free PCB |
|---|---|---|
| Material | $8,200 | $9,500 |
| Certification | $1,000 | $800 |
| Waste Disposal | $2,500 | $1,200 |
| Regulatory Fines | $15,000 | $0 |
| Total | $26,700 | $11,500 |
Critical savings drivers:
- 60% lower e-waste fees
- Elimination of non-compliance risks
- Faster approval processes (2-week reduction)
How to Verify Halogen Content in PCB Materials?
Paper certifications aren't enough. Implement these verification steps.
Use ion chromatography (EPA 9056A)[^5] for precise halogen measurement combined with XRF screening[^6] for bromine. Always test 3 samples from different production batches for accurate compliance validation.
)
Robust Verification Protocol
Table: Testing Methodology Comparison
| Method | Detection Limit | Accuracy | Cost per Test |
|---|---|---|---|
| Ion Chromatography | 1 ppm | ±2% | $150 |
| XRF | 50 ppm | ±15% | $75 |
| Combustion Analysis | 10 ppm | ±5% | $200 |
Implementation checklist:
- Require mill certificates for all laminates
- Conduct spot checks on 5% of received materials
- Maintain test records for 7 years minimum
- Use ISO 17025-accredited labs[^7]
Recent IPC alerts reveal 12% of "halogen-free" materials failed spot checks in 2023 - verification is essential.
Conclusion
Halogen-free PCBs offer safer, sustainable electronics without performance loss. With proper verification and lifecycle costing, they provide both compliance benefits and long-term economic advantages across regulated industries.
