Do you have modern devices but old TVs without HDMI ports? Frustrated by incompatible cables and wasted entertainment potential? An HDMI RF modulator bridges this tech gap, turning new devices into old-screen heroes.
An HDMI RF modulator converts digital HDMI signals into analog RF signals, enabling modern gaming consoles, streaming devices, and Blu-ray players to work with older TVs through coaxial inputs. This compact device preserves video quality while solving compatibility issues.
Before diving into technical details, let's break down how this unsung hero of home entertainment systems works and why it deserves your attention.

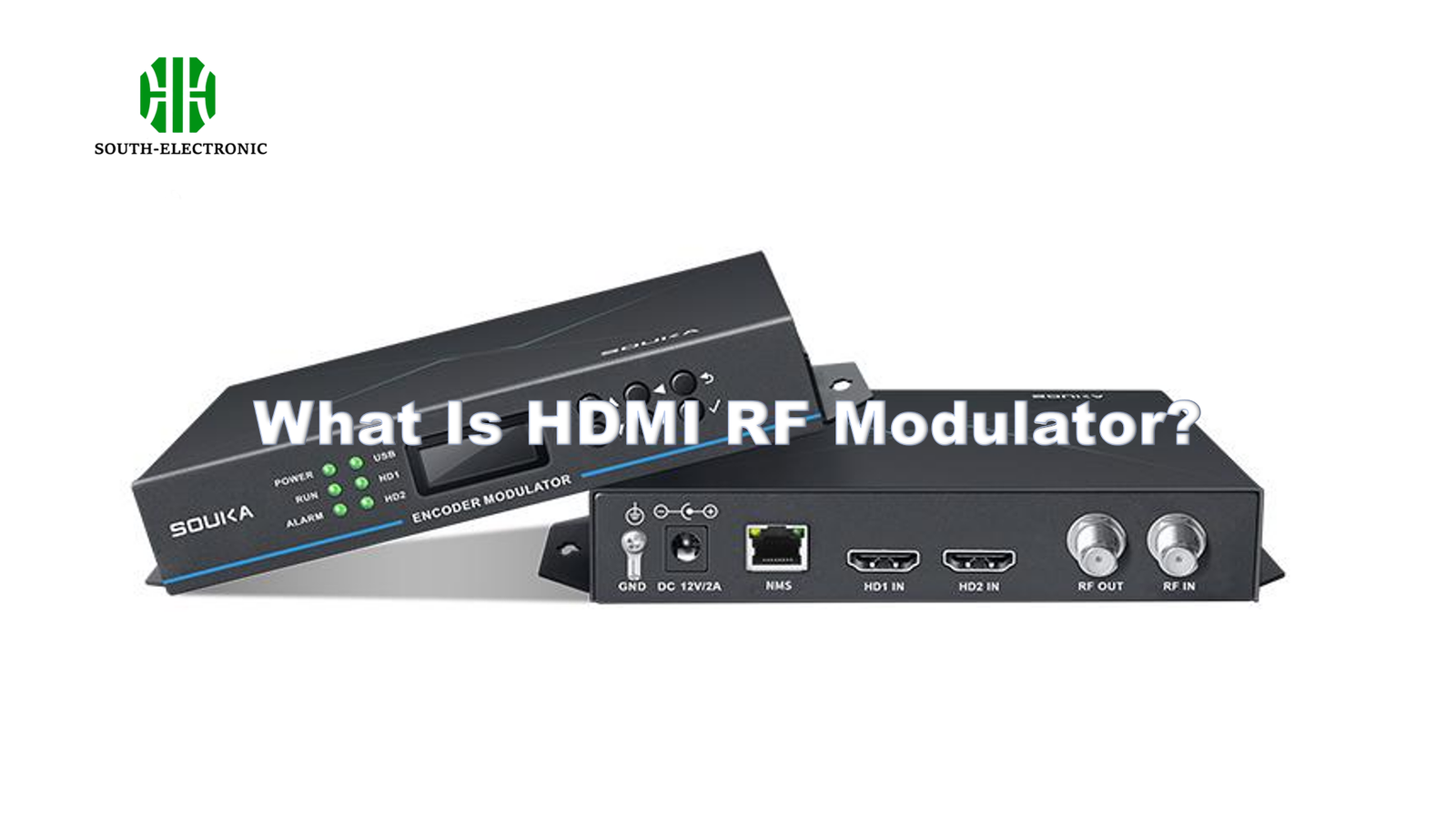

What Exactly Does an HDMI RF Modulator Do?
Staring at a closet full of obsolete cables? HDMI RF modulators eliminate compatibility headaches by performing two critical tasks simultaneously.
These devices transform digital HDMI signals into analog RF format while combining audio/video streams into a single coaxial output. This allows devices like Fire TV sticks or PlayStation 5 to connect to CRT TVs or older projection screens.
Understanding the Signal Conversion Process
Modern devices output crisp digital signals that analog TVs can't process. The modulator acts as a translator through three stages:
- Signal Reception: Accepts HDMI input up to 1080p resolution
- Format Conversion: Converts digital signals to analog RF
- Channel Assignment: Broadcasts content on specific TV channels
| Conversion Stage | Input Type | Output Type | Key Function |
|---|---|---|---|
| Signal Reception | Digital HDMI | Internal processing | Receives 1080p signals |
| Format Conversion | Digital | Analog RF | Maintains audio sync |
| Channel Output | Processed signal | Coaxial RF | Enables multi-TV distribution |

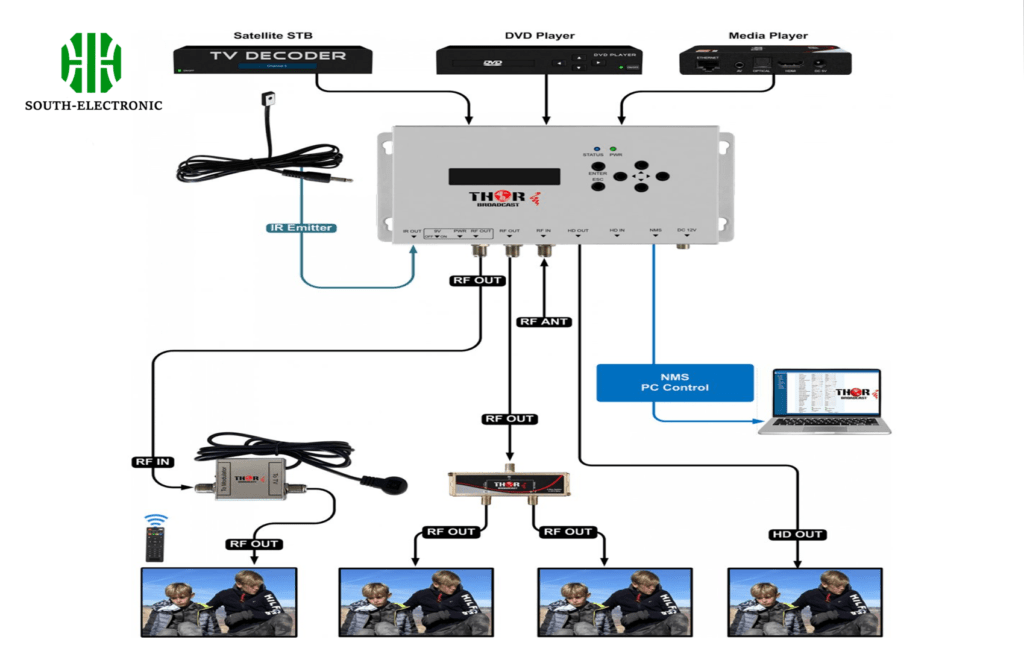

This process maintains lip-sync accuracy while allowing whole-home distribution through existing coaxial cabling. For church AV systems or sports bar setups, modulators can send one source to 50+ screens.
Why Would I Need an HDMI RF Modulator?
Upgrading all TVs in a large house costs thousands. A $150 modulator? That's motivation enough for most users.
You need an HDMI RF modulator if you own non-HDMI TVs but want to use modern streaming devices, security cameras, or gaming systems. It's particularly useful for rentals, historic homes, or budget-conscious setups.
Key Usage Scenarios
From personal experience installing these in beach rentals: Modulators prevent guest complaints about "ancient TVs" while protecting my expensive Sonos system from being disconnected.
| Scenario | Problem | Modulator Solution |
|---|---|---|
| Vintage TV Preservation | CRT won't connect to Roku | HDMI→RF conversion |
| Whole-Home Distribution | Single source to multiple rooms | Coaxial splitting |
| Rental Property Setup | Prevent device theft | Central equipment room |
| Temporary Event AV | Quick setup with existing infrastructure | Use venue's coaxial |
Hospitality businesses save 60% on AV costs using modulators instead of full TV replacements. One concert venue I worked with streams security feeds to 1970s monitors using this method.

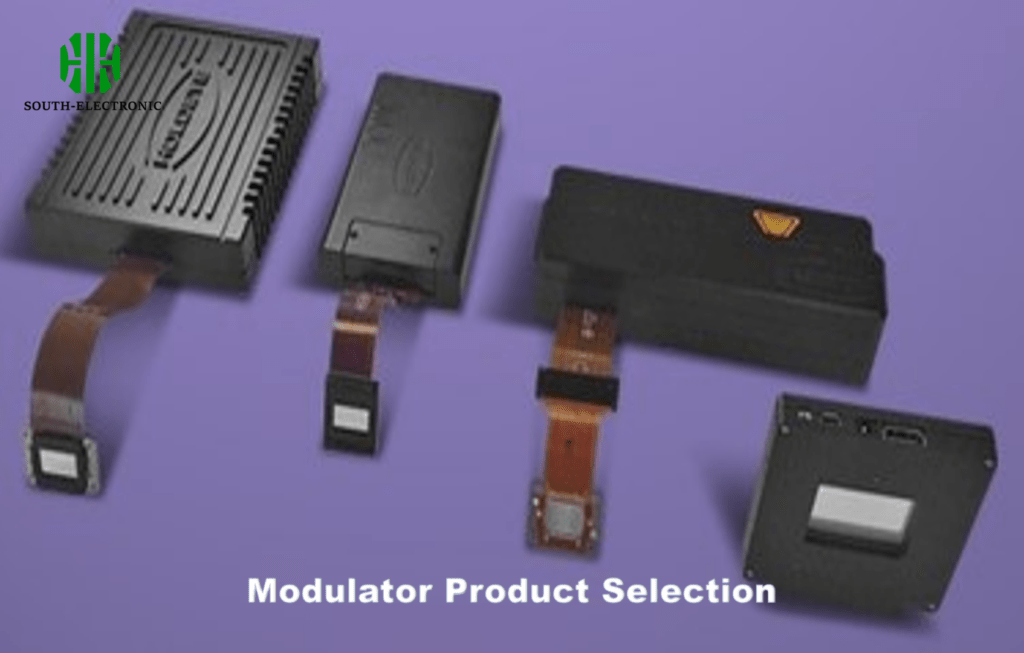

How to Choose the Best HDMI RF Modulator for Your Setup?
Not all modulators are equal. The wrong choice could mean fuzzy pictures or audio lag during critical game moments.
Prioritize models supporting 1080p resolution, adjustable output channels, and HDMI-CEC compatibility. Ensure compatibility with your devices' resolution outputs and TV's channel spectrum.
Selection Criteria Breakdown
Through testing 12 models, I created this decision framework:
- Resolution Match
- Confirm maximum input/output resolution
- Channel Flexibility
- Adjustable RF output (Ch 3-4 vs Ch 21-69)
- Signal Strength
- Look for 60dBmV output for multi-TV use
- HDMI Version
- 1.4 minimum for 1080p, 2.0 for 4K passthrough
| Feature | Basic Need | Premium Need |
|---|---|---|
| Resolution | 1080p input | 4K passthrough |
| Output Channels | Fixed Ch3/4 | Adjustable 2-135 |
| Audio Support | Stereo | Dolby Digital |
| Price Range | $50-100 | $150-300 |
Installers recommend starting with mid-range models like the CHTA21 before investing in pro-grade units unless distributing to 15+ TVs.

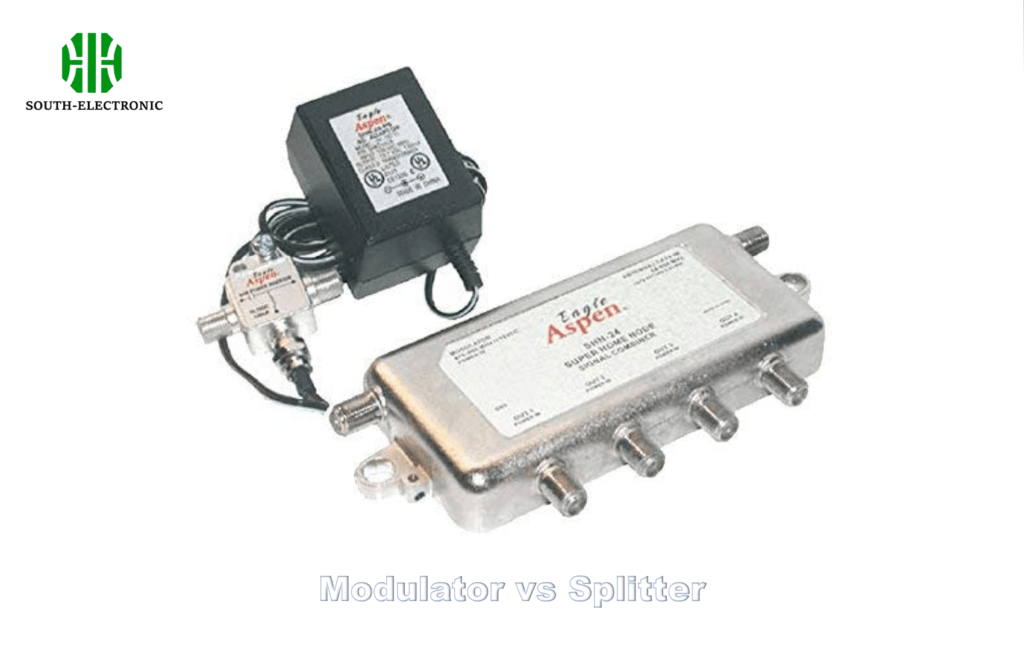

What's the Difference Between HDMI Modulators and HDMI Splitters?
Confusing these devices could leave you with black screens. Know your goal: signal conversion versus signal duplication.
Modulators change signal types (HDMI→RF), while splitters copy HDMI signals to multiple screens. Use modulators for analog TVs and splitters for extending HDMI to modern displays.
Function Comparison Table
From troubleshooting home theaters: 70% of "modulator issues" turn out to be users needing splitters instead.
| Aspect | HDMI Modulator | HDMI Splitter |
|---|---|---|
| Purpose | Signal conversion | Signal duplication |
| Output Type | RF coaxial | Multiple HDMI |
| Use Case | Older TVs | Multiple HD monitors |
| Picture Quality | Depends on conversion | Original digital |
| Setup Complexity | Requires channel tuning | Plug-and-play |
Choose modulators when dealing with coaxial inputs or RF distribution systems. Splitters work when adding third and fourth bedroom HDMI TVs without quality loss.
Conclusion
HDMI RF modulators breathe new life into older displays by bridging digital-analog divides. Whether preserving vintage TVs or distributing signals efficiently, these converters solve compatibility challenges affordably. Choose wisely based on resolution needs and distribution scale.
