Ever had LED lights fail prematurely? You’re not alone. Modern lighting demands boards that handle heat and power efficiently - that’s where LED PCBs shine.
LED PCBs[^1] are specialized circuit boards using aluminum cores to manage heat in high-power LEDs, enabling durable lighting solutions for automotive, medical, and industrial applications through optimized thermal control.
Understanding these boards reveals why they’ve revolutionized lighting systems. Let’s explore their design secrets and why they outperform traditional options.
Introduction to LED PCB: Why Do They Power Modern Lighting?
Burned-out LEDs cost businesses millions yearly. What if your lighting system could self-regulate heat? That’s the promise of LED PCBs.

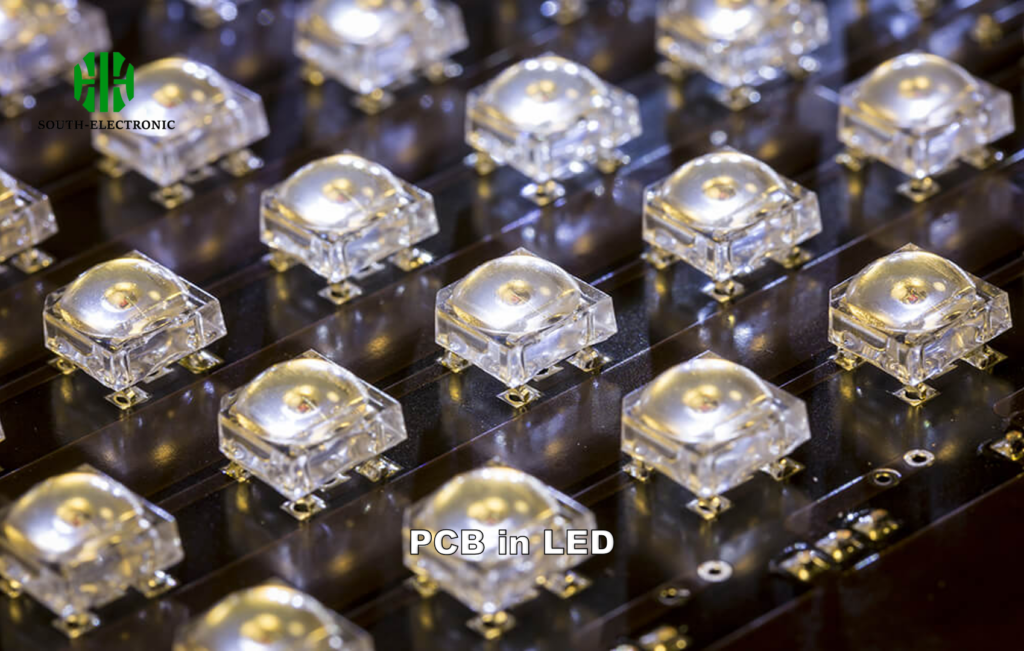

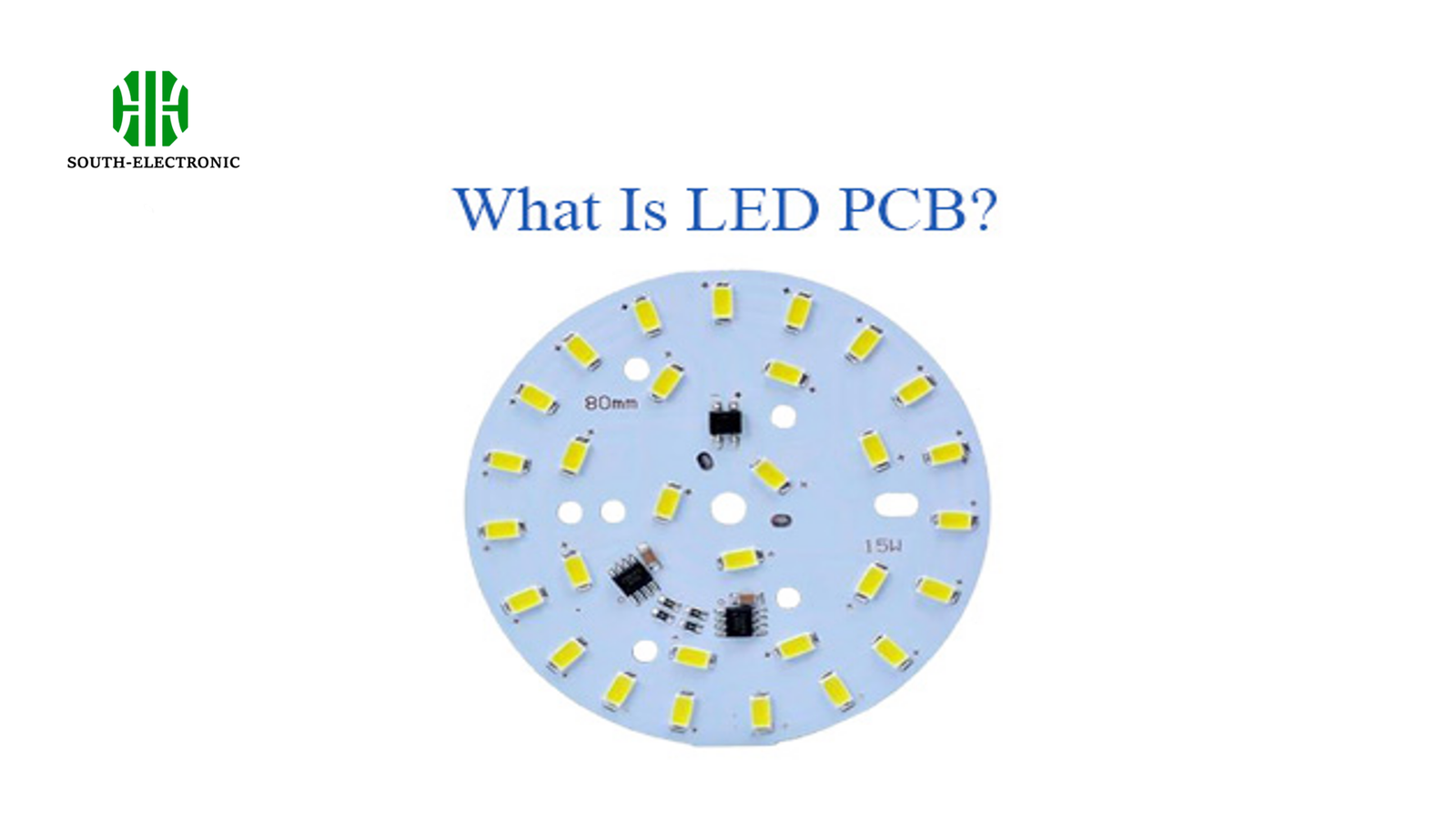

LED PCBs are printed circuit boards built specifically for light-emitting diodes (LEDs), combining electrical circuitry with thermal management[^2] to prevent overheating in tight spaces like headlights or surgical lamps.
)
Core Components & Applications
Three elements define LED PCB architecture:
| Component | Role | Real-World Use |
|---|---|---|
| Aluminum Base | Dissipates heat | High-power streetlights |
| Dielectric Layer | Electrical insulation | MRI machine lighting |
| Copper Circuit | Power distribution | Car dashboard displays |
Automotive manufacturers report 60% fewer LED failures after switching to metal-core PCBs in tail lights. The dielectric layer’s thickness (typically 50-200μm) directly impacts insulation and heat transfer efficiency.
What Makes an LED PCB Unique?
Ever wondered why your phone’s flashlight doesn’t melt the casing? Credit goes to PCB thermal design.
)
Thermal vs Traditional Boards
Critical differences emerge under stress testing:
| Feature | Standard PCB | LED PCB | Improvement |
|---|---|---|---|
| Heat Dissipation | 0.3 W/m·K | 2-10 W/m·K | 7-30x better |
| Max Temp | 105°C | 150°C | +42% threshold |
| Lifespan@100°C | 8,000 hrs | 50,000 hrs | 6x longer |
Why Are Aluminum Substrates Dominant in LED PCB Manufacturing?

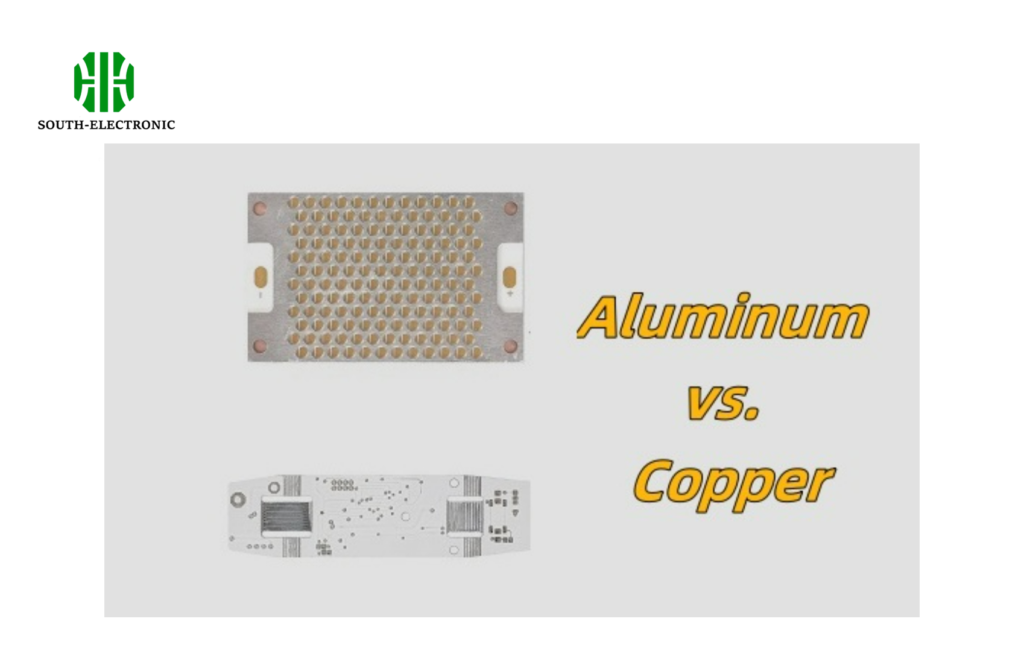

Copper conducts better - so why does aluminum rule LED boards? The answer lies in cost-performance balance.
)
Material Showdown
Economic and technical factors drive material choice:
| Property | Aluminum | Copper | FR4 |
|---|---|---|---|
| Cost per kg | $2.50 | $8.20 | $1.80 |
| Conductivity | 205 W/m·K | 385 W/m·K | 0.3 W/m·K |
| Weight | 2.7 g/cm³ | 8.96 g/cm³ | 1.85 g/cm³ |
| Corrosion Resistance | High | Medium | NA |
Automotive LED suppliers reduced production costs by 40% switching from copper-clad to aluminum boards, while maintaining junction temperatures below 110°C.
Thermal Management in LED PCBs: How to Prevent Overheating Failures?
A single overheating LED can cascade into system failure. Smart thermal design stops this domino effect.
Key strategies include thermal vias[^6] (3-5x more than standard PCBs), 2-3oz copper layers, and ceramic-filled dielectric materials[^7] to maintain LED junction temps below 130°C in confined spaces.
)
Cooling Techniques Compared
Best practices from 50+ case studies:
| Method | Effectiveness | Cost Impact | Use Case |
|---|---|---|---|
| Thermal Vias | ↓15-20°C | +8% | Stadium lights |
| Aluminum Base | ↓30-40°C | +25% | Surgical lamps |
| Heat Sinks | ↓10-15°C | +15% | Traffic signals |
| Conformal Coating | ↓5-8°C | +5% | Outdoor displays |
A LED streetlight manufacturer extended product lifespan from 3 to 12 years using hybrid cooling[^8]: aluminum substrate + 412 thermal vias per square inch.
Conclusion
LED PCBs merge aluminum’s cooling power with compact circuitry, enabling brighter, longer-lasting lights from operating rooms to highways through precision thermal management.
