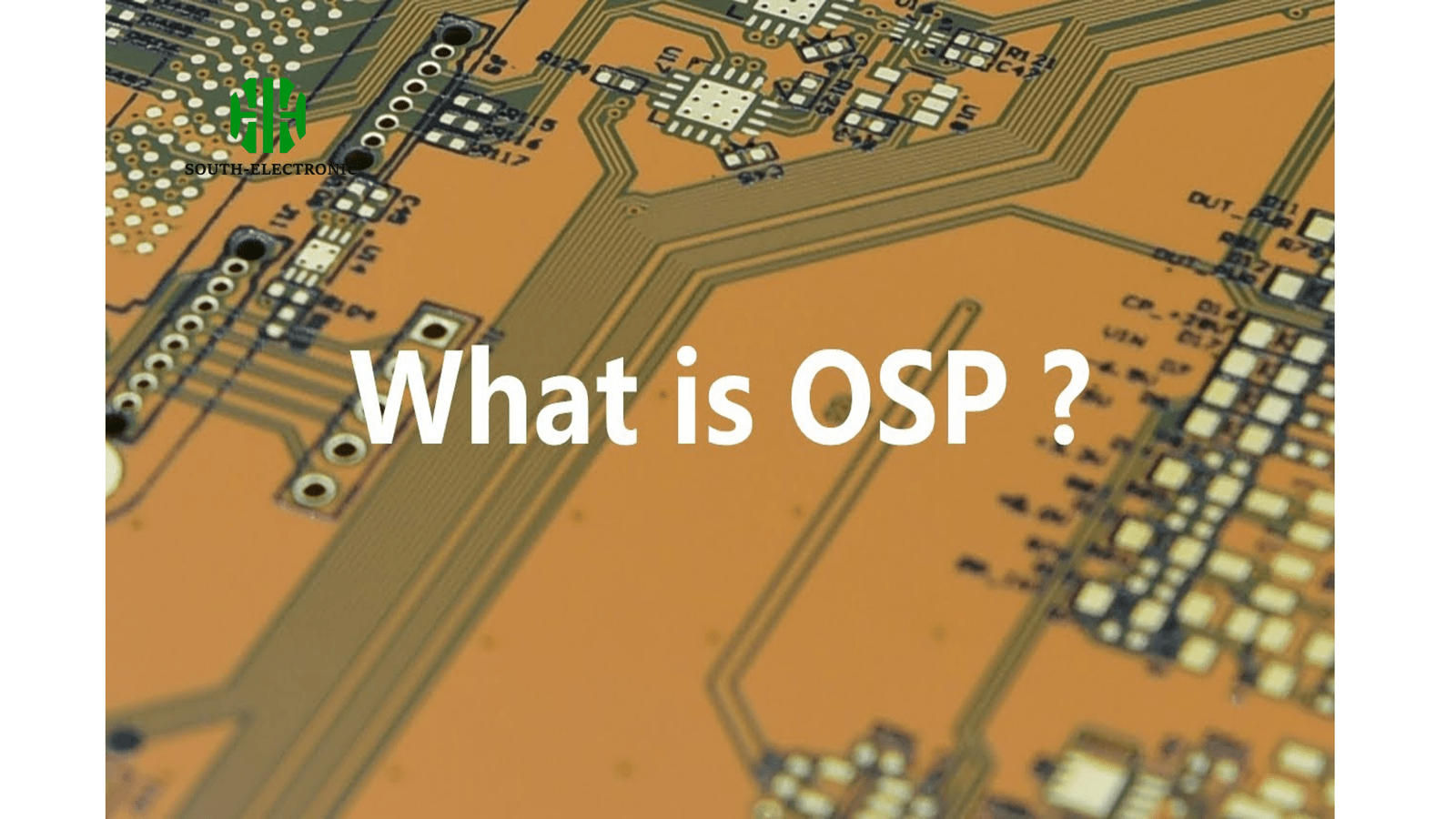

What is Organic Solderability Preservatives (OSP)?
Organic Solderability Preservatives (OSP) is a surface finish applied to the copper pads of PCBs to protect them from oxidation before the soldering process. OSP uses a water-based organic compound that bonds selectively to copper and shields it from exposure to air, moisture, and contaminants.
Unlike metallic finishes such as HASL or ENIG, OSP relies on an organic film, making it an environmentally friendly and cost-effective solution.
How OSP Works on PCB Copper？

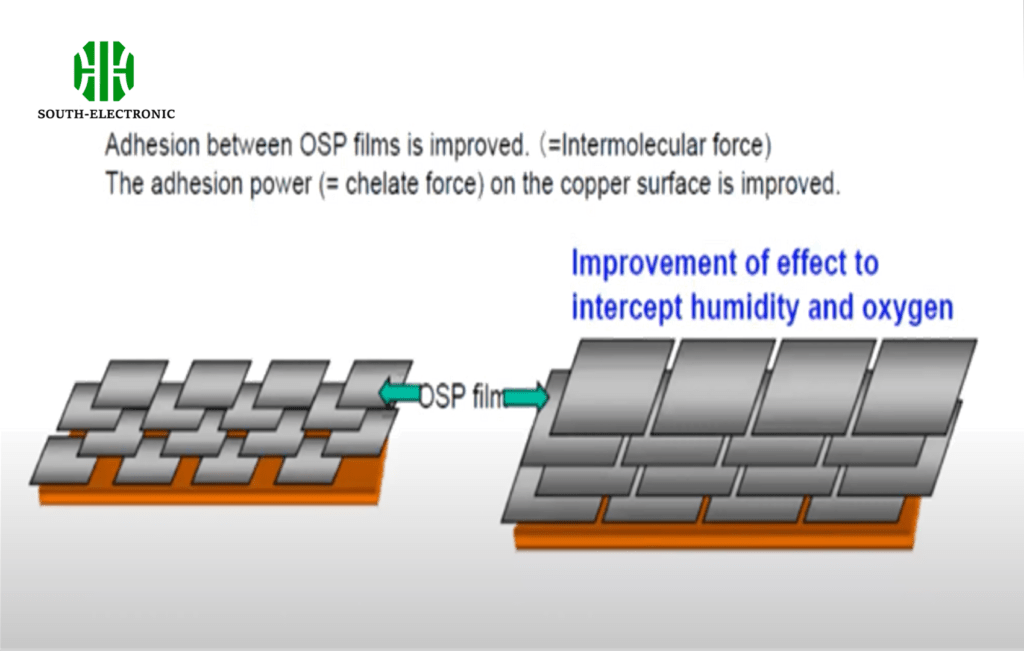

OSP works by chemically binding a thin layer of organic compound (usually from the imidazole or benzimidazole families) to clean copper surfaces. This coating keeps the copper pads free from oxidation, ensuring that soldering can be performed cleanly later in the manufacturing process. When heat is applied during soldering, the organic layer breaks down, exposing the clean copper for proper solder adhesion.

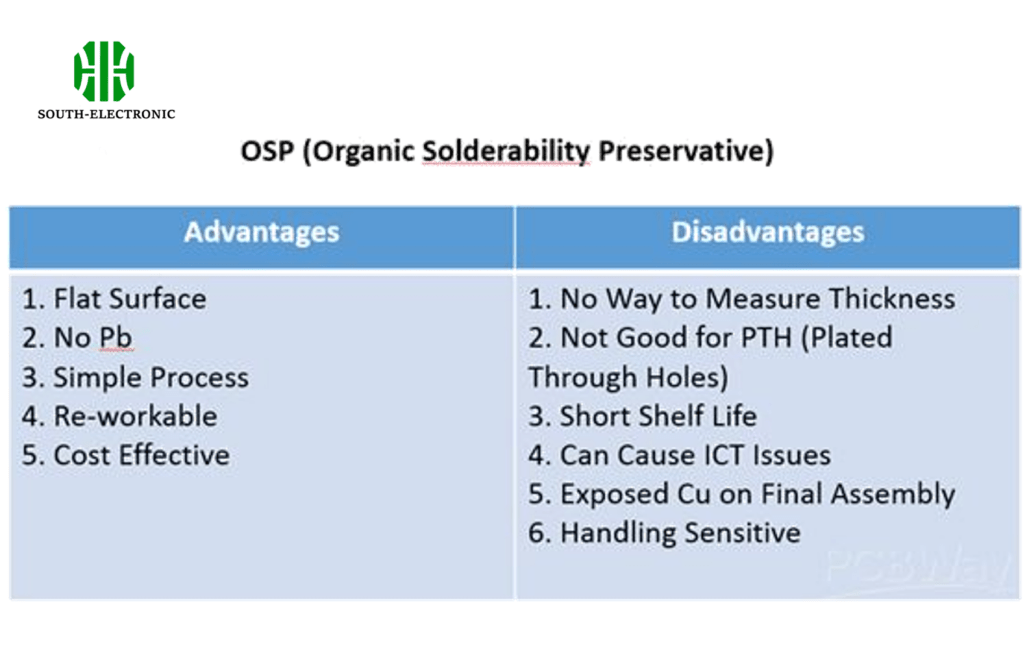

Advantages and Disadvantages of OSP in PCB Manufacturing
Like all surface finishes, OSP has its pros and cons that need to be carefully considered when choosing it for PCB manufacturing.
Advantages of OSP
- Environmentally Friendly: OSP contains no toxic metals, making it a cleaner option compared to lead-based HASL finishes.
- Cost-Effective: OSP is a low-cost solution compared to metallic finishes like ENIG, especially in high-volume manufacturing.
- Flat Surface: Unlike HASL, which can leave uneven solder surfaces, OSP produces a flat and even coating.
- Good for SMT: OSP is excellent for Surface Mount Technology (SMT) due to its uniform surface coverage.
Disadvantages of OSP
- Limited Shelf Life: OSP-coated PCBs typically have a shelf life of around 3-6 months, which is shorter than other finishes.
- Difficult to Rework: OSP coatings are not as durable when it comes to reworking, making it challenging to re-solder components.
- Not Suitable for Harsh Environments: OSP is less effective in high-temperature or humid conditions compared to more robust finishes like ENIG.
Here’s a table comparing OSP with other common surface finishes:
| Property | OSP | HASL | ENIG |
|---|---|---|---|
| Cost | Low | Moderate | High |
| Environmentally Friendly | Yes | No (Lead-based) | Yes |
| Reworkability | Difficult | Easy | Moderate |
| Shelf Life | 3-6 months | 12+ months | 12-24 months |
| Surface Flatness | Very Flat | Uneven | Very Flat |
| Resistance to Harsh Conditions | Low | Moderate | High |

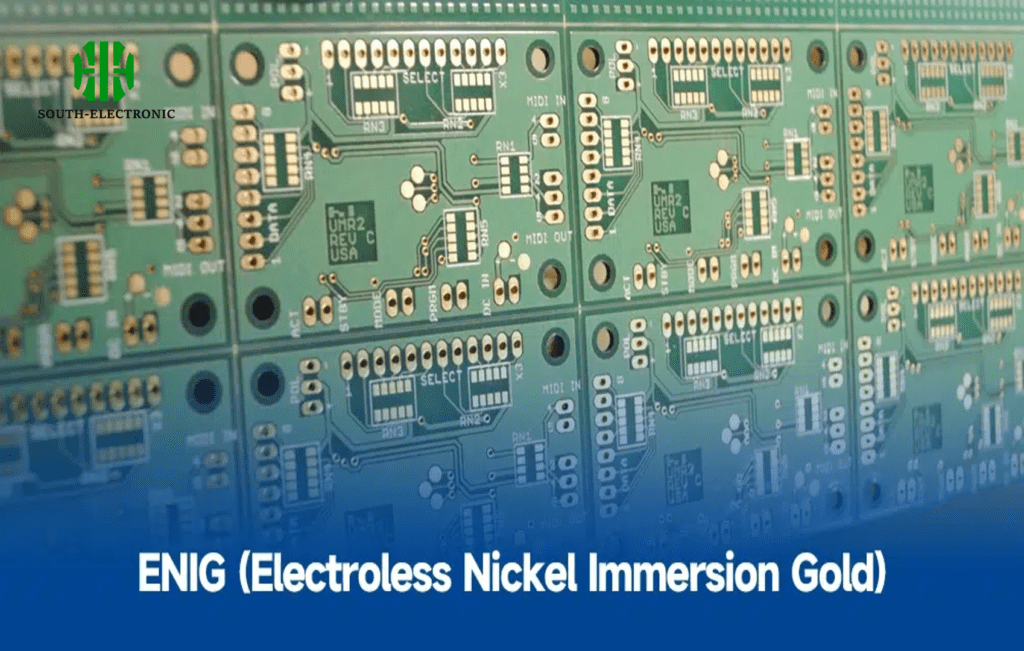

OSP vs. ENIG: What's the Difference?
A common question among PCB manufacturers is whether to use OSP or ENIG as a surface finish. Both have their advantages depending on the application, but they differ significantly in terms of cost, performance, and environmental impact.
Key Differences Between OSP and ENIG
- Cost: OSP is far cheaper than ENIG, making it an attractive choice for cost-sensitive projects, particularly those in high-volume production.
- Durability: ENIG is much more durable and better suited for environments exposed to moisture, heat, or harsh chemicals. OSP, on the other hand, is vulnerable to oxidation in such conditions.
- Solderability: ENIG provides a more reliable and robust soldering surface, especially for fine-pitch components. OSP is good but requires careful handling during the soldering process.
How is OSP Applied?
Applying OSP is a straightforward, multi-step process that typically involves the following:
- Cleaning the PCB: Before OSP can be applied, the copper surface of the PCB is cleaned to remove any contaminants, oxidation, or residues.
- Applying OSP Solution: The board is dipped in or sprayed with a water-based OSP solution. The organic compound then selectively bonds to the copper.
- Curing: The OSP-coated PCB is briefly exposed to heat to cure the organic layer. This process ensures a uniform and stable coating.
Shelf Life of OSP and Proper Storage Tips
The shelf life of OSP coatings is generally between 3 to 6 months. This relatively short shelf life is one of the major disadvantages of OSP compared to other finishes like ENIG or HASL.
Proper Storage Guidelines for OSP Coated PCBs:
- Temperature Control: Store PCBs in a cool, dry environment (between 20-25°C).
- Humidity: Keep humidity levels below 50% to prevent moisture from degrading the OSP layer.
- Packaging: Use anti-static packaging that protects the OSP-coated copper surfaces from exposure to air and contaminants.
Summary
Organic Solderability Preservatives (OSP) are a cheap, green alternative to other surface finishes in PCB manufacturing. It has a few downsides, like a short shelf life and vulnerability to harsh environments, but it's a great option for cost-conscious projects and eco-friendly manufacturers. If you store and apply it right, OSP can give you good solderability and performance in a lot of electronic applications.
OSP is still a big deal in the electronics industry because manufacturers are looking for cheap, sustainable ways to preserve PCBs.
