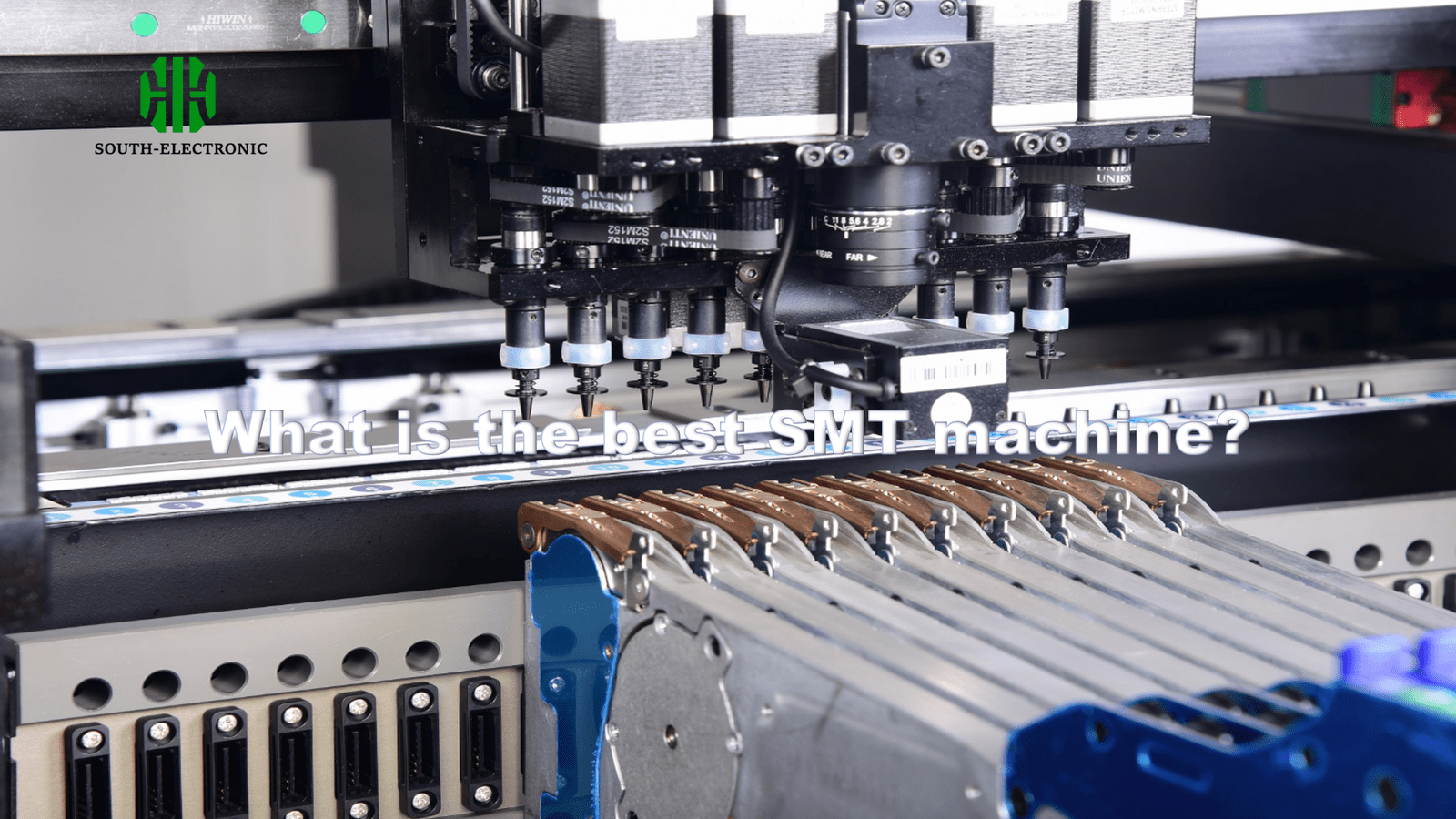

Finding the perfect surface mount machine feels impossible. Your production line depends on this choice. A bad pick wastes time and money.
There's no universal "best" smt pick and place machine. Your ideal choice depends on production needs, budget, and required precision levels. Top brands like ASM, Yamaha, or Juki differ in speed, accuracy, and component handling capabilities.
Let's break down what really matters. We'll explore key differences between machine types for smarter decisions.
What are the Key Differences Between Entry-Level and High-End SMT Pick and Place Machines?
Entry-level models tempt with low prices. But are they worth potential headaches during smt assembly?
Entry-level smt equipment handles basic tasks well. High-end models offer faster speeds, better precision, and advanced features. Your production volume determines the best pick.
Not all smt placement equipment performs equally. Two key factors separate them:
Initial Investment Needs
Entry-level smt pick and place machines cost less upfront. They typically handle common components without issues. But their limitations become clear soon.
| Feature | Entry-Level Machine | High-End Machine |
|---|---|---|
| Speed (CPH) | 5,000-20,000 | 30,000-100,000+ |
| Placement Accuracy | ±0.05mm | ±0.01mm or better |
| Component Compatibility | Standard chips and resistors | MicroBGAs, 01005 chips |
| Changeover Time | 30-60 minutes | Under 15 minutes |
Long-Term Value Factors
High-end surface mount technology machines justify their cost through endurance. They withstand heavy use with fewer breakdowns. Their advanced calibration reduces material waste substantially. Over five years, expensive models often prove cheaper per board. They handle complex future projects entry-level systems can't manage.
How to Calculate the True Cost of Ownership for Your SMT Placement Equipment?
That price tag is misleading. Hidden expenses sneak up during smt mounting operations.
Look beyond purchase price. Include maintenance time, energy use, and repair frequency. Calculate your cost per assembled board for real numbers.
Many overlook these critical costs when buying pick and place machines:
Ongoing Operational Expenses
Every smt machine consumes money while running. Power bills add up differently across models. Nozzle replacements and feeders cost hundreds monthly. Technician time for programming eats into productivity.
| Cost Type | Low Estimate | High Estimate | Frequency |
|---|---|---|---|
| Electricity | $500 | $3,000 | Yearly |
| Consumables | $800 | $5,000 | Yearly |
| Calibration | $1,200 | $4,000 | Quarterly/Semi |
| Downtime Losses | $150/hour | $1,000/hour | Variable |
Future Impact Calculations
Cheaper smt pick and place equipment often needs earlier replacement. Factor residual values after five years. Include training costs for new operators. Account for compatibility issues with evolving smt technology. Faster machines produce more revenue daily, offsetting higher purchase prices.
What Factors Should Influence Your Choice Between Speed and Precision in SMT Pick and Place?
Sacrificing precision for speed destroys boards. But excess caution slows your whole smt assembly line.
Demand complexity dictates your sweet spot. Consumer gadget production needs speed. Medical devices require absolute precision. Balance both based on components used.
Consider these practical aspects before choosing:
Component-Specific Requirements
Tiny 01005 resistors need high-precision smt placement equipment. Larger connectors allow faster placement methods. Fine-pitch BGAs demand better vision systems. Odd-shaped parts require specialized nozzles regardless of speed.
| Component Type | Precision Priority | Speed Priority |
|---|---|---|
| 01005 Chip | Critical | Moderate |
| QFP (0.4mm pitch) | Critical | Low |
| 1206 Resistor | Moderate | High |
| Connectors | Low | High |
Production Volume Realities
High-volume runs justify speed-focused electronic pick and place machines. Changeover times matter less here. Low-mix production benefits from precise, flexible systems. Consider staffing limitations - faster machines need constant feeding.
Why Might Modular Platforms Be the Smartest Pick for Future-Proofing SMT Assembly Lines?
Locking into fixed smt equipment invites trouble. New component packages emerge constantly.
Modular pick and place machines adapt cheaply. Add feeders or camera systems as needed. Swap modules instead of entire machines when requirements shift.
Modular surface mount technology platforms solve three headaches:
Expansion Capabilities
Start small when buying smt placement equipment. Add placement heads for more components later. Incorporate specialty feeders only when required. Connect additional machines seamlessly into existing lines.
| Upgrade | Purpose | Benefit |
|---|---|---|
| Camera Upgrade | Handles smaller chips | Avoids new machine purchase |
| Feeder Module | Accommodates new packaging | No full system modification |
| Conveyor Link | Connects inspection station | Integrated workflow without rebuild |
Obsolescence Protection
Technology evolves too fast. Modular designs let you replace outdated sections independently. Manufacturers release updated modules annually. Keep your smt assembly line relevant longer without massive reinvestment. Mix brands when necessary for perfect component support.
Conclusion
No single smt machine wins for everyone. Match equipment to your actual production requirements. This ensures efficient, cost-effective surface mount technology operations.
