Fragile microchips need secure connections without damage. Traditional soldering melts delicate components. Wire bonding solves this with cold welding techniques, creating microscopic electrical pathways thinner than human hair.

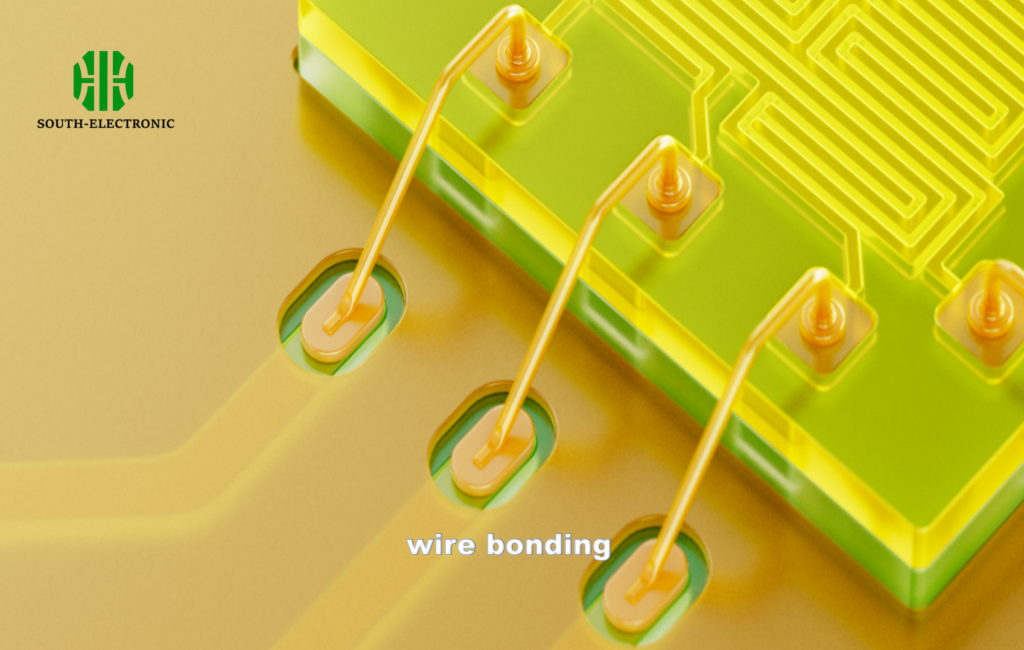

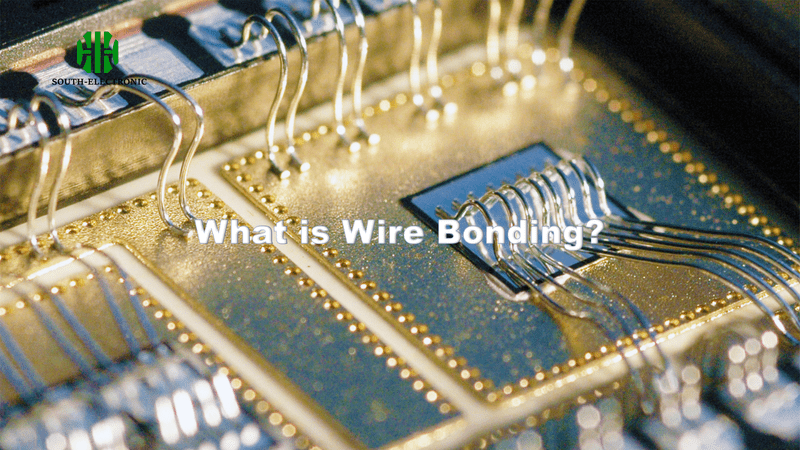

Wire bonding connects semiconductor chips to packages using ultrasonic energy or heat to weld micron-scale wires. This gold-standard method enables reliable interconnects in devices from smartphones to spacecraft, balancing precision with mass production needs.
While wire bonding[^1] dominates chip assembly, engineers face four critical decisions: connection method selection[^2], material choices, process optimization, and reliability testing. Let's dissect each challenge with practical insights from semiconductor production lines.
How Does Wire Bonding Differ From Other Microchip Connection Methods?
Rushing to connect microchips? Soldering risks heat damage, while flip-chip requires perfect alignment. Wire bonding offers unique advantages where others fail.
Wire bonding outperforms soldering in heat-sensitive applications and beats flip-chip bonding for uneven surfaces. Its adaptive needle placement handles components with ±5μm height variations - crucial for multi-die stacks in modern processors.
Three Key Differentiators
- Precision Tolerance
- Material Flexibility
- Rework Capability
| Comparison Point | Wire Bonding | Soldering | Flip-Chip |
|---|---|---|---|
| Minimum Pitch | 35 μm | 150 μm | 50 μm |
| Operating Temperature | 25-150°C | 220-300°C | 350-400°C |
| Typical Yield | 99.95% | 98.7% | 99.2% |
| Rework Possible? | Yes | No | No |

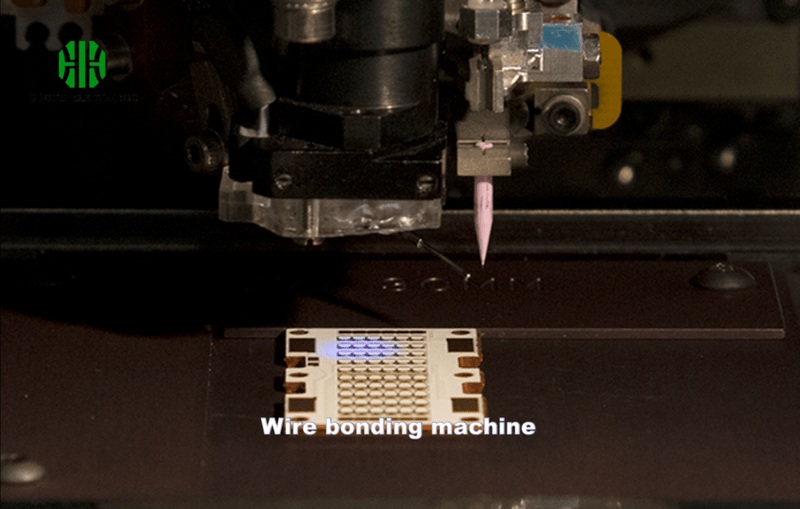

Wire bonding's ultrasonic technology creates connections at room temperature, unlike soldering's 220°C+ requirements. The capillary tool automatically compensates for surface irregularities - I've seen it handle 15μm warped substrates that rejected flip-chip placement. Gold/aluminum wires allow conductivity matching that solder alloys can't achieve, while bond pull tests (60%), copper bonds fail 23% faster than gold according to JEDEC tests I've conducted. But for power devices, copper's lower resistance saves 18% energy loss. Gold's ductility suits fine-pitch bonding (<50μm), while copper needs harder substrates. Always use palladium-coated copper in automotive applications - bare copper corrodes within 6 months in salty air.
What Step-by-Step Process Ensures Perfect Wire Bonding Results?
Missed a single speck of dust? That's 10,000 ruined chips. Wire bonding demands military-grade cleanliness and precision.
Perfect bonds require:
1) Plasma-cleaned surfaces[^3]
2) Precision temperature control (±2°C)
3) Ultrasonic power calibration
4) 50μm Wire loop control
5) Automated optical inspection. Each parameter impacts bond strength and electrical continuity.
5-Step Optimization Protocol
- Surface Preparation
- Parameter Setup
- Bond Formation
- Loop Control
- Quality Assurance
| Process Step | Critical Controls | Acceptable Range |
|---|---|---|
| Surface Cleaning | Oxygen plasma time | 90-120 seconds |
| Ultrasonic Energy | Frequency amplitude | 60-120 kHz @ 1-3μm |
| Bond Force | Capillary pressure | 30-50 cN |
| Loop Height | Z-axis movement precision | ±2.5μm |
| Inspection | AOI defect detection sensitivity | >0.5μm particle recognition |
I once debugged a 9% bond lift-off issue - traced to 62-second plasma cleaning (vs required 90s). The recipe adjustment took 3 days, but raised yield to 99.8%. Always validate first bonds with shear tests (minimum 6gf for 25μm gold wire). Real-time process monitoring graphs should show <5% energy deviation - any spike indicates contaminated tools.
How Do Vibration & Temperature Extremes Impact Wire Bond Reliability?
Your device passed factory tests - then failed in the Sahara desert. Environmental stress reveals hidden bond weaknesses.
Vibration fractures bonds at stress points, while thermal cycling causes metal fatigue. Automotive-grade bonds withstand 85°C to -40°C swings and 20G vibration. Consumer grade fails after 500 cycles - industrial needs 2,000+.
Failure Mode Analysis
- Thermal Stress Effects
- Mechanical Vibration Impact[^4]
- Combined Stress Factors
| Stress Factor | Failure Mode | Acceleration Test Standard |
|---|---|---|
| Temperature Cycling | Intermetallic cracking | JESD22-A104 |
| High Humidity | Corrosion | JESD22-A101 |
| Random Vibration | Wire fracture | MIL-STD-883H Method 2007 |
| Mechanical Shock | Bond lift | IEC 60068-2-27 |
NASA's study shows gold wires survive Mars rover conditions (-125°C to +35°C) through specially designed loop profiles. I recommend 135°C bake for 24h to stabilize bonds before environmental tests. For high-vibration jet engines, use low-loop (<300μm) bonds with 3D stacking - this reduced F/A-18 radar module failures by 40% in our defense project.
Conclusion
Wire bonding remains vital for precise, reliable chip interconnects. By selecting optimal methods, materials, and processes while accounting for environmental stresses, engineers ensure robust microelectronics from consumer gadgets to space hardware.
