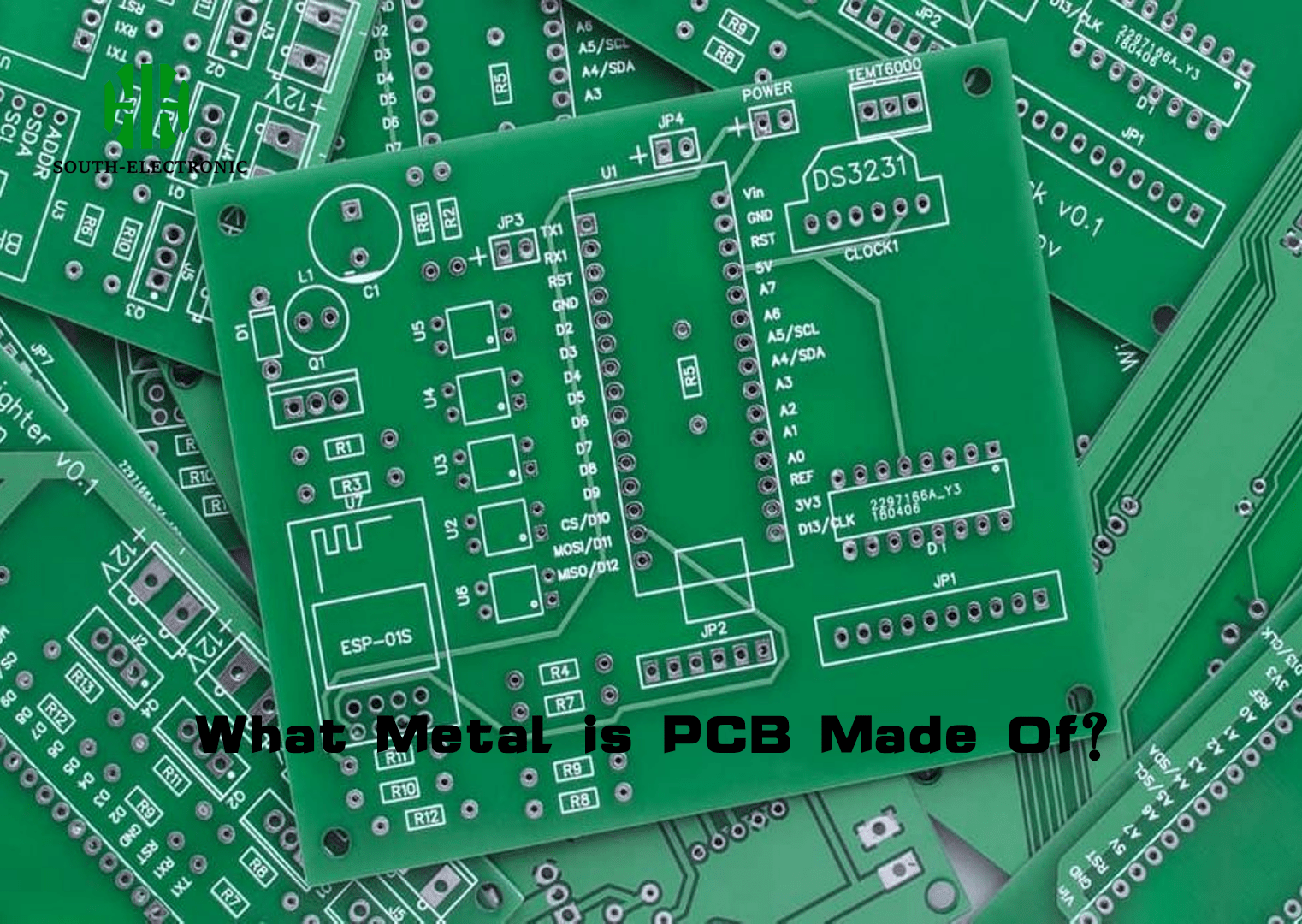

What Metal is PCB Made Of?
Printed Circuit Boards (PCBs) are integral to modern electronics, serving as the foundation for mounting and connecting components in devices ranging from smartphones to industrial machinery. Understanding what metals and materials PCBs are made of is essential for anyone involved in electronics design, manufacturing, or repair. In this article, we'll delve into the metals commonly used in PCBs, focusing on their properties, roles, and importance in various applications.

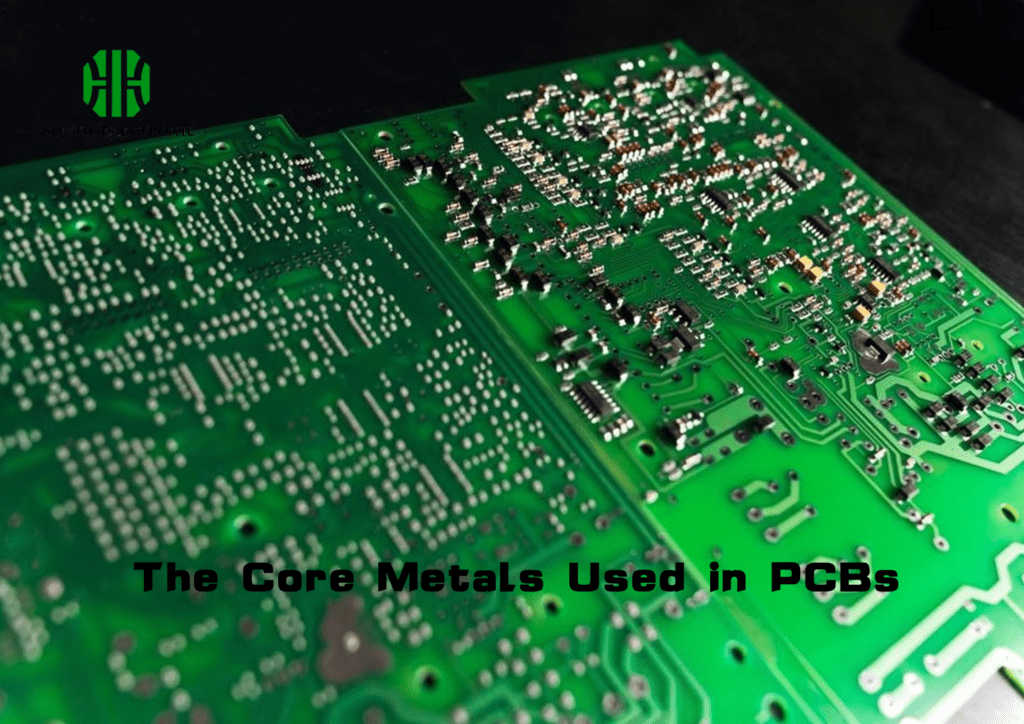

The Core Metals Used in PCBs
PCBs are mostly made of copper, which is a good conductor of electricity, along with resin and glass for strength. Other metals like tin, aluminum, and special alloys are also used depending on the type of PCB and what i’s being used for.

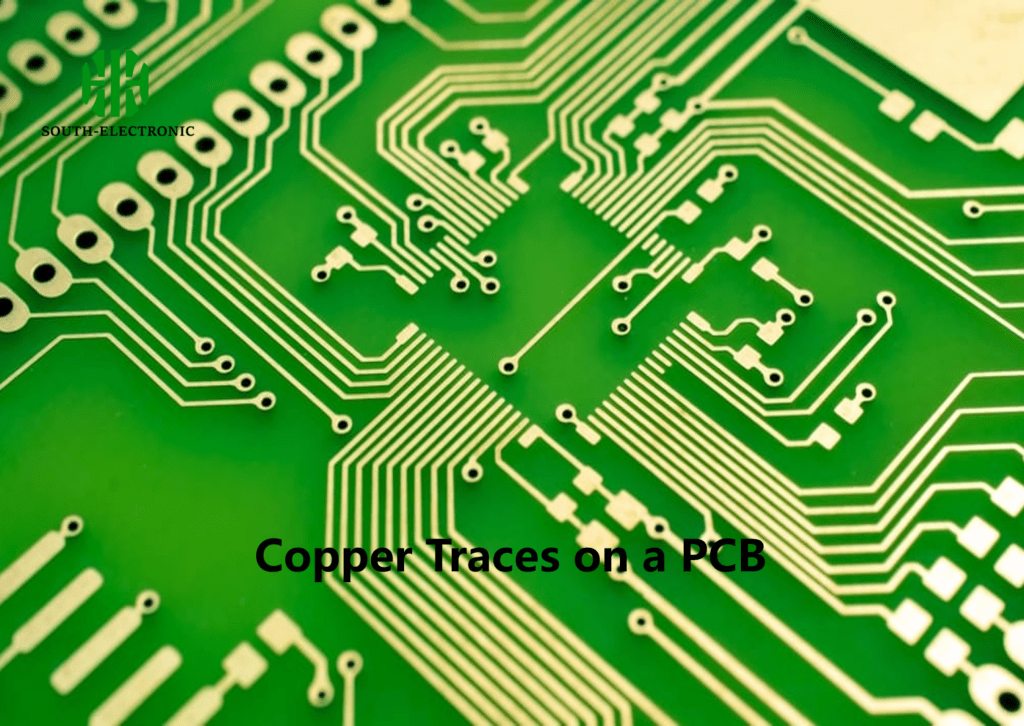

Why is Copper the Preferred Metal for PCBs?
Copper is the most widely used metal in PCBs because it conducts electricity really well. This means that copper can carry electrical signals really fast and without much resistance, which is important for high-performance electronics. Copper is also cheap and easy to work with, which makes it even more popular for making PCBs.
Here's a chart that compares copper with other metals that are commonly used in PCBs. It shows why copper is still the metal of choice:
| Metal | Electrical Conductivity (S/m) | Cost | Ease of Fabrication | Common Uses in PCBs |
|---|---|---|---|---|
| Copper | 5.96 x 10^7 | Moderate | High | Conductive traces |
| Aluminum | 3.77 x 10^7 | Low | Moderate | Heat sinks, power applications |
| Tin | 9.17 x 10^6 | Low | High | Soldering connections |
| Silver | 6.30 x 10^7 | High | Low | High-performance applications |
As shown in the table, copper offers an excellent balance of conductivity, cost, and ease of fabrication, making it the go-to metal for most PCB applications.

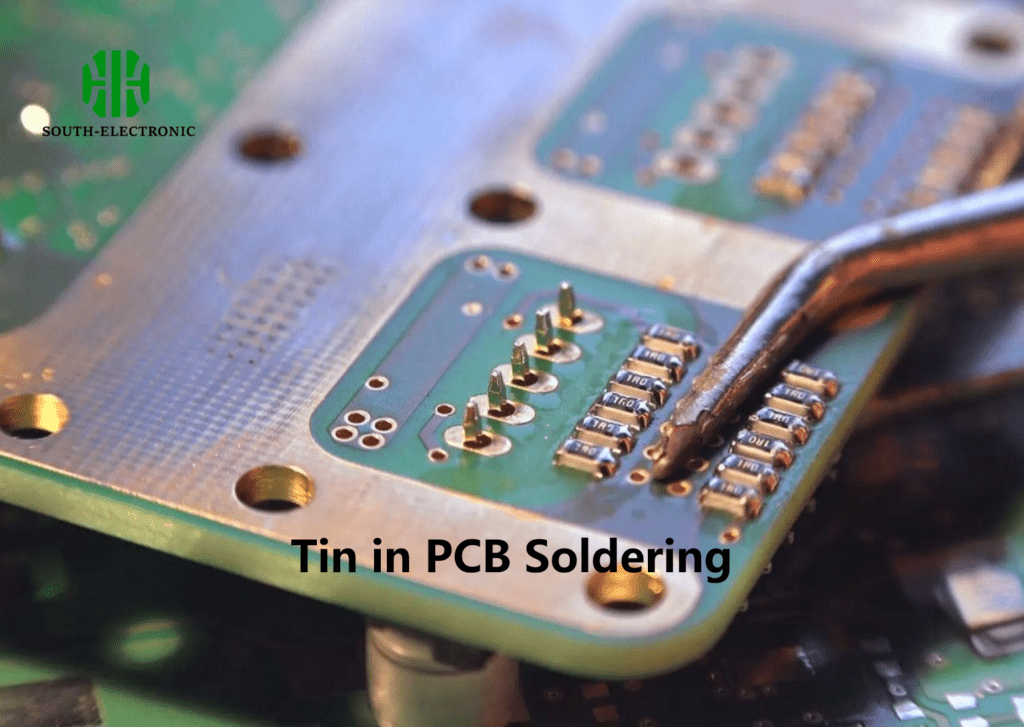

The Role of Tin in PCB Soldering
Tin is a key player in PCBs, especially when it comes to soldering. Solder, which is usually made of tin and lead or tin and silver alloys, is used to make solid connections between different parts and the copper traces on the PCB. Tin has a low melting point, so it's easy to solder without messing up other parts.

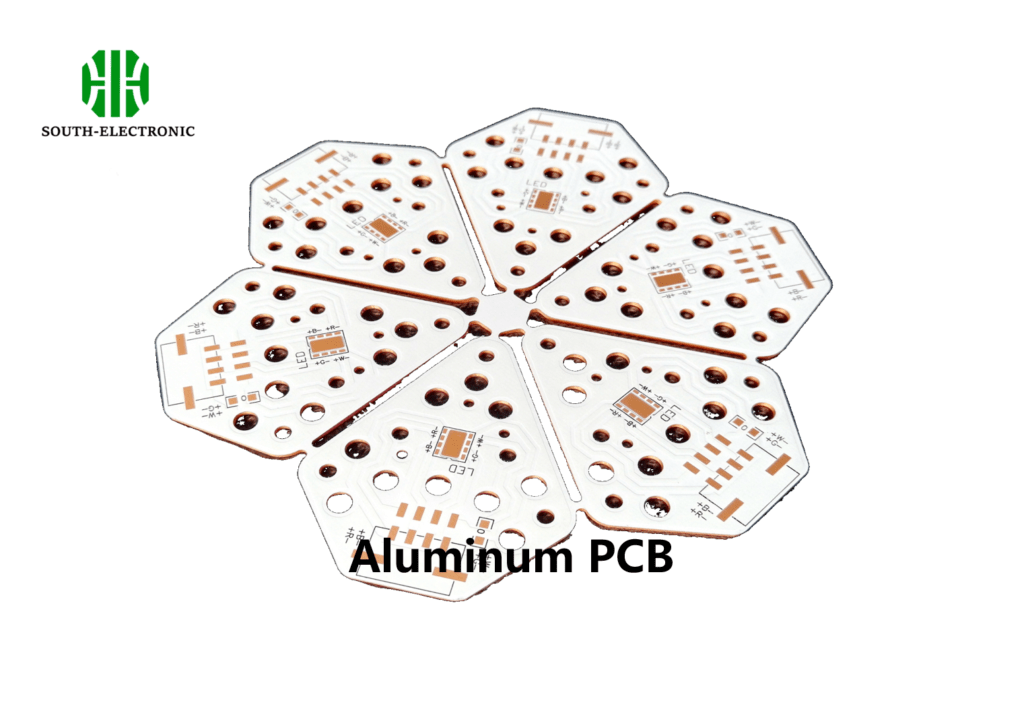

The Use of Aluminum and Other Metals in PCBs
In some PCB designs, especially those that need high power or thermal management, aluminum is the metal of choice. Aluminum is used in metal-core PCBs (MCPCBs) because it dissipates heat well. This makes it great for applications like LED lighting and power electronics, where managing heat is important for performance and lifespan.

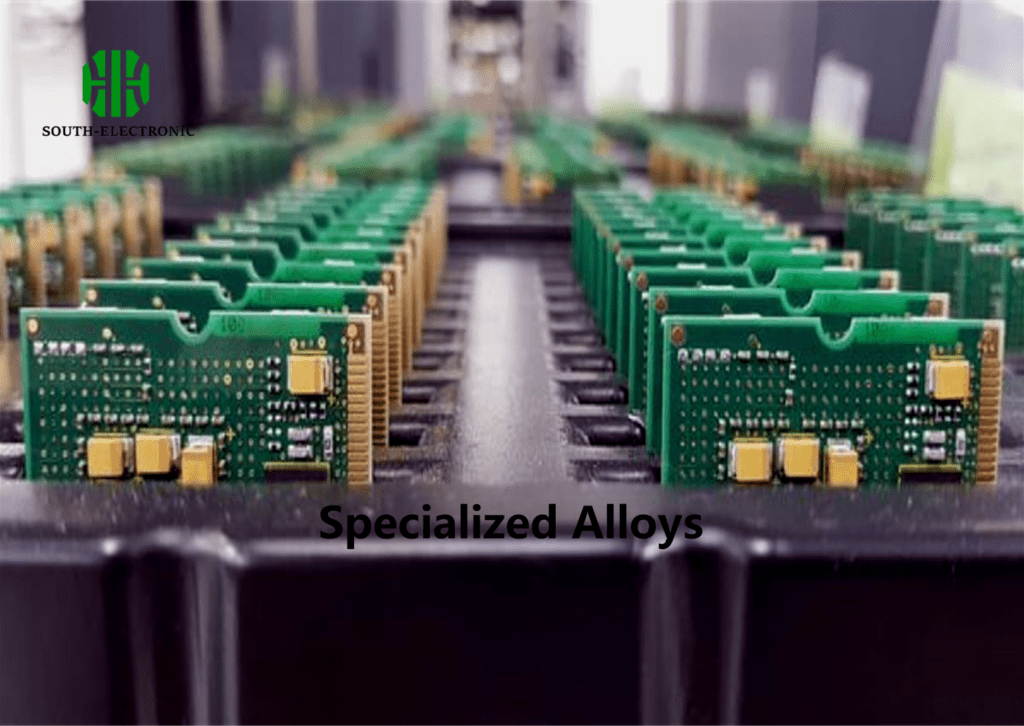

Specialized Alloys and Their Applications
Besides copper and aluminum, specialized alloys are employed in PCBs for specific applications. For example, heavy copper PCBs, which contain thicker layers of copper, are used in high-current applications. These PCBs are essential in industries like automotive and industrial electronics, where robustness and reliability are paramount.
What Other Materials Are Used in PCBs?
In some PCB designs, especially those that need high power or thermal management, aluminum is the metal of choice. Aluminum is used in metal-core PCBs (MCPCBs) because it dissipates heat well. This makes it great for applications like LED lighting and power electronics, where managing heat is important for performance and lifespan.

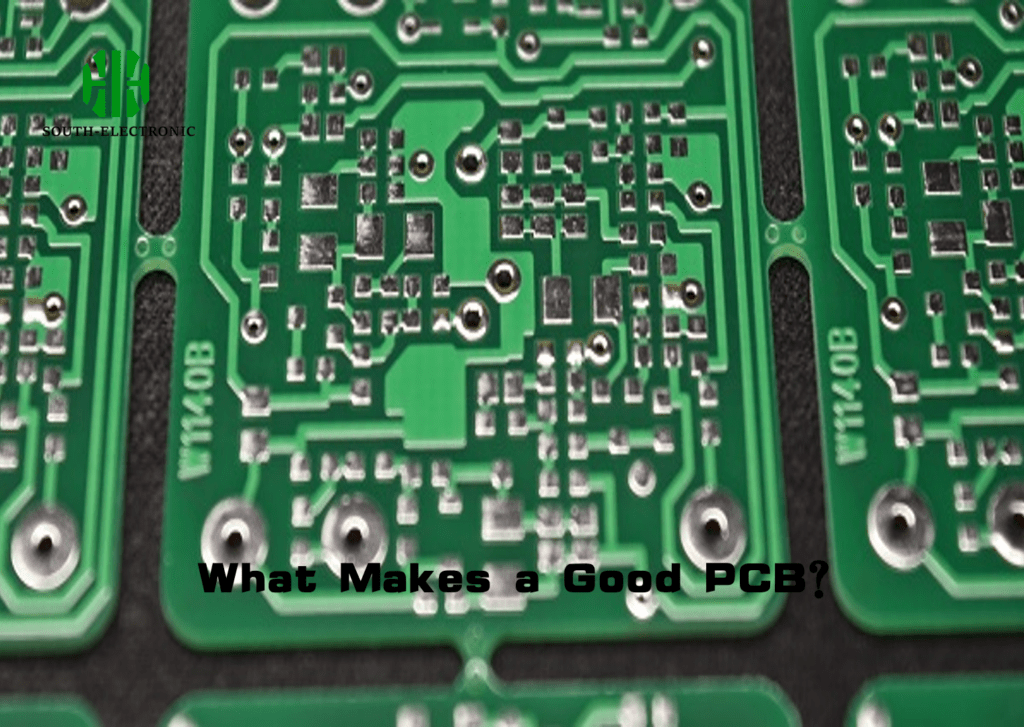

What Makes a Good PCB?
The effectiveness of a PCB is not just about the metals used, but also about the substrate materials that provide structural support and insulation. The choice of substrate has a big impact on the PCB's thermal management, mechanical strength, and overall durability.
The table below highlights the key properties of common PCB substrate materials:
| Substrate Material | Thermal Conductivity (W/mK) | Electrical Insulation | Mechanical Strength | Common Applications |
|---|---|---|---|---|
| FR4 (Epoxy Resin) | 0.3 - 0.4 | High | Moderate | General-purpose PCBs |
| Ceramic | 20 - 30 | High | High | High-frequency, high-power PCBs |
| Aluminum Core | 200+ | Moderate | High | LED lighting, power devices |
| Polyimide | 0.1 - 0.3 | High | High | Flexible circuits |
Choosing the Right PCB Material for Your Application
When it comes to picking the right materials for a PCB, you’ve got to find the right balance. You need to think about things like how well the material conducts electricity, how it handles heat, how strong it is, and how much it costs. You’ve got to think about what you need for your specific project and find the right mix of metals and substrates.
For instance, if you need to get rid of heat quickly, like in LED lighting or power electronics, you should use an aluminum core PCB. But if you're working with high frequencies, you might want to use a ceramic substrate with copper traces.
How to Combine Materials for Optimal Performance
One of the biggest challenges in PCB design is figuring out how to mix different materials to get the performance you want. That often means making trade-offs, like choosing between cost and how well the material conducts electricity, or between how strong the material is and how flexible it is.
Copper is still the metal of choice because it conducts electricity so well, but other metals, such as tin and aluminum, also play important roles. By carefully selecting and combining materials, engineers can optimize PCBs for a wide range of applications, from simple consumer electronics to complex industrial systems.
