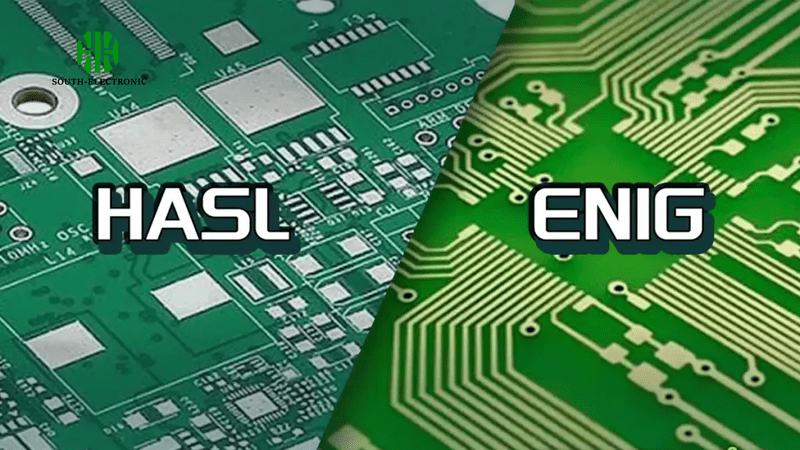

Choosing PCB finishes feels impossible. Your design fails because you picked wrong. Surface flaws cause costly reworks. Let's compare both options clearly.
ENIG gives flatter surfaces and lasts longer than HASL. But HASL costs less money. Your project's needs determine which one works best today.
Understanding these finishes matters for real results. We will explore three key questions about cost, value, and performance next.
Which surface finish (HASL or ENIG) saves costs on fine-pitch components for HDI designs?
HASL seems cheaper until tiny parts arrive. Thin connections demand perfect surfaces. Rough HASL creates hidden flaws.
HASL costs less initially but causes soldering defects on small components. ENIG's flatness prevents rework costs in dense HDI designs despite higher upfront pricing.
Cost Factors for Fine-Pitch Applications
HASL’s uneven surface creates hidden expenses:
| Factor | HASL Impact | ENIG Solution |
|---|---|---|
| Solder Bridging | High risk with gaps under 0.4mm | Flat surface prevents shorts |
| Rework Rate | 15-30% increase | Under 5% defect rate |
| Stencil Wear | Frequent cleaning needed | Consistent paste release |
Small components need perfect leveling. HASL leaves bumps between pads. These bumps misalign solder paste. Later, bridges form between pins. Fixing these needs extra work hours. ENIG costs more per board but reduces labor. When making thousands of boards, ENIG actually saves factory time. Also, ENIG boards last longer before oxidization. You don’t rush production for freshness.
When does ENIG's higher price outweigh HASL’s savings?
Cheap choices become expensive later. Electronics face harsh conditions over time. Poor protection destroys functionality.
ENIG justifies its cost in harsh environments or complex designs. Where reliability prevents field failures, ENIG's durability offsets its initial price premium.
ENIG Value Scenarios
Consider ENIG when these occur:
| Situation | HASL Risk | ENIG Advantage |
|---|---|---|
| High humidity | 3-6 month shelf life | 12+ months before corrosion |
| Temperature cycling | Solder joint cracks develop | Nickel layer absorbs stress |
| Contact switches/sliders | Gold wears off contacts fast | 50,000+ operation cycles |
I once used HASL for marine equipment. Salt air damaged boards in months. Total replacement cost doubled. ENIG handles moisture, heat, and friction better. Think about repair difficulty. Medical or aerospace gear requires perfect operation. Failure means lawsuits or recalls. ENIG also keeps signal paths cleaner. Gold doesn’t tarnish like solder coatings. This ensures stable performance in critical systems.
How do ENIG and HASL affect high-speed PCB signal integrity?
Modern circuits race at gigahertz speeds. Surface roughness slows signals down. Energy gets lost along jagged paths.
ENIG’s smoother surface causes less signal loss than HASL. For high-frequency designs above 500MHz, ENIG maintains cleaner signal quality despite higher cost.
Signal Performance Breakdown
Surface roughness effects at 10GHz:
| Parameter | HASL Impact | ENIG Impact |
|---|---|---|
| Signal Attenuation | 0.5dB per inch loss | 0.2dB per inch loss |
| Edge Consistency | ±15% variation | ±5% variation |
| Impedance Control | Hard to maintain tolerance | Stable 50Ω impedance paths |
Signals travel along copper surfaces. HASL creates hills and valleys. Signals bounce off uneven terrain. This distorts their shape and timing. ENIG provides paved highways. I tested both finishes on antenna circuits. HASL lost 40% more power at 6GHz. Small differences cause big errors. Think about 5G routers or server boards. Each dB loss reduces range or speed. ENIG gives predictable results faster.
Conclusion
Choose HASL for simple, cost-driven projects needing quick turnaround. Select ENIG when reliability, fine details, or high speeds matter most in your PCB.
