Have you ever wondered why engineers use "zero ohm" resistors in circuits that clearly need conductive paths? Let’s demystify this paradoxical component.
0Ω resistors[^1] act as flexible circuit bridges[^2], enable design revisions without PCB modifications, simplify testing, and optimize automated assembly workflows[^3]—all while costing less than jumpers or wire links.
)
Understanding zero-ohm resistors reveals how tiny components solve big engineering challenges. From circuit debugging to mass production, let’s explore their strategic value.

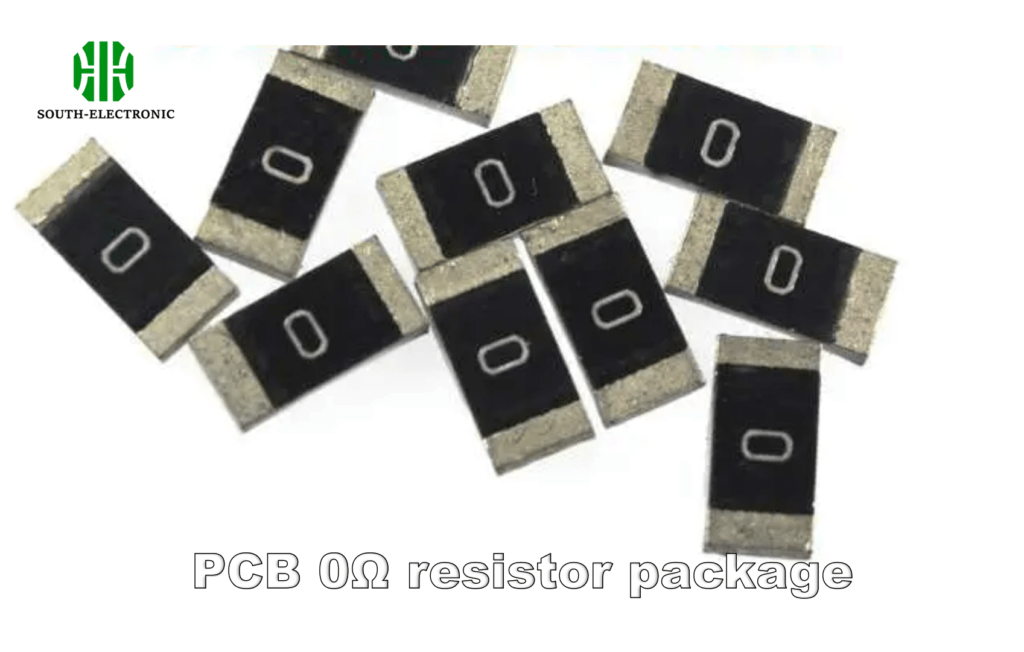

What Is a 0 Ohm Resistor?
When a resistor labeled "0Ω" appears on a PCB, new engineers often question its purpose. It’s not a voltage limiter or current controller.
A 0Ω resistor functions as an ideal conductor under nominal conditions, allowing designers to modify circuit layouts through standardized SMT components instead of manual wiring.
)
Beyond Zero: Three Practical Perspectives
| Feature | Practical Implications | Real-World Example |
|---|---|---|
| Resistance Tolerance | ±50mΩ actual resistance | Negligible for digital signals |
| Current Capacity | Dictated by package size (e.g., 0603: 1A max) | Power supply branch selection |
| Assembly Compatibility | Compatible with SMT pick-and-place machines | Automated production efficiency |
While mathematically "zero ohms" doesn’t exist, these resistors provide critical advantages over wires: standardized sizes for automated assembly, replaceable debugging points, and controlled impedance when bridging circuit sections.

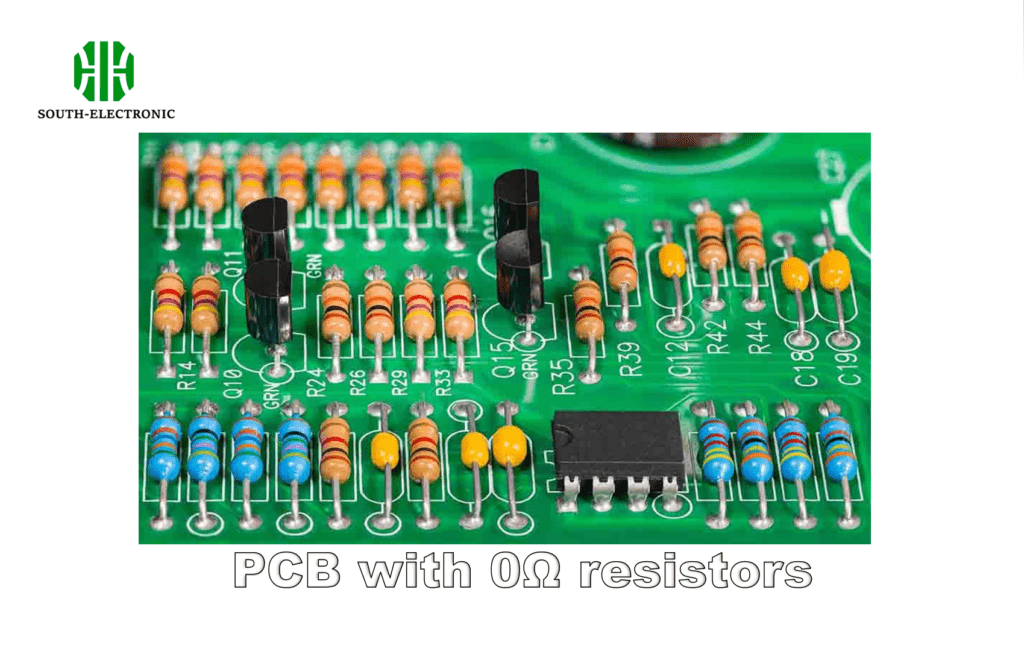

Various Uses and Advantages of Zero Ohm Resistors
Why use resistors instead of copper traces? Hidden behind this simplicity lie multiple engineering strategies.

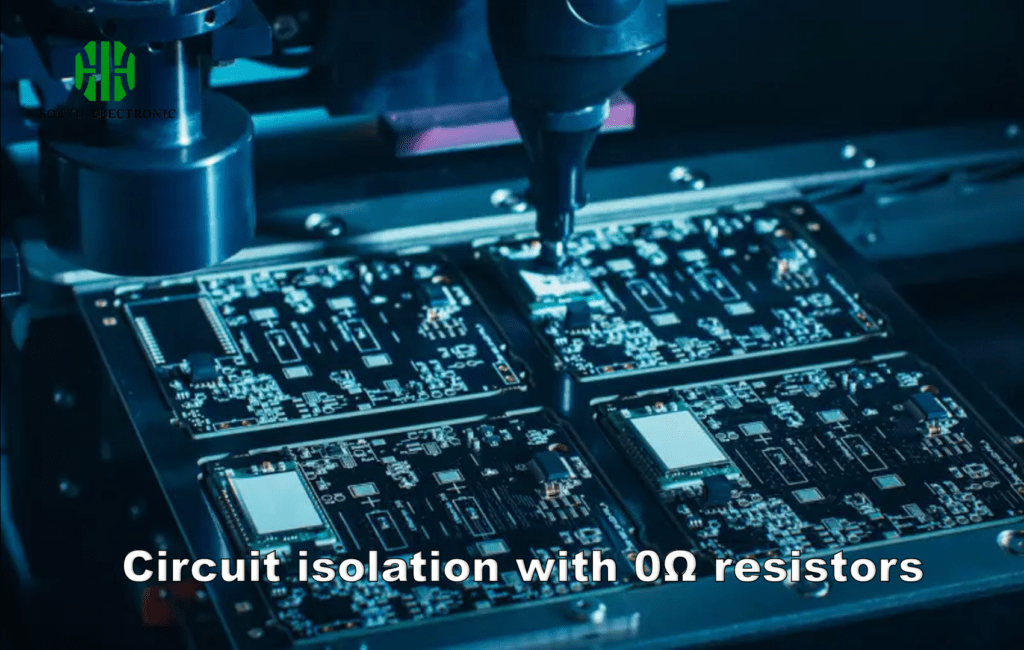

Engineers deploy 0Ω resistors as modular circuit switches, noise isolators between analog/digital sections, placeholder components for version control, and expendable fuse substitutes during prototyping.
)
4 Key Applications Structured
| Application | Implementation Example | Advantage Over Alternatives |
|---|---|---|
| Debugging Bridges[^4] | Bypassing suspected faulty circuit blocks | No soldering damage from jumper wires |
| Version Control[^5] | Populating different branches for product variants | Single PCB serves multiple SKUs |
| Ground Separation | Star grounding in mixed-signal systems | Controlled reunification points |
| Test Point Insertion | In-circuit measurement without probe slippage | Standardized probe pad alignment |
A prototype project I worked on used 14 zero-ohm resistors to enable 8 functional configurations—proving cheaper than manufacturing multiple PCB versions.
Design Considerations When Using 0 Ohm Resistors

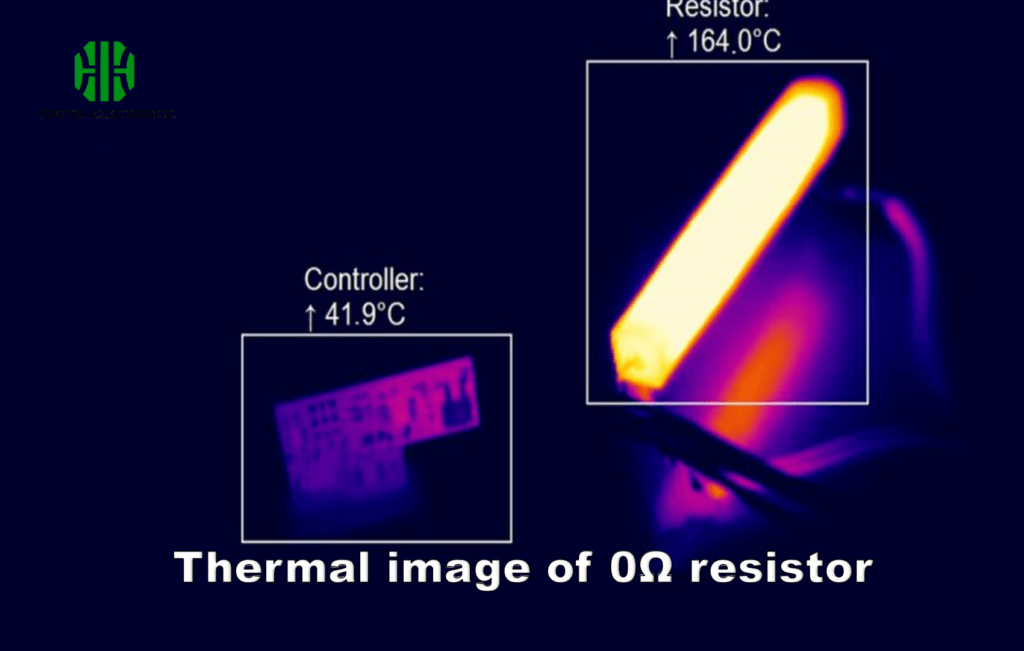

Choosing 0Ω resistors isn’t brainless. I’ve seen boards fail due to overheating resistors in power paths.
Key factors: current rating[^6] (package size dependent), thermal management[^7], voltage drop tolerance, noise susceptibility, and post-soldering rework feasibility.
)
Component Selection Framework
| Parameter | 0402 Package (1A) | 1206 Package (2A) | Engineering Trade-off |
|---|---|---|---|
| Current Capacity | 1A continuous | 2A continuous | Size vs thermal dissipation |
| Voltage Drop | ~50mV at 1A | ~20mV at 2A | Acceptable loss for logic vs power |
| Thermal Resistance | 250°C/W | 150°C/W | Ambient temperature sensitivity |
| Placement Precision | Requires fine-pitch | Forgiving for hand-soldering | Production capability alignment |
In motor control PCBs, I prioritize 1206 packages for higher surge current tolerance, despite their larger footprint.

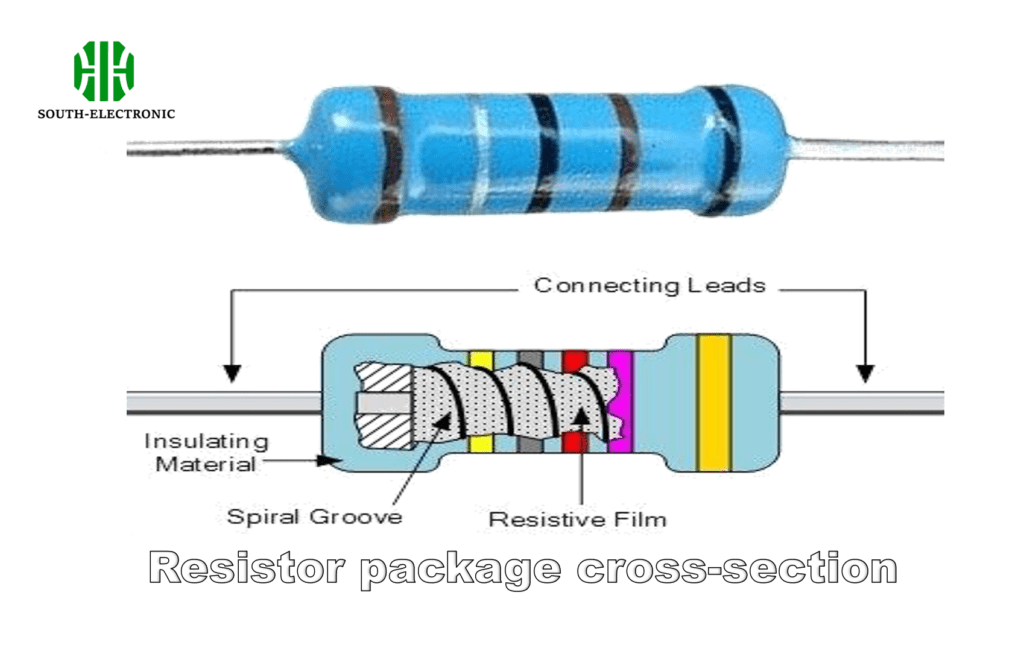

0402 or 1206? 5 Parameters Determine Your Circuit Reliability
Package selection dictates field reliability. A medical device recall once traced to undersized 0Ω resistors.
Choose packages based on: peak current, temperature rise limits, vibration resilience, solder joint inspectability[^8], and rework cycle requirements.
)
Package Decision Matrix
| Evaluation Metric | 0402 Advantage | 1206 Advantage | Criticality Weighting (1-5) |
|---|---|---|---|
| Current Handling | Limited (1A) | Strong (2A+) | 5 for power paths |
| Thermal Performance | Poor | Good | 4 for continuous duty |
| Mechanical Strength | Fracture-prone | Vibration-resistant | 3 for mobile devices |
| Solder Inspection | Requires X-ray | Visual confirmation | 2 for non-critical apps |
| Rework Ease | High skill required | Beginner-friendly | 4 for prototyping |
Automotive designs often mandate 1206 packages for vibration resistance, while wearables optimize with 0402 for space savings.
Conclusion
0Ω resistors exemplify engineering pragmatism—transforming theoretical imperfections into affordable, adaptable circuit solutions through smart component repurposing.
