Why Do PCB Boards Break Down Within a Couple of Decades?

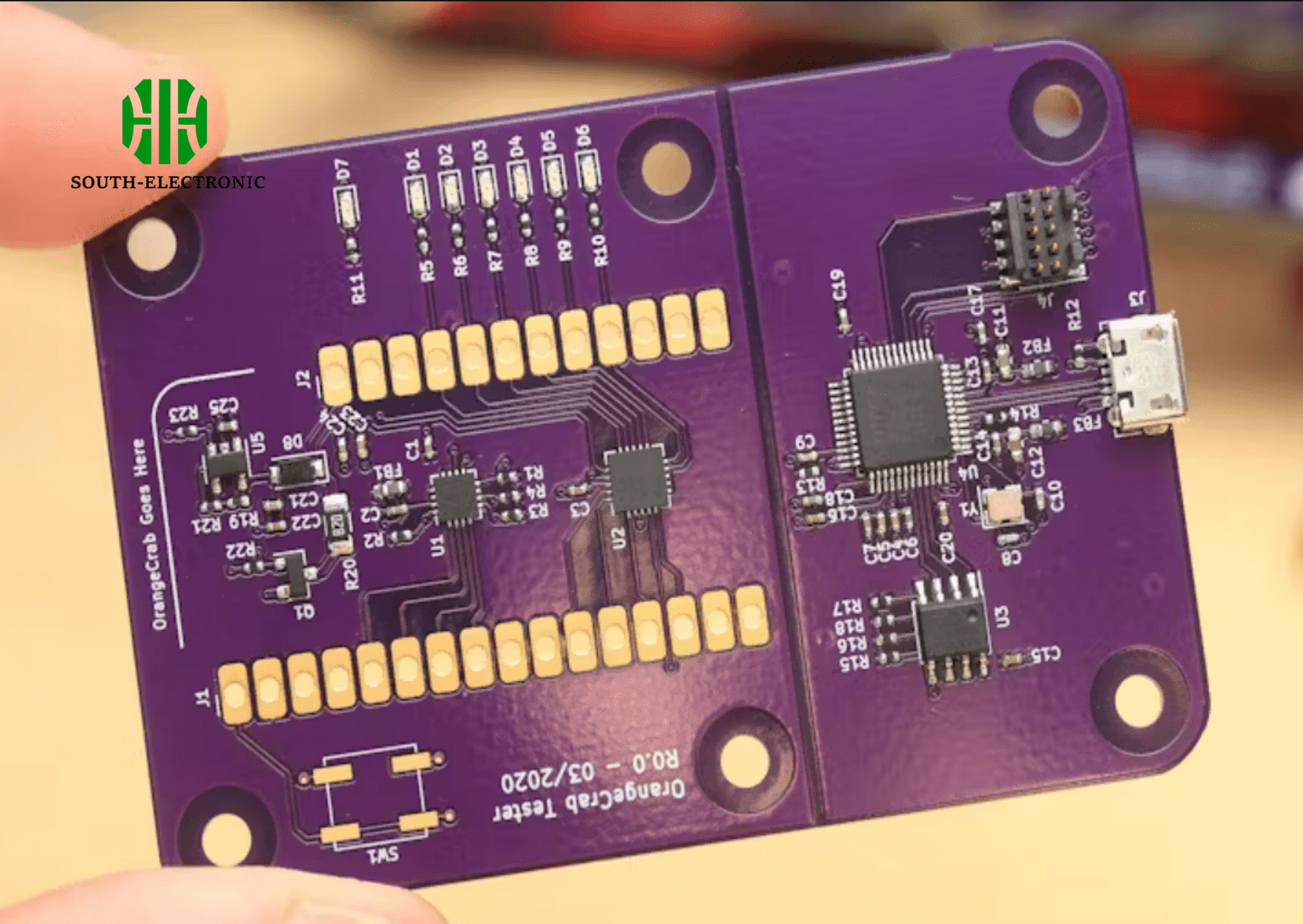

Printed Circuit Boards (PCBs) are the backbone of modern electronic devices, yet they often break down within a couple of decades. On average, PCBs get about 50-70 years of use under the right conditions. Be sure to follow all of the manufacturer's recommendations that are included in their terms of use. The factors impacting the shelf life of assembled PCBs include environmental conditions, handling, and usage.
PCBs can break down within decades due to continuous exposure to environmental factors like moisture, dust, and temperature fluctuations. Frequent changes in temperature can cause PCB components to contract or expand, damaging solder joints and warping the board. Additionally, accumulated dust can obstruct the board, further contributing to its deterioration.
To ensure longevity, it's crucial to understand the common causes of PCB failure and how to mitigate them.
Factors Affecting PCB Lifespan
| Factor | Description |
|---|---|
| Environmental Stress | Exposure to moisture, dust, heat, and cold |
| Mechanical Stress | Physical impacts and vibrations |
| Electrical Stress | Overloads, surges, and electrostatic discharge (ESD) |
| Quality of Materials | Quality of soldering, components, and the PCB itself |
| Manufacturing Process | Precision and accuracy during the manufacturing process |
What is the Main Cause of PCB Failure?
PCBs are sensitive creatures. Exposure to heat, dust, and moisture, accidental impacts (drops and falls), and power overloads/surges can all cause circuit board failure. The most damaging cause of premature circuit board failure is electrostatic discharge (ESD) at the assembly stage.
| Cause | Description |
|---|---|
| Moisture and Contamination | Water and dirt can lead to corrosion and short circuits |
| Temperature Fluctuations | Expansion and contraction can cause physical damage |
| Electrical Overloads | Surges and overloads can damage components and traces |
| Physical Damage | Dropping or bending the board can break connections and components |
| Manufacturing Defects | Poor soldering and material defects can cause failures |
What is the Root Cause Analysis for PCB Failure?
The failure mechanism is often found to be a conductive anodic filament (CAF) even though the PCB is CAF-resistant. CAF formation occurs when ionic contamination leads to a conductive path within the PCB laminate, causing shorts. The root cause can be due to PCB de-penalization, where mechanical stress during the separation of PCBs can introduce defects.
PCB Problems and Solutions
Addressing common problems in PCB (Printed Circuit Board) design and manufacturing is crucial for ensuring the reliability and functionality of electronic devices. Here are some frequent issues and their solutions:
1. Solder Bridging
Problem: Solder bridging occurs when solder connects two or more pins that should not be connected, often due to closely spaced pins.
Solution: Increase the spacing between pins or use solder mask between the pads. Additionally, optimizing the stencil design and using precise solder paste application can prevent excessive solder from causing bridges.
2. Acid Traps
Problem: Acid traps happen when the PCB design creates sharp angles, potentially trapping etching chemicals during the manufacturing process and leading to circuit failure.
Solution: Avoid designs with acute angles. Use 45-degree angles instead of 90-degree angles to help the etching solution flow more smoothly without getting trapped.
3. Tombstoning
Problem: Tombstoning refers to a scenario where one end of a surface mount component lifts off the PCB during soldering, resembling a tombstone.
Solution: Ensure even heating during the soldering process. Check that pad sizes are uniform and correctly aligned with component requirements. Adjusting the solder paste deposition might also help.
4. Delamination
Problem: PCB layers may separate (delaminate) due to high moisture absorption and thermal stress during soldering.
Solution: Use high-quality base materials that are less prone to moisture absorption. Pre-bake the boards to remove moisture before soldering, and carefully control the thermal profile during the soldering process.
5. Signal Integrity Issues
Problem: High-speed signals can be degraded by improper routing and lack of impedance control, leading to noise, crosstalk, and data corruption.
Solution: Design the layout with impedance control in mind, using proper trace width and spacing. Utilize ground planes and shielding techniques to minimize interference. Simulation tools can help identify potential signal integrity problems early in the design phase.
6. Thermal Management
Problem: Overheating can damage components and affect PCB performance, especially in compact designs with high power density.
Solution: Incorporate thermal relief pads and heat sinks as needed. Design the layout to ensure good heat distribution, possibly including thermal vias to conduct heat away from hot components.
7. Incomplete Wetting
Problem: Incomplete wetting occurs when the solder does not form a good connection with a surface mount pad, often due to oxidized pads or insufficient flux.
Solution: Ensure that the PCB and components are clean and free of oxidation before soldering. Use adequate and appropriate flux to aid in soldering.
8. Electromagnetic Interference (EMI)
Problem: EMI can cause erratic behavior and reduce the performance of electronic circuits.
Solution: Design for EMI compliance by using proper filtering, shielding, and grounding techniques. Keep high-speed traces short and shielded, and separate them from sensitive analog signals.
9. Incorrect Component Placement
Problem: Misalignment or incorrect placement of components can lead to assembly issues and functional failures.
Solution: Use precise and calibrated placement machinery. Ensure that the design files are accurate and that all components are correctly oriented in the pick-and-place files.
Addressing these common PCB problems requires a combination of careful design, high-quality materials, and precise manufacturing practices. Using advanced design software and adhering to industry standards can also help prevent many of these issues from occurring.
Having a comprehensive troubleshooting guide can be invaluable for diagnosing and fixing PCB issues.
In conclusion, while PCBs have a long potential lifespan, various factors can lead to their premature failure. By understanding these factors and implementing preventive measures, the longevity of PCBs can be significantly enhanced. Remember to always follow best practices in PCB design, manufacturing, and maintenance to maximize their durability.
