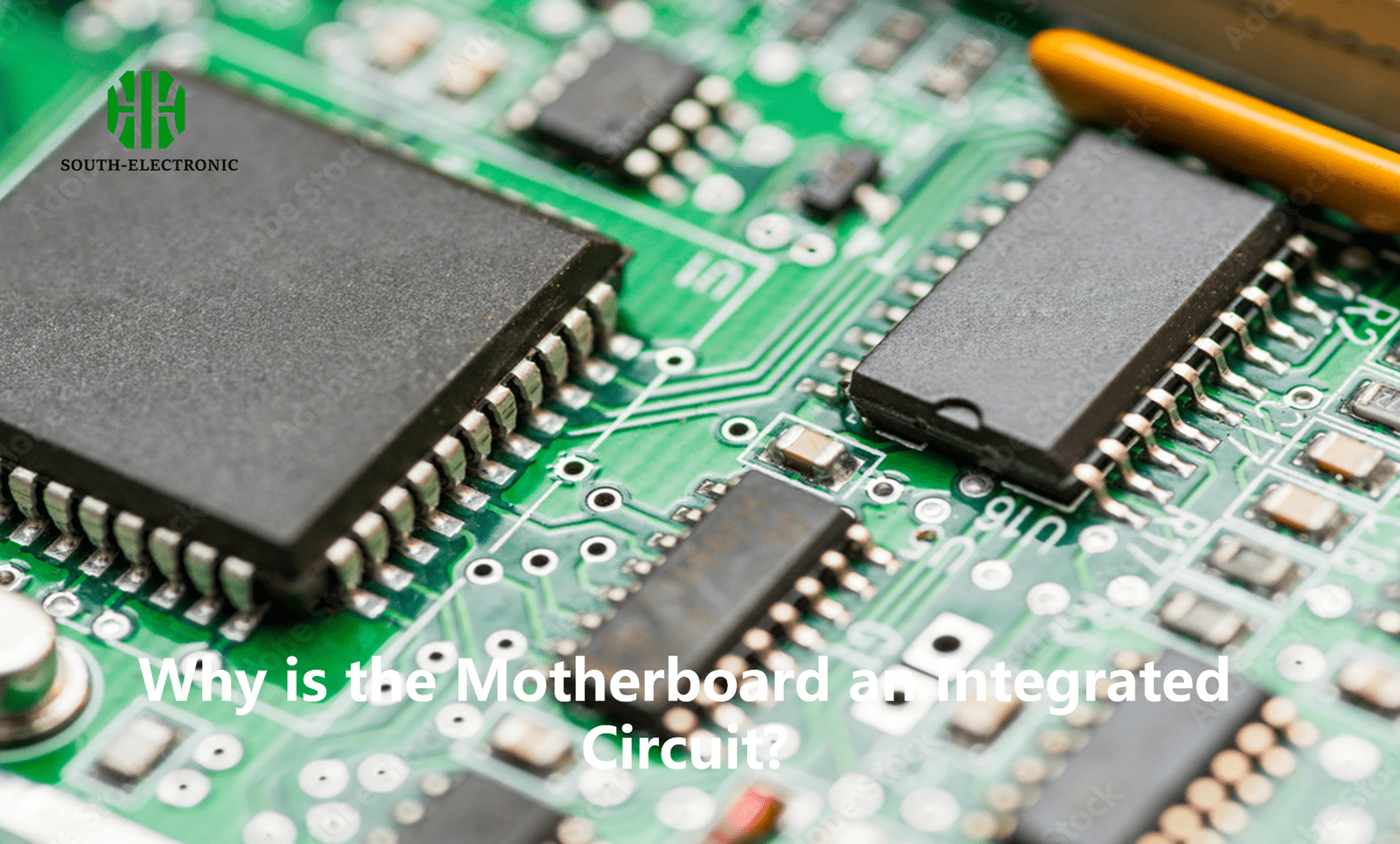

Why is the Motherboard an Integrated Circuit?
The reason why the motherboard is considered an integrated circuit is because it is one. It is a single chip that contains multiple components. The integration of multiple components into a single chip offers significant benefits in size, cost, and performance. The motherboard is a perfect example of how advancements in electronic engineering have made modern computing possible. It is also a perfect example of how advancements in electronic engineering will continue to shape the future of technology.

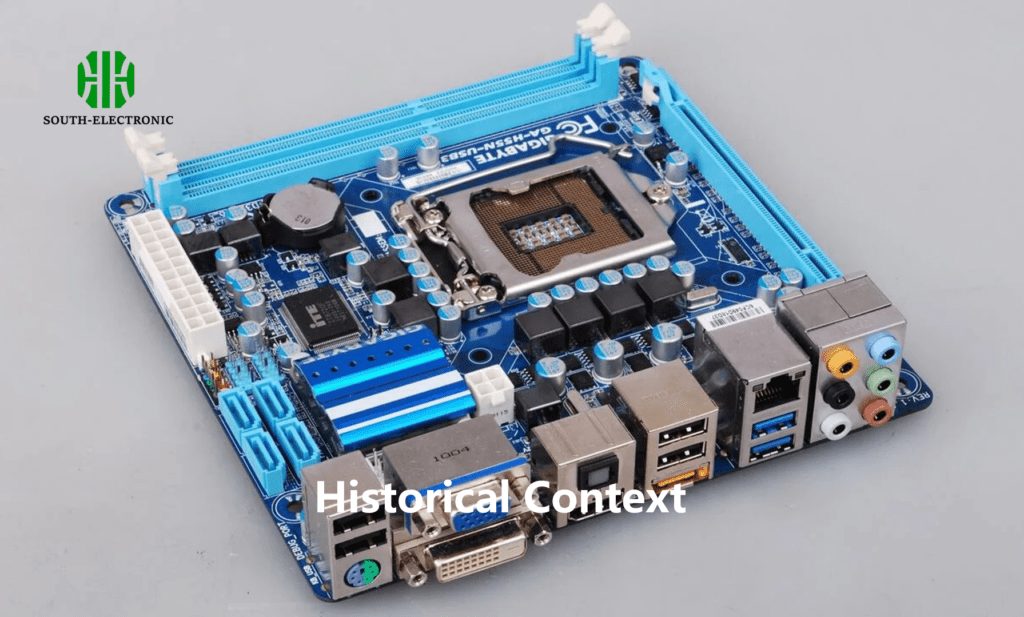

Historical Context
Motherboards have come a long way since their humble beginnings as simple circuit boards. Today, they are complex integrated circuits that are smaller, faster, and more efficient than ever before. The reason for this evolution is simple: people want computers that are smaller, faster, and more efficient. In the early days of computing, computers were made up of discrete components. As technology advanced, it became possible to integrate these components onto a single chip.
Technical Explanation
Motherboards have a bunch of chips on them, including the NorthBridge and SouthBridge chips. These chips help the CPU, memory, and other stuff talk to each other. They’re really important for making the motherboard work good.
- NorthBridge: Handles high-speed communication between the CPU, RAM, and GPU.
- SouthBridge: Manages lower-speed peripherals like hard drives, USB ports, and audio devices.

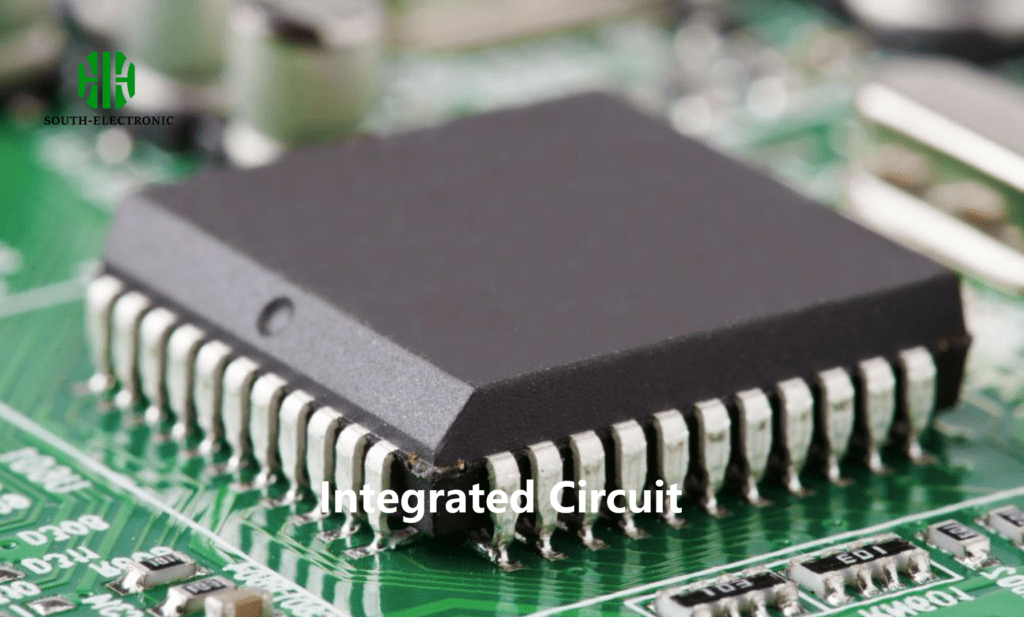

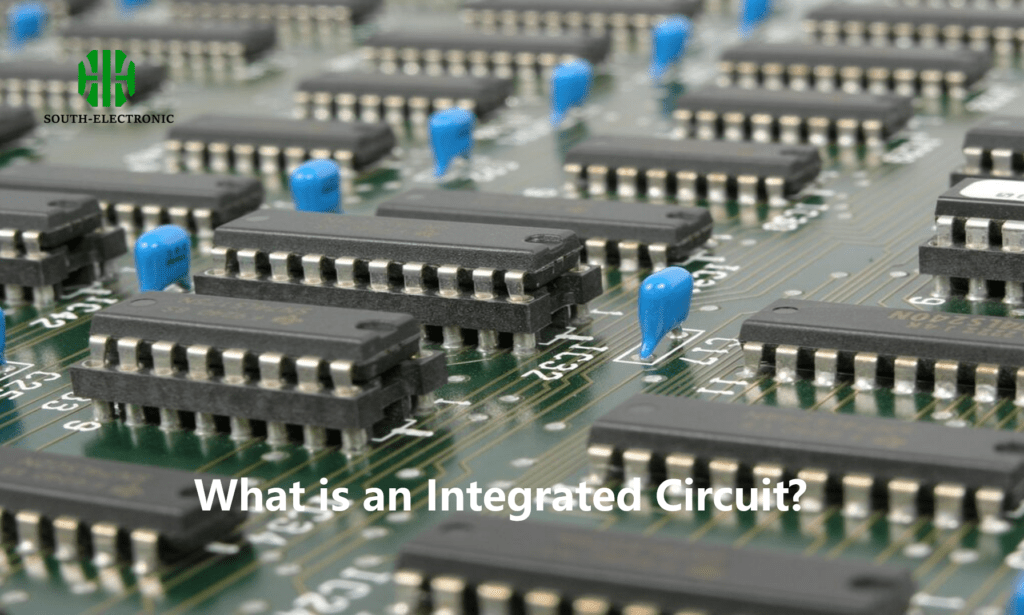

What is an Integrated Circuit?

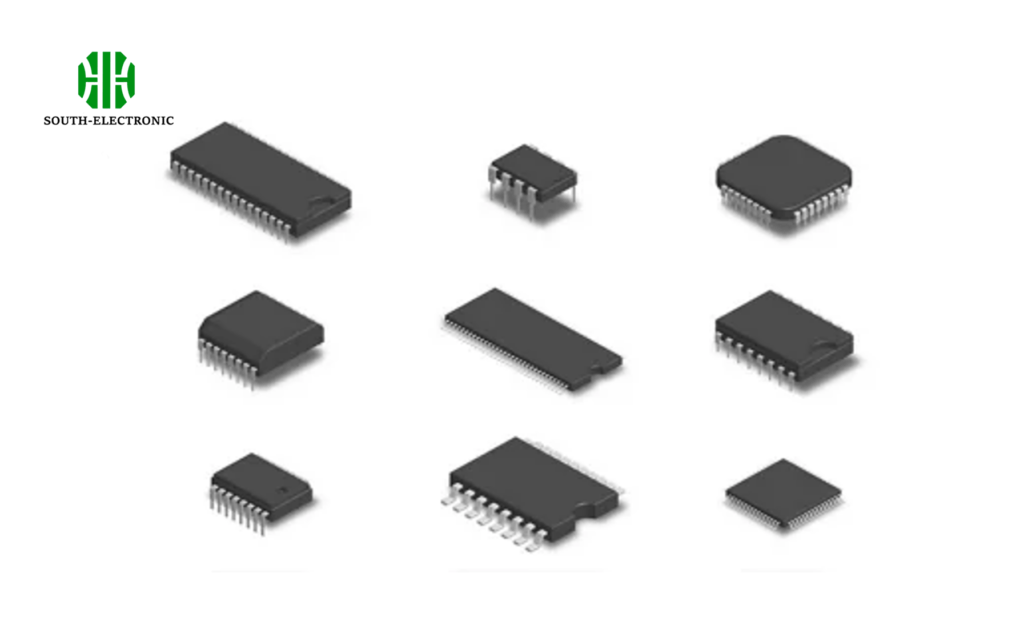

A chip, also known as an integrated circuit (IC), is a wafer made of a semiconductor material. On this wafer, you’ll find thousands or even millions of tiny resistors, capacitors, and transistors. ICs are used in just about every electronic device you can think of and have completely changed the world of electronics.
Components of an IC：
- Transistors: The basic building blocks of ICs.
- Resistors: Used to control the flow of electric current.
- Capacitors: Store and release electrical energy.
- Diodes: Allow current to flow in one direction only.
| Component | Function |
|---|---|
| Transistors | Switch or amplify electrical signals |
| Resistors | Control the flow of electric current |
| Capacitors | Store and release electrical energy |
| Diodes | Allow current to flow in one direction |

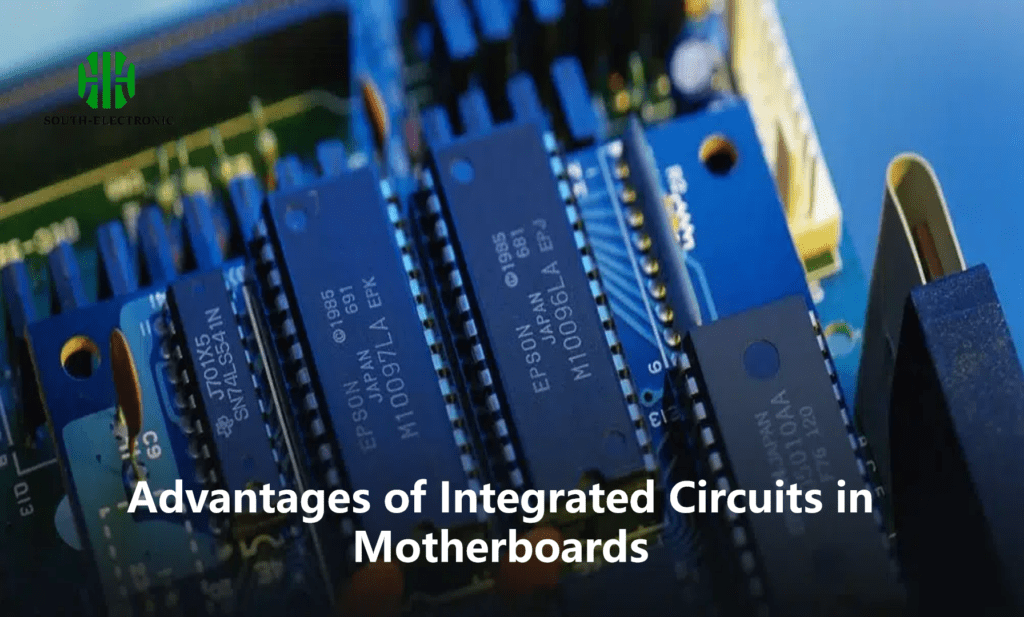

Advantages of Integrated Circuits in Motherboards
Size Reduction
By cramming lots of stuff onto one chip, ICs make electronic devices smaller. This is important because it lets us make computers and other gadgets that are really small.
Cost Efficiency
Mass producing ICs cuts the cost of making electronic gadgets. Photolithography lets you make thousands of chips at once, which makes them cheaper to produce.
Performance Enhancement
ICs make electronic devices work better and last longer. Because everything is packed so close together, signals travel faster and use less power. That means devices can do more, faster, and use less energy.
| Feature | Discrete Components | Integrated Circuits |
|---|---|---|
| Size | Larger | Smaller |
| Cost | Higher | Lower |
| Performance | Lower | Higher |
| Reliability | Less reliable | More reliable |
Applications and Impact of Integrated Circuits
Widespread Use in Modern Electronics
ICs are in almost all modern electronic devices, from computers and smartphones to household appliances and medical equipment. They can do complex things in a small space, so they’re a big deal in today’s tech-driven world.
Future Trends and Innovations
IC technology keeps getting better, with things like system-on-chip (SoC) designs and three-dimensional ICs (3D ICs) pushing the envelope. These innovations are going to make electronic devices even faster and more efficient in the future.
Common Questions About Motherboards and Integrated Circuits
Is a motherboard an integrated circuit?
The motherboard ain’t just one big chip. It’s got several chips on it, like the NorthBridge and SouthBridge, that are important for it to work.
What makes an integrated circuit?
An IC is made from silicon, with electronic components like transistors and resistors embedded within it. These components are connected by tiny wires to form a complete circuit.
Why is it called an integrated circuit?
The term “integrated circuit” comes from the integration of thousands of semiconductor devices into a single chip. This integration reduces the need for multiple discrete components and simplifies circuit design.
What is an integrated circuit board?
An IC board is a PCB that holds ICs. It has solder points for attaching ICs and other components, so they can be part of electronic systems.
Conclusion
Motherboards are a great example of how far electronics have come. They’re smaller, faster, and more reliable than ever before. Integrated circuits are a big reason why. They’ve made it possible to pack more power into a smaller space. As technology continues to advance, integrated circuits will play an even bigger role in shaping our digital future.
