Circuit interference ruining your projects? Optocouplers fix that. Let’s explore what they are and why they matter.
Optocouplers (OC) transmit signals via light, isolating input and output. They use an LED and photodetector, key for anti-interference in circuits.
I once skipped an optocoupler in a motor circuit—noise fried the controller. Learn from that mistake. Let’s break down how they work, types, and uses.
How Do Optocouplers Transmit Signals?
Wondering how light carries electricity? That’s the magic. Get this wrong, and your circuit fails.

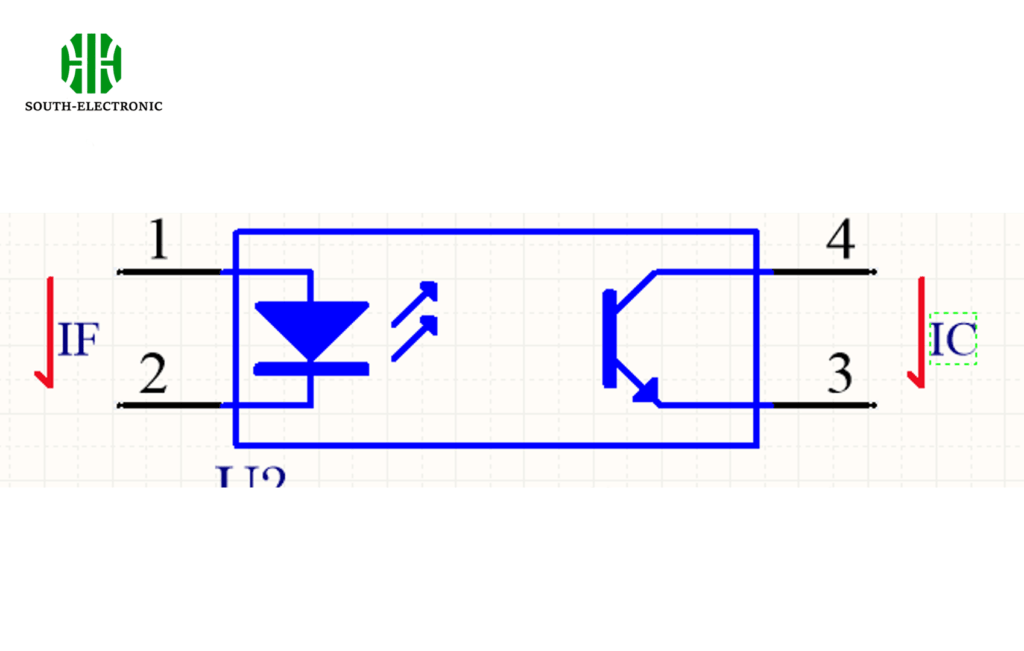

Optocouplers convert electricity to light (via LED), then back to electricity (via photodetector). This isolates input and output.
The Three Steps
- Electricity to Light: Input current powers an LED. The LED glows—brightness matches the input signal. I saw this in a test: 5V input made the LED shine; 0V turned it off.
- Light to Electricity: A photodetector (like a phototransistor) sits near the LED. It catches the light and makes a small current. More light = more current.
- Amplification: Some optocouplers boost the small current to usable levels. This ensures the output signal is strong enough.
Why Isolation Matters
Input and output have no direct electrical connection. This stops noise or high voltage from crossing. In a power supply I built, the optocoupler kept 220V mains from frying the 5V control circuit.
| Component | Role |
|---|---|
| LED | Converts input electricity to light |
| Photodetector | Converts light back to electricity |
| Amplifier (if present) | Strengthens the output signal |
Last month, a trainee wired around the optocoupler. A voltage spike destroyed the microcontroller. Isolation isn’t optional—it’s critical.

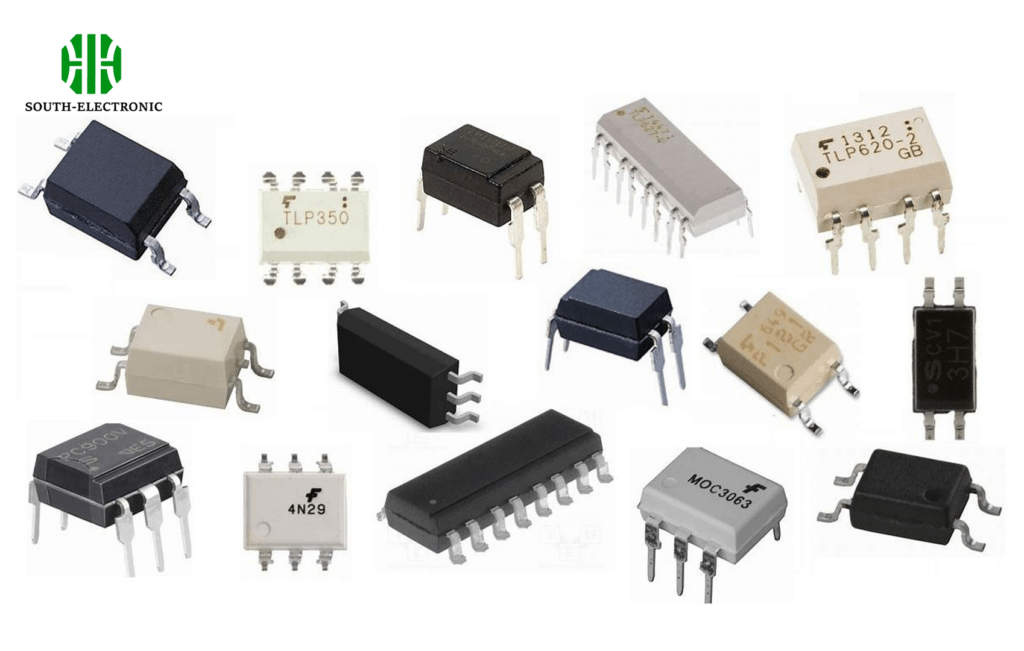

How Are Optocouplers Classified by Light Path?
Light path types confused me at first. Pick the wrong one, and your optocoupler won’t detect signals.
They’re split into internal (enclosed light path) and external (open path) types. External ones include through-beam and reflective.
Internal Light Path
The LED and photodetector are sealed in one package. Light travels directly inside—no outside interference. I use these for most circuits. They’re reliable for signal isolation. A good example is the 4N25 optocoupler—it’s sealed, so dust or light from other sources don’t affect it.
External Light Path
These have separate LED and photodetector. Light travels through open space. Two main kinds:
- Through-beam: LED on one side, detector on the other. An object blocking the light changes the signal. I used this in a door sensor—opening the door broke the beam, triggering an alarm.
- Reflective: LED and detector are next to each other. They bounce light off a surface. No reflection (e.g., no object) means no signal. Great for counting parts on a conveyor.
| Type | Structure | Best For |
|---|---|---|
| Internal | Sealed package | Signal isolation, noise reduction |
| External Through-beam | Separate LED/detector, straight path | Object detection, counting |
| External Reflective | LED/detector together, light bounces | Proximity sensing, surface detection |
I tried an internal optocoupler for a conveyor counter once. It failed—needed the external reflective type to "see" the parts.
What Are the Output Types of Optocouplers?
Picking the wrong output type crashed my first power supply. Outputs aren’t one-size-fits-all.
Output types include photodiode, phototransistor, Darlington, logic gate, and power (IGBT/MOSFET) types, each for specific tasks.
Common Output Types
- Photodiode: Simple, fast, but low current. Good for high-speed signals. I used one in a 1MHz data link—it kept up with the speed.
- Phototransistor: More current than a diode, but slower. Works for slow signals like on/off switches.
- Darlington Transistor: Even more current (up to 100mA). Great for driving small motors or relays. In a fan control circuit, it handled 50mA easily.
- Logic Gate: Outputs digital signals (0V or 5V). Perfect for microcontroller inputs. A 6N137 I used sent clean 5V signals to an Arduino.
- Power Types (IGBT/MOSFET): Control high currents (amps, not mA). Used in inverters or motor drives.
| Output Type | Max Current | Speed | Best Use |
|---|---|---|---|
| Photodiode | <1mA | Fast (100+ MHz) | High-speed data |
| Phototransistor | <10mA | Slow (100 kHz) | Simple on/off |
| Darlington | <100mA | Slower (10 kHz) | Relays, small motors |
| Logic Gate | 1A | Medium (1 MHz) | High-power devices |
A colleague used a phototransistor for a 1MHz signal once. It lagged—swapping to a photodiode fixed it. Match the output to your speed and current needs.
How Are Optocouplers Classified by Package?
Package type matters for space. I once picked a too-big optocoupler—it didn’t fit the PCB.

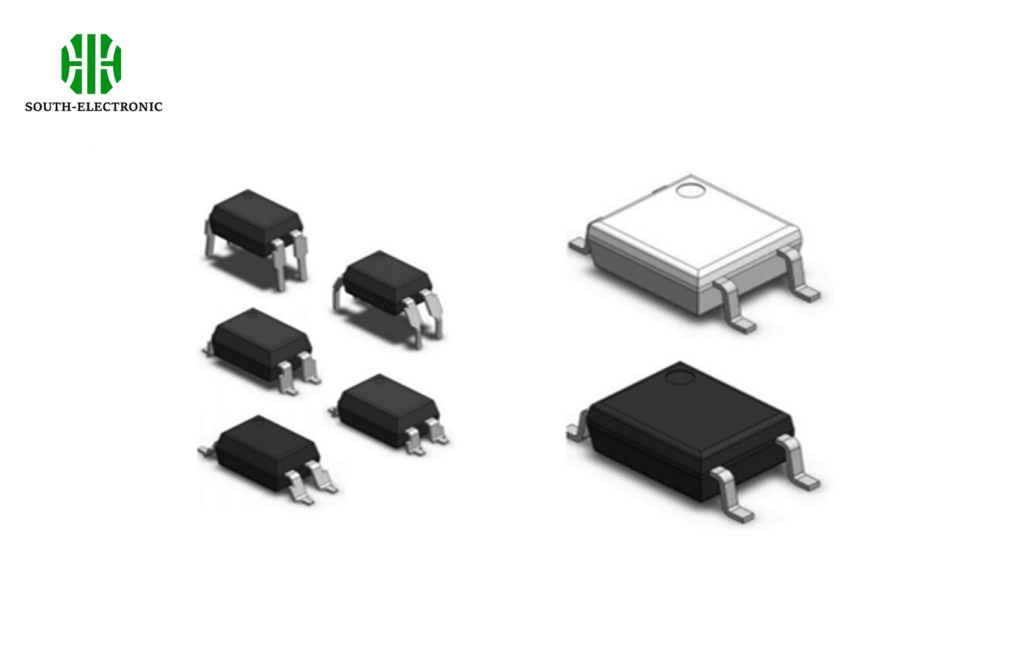

Packages include DIP, SMD, TO, coaxial, and fiber-optic types. Choose based on space and mounting needs.
Common Packages
- DIP (Dual In-line Package): Through-hole pins, easy to solder by hand. Good for prototyping. A 4N35 in DIP fit my breadboard perfectly.

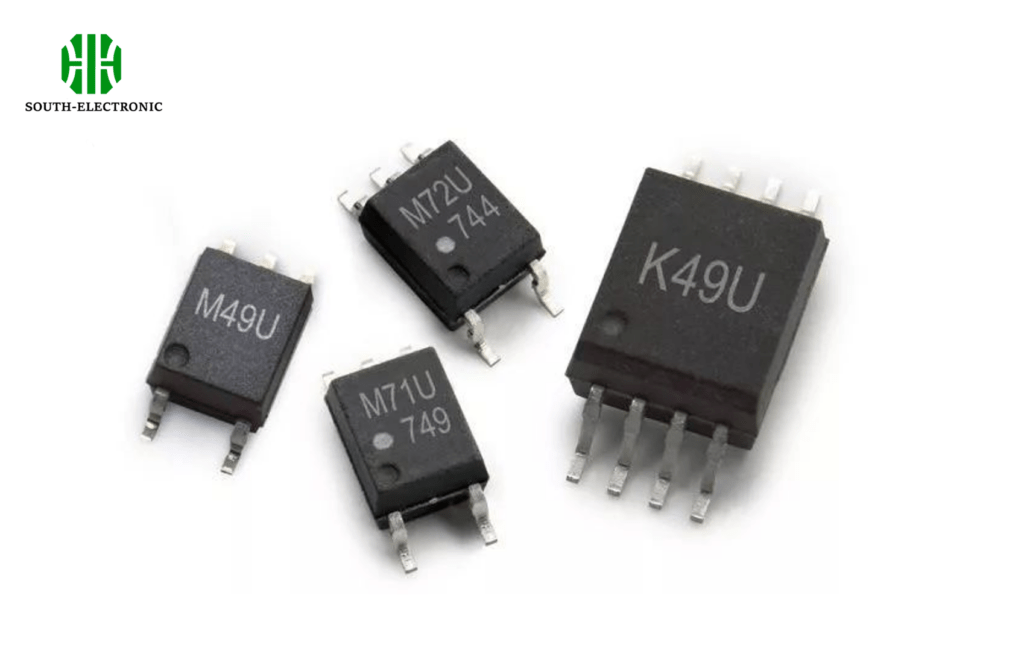

- SMD (Surface Mount): Small, flat, solders to PCB surface. Saves space in phones or wearables. I used an SMD optocoupler in a smartwatch charger—it fit the tiny PCB.
- TO Package: Metal can, better heat dissipation. Used for high-power types. A TO-220 optocoupler in a power supply stayed cool at 1A.
- Coaxial: Cylindrical, shields from external light. Good for sensitive circuits.
- Fiber-optic: Uses a fiber cable to carry light. Allows long distances between LED and detector. I saw these in factory machines—LED and detector were 10m apart.
| Package | Size | Mounting | Best For |
|---|---|---|---|
| DIP | Larger | Through-hole | Prototyping, low-volume |
| SMD | Small | Surface mount | Mass production, small devices |
| TO | Medium | Through-hole/SMD | High-power, heat-sensitive |
| Coaxial | Small | Through-hole | Sensitive circuits |
| Fiber-optic | Variable | Custom | Long-distance signal transmission |
Last year, I designed a PCB with DIP optocouplers. It worked but was bulky. Switching to SMD cut size by 40%—important for portable devices.
What Are Digital and Linear Optocouplers?
Digital vs. linear—mixing them up caused my audio circuit to distort. They handle signals differently.
Digital optocouplers send on/off signals. Linear ones transmit varying signals (like volume) accurately.
Digital Optocouplers
They work like switches. Input on = output on; input off = output off. No in-between. Great for binary signals (0s and 1s). I used one in a USB-to-serial adapter—it passed 0s and 1s without errors.
Linear Optocouplers
They copy the input signal’s strength. A 2V input makes a 2V output (scaled). Perfect for analog signals like audio or sensor readings. In a microphone circuit, a linear optocoupler kept the sound clear—no distortion.
| Type | Signal Type | Accuracy | Use Example |
|---|---|---|---|
| Digital | Binary (on/off) | High for 0/1 | Computer data, logic circuits |
| Linear | Varying (0-5V, etc.) | High for gradients | Audio, sensor signals |
I tried a digital optocoupler in an audio circuit once. Music turned into clicks—it couldn’t handle the varying signals. Linear was the fix.
How Do High-Speed and Low-Speed Optocouplers Differ?
A slow optocoupler in a fast circuit? Data gets lost. Speed matters more than you think.
High-speed optocouplers handle >10MHz signals. Low-speed ones work for <1MHz. Choose based on your signal speed.
High-Speed Optocouplers
They use fast components (like PIN photodiodes) and signal processing. Some hit 1GHz. Used in data communication (Ethernet, USB). A 6N138 I used handled 100MHz—no data loss.
Low-Speed Optocouplers
Slower (usually 10MHz (up to 1GHz) | PIN photodiode, signal processing | Data links, high-frequency circuits |
| Low-Speed | <1MHz | Phototransistor | Slow switches, sensors |
In a 50MHz oscilloscope probe, a low-speed optocoupler made the signal fuzzy. Upgrading to a high-speed model cleared it up—critical for accurate measurements.
Conclusion
Optocouplers isolate signals via light, with types for speed, signal type, and space. Pick the right one to avoid noise and failures.
