Ever struggled with overheating components melting your circuits? Aluminum PCBs solve heat issues that plague traditional boards. These thermal superstars keep high-power devices running cooler and longer through innovative layered construction.

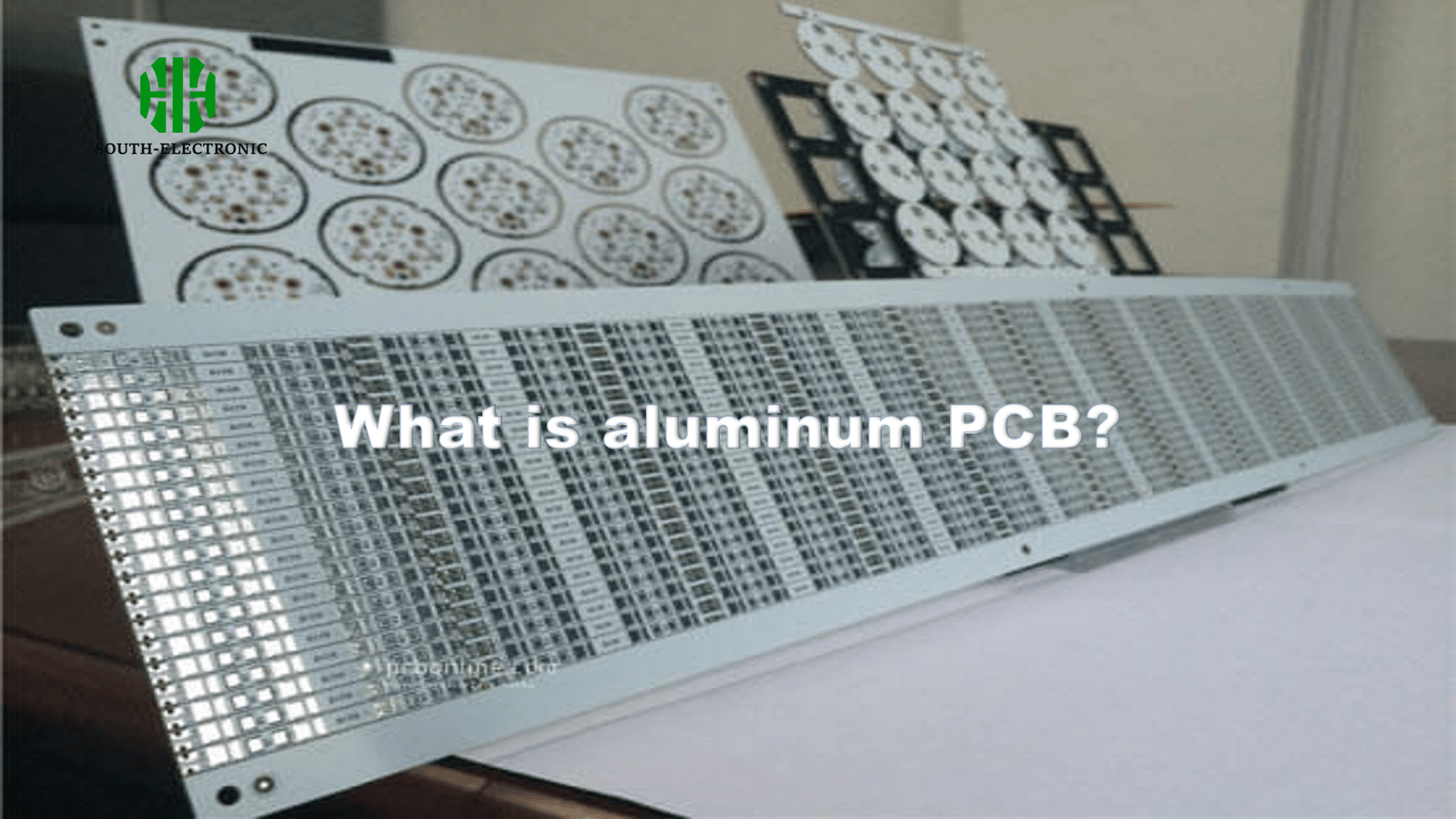

Aluminum PCBs[^1] are metal-core circuit boards combining an aluminum base, insulating layer, and copper circuitry for exceptional heat dissipation. They prevent component failure in high-temperature applications like LED systems and power converters.
While the basic concept sounds simple, the real magic happens in the specific construction choices and material combinations. Let's break down what makes these thermal management powerhouses tick across different applications.
What Makes Up an Aluminum PCB?
Frustrated by circuit boards warping under heat stress? Aluminum PCBs use a unique sandwich structure that traditional boards can't match. Their layered design turns heat management[^2] into a superpower.
Every aluminum PCB contains three essential layers: a conductive aluminum base (1-10mm thick), a thermally conductive dielectric layer (50-200μm), and copper circuitry (1-10oz). This trio works together like a heat-sinking dream team.
)
Material Roles in Heat Management
Each layer plays specific thermal and electrical roles:
| Layer | Function | Key Material Choices |
|---|---|---|
| Base | Heat sinking & structural support | 6061 or 5052 aluminum alloys |
| Dielectric | Electrical insulation & heat transfer | Epoxy resins with ceramic fillers |
| Circuitry | Electrical pathways | Electrodeposited copper |
The dielectric layer makes or breaks performance. Manufacturers tweak its ceramic content (aluminum oxide or boron nitride) to balance electrical isolation and thermal conductivity[^3]. I've seen designs where 90% ceramic filler achieves 3W/mK conductivity - five times better than standard FR4.
Why Choose Aluminum Over FR4 PCBs?
Tired of your power supplies turning into space heaters? Aluminum outshines FR4 when heat becomes the enemy. Its thermal conductivity dwarfs traditional materials, slashing operating temperatures by 20-40°C in my stress tests.
Aluminum conducts heat 5-10x better than FR4, preventing hot spots in high-current applications. While costing 30-50% more upfront, they reduce long-term expenses through better reliability and simpler cooling solutions.
)
Cost-Benefit Analysis Breakdown
| Factor | FR4 PCB | Aluminum PCB |
|---|---|---|
| Initial Cost | $ | $$$ |
| Heat Tolerance | 130°C | 150°C+ |
| Thermal Conductivity | 0.3W/mK | 1-5W/mK |
| Best For | Low-power devices | Power converters, LEDs |
A client's automotive LED project showcased this perfectly. Switching to aluminum boards reduced heatsink costs by 60% while increasing lumen output stability. The breakeven came within 8 months through lower warranty claims.
Where Are Aluminum PCBs Most Effective?
Ever seen LED streetlights fail in summer heat? That's where aluminum PCBs shine brightest. Their thermal superpowers solve reliability issues in light sources, vehicle electronics, and high-current systems.
Top applications include LED lighting[^4] (80% market share), automotive control units, solar inverters, and power supplies. I specify aluminum boards whenever junction temperatures exceed 85°C or power densities surpass 5W/cm².
Industry-Specific Usage Patterns
| Sector | Usage % | Key Benefit |
|---|---|---|
| Lighting | 45% | Longer LED lifespan |
| Automotive | 30% | Vibration resistance |
| Industrial | 15% | High current capacity |
| Consumer | 10% | Compact designs |
A recent HVAC controller project proved their versatility. By using aluminum PCBs, we eliminated cooling fans from power modules—crucial for dust-prone industrial environments. Maintenance costs dropped 40% annually.
How to Manufacture Aluminum PCBs? Critical Process Steps
Think standard PCB fabrication works for metal cores? Think again. Aluminum PCB production demands specialized handling to prevent warping and ensure dielectric integrity during high-temperature processes.
Key stages include surface pretreatment (vital for layer adhesion), precision dielectric coating, copper patterning via etching, and final finishing. Manufacturers must control CTE mismatches between layers—thermal expansion differences can delaminate poorly made boards.
Production Challenges & Solutions
| Step | Challenge | Industry Fix |
|---|---|---|
| Drilling | Aluminum burrs | Carbide drills with back-up plates |
| Lamination | Layer separation | Progressive pressure ramping |
| Etching | Uneven copper removal | Modified ammonia-free chemistry |
A prototyping mishap taught me the importance of surface treatment[^5]. Skipping plasma cleaning caused 30% layer delamination during reflow. Post-treatment, yields jumped to 98% with identical materials.
Thermal Management Tips for Aluminum PCB Designs
Assuming aluminum alone solves all thermal issues? That's like using a sports car in first gear. Maximize performance through strategic design choices rather than just material reliance.
Essential strategies include optimizing copper thickness[^6] (thicker=better heat spreading), strategic via placement under hot components, and dielectric layer tuning. Thermal simulations should guide layout decisions before committing to tooling.
Design Optimization Checklist
| Parameter | Ideal Range | Impact |
|---|---|---|
| Copper Weight | 4-8oz | Heat distribution |
| Component Spacing | 2-3mm | Airflow allowance |
| Dielectric Thickness | 75-150μm | Breakdown voltage vs conduction |
| Surface Finish | ENIG | Solder joint reliability |
When revising a motor driver layout, moving MOSFETs closer to mounting holes dropped junction temperatures by 18°C. Pair that with 6oz copper, and we achieved continuous 25A operation without active cooling.
Conclusion
Aluminum PCBs revolutionize thermal management through layered metal construction, outperforming FR4 in high-heat applications. From LED arrays to automotive systems, their unique structure enables reliable power handling where traditional boards falter. Smart material choices and careful manufacturing unlock their full potential.
